Machine Advantage
Stable output supports efficient continuous production.
02
Product Overview

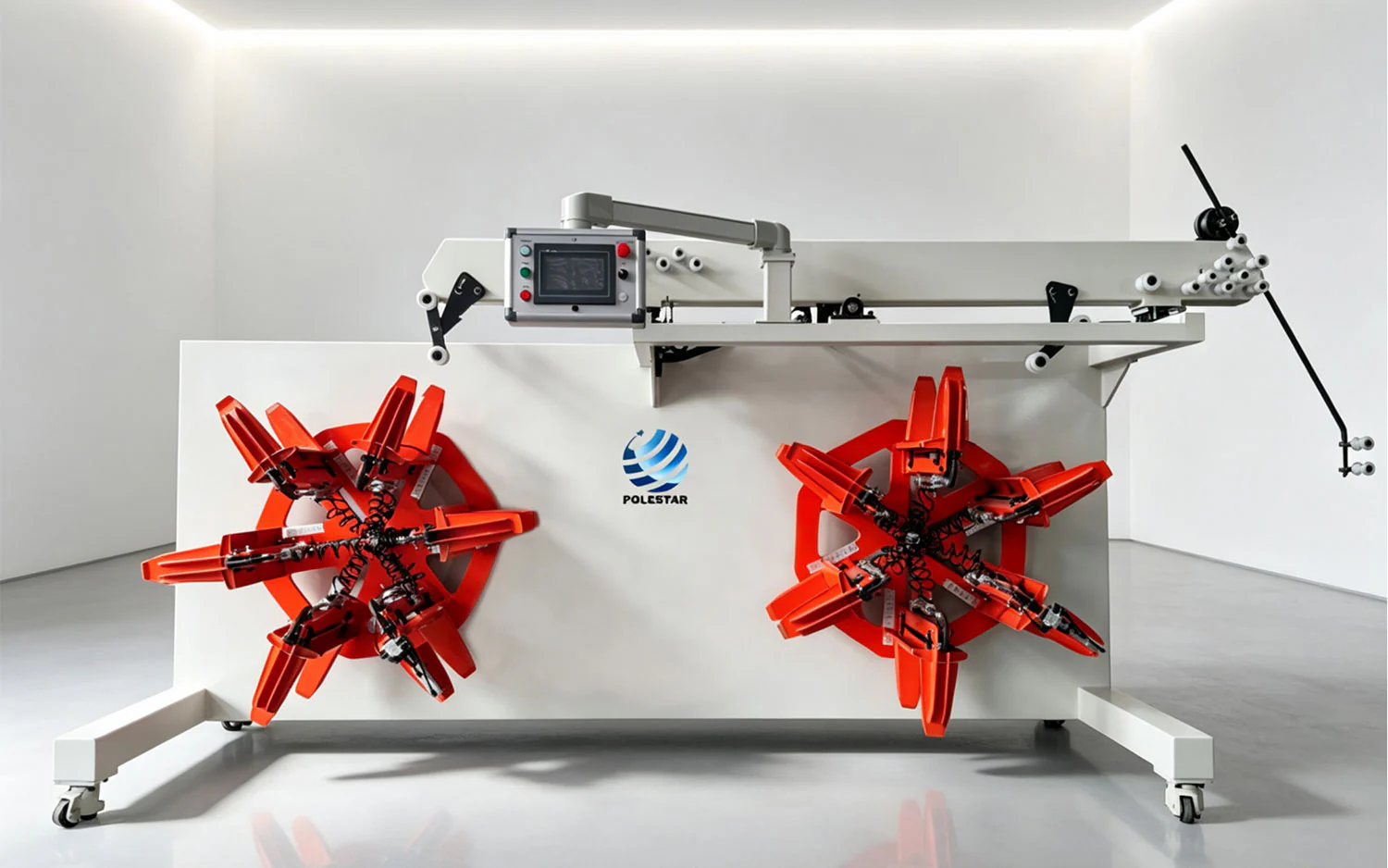

- JQ16-32-2VS is a high-efficiency double-station coiler for 16-32 mm PE pipes.

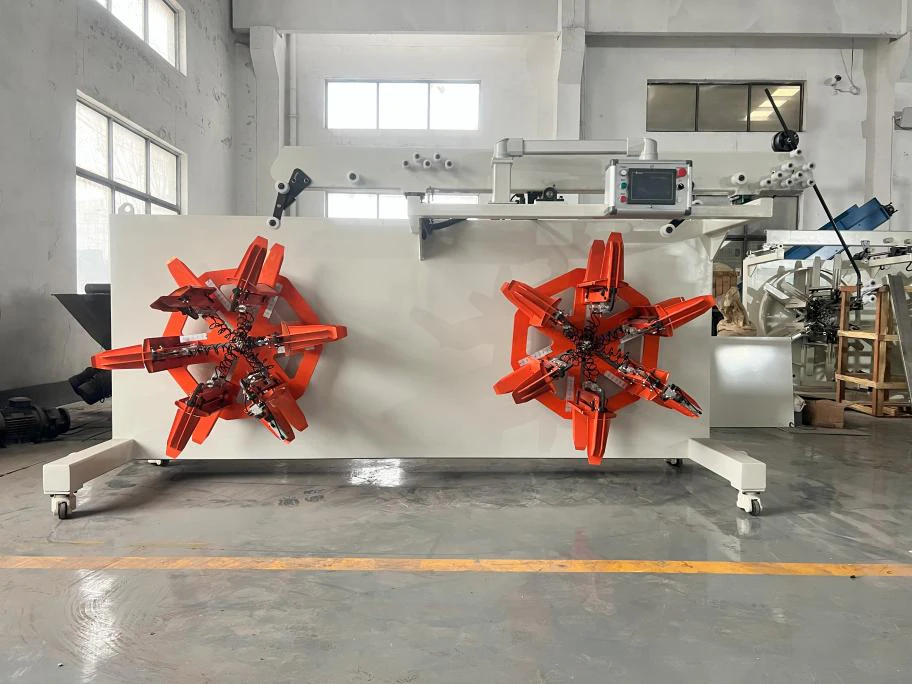

- Dual-reel alternating working mode supports non-stop continuous coiling with a max speed of 35 m/min, ideal for high-speed small pipe extrusion lines.
- Fully adjustable coiling inner diameter, outer diameter and width realize flexible coil size customization.

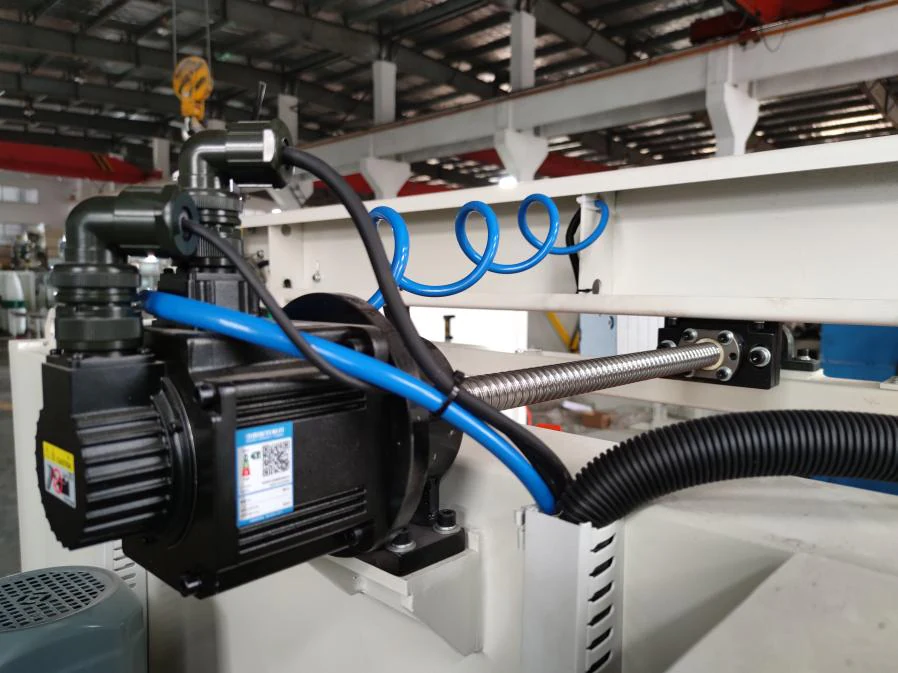

- Equipped with "DELTA" AC coiling motors adjusted by "DELTA" inverter and "DELTA" servo traverse motor, it achieves precise pipe arranging and uniform winding.

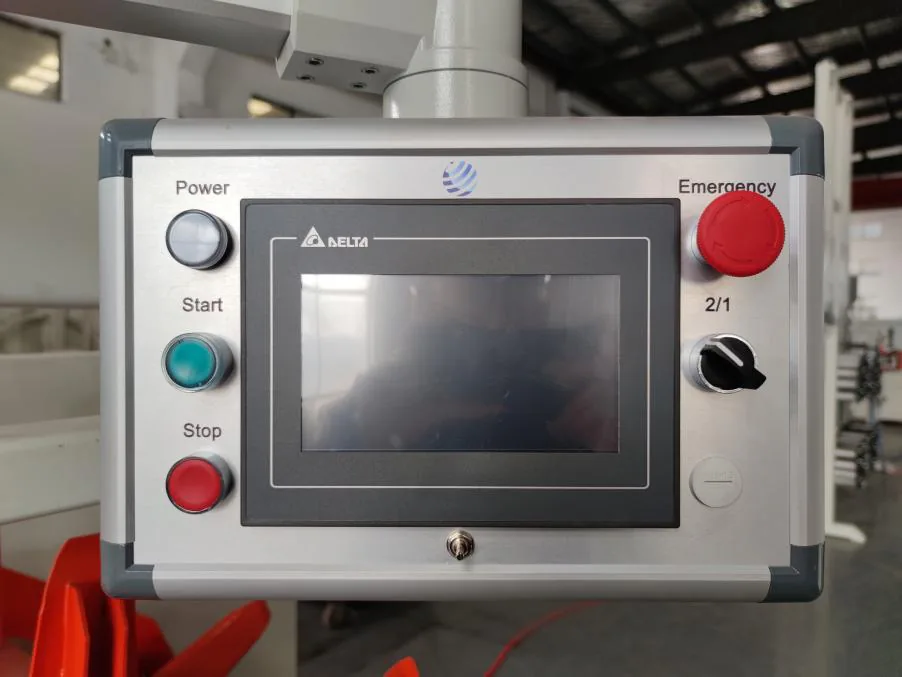

- "DELTA" PLC and touch screen is the core highlight of this coiler. It provides fully visualized human-machine interaction, allowing operators to quickly set coiling speed, coil diameter, arranging pitch and switching parameters.

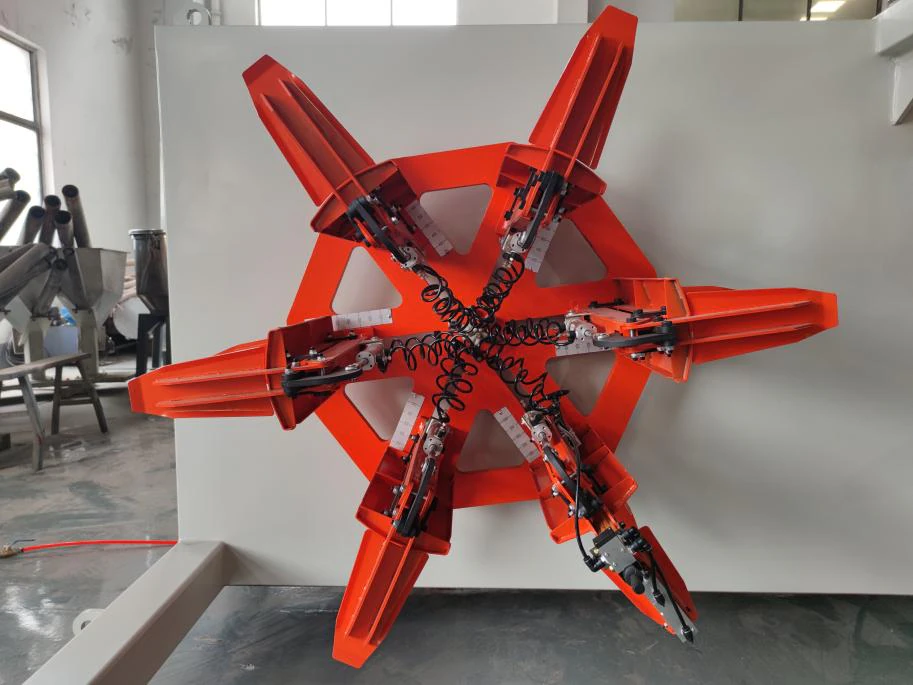

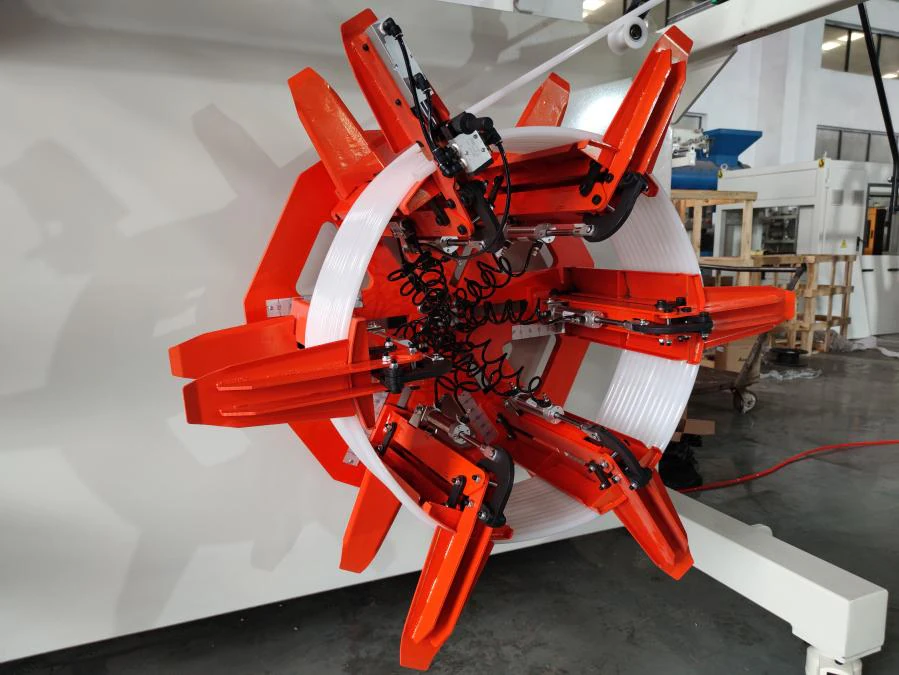

- Pneumatic automatic clamping and pneumatic coil discharging reduce labor cost, realize highly automatic, neat and tight pipe coiling with consistent finished coil quality.
03
Core Advantages
Machine Advantage
Precise control keeps product quality stable.
Machine Advantage
Reliable drive control keeps operation stable.
Machine Advantage
PLC touch control simplifies operation and monitoring.
Machine Advantage
Pneumatic clamping and pneumatic coil discharging reduce manual handling.
Machine Advantage
Designed for tidy, compact and consistent finished PE pipe coils.
04

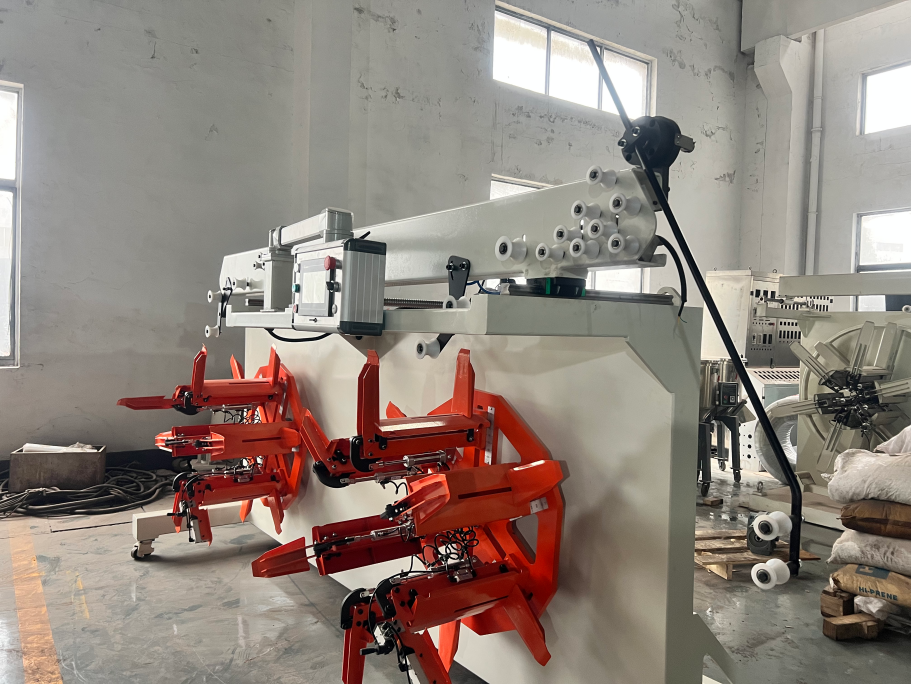

Product Details
05
Technical Parameters
| Model | Number of reels | Pipe range | Max. coiling speed | Coiling motor power | Traverse motor power |
|---|---|---|---|---|---|
| JQ16-32-2VS | Two (same position) | 16~32 MM | 35 M/Min. | 1.5 KW*2 | 0.9 KW |
| JQ16-32-4VS | Four | 16~32 MM | 30 M/Min. | 1.5 KW*4 | 0.9 KW*2 |
| JQ16-40-2VS | Two (opposite position) | 16~40 MM | 30 M/Min. | 1.5 KW*2 | 0.5 KW |
| JQ40-63-2VS | Two (same position) | 40~63 MM | 20 M/Min. | 1.0 KW*2 | 0.9 KW |
| JQ20-63-1VS | One | 20~63 MM | 20 M/Min. | 1.0 KW | 0.9 KW |
| JQ20-63-2VS | Two (same position) | 20~63 MM | 25 M/Min. | 2.2 KW*2 | 0.9 KW |
| JQ50-110-1VS | One | 50~110 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ50-125-1VS | One | 50~125 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ75-160-1VS | One | 75~160 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ76-225-1VS | One | 76~225 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ90-250-1VS | One | 90~250 MM | 23.5 M/Min. | 7.5 KW | - |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
Q1: What pipe range does JQ16-32-2VS Double-Reel Coiling Machine support?
Please refer to the technical parameters on this page. For special pipe sizes, Polestar Machinery can confirm the configuration according to your extrusion line.
Q2: Can this machine match an existing extrusion line?
Yes. Please provide your pipe material, pipe diameter range, line speed and coil specification, and our engineering team will check the matching configuration.
Q3: Can the machine be customized?
Yes. Coil diameter, control system, pneumatic functions and line layout can be configured according to project requirements.
Q4: What information is needed for quotation?
Please share pipe OD range, material, line speed, coil inner diameter, coil outer diameter, coil width and expected automation level.
