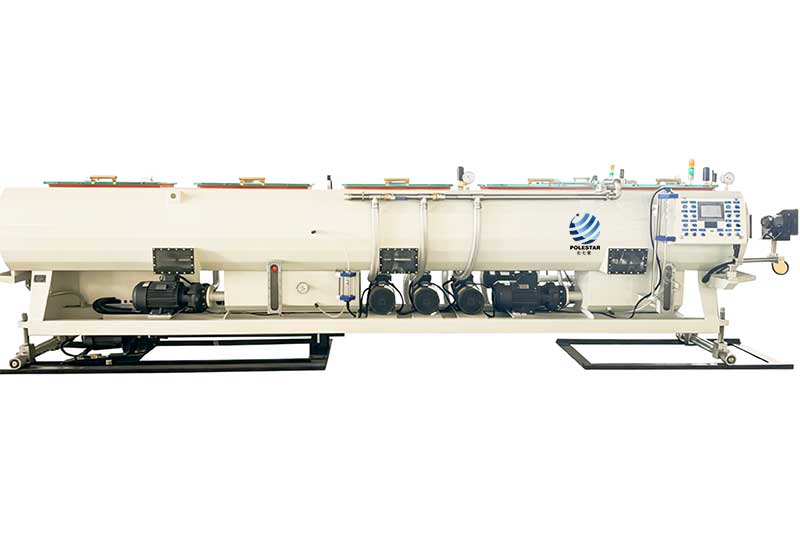

20~63MM VACUUM CALIBRATION TANK
20~63MM VACUUM CALIBRATION TANK for 20~63 MM plastic pipe extrusion lines with 6,000 MM tank length, 2.2KW *2 vacuum pump power and 3.0KW *2 water pump power.
Function
Vacuum sizing
Range
20-63 mm
Line
Plastic pipe
Plastic Auxiliary Machine
Auxiliary equipment for plastic pipe and profile extrusion lines, including vacuum tanks, haul-off machines, cutting machines and winding machines.
20~110MM VACUUM CALIBRATION TANK
20~110MM VACUUM CALIBRATION TANK for 20~110 MM plastic pipe extrusion lines with 6,000 MM tank length, 3.0 KW vacuum pump power and 4.0 KW water pump power.
Function
Vacuum sizing
Range
20-110 mm
Line
Plastic pipe
90~250MM VACUUM CALIBRATION TANK
90~250MM VACUUM CALIBRATION TANK for 90~250 MM plastic pipe extrusion lines with 6,000 MM tank length, 4.0 KW + 4.0 KW (equipped with inverter) vacuum pump power and 5.5 KW + 5.5 KW water pump power.
Function
Vacuum sizing
Range
90-250 mm
Line
Plastic pipe
75~250MM VACUUM CALIBRATION TANK
75~250MM VACUUM CALIBRATION TANK for 75~250 MM plastic pipe extrusion lines with 6,000 MM tank length, 3.0 KW + 4.0 KW vacuum pump power and 4.0 KW + 5.5 KW water pump power.
Function
Vacuum sizing
Range
75-250 mm
Line
Plastic pipe
110~450MM VACUUM CALIBRATION TANK
110~450MM VACUUM CALIBRATION TANK for 110~450 MM plastic pipe extrusion lines with 6,000 MM tank length, 4.0 KW *2 (equipped with inverter) vacuum pump power and 5.5 KW *2 water pump power.
Function
Vacuum sizing
Range
110-450 mm
Line
Plastic pipe
315~630MM VACUUM CALIBRATION TANK
315~630MM VACUUM CALIBRATION TANK for 315~630 MM plastic pipe extrusion lines with 6,000 MM tank length, 5.5 KW *3 (equipped with inverter) vacuum pump power and 7.5 KW *3 water pump power.
Function
Vacuum sizing
Range
315-630 mm
Line
Plastic pipe
630~1200MM VACUUM CALIBRATION TANK
630~1200MM VACUUM CALIBRATION TANK for 630~1200 MM plastic pipe extrusion lines with 10,000 MM tank length, 5.5 KW *4 (equipped with inverter) vacuum pump power and 7.5 KW *4 water pump power.
Function
Vacuum sizing
Range
630-1200 mm
Line
Plastic pipe
800~1600MM VACUUM CALIBRATION TANK
800~1600MM VACUUM CALIBRATION TANK for 800~1600 MM plastic pipe extrusion lines with 10,000 MM tank length, 11 KW *3 (equipped with inverter) vacuum pump power and 15 KW *3 (equipped with inverter) water pump power.
Function
Vacuum sizing
Range
800-1600 mm
Line
Plastic pipe
QY63 Plastic Pipe Two-Claw Haul-off Machine
QY63 plastic pipe two-claw haul-off machine for 20-63 mm pipes with 0.5-25 m/min hauling speed, twin 0.9 kW motors and 15,000 N maximum hauling force.
Function
Haul-off
Range
20-63 mm
Line
Plastic pipe
QY160 Plastic Pipe Three-Claw Haul-off Machine
QY160 Plastic Pipe Three-Claw Haul-off Machine for 63-160 MM pipes with 0.6-6.0 m/min. hauling speed, 1.1 KW*3 hauling motor power and 25,000N maximum hauling force.
Function
Haul-off
Range
63-160 mm
Line
Plastic pipe
QY250 Plastic Pipe Four-Claw Haul-off Machine
QY250 Plastic Pipe Four-Claw Haul-off Machine for 75-250 MM pipes with 0.3-12.0 m/min. hauling speed, 0.9 KW*4 hauling motor power and 55,000N maximum hauling force.
Function
Haul-off
Range
75-250 mm
Line
Plastic pipe
QY450 Plastic Pipe Six-Claw Haul-off Machine
QY450 Plastic Pipe Six-Claw Haul-off Machine for 160-450 MM pipes with 0.2-6.0 m/min. hauling speed, 0.9 KW*6 hauling motor power and 95,000N maximum hauling force.
Function
Haul-off
Range
160-450 mm
Line
Plastic pipe
