Pipe Range Matching
Covers key pipe sizes for flexible production.
02
Product Overview

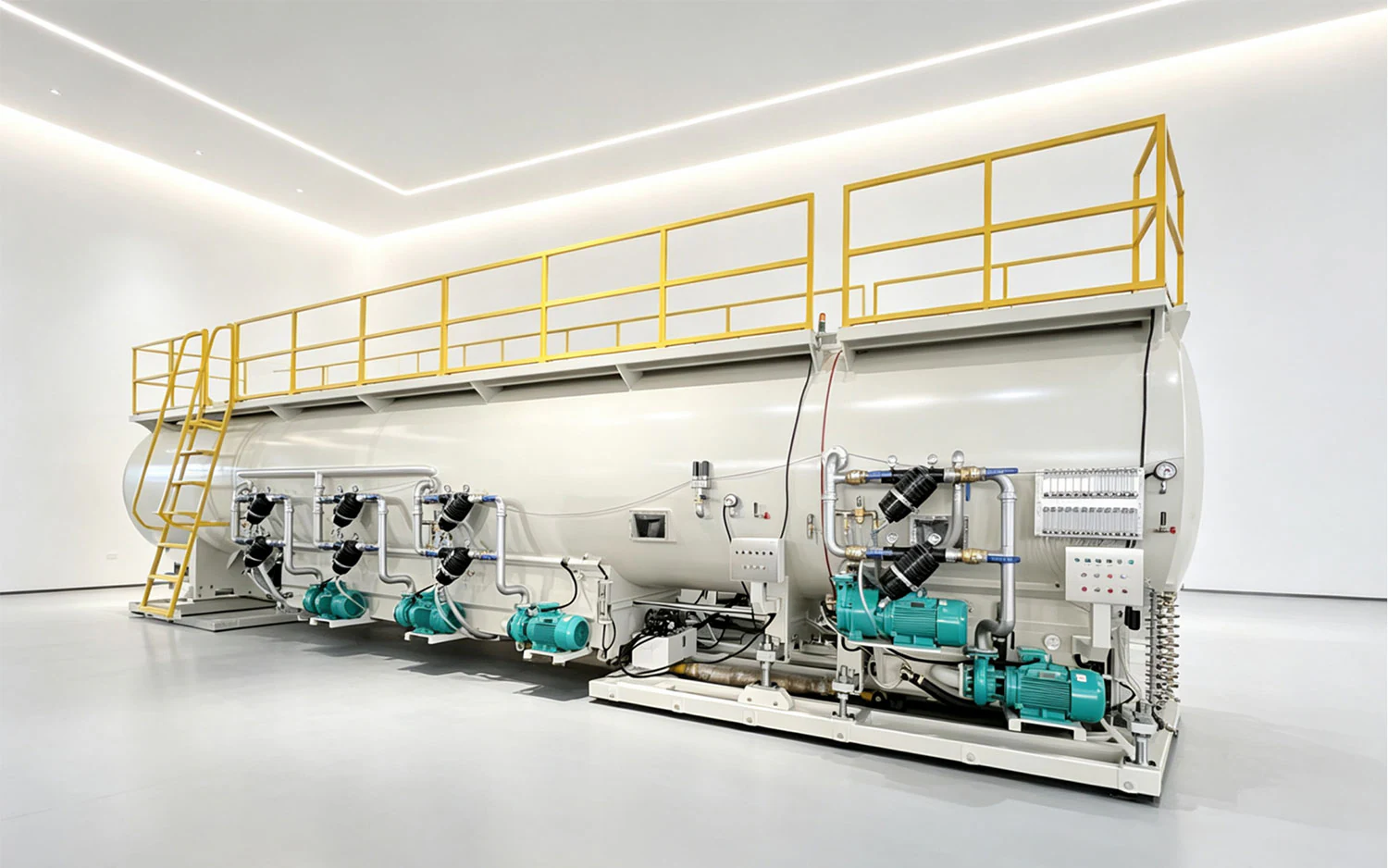

- Model ZDT1600-10M vacuum sizing tank is designed for plastic pipes with diameter 800~1600mm, perfectly matching PVC-U, PE and other huge pipe extrusion lines.

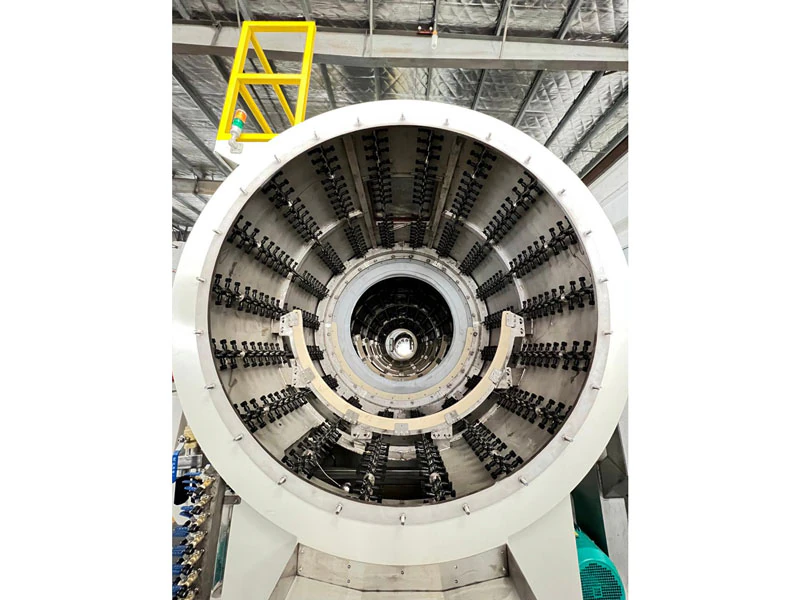

- Effective tank length reaches 10,000mm. Longer cooling & sizing section ensures sufficient cooling and shaping time. Pipes feature stable roundness, uniform dimension and less deformation.

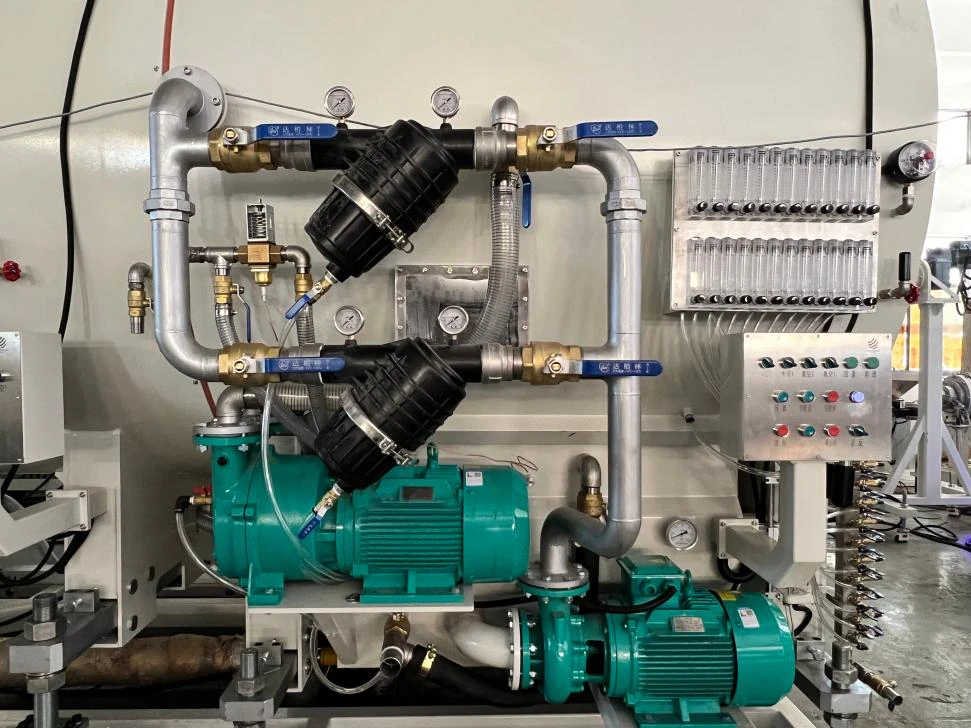

- Equipped with three sets of 11 KW vacuum pumps and three sets of 15 KW water pumps. Stable vacuum degree and sufficient cooling water flow, guarantee consistent sizing quality during long-hour continuous production.

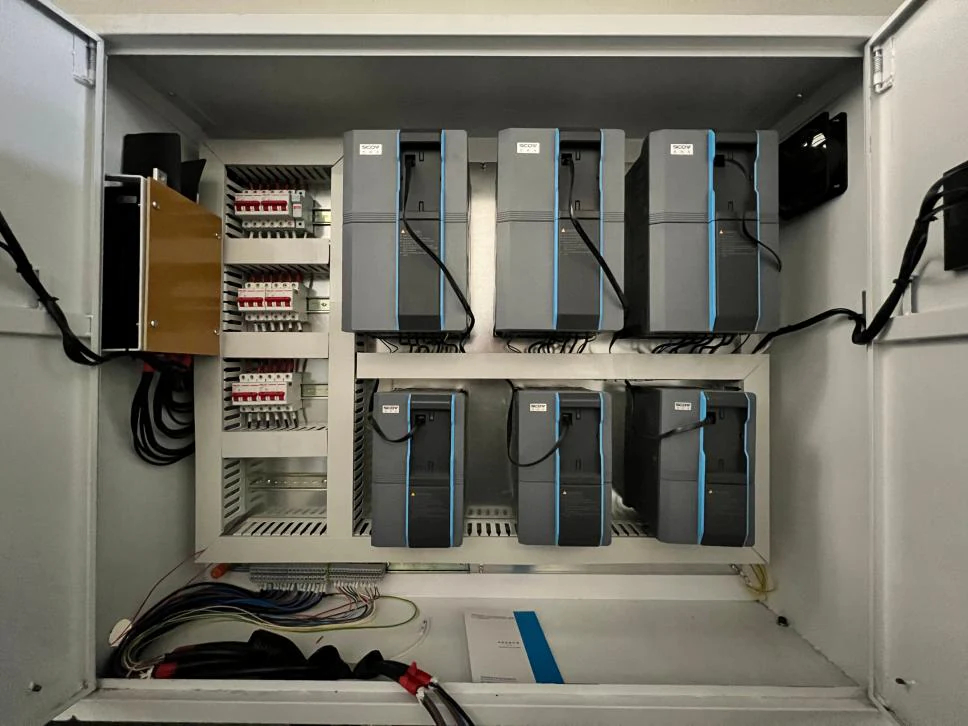

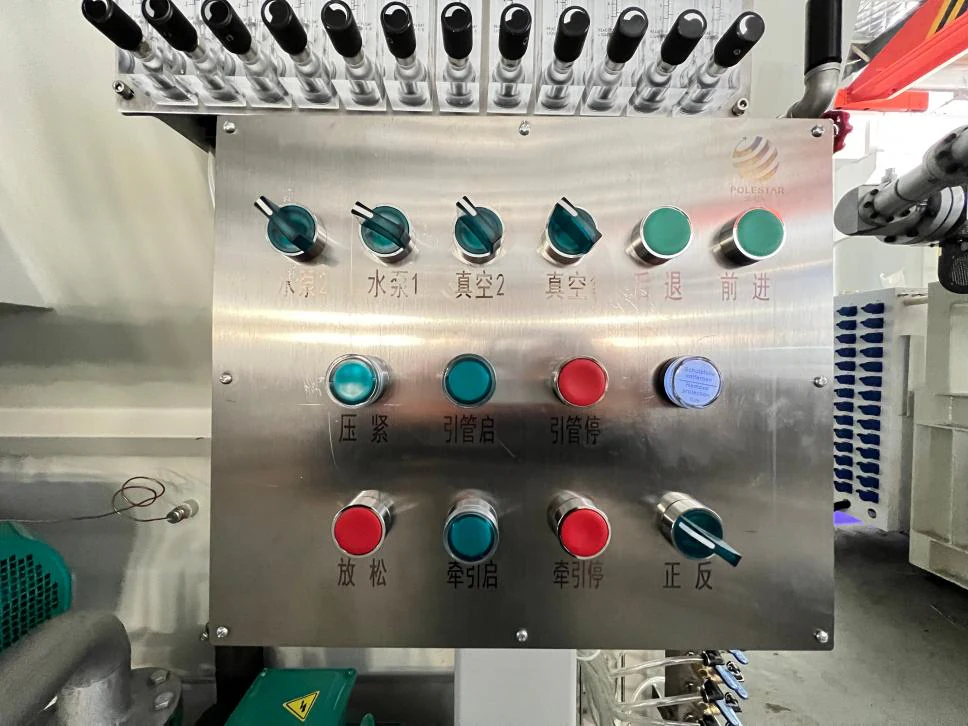

- Fitted with YOTO digital tachometer for real-time speed monitoring. AC contactors, push-buttons and indicator lights adopt SIEMENS brand. Stable control performance, low failure rate and convenient maintenance.
- The vacuum pump adjusts rotating speed automatically according to real-time vacuum demand, instead of continuous full-speed operation. It effectively cuts down unnecessary power consumption, especially during long-time continuous pipe extrusion production.
800~1600 MMPipe Range
10,000 MMTank Length
11 KW *3 (equipped with inverter)Vacuum Pump Power
15 KW *3 (equipped with inverter)Water Pump Power
03
Core Advantages
Long Vacuum Sizing Section
Precise control keeps product quality stable.
Stable Vacuum & Cooling
Stable output supports efficient continuous production.
Reliable Control Components
PLC touch control simplifies operation and monitoring.
Energy-saving Vacuum Control
Stable output supports efficient continuous production.
04

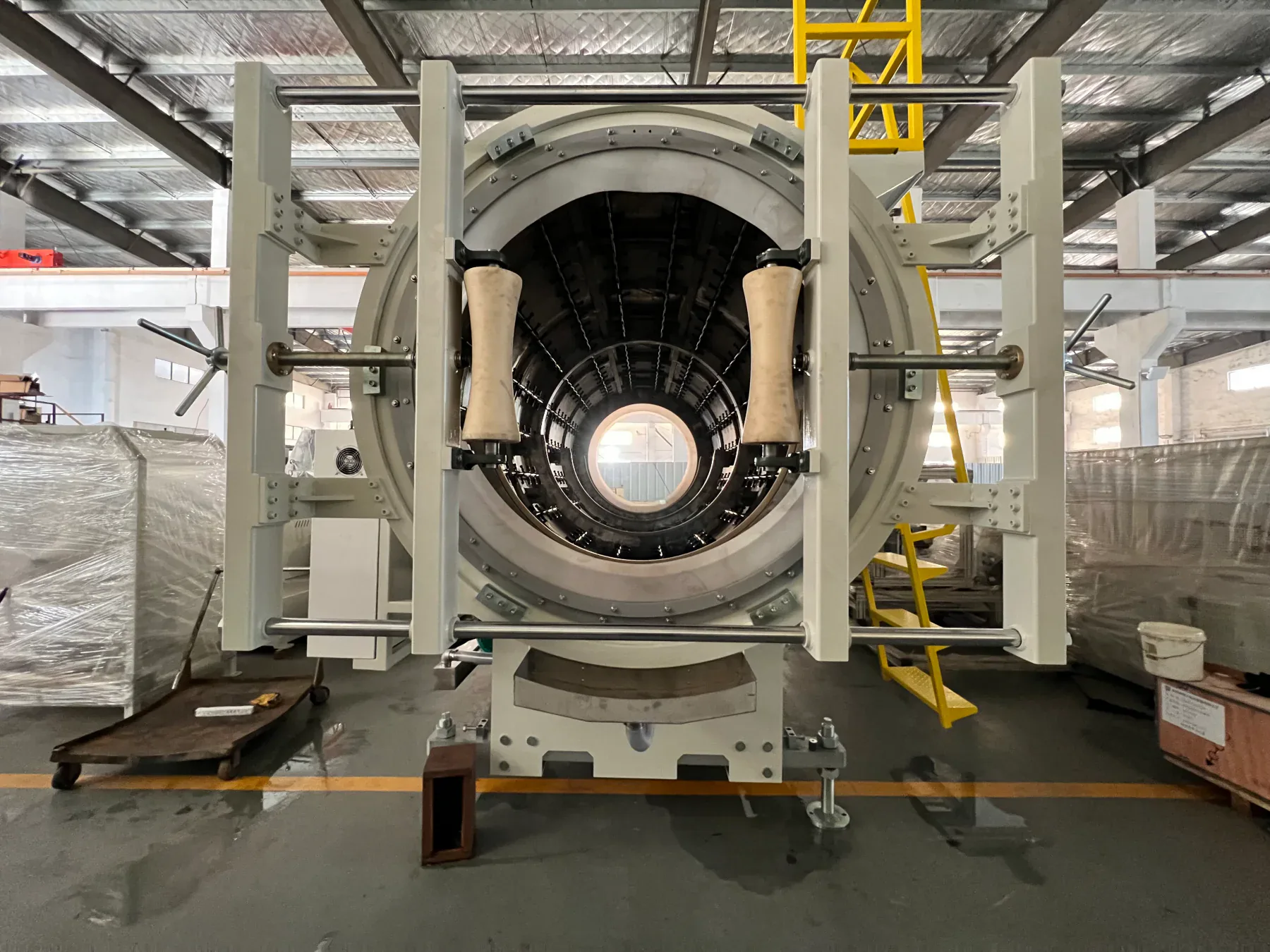

Product Details
05
Technical Parameters
| Model | Tank length | Pipe range | Vacuum pump | Water pump | Mobile motor | Height adj. | L/R adj. | Moving adj. |
|---|---|---|---|---|---|---|---|---|
| ZDT63-2K-6M | 6000 MM | 20~63 MM | 2.2 KW*2 | 3.0 KW*2 | 0.75 KW | +/-80 | +/-50 | +/-600 |
| ZDT63-2K-9M | 9000 MM | 20~63 MM | 2.2 KW+3 KW | 3 KW+4 KW | 0.75 KW | +/-40 | +/-30 | +/-300 |
| ZDT110-2K-6M | 6000 MM | 20~110 MM | 2.2 KW*2 | 3.0 KW*2 | 0.75 KW | +/-50 | +/-30 | +/-800 |
| ZDT110-2K-9M | 9000 MM | 20~110 MM | 2.2 KW+3 KW | 3 KW+4 KW | 0.75 KW | +/-40 | +/-30 | +/-300 |
| ZDT250-2K-6M | 6000 MM | 75~250 MM | 3 KW+4 KW | 4 KW+5.5 KW | 1.1 KW | +/-40 | +/-30 | +/-500 |
| ZDT250-2K-9M | 9000 MM | 75~250 MM | 3 KW+4 KW | 4 KW+5.5 KW | 1.1 KW | +/-40 | +/-30 | +/-600 |
| ZDT315-2K-9M | 9000 MM | 110~315 MM | 4 KW+5.5 KW | 5.5 KW+7.5 KW | 1.1 KW | +/-40 | +/-30 | +/-400 |
| ZDT450-2K-9M | 9000 MM | 110~450 MM | 4 KW+5.5 KW | 5.5 KW+7.5 KW | 1.5 KW | +/-50 | +/-50 | +/-500 |
| ZDT630-9M | 9000 MM | 250~630 MM | 5.5 KW*2 | 7.5 KW*2 | 1.5 KW | +/-60 | +/-40 | +/-1000 |
| ZDT800-10M | 10,000 MM | 355~800 MM | 7.5 KW*2 | 11 KW*2 | Hydraulic cylinder | +/-80 | +/-50 | +/-1200 |
| ZDT1200-10M | 10,000 MM | 630~1200 MM | 11 KW*2 | 15 KW*2 | Hydraulic cylinder | +/-80 | +/-50 | +/-1500 |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
What pipe diameter can this vacuum sizing tank process?
Suitable for plastic pipes ranging from 800 mm to 1600 mm outer diameter.
What is the effective length of the vacuum tank?
Tank length: 10,000 mm.
What is the center height of the tank?
Standard center height: 1000±50 mm. Vertical adjustment range ±80 mm.
Power configuration of vacuum pump and water pump?
Vacuum pump: 11 KW*3; Water circulation pump: 15 KW*3.
Power of moving motor?
Tank forward and backward adjusted by hydraulic cylinder.
How many directions can the tank be adjusted?
Up & down: ±80 mm Left & right: ±50 mm Forward & backward: ±1500 mm
Brand of tachometer and electric components?
Digital tachometer: YOTO; AC contactors, push-buttons, indicator lights: SIEMENS.
Is this vacuum tank suitable for PVC-U pipe line?
Yes. Widely matched with PVC-U, PE small diameter pipe extrusion lines.
Do you supply vacuum tank separately or together with full extrusion line?
We support separate supply of vacuum calibration tank, also can match with complete extrusion, haul-off and cutting line as your request.
Standard voltage of the machine?
Standard 380V/50Hz. We can customize voltage & frequency such as 415V/60Hz, 220V/60Hz according to local grid.
Lead time for this vacuum calibration tank?
Normally 20–30 working days after receiving deposit.
Warranty terms?
12 months warranty from shipment date, excluding quick-wearing spare parts.
