01 630~1200MM VACUUM CALIBRATION TANK

630~1200MM VACUUM CALIBRATION TANK

Vacuum calibration tank for stable sizing and cooling of 630~1200 MM plastic pipes.

10,000 MM tank length, 5.5 KW *4 (equipped with inverter) vacuum pump power, 7.5 KW *4 water pump power and 1100±50 MM tank center height.

Get a Quote

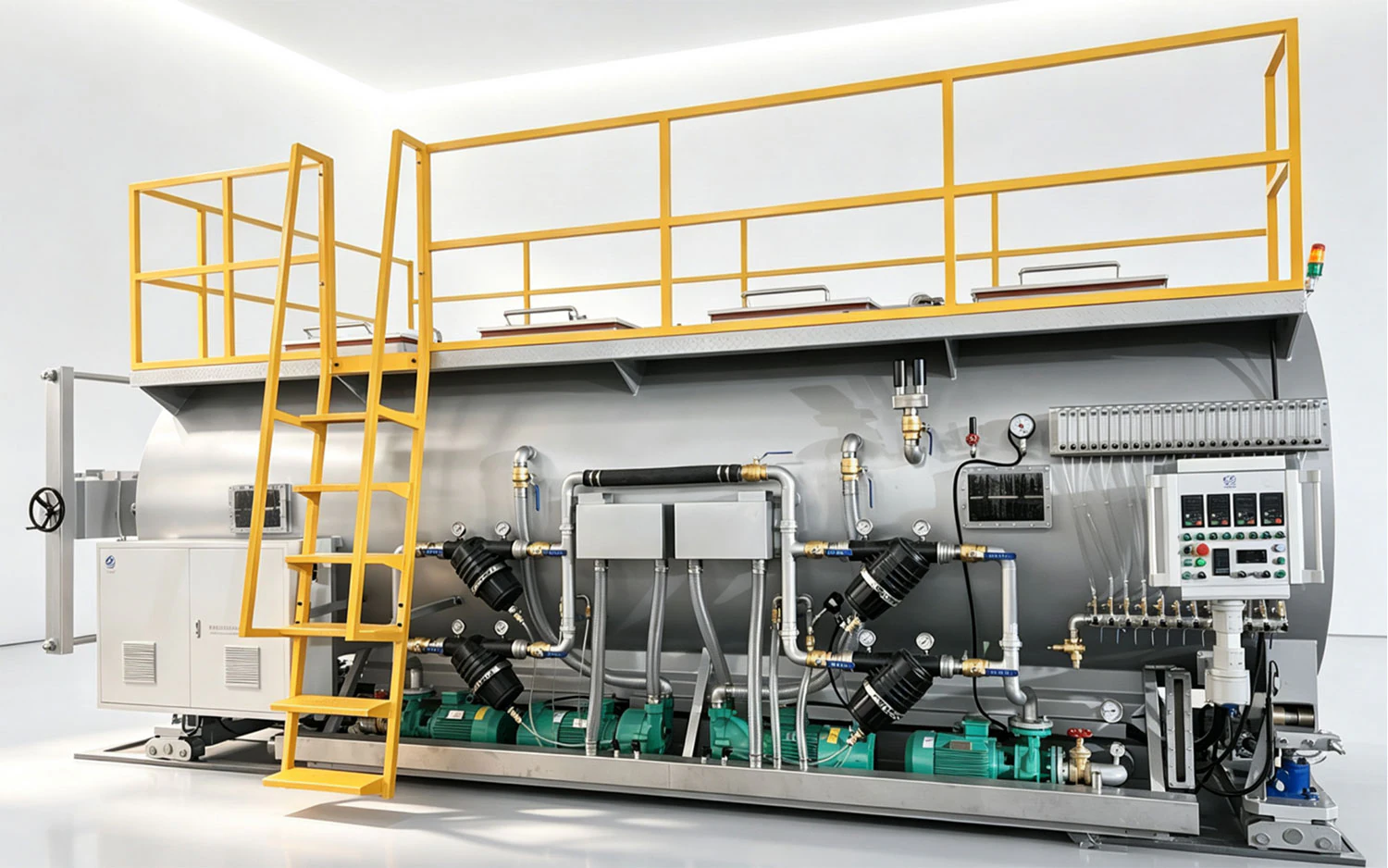

zdt1200-10m vacuum calibration tank
Get a Quote
02

Product Overview

  • Model ZDT1200-10M vacuum sizing tank is designed for plastic pipes with diameter 630~1200mm, perfectly matching PVC-U, PE and other huge pipe extrusion lines.
  • Effective tank length reaches 10,000mm. Longer cooling & sizing section ensures sufficient cooling and shaping time. Pipes feature stable roundness, uniform dimension and less deformation.
  • Equipped with four sets of 5.5 KW vacuum pumps and four sets of 7.5 KW water pumps. Stable vacuum degree and sufficient cooling water flow, guarantee consistent sizing quality during long-hour continuous production.
  • Fitted with YOTO digital tachometer for real-time speed monitoring. AC contactors, push-buttons and indicator lights adopt SIEMENS brand. Stable control performance, low failure rate and convenient maintenance.
  • The vacuum pump adjusts rotating speed automatically according to real-time vacuum demand, instead of continuous full-speed operation. It effectively cuts down unnecessary power consumption, especially during long-time continuous pipe extrusion production.
630~1200 MMPipe Range
10,000 MMTank Length
5.5 KW *4 (equipped with inverter)Vacuum Pump Power
7.5 KW *4Water Pump Power
03

Core Advantages

01

Pipe Range Matching

Covers key pipe sizes for flexible production.

02

Long Vacuum Sizing Section

Precise control keeps product quality stable.

03

Stable Vacuum & Cooling

Stable output supports efficient continuous production.

04

Reliable Control Components

PLC touch control simplifies operation and monitoring.

05

Energy-saving Vacuum Control

Stable output supports efficient continuous production.

04

Product Details

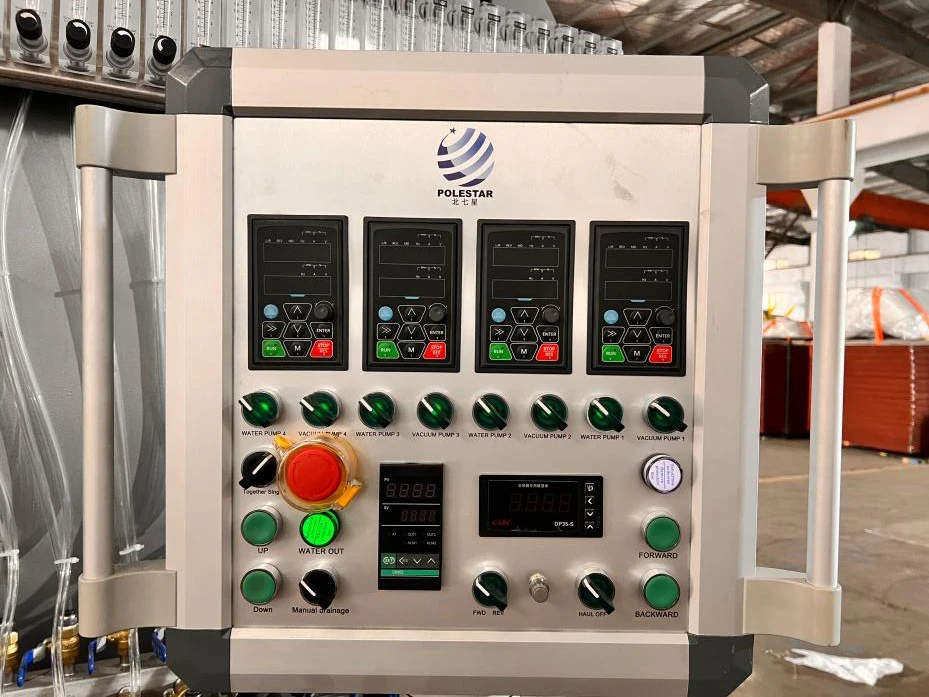

630~1200MM VACUUM CALIBRATION TANK product detail 1

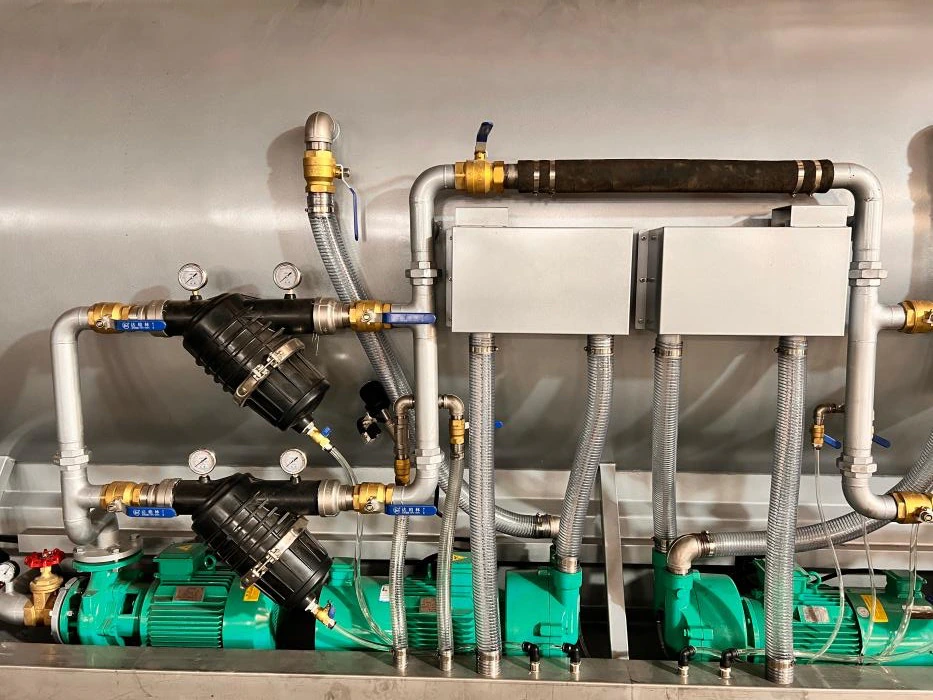

630~1200MM VACUUM CALIBRATION TANK product detail 2

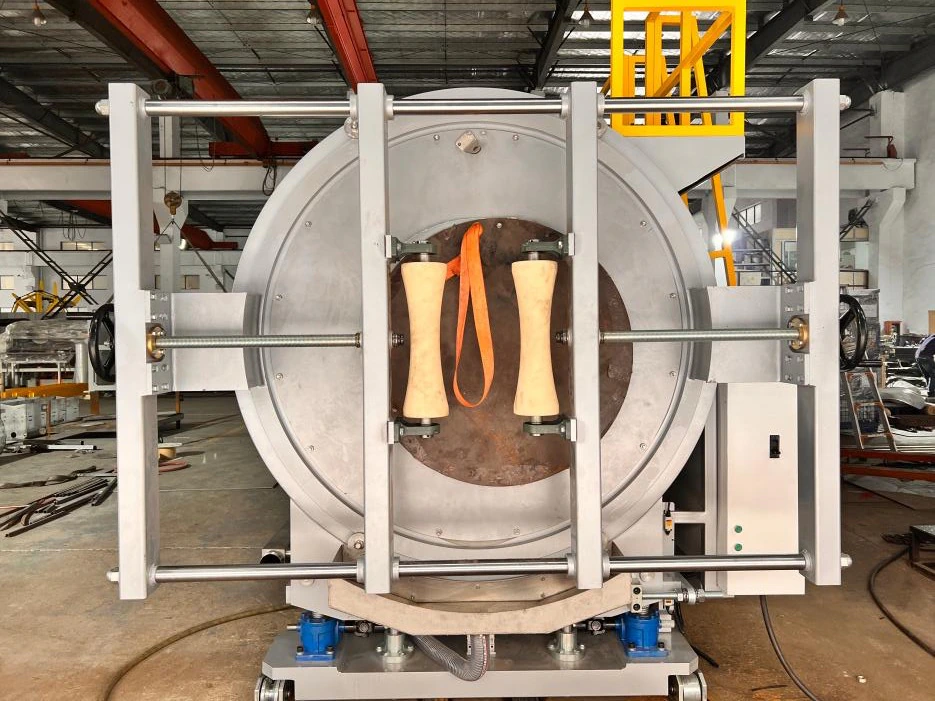

630~1200MM VACUUM CALIBRATION TANK product detail 3

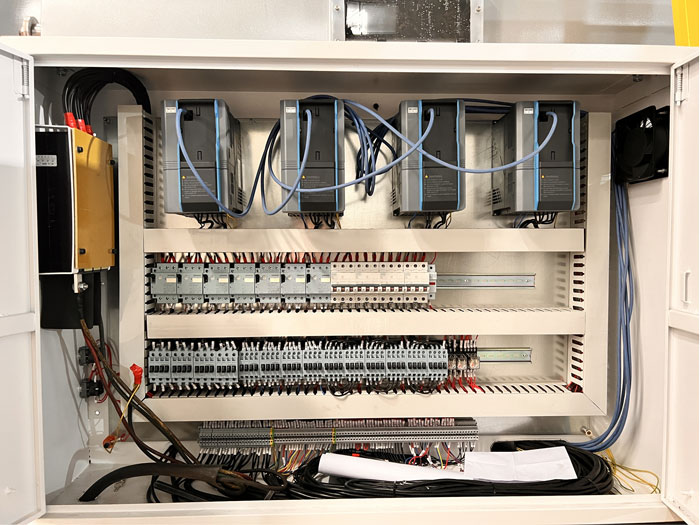

630~1200MM VACUUM CALIBRATION TANK product detail 4
05

Technical Parameters

ModelTank lengthPipe rangeVacuum pumpWater pumpMobile motorHeight adj.L/R adj.Moving adj.
ZDT63-2K-6M6000 MM20~63 MM2.2 KW*23.0 KW*20.75 KW+/-80+/-50+/-600
ZDT63-2K-9M9000 MM20~63 MM2.2 KW+3 KW3 KW+4 KW0.75 KW+/-40+/-30+/-300
ZDT110-2K-6M6000 MM20~110 MM2.2 KW*23.0 KW*20.75 KW+/-50+/-30+/-800
ZDT110-2K-9M9000 MM20~110 MM2.2 KW+3 KW3 KW+4 KW0.75 KW+/-40+/-30+/-300
ZDT250-2K-6M6000 MM75~250 MM3 KW+4 KW4 KW+5.5 KW1.1 KW+/-40+/-30+/-500
ZDT250-2K-9M9000 MM75~250 MM3 KW+4 KW4 KW+5.5 KW1.1 KW+/-40+/-30+/-600
ZDT315-2K-9M9000 MM110~315 MM4 KW+5.5 KW5.5 KW+7.5 KW1.1 KW+/-40+/-30+/-400
ZDT450-2K-9M9000 MM110~450 MM4 KW+5.5 KW5.5 KW+7.5 KW1.5 KW+/-50+/-50+/-500
ZDT630-9M9000 MM250~630 MM5.5 KW*27.5 KW*21.5 KW+/-60+/-40+/-1000
ZDT800-10M10,000 MM355~800 MM7.5 KW*211 KW*2Hydraulic cylinder+/-80+/-50+/-1200
ZDT1200-10M10,000 MM630~1200 MM11 KW*215 KW*2Hydraulic cylinder+/-80+/-50+/-1500
06

Factory Strength

20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production managementPolestar factory machining workshop for extrusion equipment partsPolestar machinery assembly workshop for plastic pipe extrusion linesPolestar machine inspection area for pre-delivery testingPolestar production area for plastic pipe machinery manufacturingCustomer visit at Polestar factory for extrusion line inspection
07

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipmentPolestar Machinery machine packing and loading for export deliveryPlastic extrusion machine container loading at Polestar factoryPolestar Machinery container loading inspection before shippingPlastic extrusion equipment shipment and container loading servicePolestar Machinery export shipment for plastic pipe extrusion line
08

Customer Projects

Plastic pipe machinery customer project 1Plastic pipe machinery customer project 2Plastic pipe machinery customer project 3Plastic pipe machinery customer project 4Plastic pipe machinery customer project 5Plastic pipe machinery customer project 6
09

Frequently Asked Questions

What pipe diameter can this vacuum sizing tank process?

Suitable for plastic pipes ranging from 630 mm to 1200 mm outer diameter.

What is the effective length of the vacuum tank?

Tank length: 10,000 mm.

What is the center height of the tank?

Standard center height: 1000±50 mm. Vertical adjustment range ±80 mm.

Power configuration of vacuum pump and water pump?

Vacuum pump: 5.5 KW*4; Water circulation pump: 7.5 KW*4.

Power of moving motor?

Tank forward and backward adjusted by hydraulic cylinder.

How many directions can the tank be adjusted?

Up & down: ±80 mm Left & right: ±50 mm Forward & backward: ±1500 mm

Brand of tachometer and electric components?

Digital tachometer: YOTO; AC contactors, push-buttons, indicator lights: SIEMENS.

Is this vacuum tank suitable for PVC-U pipe line?

Yes. Widely matched with PVC-U, PE small diameter pipe extrusion lines.

Do you supply vacuum tank separately or together with full extrusion line?

We support separate supply of vacuum calibration tank, also can match with complete extrusion, haul-off and cutting line as your request.

Standard voltage of the machine?

Standard 380V/50Hz. We can customize voltage & frequency such as 415V/60Hz, 220V/60Hz according to local grid.

Lead time for this vacuum calibration tank?

Normally 20–30 working days after receiving deposit.

Warranty terms?

12 months warranty from shipment date, excluding quick-wearing spare parts.
