20-63 MM Pipe Range
Covers key pipe sizes for flexible production.
02
Product Overview

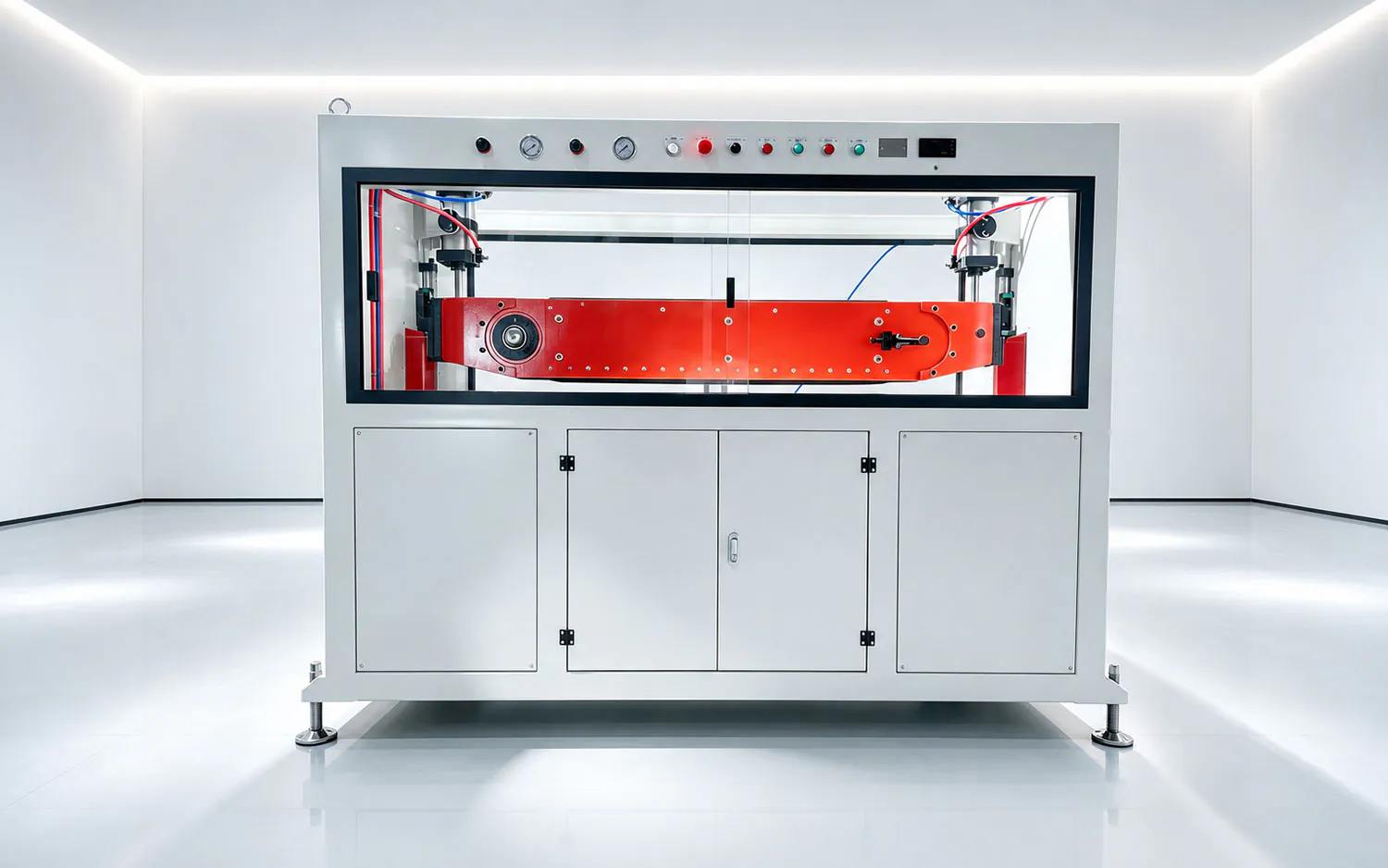

QY63 Plastic Pipe Two-Claw Haul-off Machine is designed for small and medium plastic pipe extrusion lines. It provides stable traction for 20-63 mm pipes, adjustable hauling speed and reliable clamping control to keep continuous pipe production smooth and consistent.
20-63 MMPipe Range
0.5-25 m/minHauling Speed
0.9 KW*2Motor Power
15,000 NMax. Hauling Force
03
Core Advantages
Twin-Claw Clamping Structure
1300 mm clamping length and 110 mm clamping width provide.
Stepless Speed Adjustment
Stable output supports efficient continuous production.
Stable Servo Traction
Reliable drive control keeps operation stable.
Flexible Center Height
Adjustable height simplifies line matching.
Reliable Long-Run Operation
Energy-saving design reduces operating cost.
04

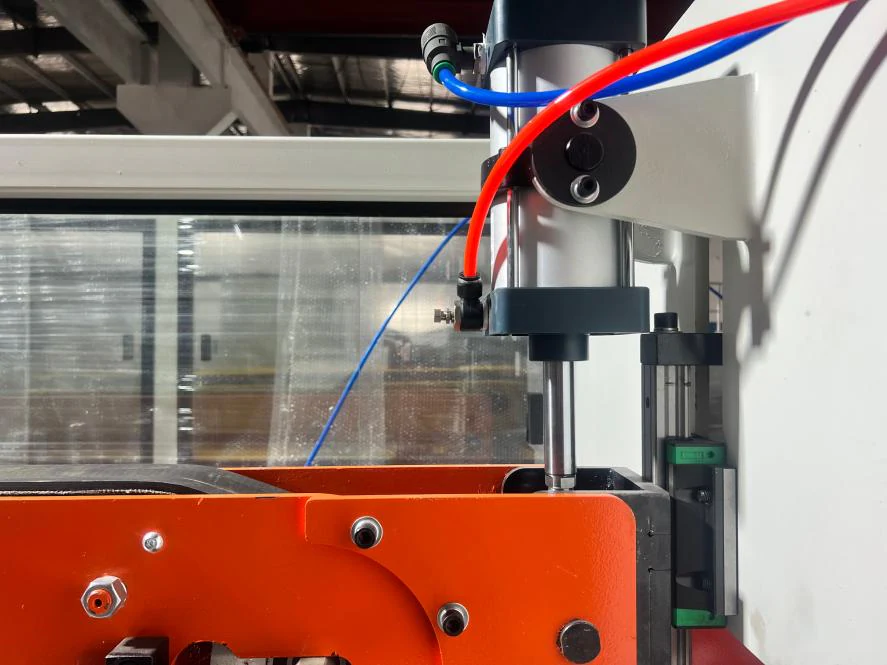

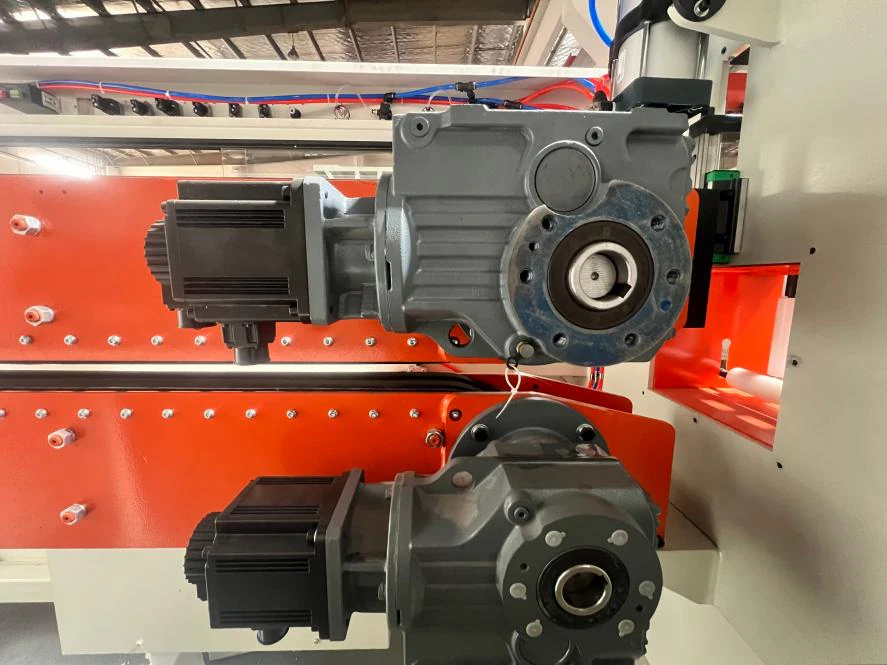

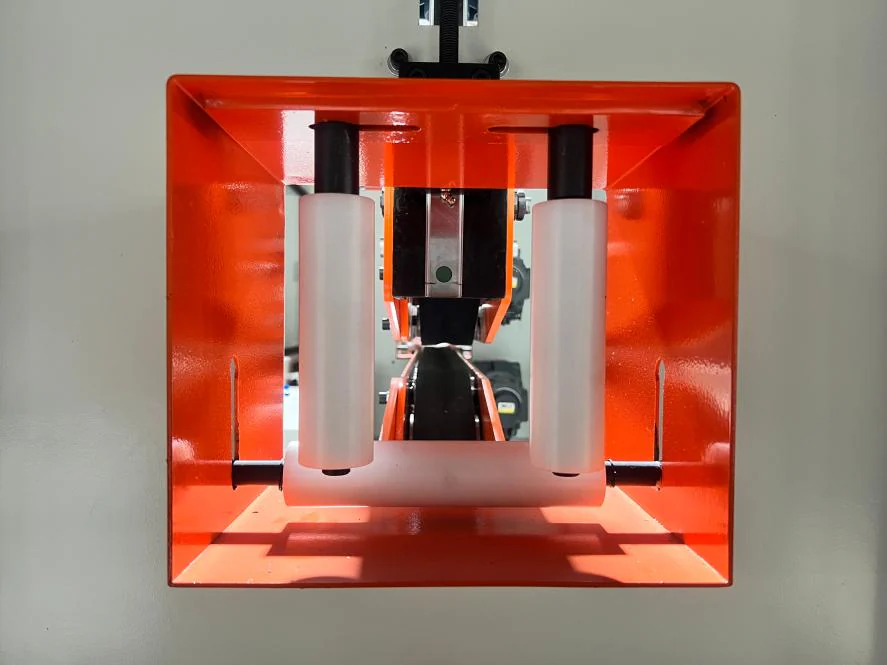

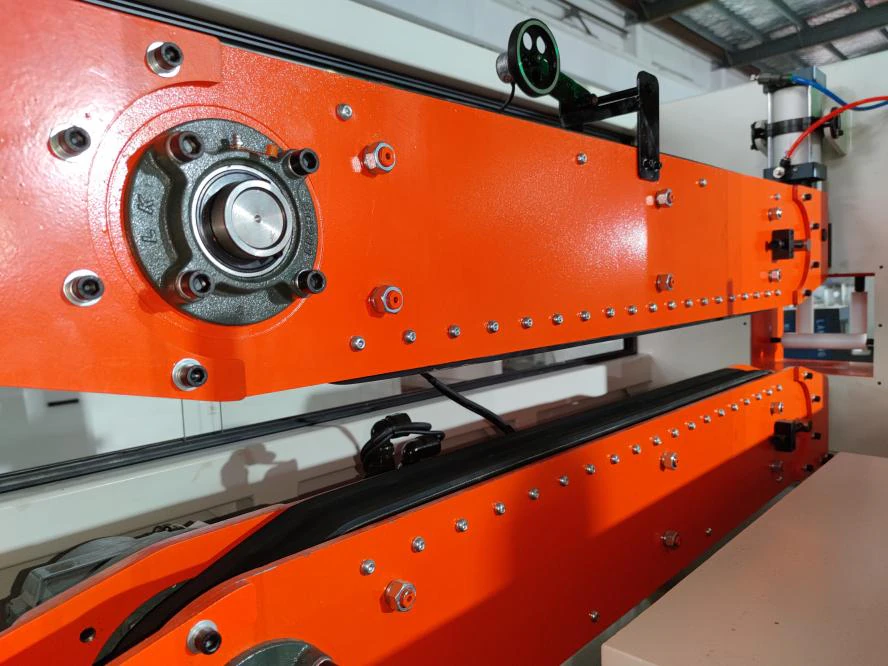

Product Details
05
Technical Parameters
| Model | Number of Claws | Pipe Range | Hauling Speed | Hauling Motor Power | Lifting Motor Power |
|---|---|---|---|---|---|
| QY63 | Two claws | Φ20-63 mm | 0.5-25 m/min | 0.9 KW*2 | / |
| QY110 | Two claws | Φ20-110 mm | 0.5-25 m/min | 0.9 KW*2 | / |
| QY160 | Three claws | Φ63-160 mm | 0.6-6 m/min | 1.1 KW*3 | 0.55 KW*2 |
| QY250 | Four claws | Φ75-250 mm | 0.3-12 m/min | 0.9 KW*4 | 0.55 KW*2 |
| QY315 | Four claws | Φ90-315 mm | 0.2-8 m/min | 0.9 KW*4 | 0.75 KW*2 |
| QY450 | Six claws | Φ160-450 mm | 0.2-6 m/min | 0.9 KW*6 | 0.75 KW*3 |
| QY630 | Six claws | Φ250-630 mm | 0.05-2.5 m/min | 0.9 KW*6 | 0.75 KW*3 |
| QY800 | Eight claws | Φ355-800 mm | 0.02-0.8 m/min | 0.9 KW*8 | 0.75 KW*4 |
| QY1200 | Ten claws | Φ630-1200 mm | 0.02-0.8 m/min | 0.9 KW*10 | 3 KW*2 |
| QY1600 | Twelve claws | Φ800-1600 mm | 0.01-0.3 m/min | 0.9 KW*12 | 4 KW |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
Q1: What pipe sizes can this QY63 two-claw haul-off machine process?
It is suitable for plastic pipes with outer diameter ranging from 20 mm to 63 mm.
Q2: What is the hauling speed range of the QY63 haul-off machine?
The hauling speed is stepless adjustable from 0.5 m/min to 25 m/min.
Q3: How many traction motors are equipped on this machine? What is the power?
Two hauling motors are equipped, each 0.9 kW. Total motor power is 1.8 kW.
Q4: What is the maximum hauling force of the QY63 tractor?
The maximum hauling force reaches 15,000 N to ensure stable traction during extrusion.
Q5: What are the clamping length and clamping width?
Clamping length is 1300 mm and clamping width is 110 mm. The large contact area helps prevent pipe scratching and deformation.
Q6: Can we adjust the center height of the haul-off machine?
Yes. The center height is 1000+/-100 mm, adjustable to match your extruder and downstream equipment.
Q7: Which kinds of plastic pipes is this haul-off machine applicable to?
It is widely used for HDPE, PP, PERT and PVC small and medium-sized plastic solid wall pipes.
Q8: Is the speed control frequency conversion type?
Yes, it adopts frequency conversion speed regulation for stable speed and easy operation.
Q9: What material are the clamping claws made of?
Customizable belt clamping claws provide good friction performance and effectively protect the pipe surface.
Q10: Can this haul-off machine match our existing extrusion line?
Please provide your extruder model, pipe production speed and pipe material, and we can confirm matching feasibility for you.
Q11: What is the delivery time?
Normally 20-30 working days upon receiving your deposit.
Q12: What is your warranty period?
We provide 12 months warranty for the whole machine, excluding wearing spare parts.
