Pipe Range
Covers key pipe sizes for flexible production.
02
Product Overview

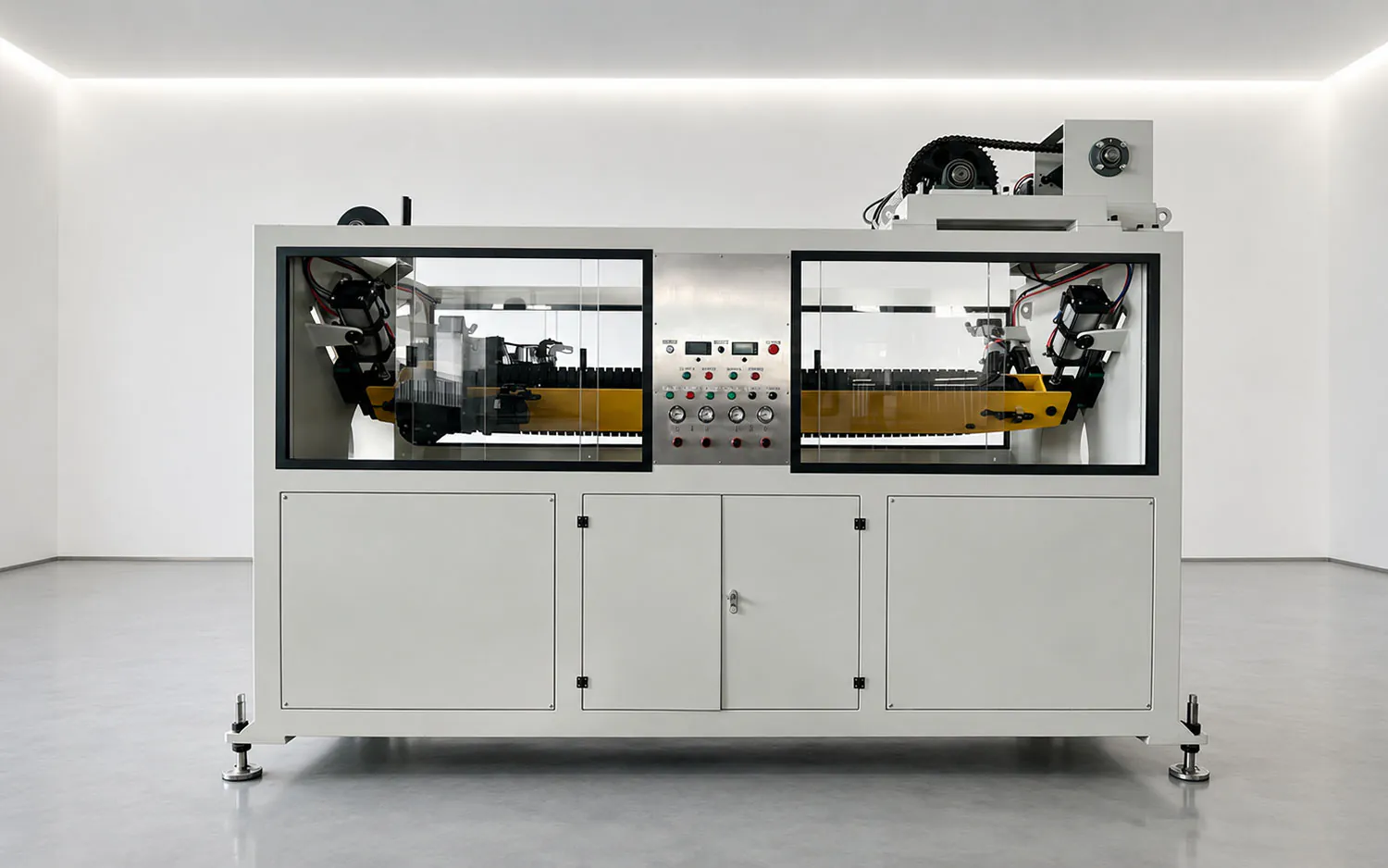

QY250 four-claw haul-off machine applies to 75-250 mm large-diameter plastic pipes. The 4-claw symmetrical clamping structure with 1600 mm long clamping area ensures even force distribution, protecting pipes from deformation and surface damage.
75-250 MMPipe Range
0.3-12.0 m/min.Hauling Speed
0.9 KW*4Motor Power
55,000NMax. Hauling Force
03
Core Advantages
Clamping Structure
Stable output supports efficient continuous production.
Speed Adjustment
Reliable drive control keeps operation stable.
Hauling Force
Stable traction keeps pipe movement consistent.
04

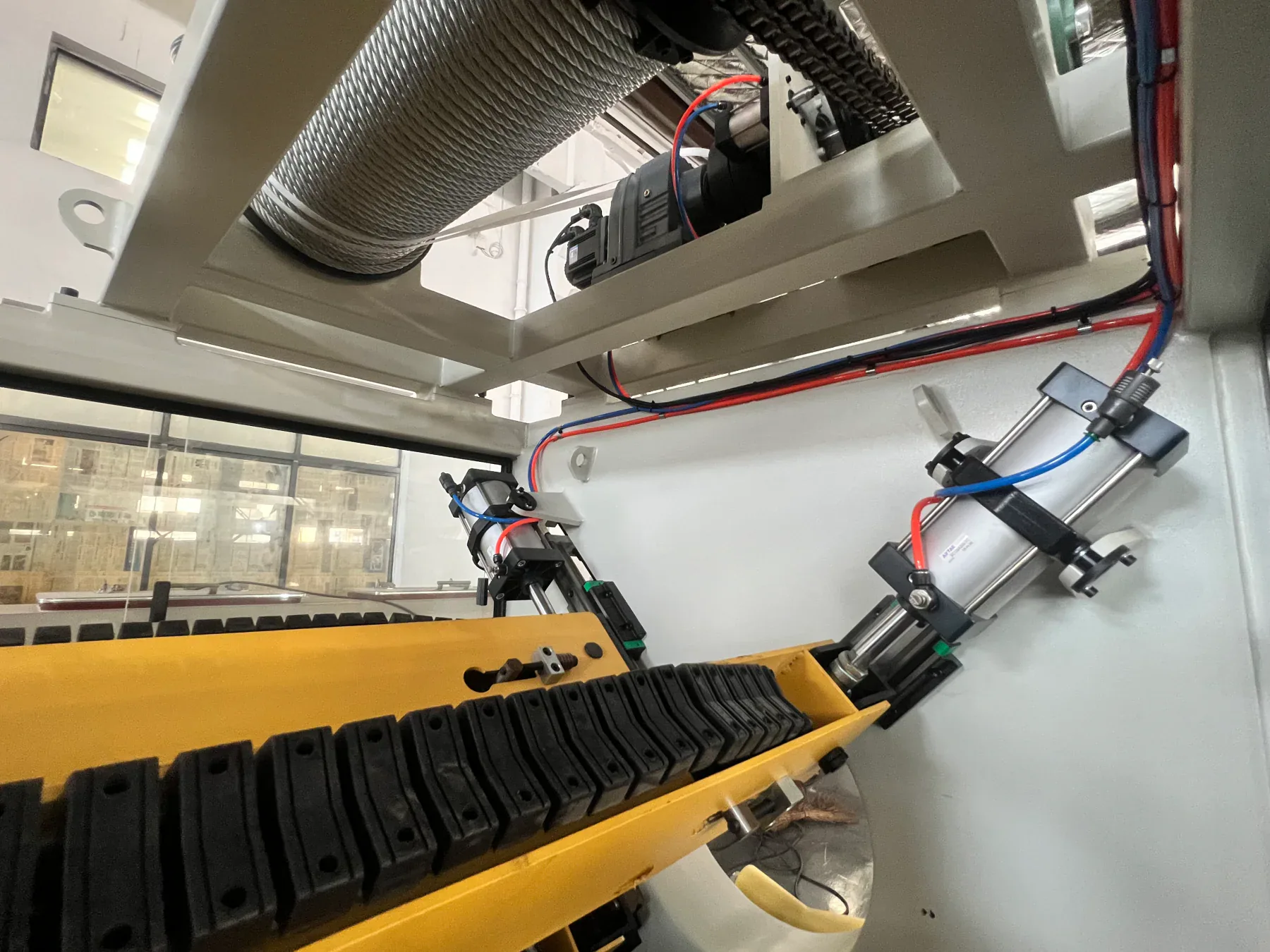

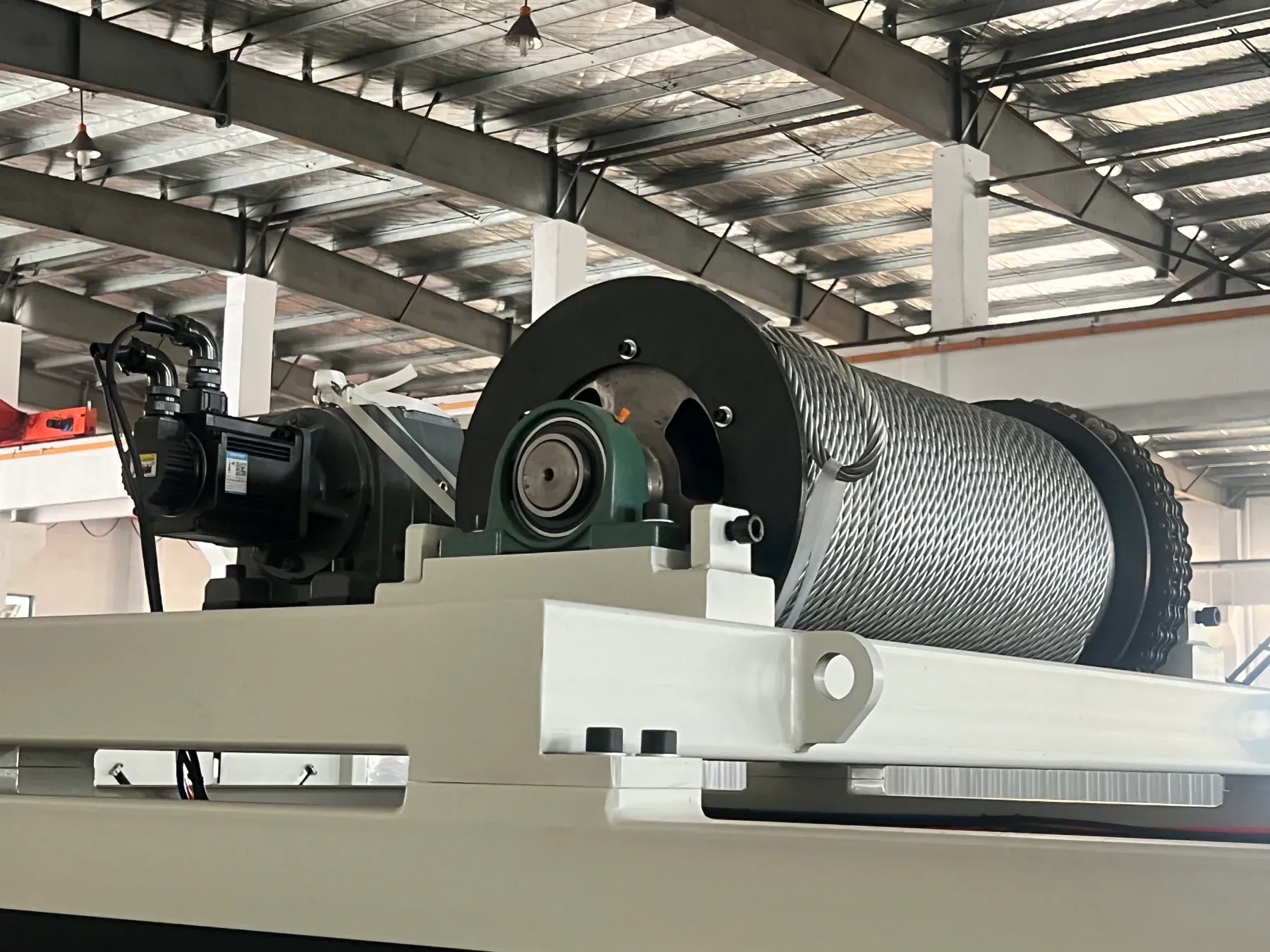

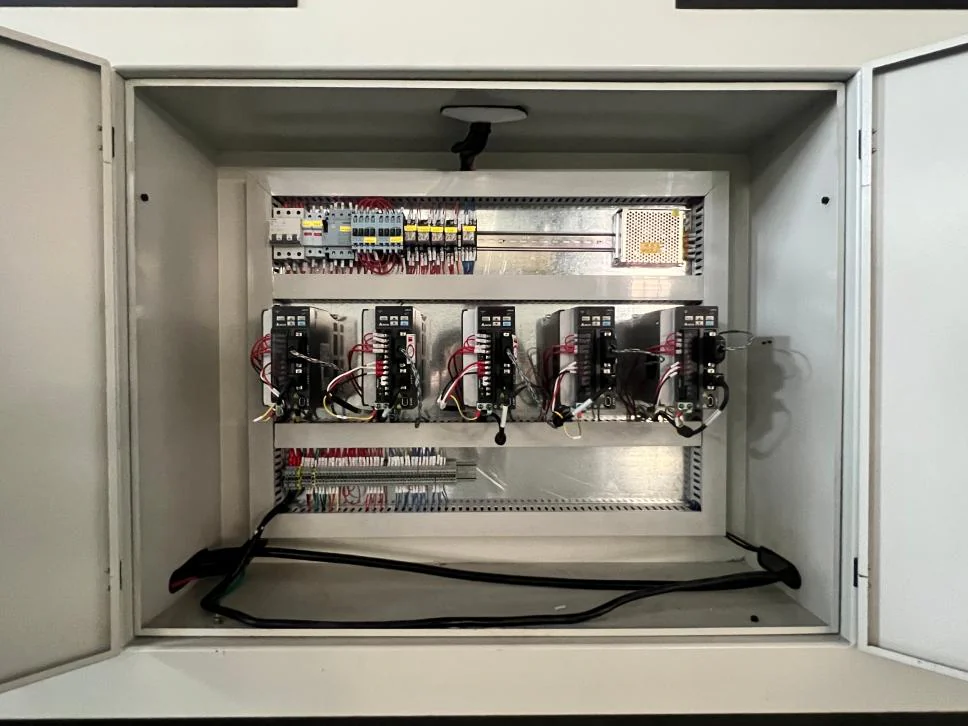

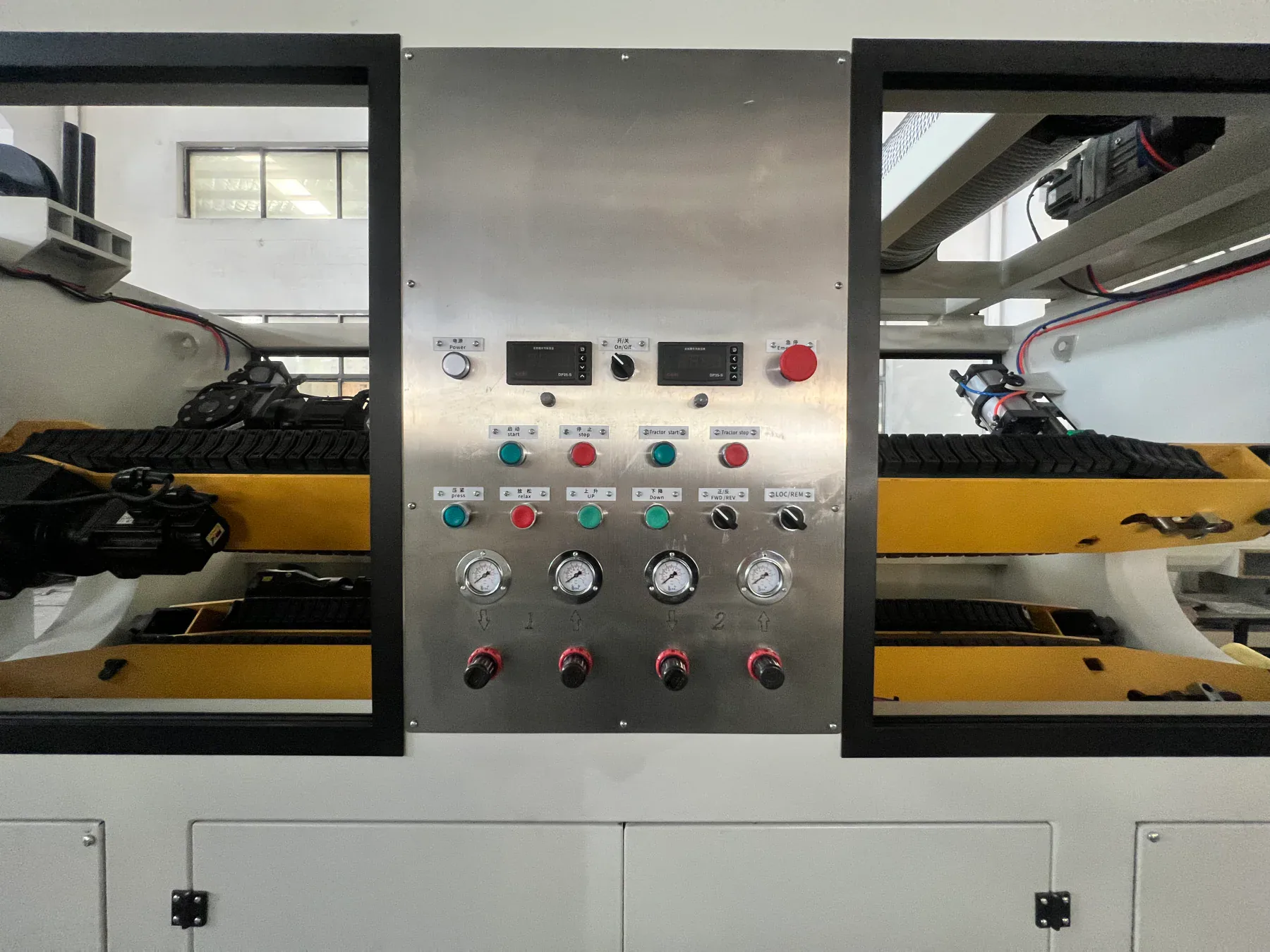

Product Details
05
Technical Parameters
| Model | Number of Claws | Pipe Range | Hauling Speed | Hauling Motor Power | Lifting Motor Power |
|---|---|---|---|---|---|
| QY63 | Two claws | Φ20-63 mm | 0.5-25 m/min. | 0.9 KW*2 | / |
| QY110 | Two claws | Φ20-110 mm | 0.5-25 m/min. | 0.9 KW*2 | / |
| QY160 | Three claws | Φ63-160 mm | 0.6-6 m/min. | 1.1 KW*3 | 0.55 KW*2 |
| QY250 | Four claws | Φ75-250 mm | 0.3-12 m/min. | 0.9 KW*4 | 0.55 KW*2 |
| QY315 | Four claws | Φ90-315 mm | 0.2-8 m/min. | 0.9 KW*4 | 0.75 KW*2 |
| QY450 | Six claws | Φ160-450 mm | 0.2-6 m/min. | 0.9 KW*6 | 0.75 KW*3 |
| QY630 | Six claws | Φ250-630 mm | 0.05-2.5 m/min | 0.9 KW*6 | 0.75 KW*3 |
| QY800 | Eight claws | Φ355-800 mm | 0.02-0.8 m/min | 0.9 KW*8 | 0.75 KW*4 |
| QY1200 | Ten claws | Φ630-1200 mm | 0.02-0.8 m/min | 0.9 KW*10 | 3KW*2 |
| QY1600 | Twelve claws | Φ800-1600 mm | 0.01-0.3 m/min. | 0.9 KW*12 | 4KW |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
Q1: What is the applicable pipe range of the QY250 haul-off machine?
It is specially designed for plastic pipes with outer diameter from 75 mm to 250 mm, suitable for medium and large-diameter pipe production.
Q2: How many clamping claws does the QY250 model adopt?

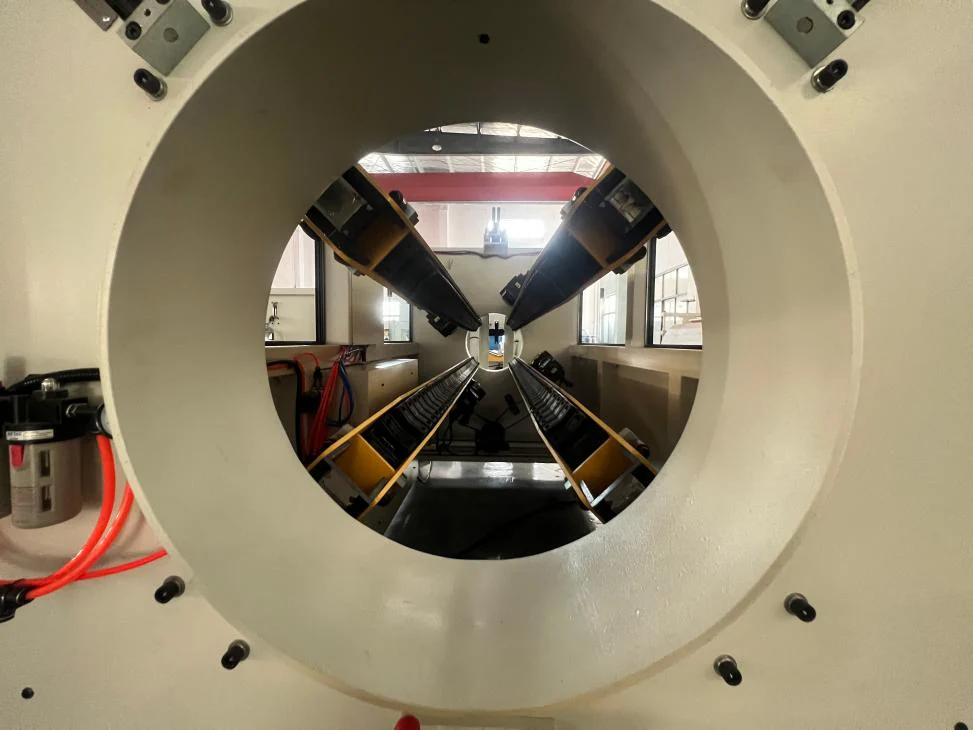

It adopts a 4-claw symmetrical clamping structure for more uniform force bearing on large pipes.
Q3: What are the clamping length and clamping width?
Clamping length: 1600 mm; Clamping width: 48 mm.
Q4: What is the hauling speed range?
0.3 m/min ~ 12.0 m/min, stepless frequency conversion speed regulation, stable and precise.
Q5: What is the motor configuration?
Hauling motor: 0.9 kW × 4; Lifting motor: 0.55 kW × 2.
Q6: What is the maximum hauling force?
The maximum hauling force reaches 55,000 N, providing super strong and stable traction for large pipes.
Q7: Is the center height adjustable?
Yes, the center height is 1000±100 mm, adjustable to match different production lines.
Q8: What kinds of pipes is this machine suitable for?
Widely applicable to HDPE, PVC, PP, PERT and other medium and large-diameter solid-wall plastic pipes.
Q9: What are the advantages of the four-claw structure?
Four-claw symmetrical clamping ensures uniform force, effectively prevents large-diameter pipes from deforming or becoming oval, guarantees high pipe roundness, and avoids surface scratches.
Q10: Can it run continuously for a long time?
Yes. Heavy-duty industrial structure design, stable operation, low failure rate, suitable for 24-hour continuous industrial production.
Q11: What is the delivery time?
Normally 20–30 working days after receiving the deposit.
Q12: What is your warranty policy?
12-month warranty for the whole machine (excluding wearable spare parts), with lifelong technical support.
