Pipe Range
Covers key pipe sizes for flexible production.
02
Product Overview

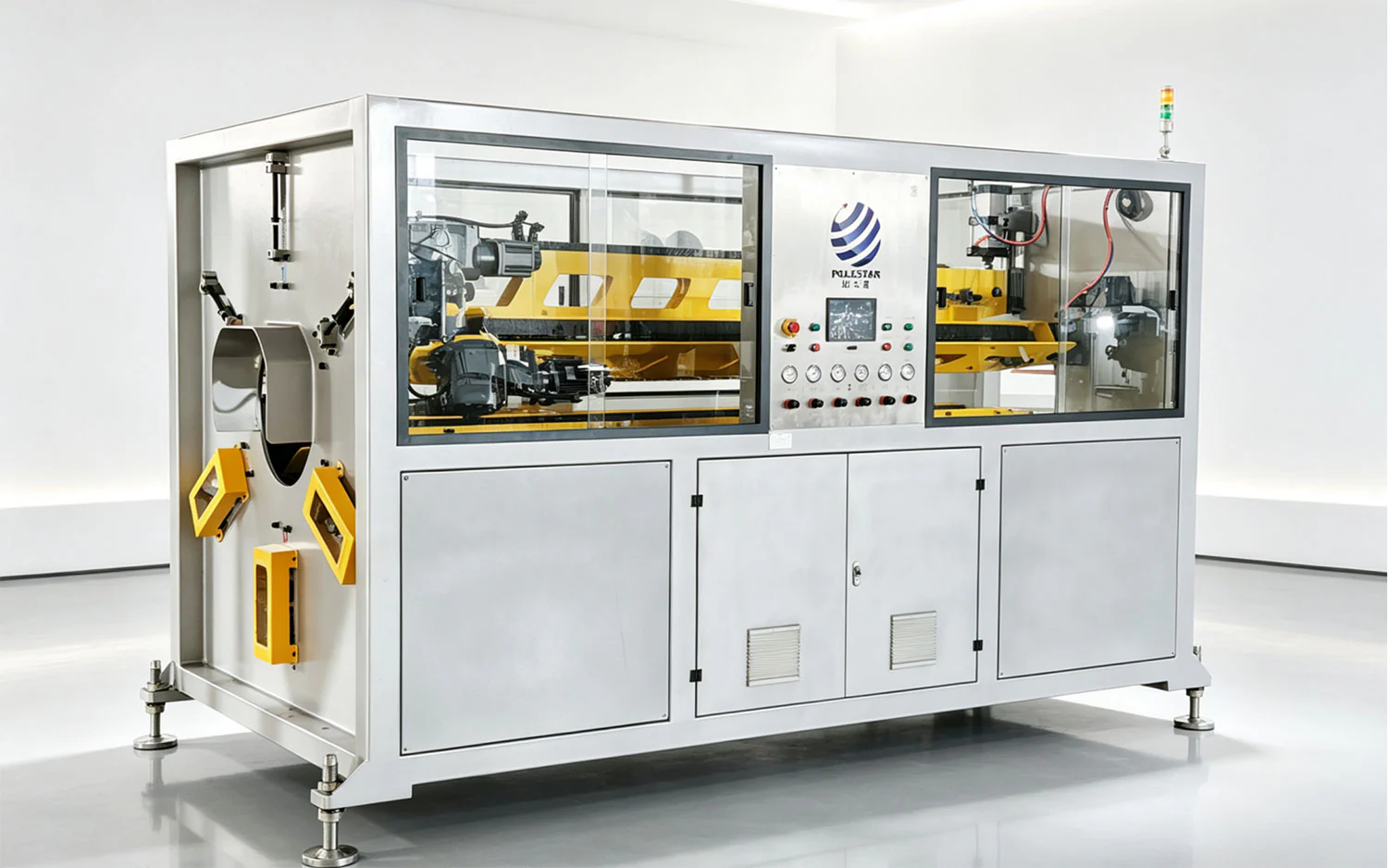

The QY450 six-claw haul-off machine is professionally engineered for continuous traction of plastic pipes ranging from 160 mm to 450 mm. Equipped with six independent clamping claws, it delivers stable, uniform clamping force across the pipe surface to avoid pipe deformation during production.
160-450 MMPipe Range
0.2-6.0 m/min.Hauling Speed
0.9 KW*6Motor Power
95,000NMax. Hauling Force
03
Core Advantages
Clamping Structure
Stable traction keeps pipe movement consistent.
Speed Adjustment
Stable output supports efficient continuous production.
Hauling Force
Stable traction keeps pipe movement consistent.
Line Matching
Reliable drive control keeps operation stable.
Industrial Operation
Adjustable height simplifies line matching.
04

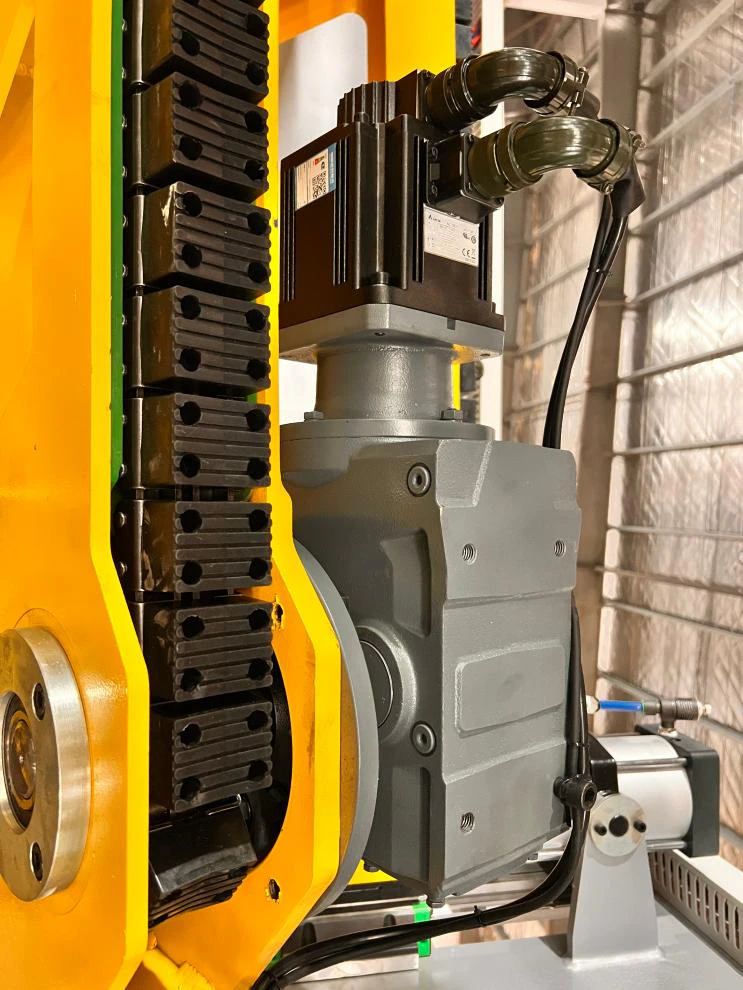

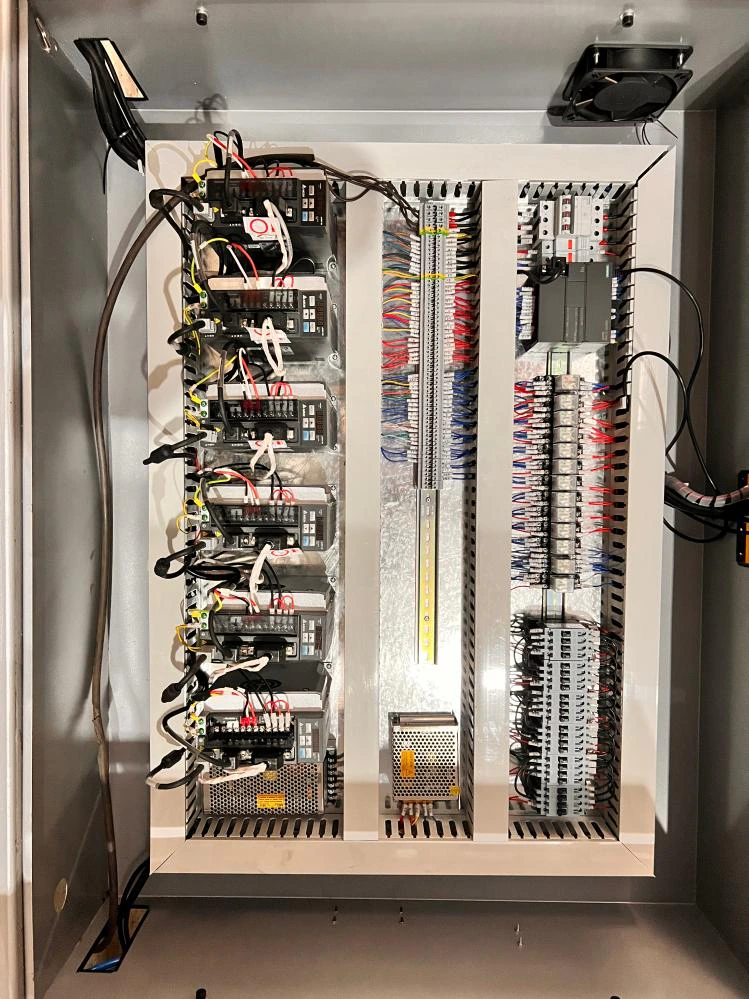

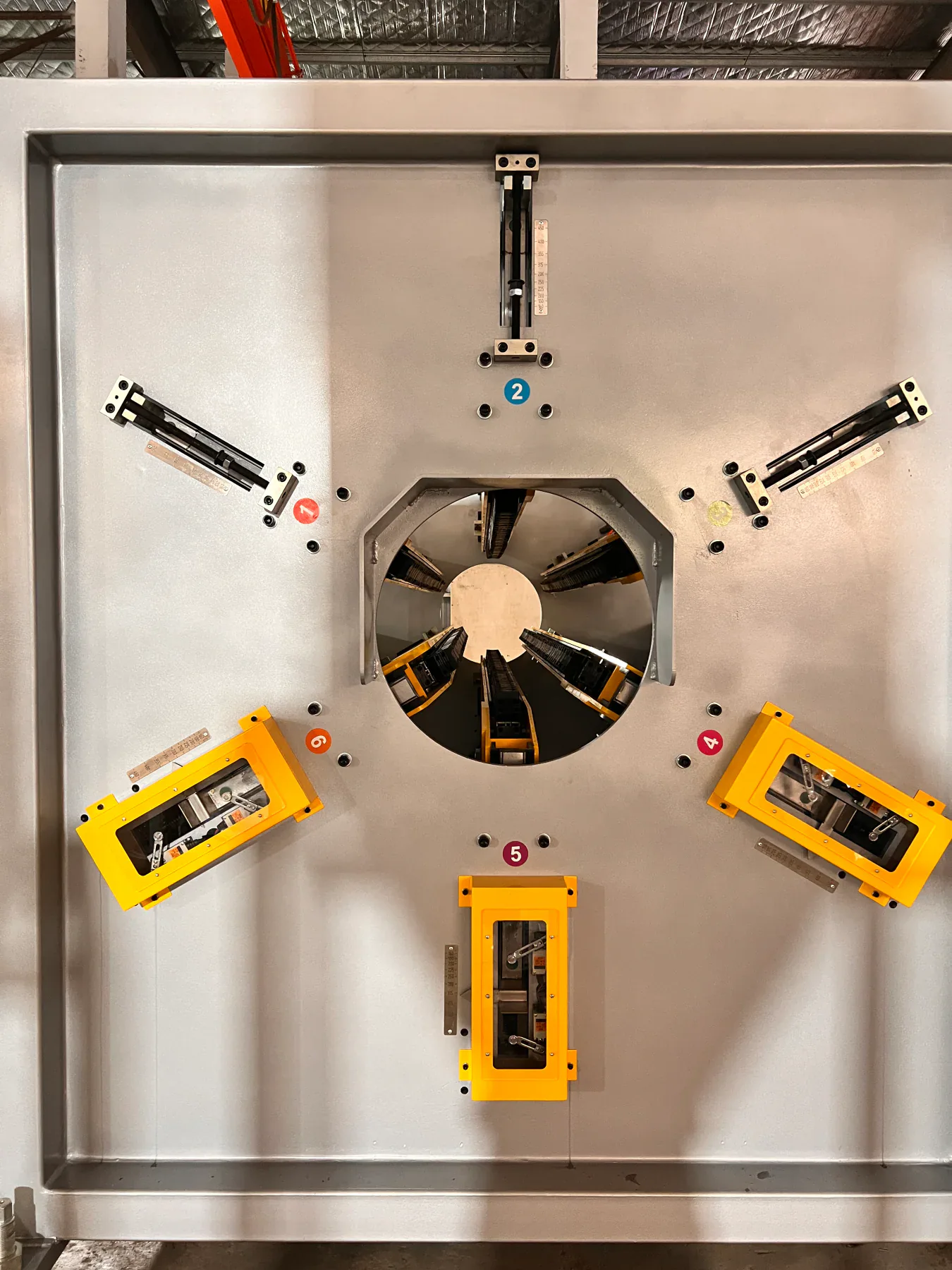

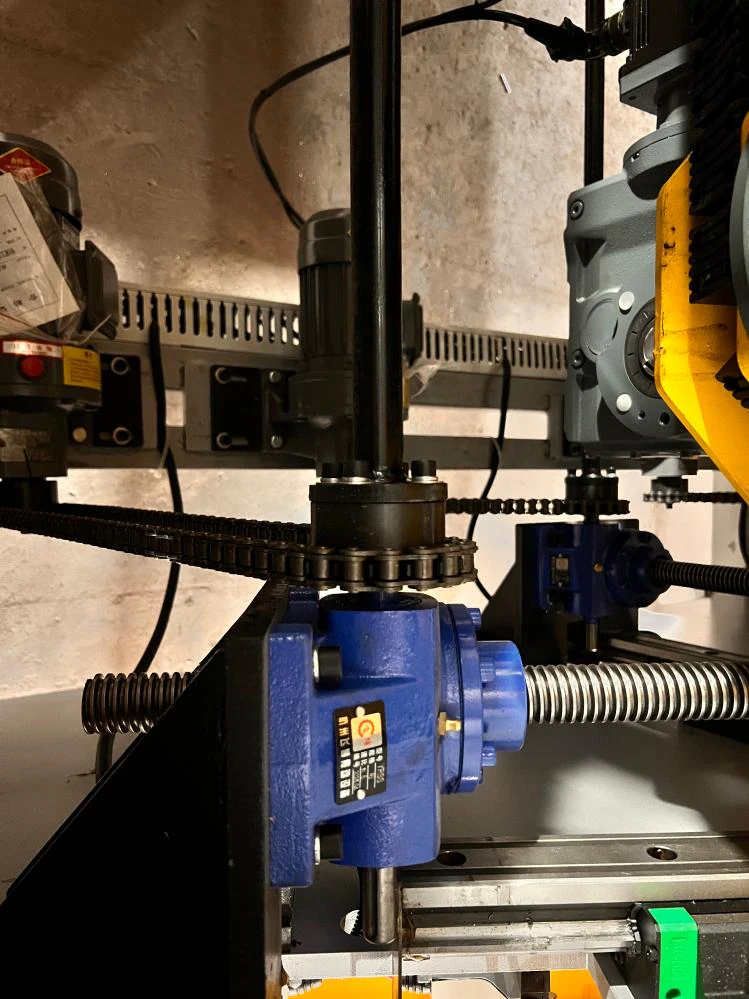

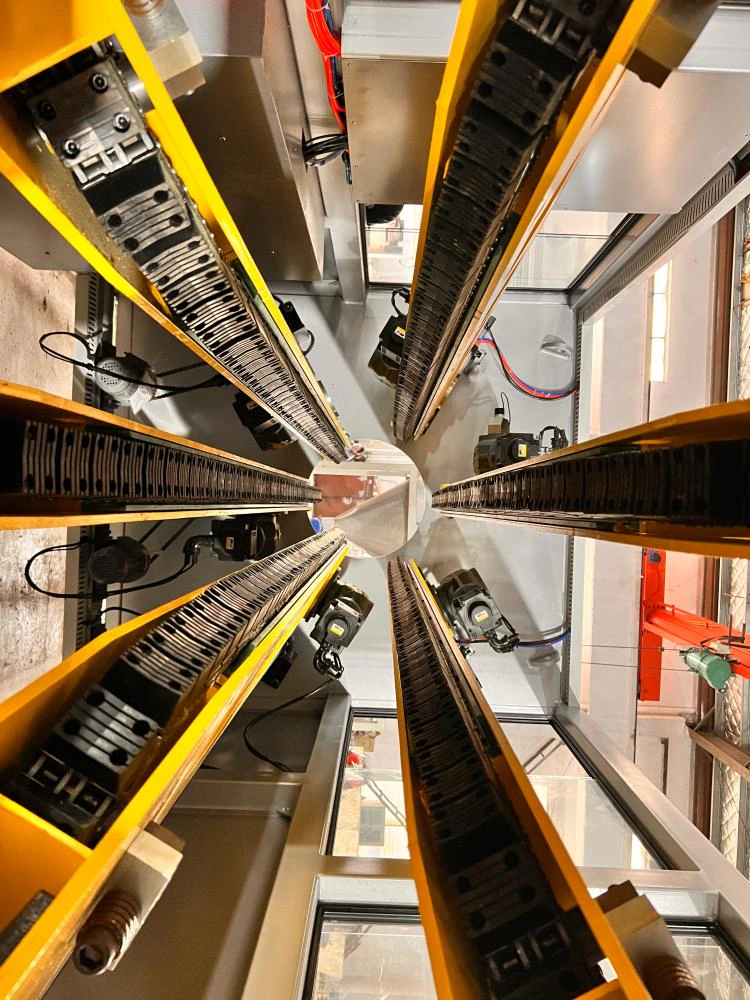

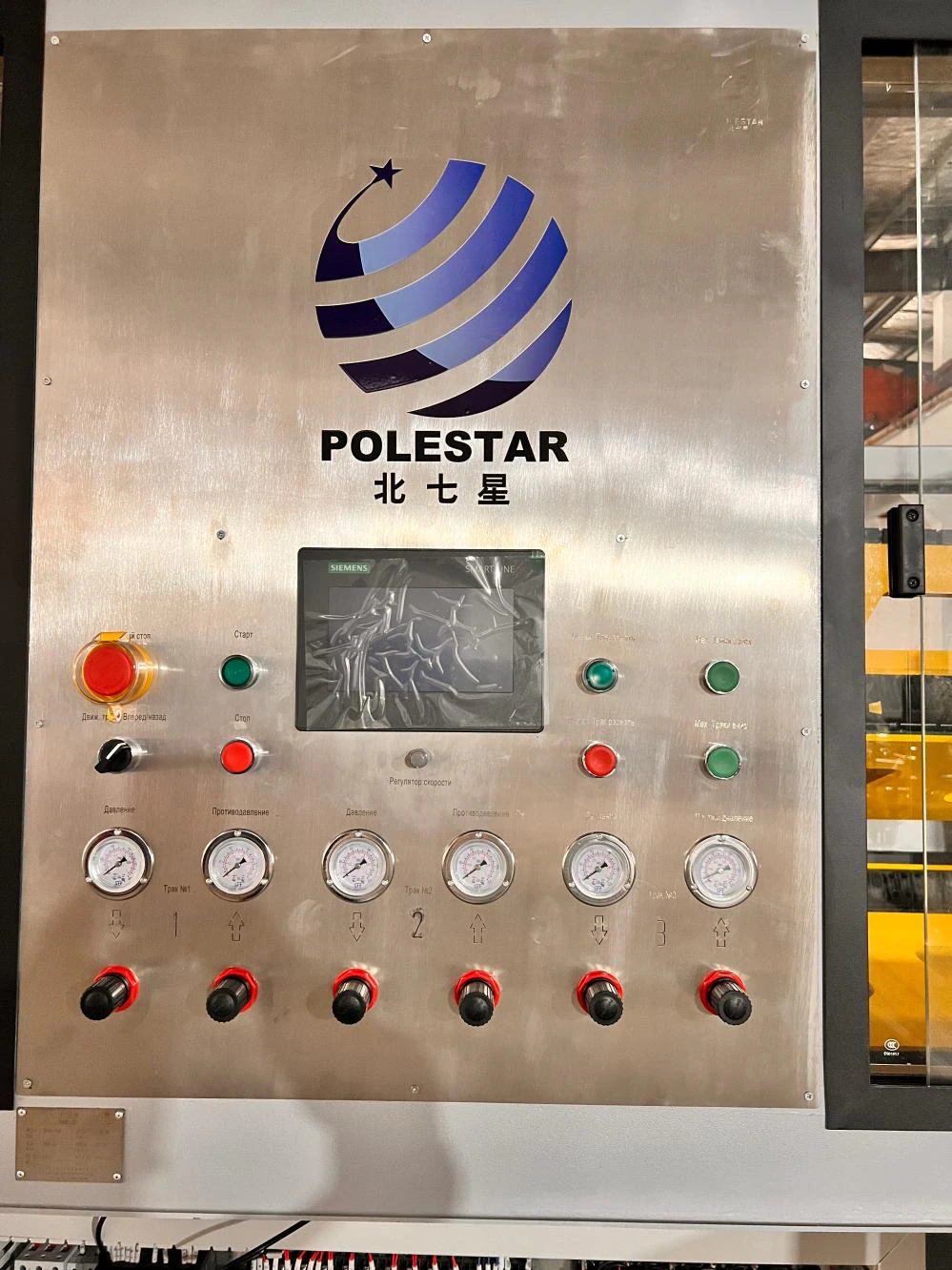

Product Details
05
Technical Parameters
| Model | Number of Claws | Pipe Range | Hauling Speed | Hauling Motor Power | Lifting Motor Power |
|---|---|---|---|---|---|
| QY63 | Two claws | Φ20-63 mm | 0.5-25 m/min. | 0.9 KW*2 | / |
| QY110 | Two claws | Φ20-110 mm | 0.5-25 m/min. | 0.9 KW*2 | / |
| QY160 | Three claws | Φ63-160 mm | 0.6-6 m/min. | 1.1 KW*3 | 0.55 KW*2 |
| QY250 | Four claws | Φ75-250 mm | 0.3-12 m/min. | 0.9 KW*4 | 0.55 KW*2 |
| QY315 | Four claws | Φ90-315 mm | 0.2-8 m/min. | 0.9 KW*4 | 0.75 KW*2 |
| QY450 | Six claws | Φ160-450 mm | 0.2-6 m/min. | 0.9 KW*6 | 0.75 KW*3 |
| QY630 | Six claws | Φ250-630 mm | 0.05-2.5 m/min | 0.9 KW*6 | 0.75 KW*3 |
| QY800 | Eight claws | Φ355-800 mm | 0.02-0.8 m/min | 0.9 KW*8 | 0.75 KW*4 |
| QY1200 | Ten claws | Φ630-1200 mm | 0.02-0.8 m/min | 0.9 KW*10 | 3KW*2 |
| QY1600 | Twelve claws | Φ800-1600 mm | 0.01-0.3 m/min. | 0.9 KW*12 | 4KW |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
Q1: What pipe diameter range can QY450 haul-off machine handle?
It is applicable for plastic pipes with outer diameter from 160 mm to 450 mm.
Q2: How many clamping claws does the QY450 adopt?
Six clamping claws, each with independent drive for uniform clamping.
Q3: What is the effective clamping length and clamping width?
Effective clamping length: 1800 mm; clamping width: 48 mm.
Q4: What is the adjustable hauling speed range?
Hauling speed ranges from 0.2 m/min to 6.0 m/min with stepless speed regulation.
Q5: Please advise the motor power configuration.
Hauling motor: 0.9 KW × 6 units; Lifting motor: 0.75 KW × 3 units.
Q6: What is the maximum traction force of this machine?
Maximum hauling force reaches 95,000 N, suitable for thick-wall large-diameter pipe production.
Q7: Is the machine center height adjustable?
Yes. The center height can be adjusted within 1300±100 mm to match your existing production line.
Q8: What types of plastic pipes can this haul-off machine work with?
Widely compatible with HDPE, PP, PVC and other thermoplastic large-diameter extrusion pipes.
Q9: Can each clamping claw be adjusted separately?
Yes. Independent drive structure allows separate adjustment of each claw to guarantee balanced clamping pressure on pipes.
Q10: Is customized modification available for the QY450 model?
We support reasonable customization such as special rubber pad materials and control system upgrade according to customers’ actual production requirements.
Q11: What is the delivery time?
Normally 20–30 working days after receiving the deposit.
Q12: What is your warranty policy?
12-month warranty for the whole machine (excluding wearable spare parts), with lifelong technical support.
