01 QY160 PLASTIC PIPE THREE-CLAW HAUL-OFF MACHINE

QY160 Plastic Pipe
Three-Claw Haul-off Machine

Three-claw haul-off machine for stable traction of 63-160 MM plastic pipes.

1500 MM clamping length, 0.6-6.0 m/min. hauling speed, 1.1 KW*3 hauling motor power and up to 25,000N hauling force.

Get a Quote

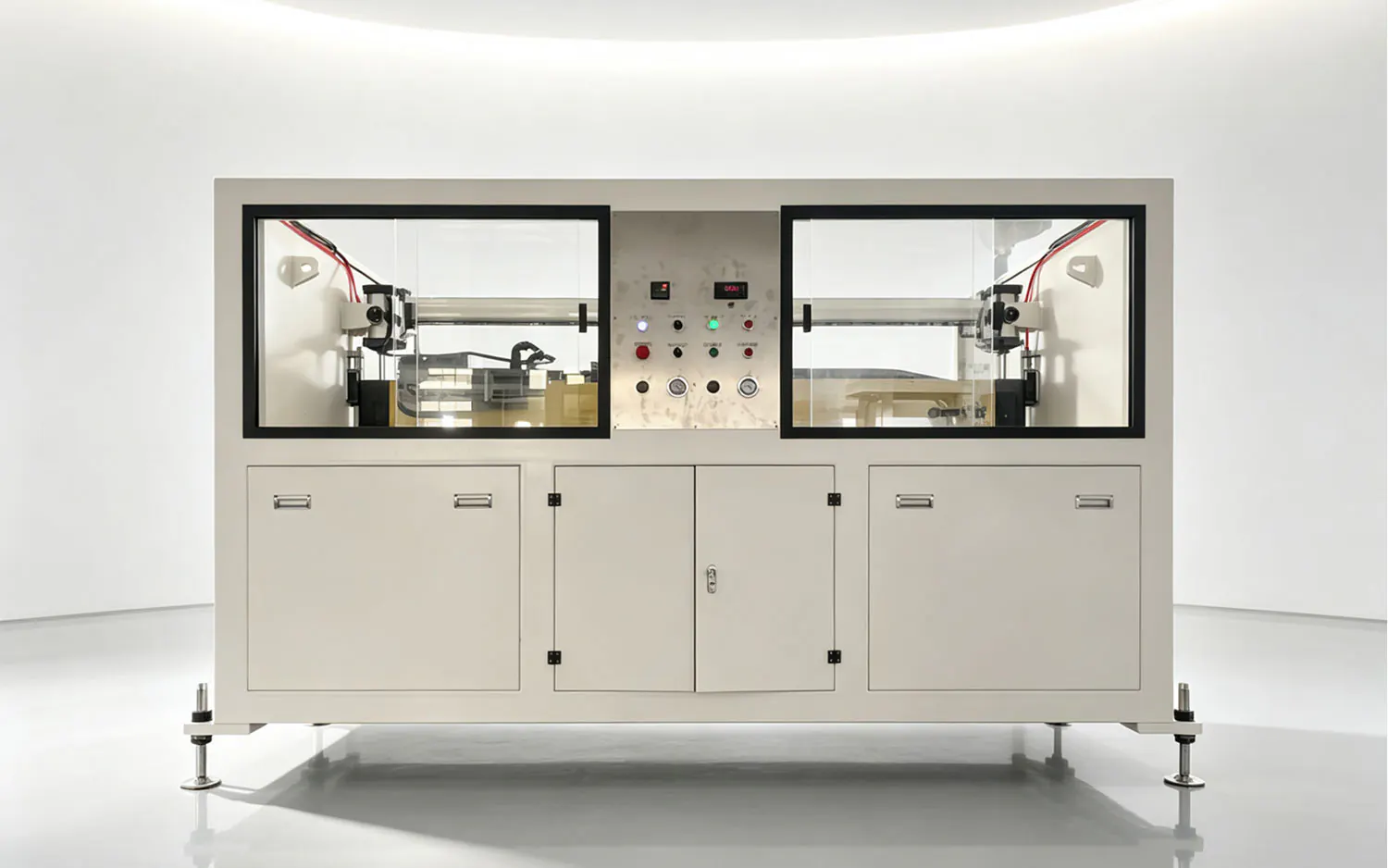

qy160 plastic pipe three-claw haul-off machine
Get a Quote
02

Product Overview

Model QY160 is a three-claw haul-off machine designed for plastic pipes with outer diameters from 63 mm to 160 mm. It adopts a three-claw gripping structure with 1500 mm clamping length and 60 mm clamping width. The multi-point contact delivers evenly distributed clamping force to avoid pipe deformation and surface abrasion.

63-160 MMPipe Range
0.6-6.0 m/min.Hauling Speed
1.1 KW*3Motor Power
25,000NMax. Hauling Force
03

Core Advantages

01

Pipe Range

Covers key pipe sizes for flexible production.

02

Clamping Structure

Three-claw structure with 1500 mm clamping length realizes even force.

03

Speed Adjustment

Reliable drive control keeps operation stable.

04

Hauling Force

Stable output supports efficient continuous production.

04

Product Details

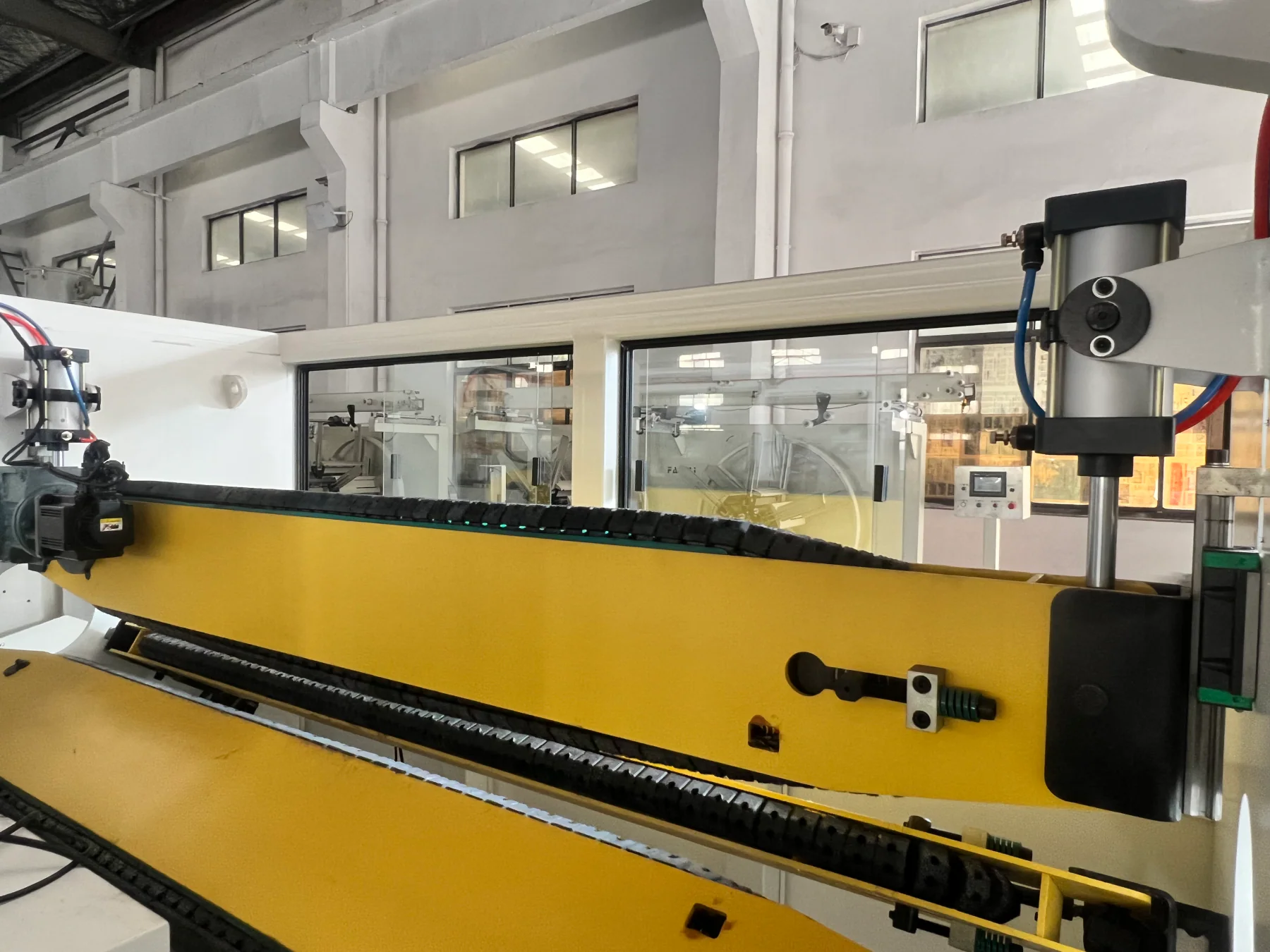

QY160 Plastic Pipe Three-Claw Haul-off Machine product detail 1

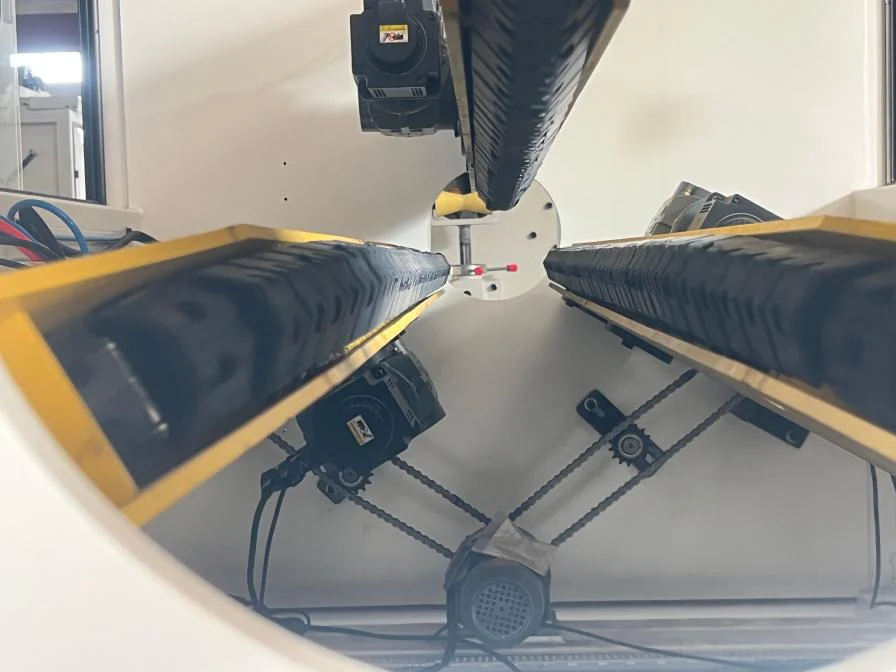

QY160 Plastic Pipe Three-Claw Haul-off Machine product detail 2

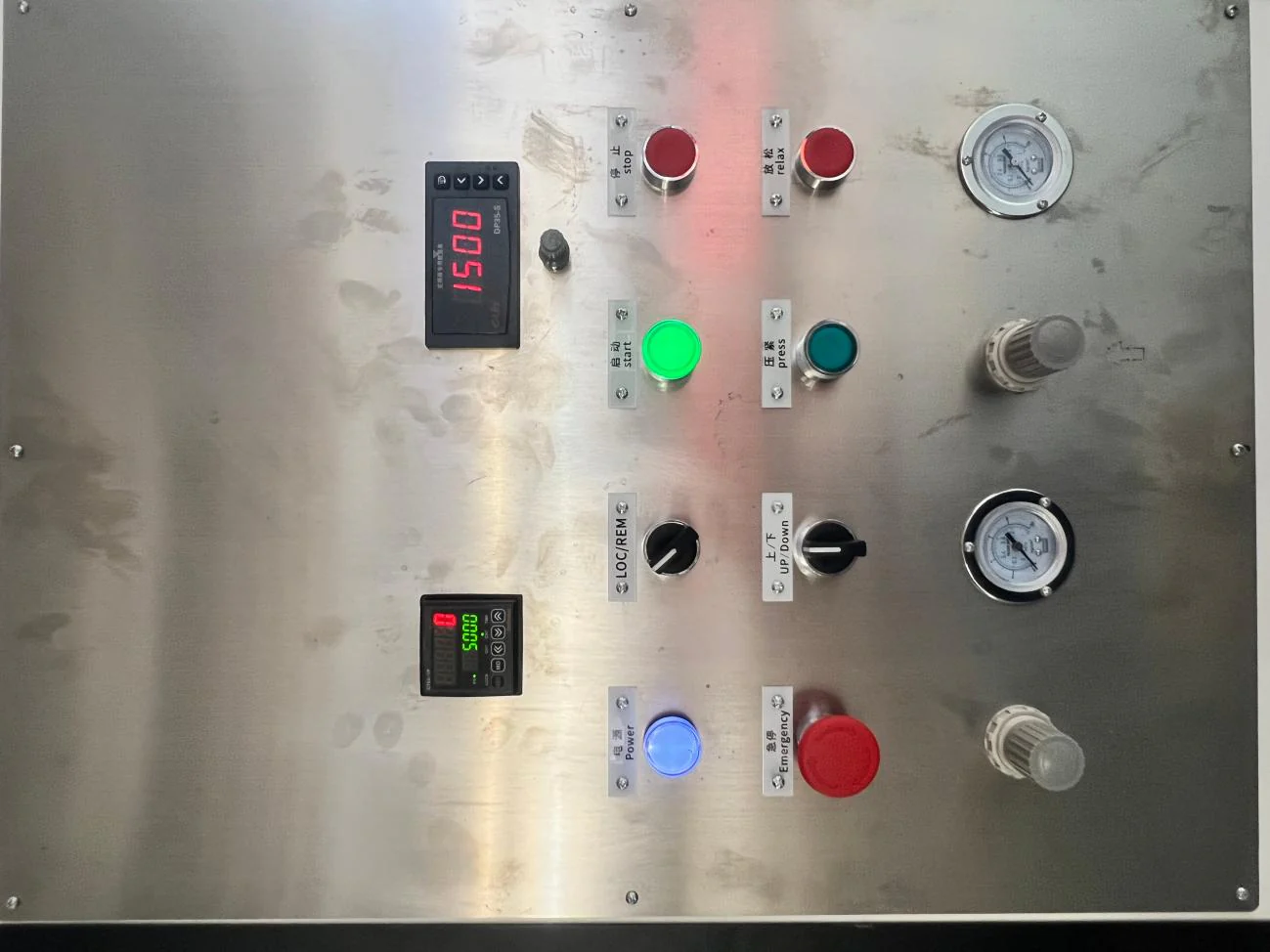

QY160 Plastic Pipe Three-Claw Haul-off Machine product detail 3

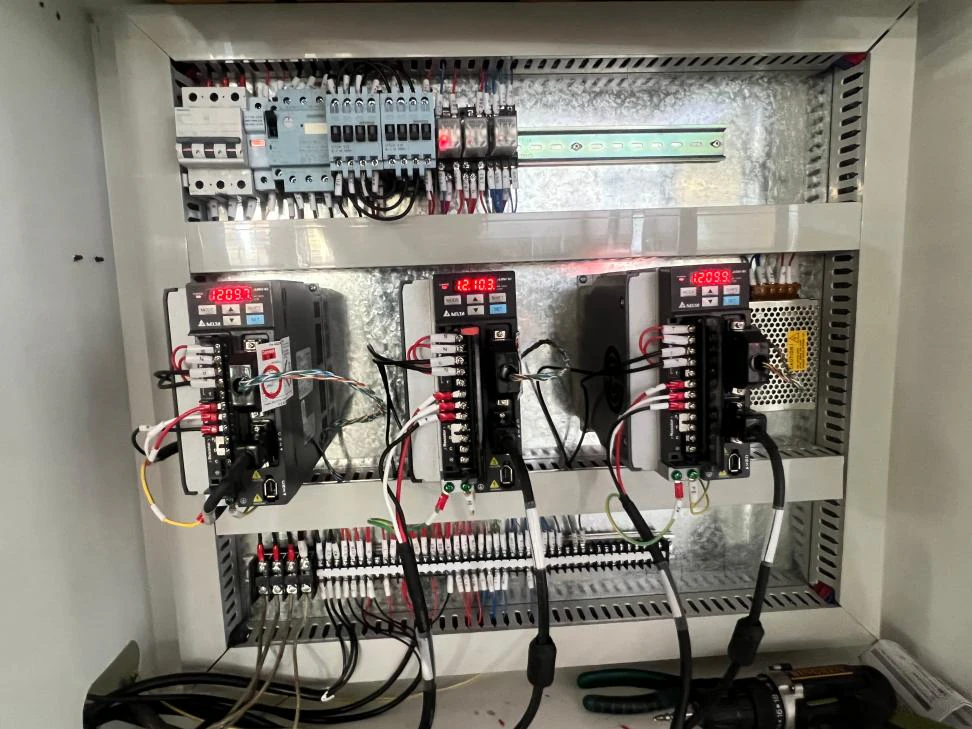

QY160 Plastic Pipe Three-Claw Haul-off Machine product detail 4
05

Technical Parameters

ModelNumber of ClawsPipe RangeHauling SpeedHauling Motor PowerLifting Motor Power
QY63Two clawsΦ20-63 mm0.5-25 m/min.0.9 KW*2/
QY110Two clawsΦ20-110 mm0.5-25 m/min.0.9 KW*2/
QY160Three clawsΦ63-160 mm0.6-6 m/min.1.1 KW*30.55 KW*2
QY250Four clawsΦ75-250 mm0.3-12 m/min.0.9 KW*40.55 KW*2
QY315Four clawsΦ90-315 mm0.2-8 m/min.0.9 KW*40.75 KW*2
QY450Six clawsΦ160-450 mm0.2-6 m/min.0.9 KW*60.75 KW*3
QY630Six clawsΦ250-630 mm0.05-2.5 m/min0.9 KW*60.75 KW*3
QY800Eight clawsΦ355-800 mm0.02-0.8 m/min0.9 KW*80.75 KW*4
QY1200Ten clawsΦ630-1200 mm0.02-0.8 m/min0.9 KW*103KW*2
QY1600Twelve clawsΦ800-1600 mm0.01-0.3 m/min.0.9 KW*124KW
06

Factory Strength

20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production managementPolestar factory machining workshop for extrusion equipment partsPolestar machinery assembly workshop for plastic pipe extrusion linesPolestar machine inspection area for pre-delivery testingPolestar production area for plastic pipe machinery manufacturingCustomer visit at Polestar factory for extrusion line inspection
07

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipmentPolestar Machinery machine packing and loading for export deliveryPlastic extrusion machine container loading at Polestar factoryPolestar Machinery container loading inspection before shippingPlastic extrusion equipment shipment and container loading servicePolestar Machinery export shipment for plastic pipe extrusion line
08

Customer Projects

Plastic pipe machinery customer project 1Plastic pipe machinery customer project 2Plastic pipe machinery customer project 3Plastic pipe machinery customer project 4Plastic pipe machinery customer project 5Plastic pipe machinery customer project 6
09

Frequently Asked Questions

Q1: What pipe diameter range does QY160 haul-off machine support?

It is suitable for plastic pipes with outer diameter 63 mm to 160 mm.

Q2: How many claws does this tractor adopt?

Three-claw clamping structure.

Q3: What are clamping length and clamping width?

Clamping length: 1500 mm; Clamping width: 60 mm.

Q4: What is the adjustable hauling speed range?

0.6 ~ 6.0 m/min, frequency-controlled stepless speed regulation.

Q5: Configuration of hauling motors?

3 sets of 1.1 kW hauling motors.

Q6: What is the maximum hauling force?

Max. hauling force reaches 25,000 N.

Q7: Is the center height adjustable?

Yes, center height: 1000±100 mm, convenient for installation alignment.

Q8: Which pipe materials can this machine process?

Widely used for HDPE, PP, PVC solid wall pipes within 110–160 mm.

Q9: Are the clamping blocks replaceable?

Yes, rubber clamping blocks are equipped, wear-resistant and replaceable to protect pipe surfaces.

Q10: Can it match my existing extrusion line?

Please offer your extruder model, target production speed and pipe material, we will check compatibility for you.

Q11: Delivery time?

Normally 20–30 working days after receiving deposit.

Q12: Warranty terms?

12-month warranty for the whole machine (excluding wearable spare parts).
