Municipal Water Supply
PVC-U pipe application for municipal water supply systems.
02
Product Details
16~32 Four-Head PVC Pipe Extrusion Line is specially designed for small-bore PVC electrical conduits and water supply pipes. Equipped with one main extruder and a balanced four-channel die, it extrudes four pipes simultaneously with 4 times higher output than standard single-head lines. The whole line adopts full-automatic PLC control, independent vacuum cooling and synchronous chip-free cutting, producing pipes with uniform wall thickness and smooth surface.
Finished Products & Applications
16–32 mmPipe Range
200–250 kg/hOutput Capacity

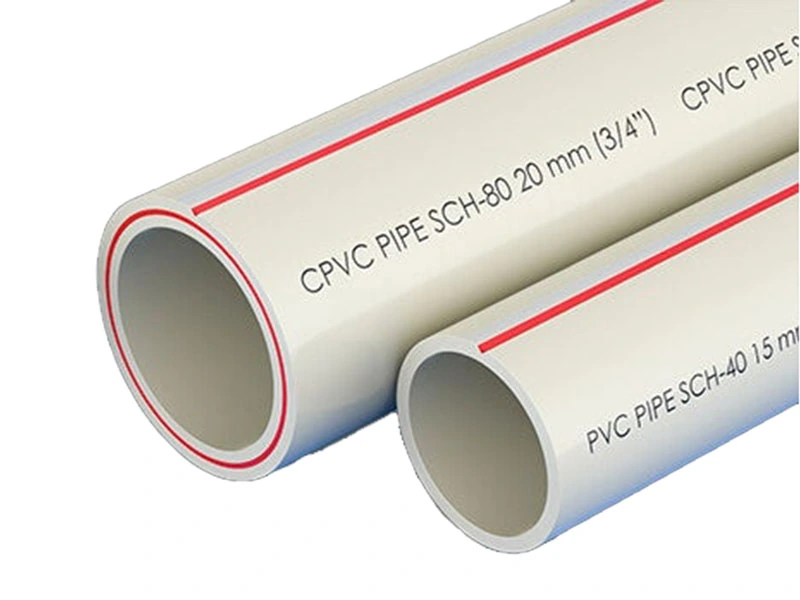

PVC-UPipe Application
70–80 kWTotal Power
03
Applications
Drainage & Sewer

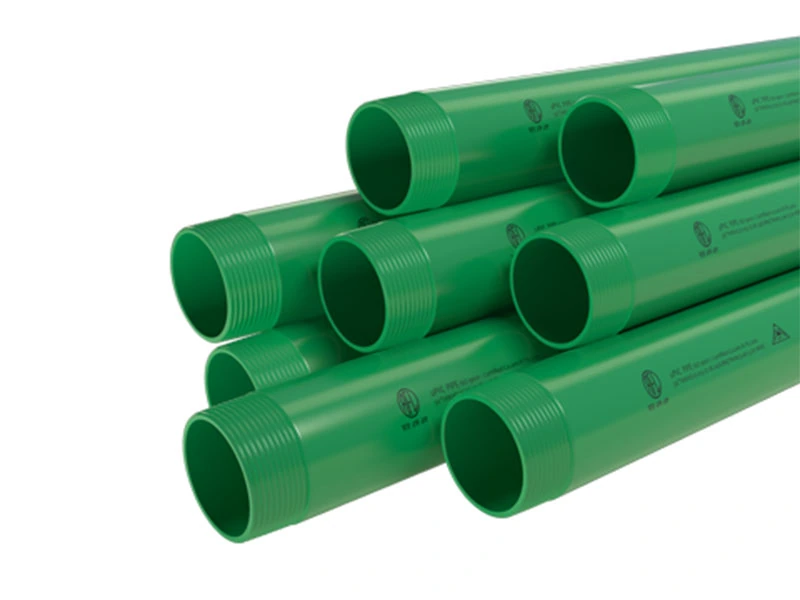

PVC pipe application for drainage and sewer pipe networks.
Construction Plumbing

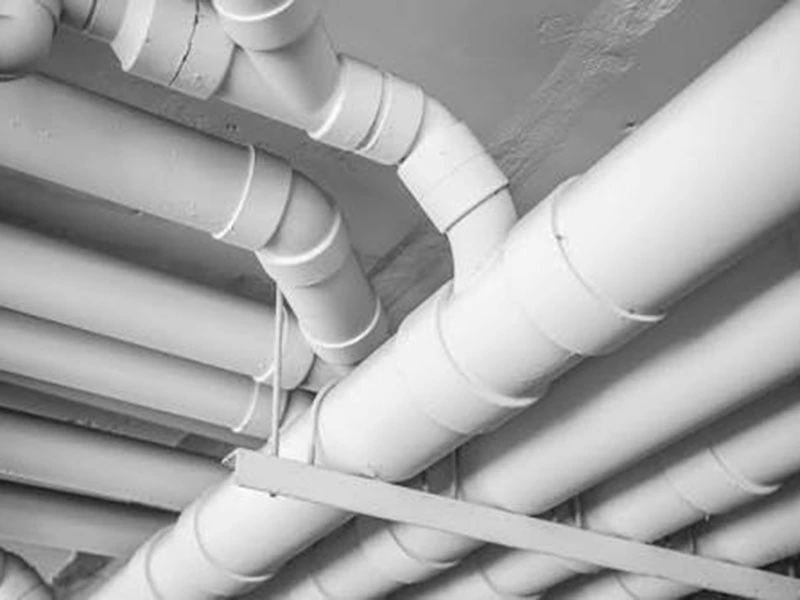

PVC pipe application for building plumbing and construction installation.
Cable Protection
PVC conduit pipe application for cable routing and electrical protection.
04
Core Advantages
Four-Head High Output
Stable output supports efficient continuous production.
Compact Integrated Design
Energy-saving design reduces operating cost.
Easy Maintenance
Durable parts support long service life.
Market-Ready Pipe Range
Covers key pipe sizes for flexible production.
05
Production Process
01

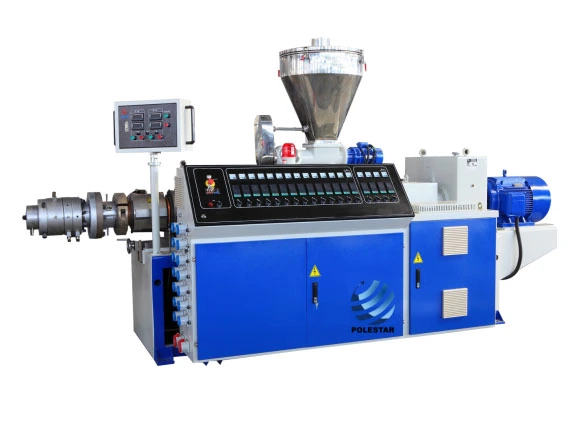

Conical Twin-screw Extruder
02

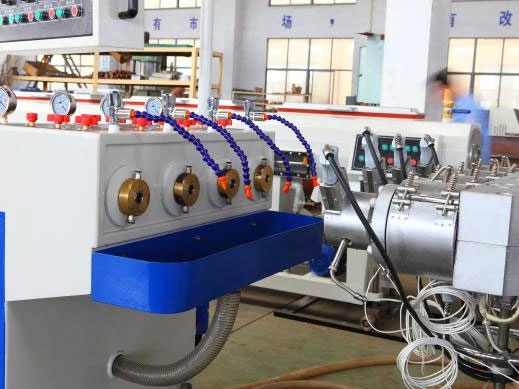

Extrusion Die Head
03

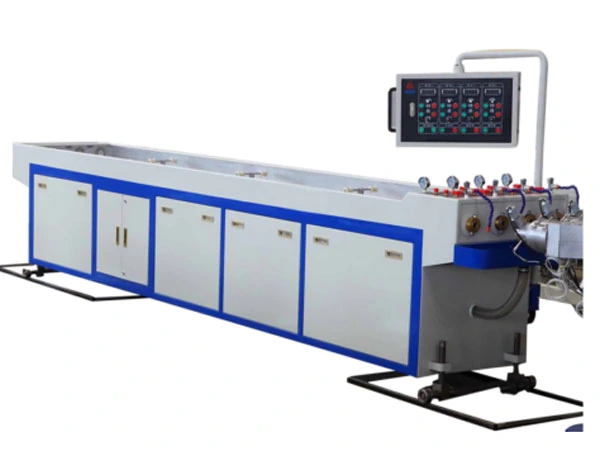

Vacuum Calibration Cooling Tank
04

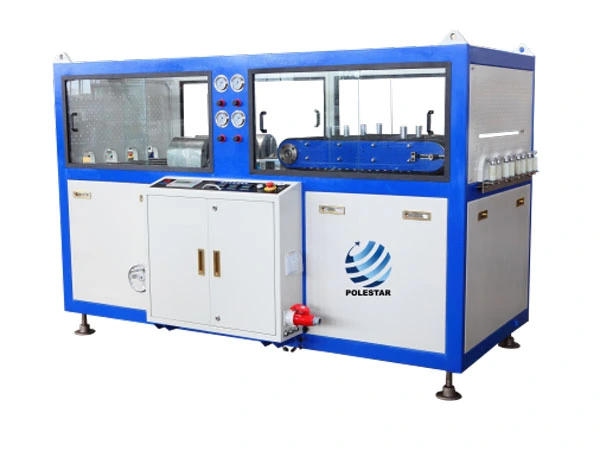

Haul-off Machine & Cutting Machine
06
The Production Line Consists Of
Screw Loader
1 PCConical Twin-screw Extruder Machine
1 PCExtrusion Die Head
1 PCVacuum Calibration Tank
1 PCHaul-off Machine & Cutting Machine
1 PC07
Technical Parameters
| Model | Pipe Range | Extruder Model | Main Motor Power | Max. Line Speed | Max. Output |
|---|---|---|---|---|---|
| BQS32-4 | 16~32 | SJZ65/132 | 37 KW | 15 m/min. | 250 kg/h |
| BQS40-2 | 16~40 | SJZ51/105 | 18.5 KW | 10 m/min. | 120 kg/h |
| BQS63-2 | 20~63 | SJZ65/132 | 37 KW | 15 m/min. | 250 kg/h |
| BQS63 | 20~63 | SJZ51/105 | 18.5 KW | 15 m/min. | 120 kg/h |
| BQS160 | 50~160 | SJZ65/132 | 37 KW | 8.0 m/min. | 250 kg/h |
| BQS200 | 63~200 | SJZ65/132 | 37 KW | 3.5 m/min. | 250 kg/h |
| BQS315 | 160~315 | SJZ80/156 | 55 KW | 2.0 m/min. | 350 kg/h |
| BQS630 | 315~630 | SJZ92/188 | 110 KW | 1.2 m/min. | 600 kg/h |
08
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
09
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
10
Customer Projects
11
Frequently Asked Questions
Q1: Unstable extrusion output, fluctuating pipe diameter & wall thickness
Reasons: Blocked feeding system, uneven mixing of raw materials, worn screw/barrel, unstable main motor frequency. Solutions: Clean the feeder; check mixing formula; repair or replace worn screw; calibrate VFD parameters.
Q2: Poor plasticization, crystal dots & fish eyes on pipe surface
Reasons: Improper heating temperature, wet raw materials, mismatched screw speed, unmelted resin particles. Solutions: Dry raw materials fully; adjust barrel temperature curve; optimize screw rotation speed.
Q3: Material yellowing, black burnt spots & decomposition lines
PVC is heat-sensitive and decomposes easily under local overheating. General causes: Long material residence time, damaged temperature sensors, degraded recycled materials. Solutions: Lower overheated zone temperature; clean mold dead zones; add qualified heat stabilizer for PVC formula.
Q4: Extruder overload & high motor current alarm
Reasons: Low barrel temperature, blocked screen pack, foreign objects inside barrel, excessive filler content. Solutions: Raise temperature moderately; replace screen mesh; clean foreign debris; adjust filler proportion.
Q5: Vertical scratches & streaks on pipe inner/outer surface
Reasons: Scratched mold inner cavity, accumulated impurities, worn die lip, precipitated lubricant residues. Solutions: Polish mold surface; disassemble & clean die regularly; replace damaged die lip.
Q6: Severely uneven pipe wall thickness
Reasons: Offset mold center, unbalanced heating rings around die, partial blocked melt channels. Solutions: Re-center the mandrel; check and replace faulty heating bands; clear blocked flow paths.
Q7: Pipe ovality and out-of-round tolerance
Reasons: Too high or too low vacuum pressure, worn sizing sleeve, insufficient front cooling, asynchronous haul-off speed. Solutions: Adjust vacuum degree; replace worn sizing sleeve; increase pre-cooling water flow; match haul-off and extrusion speed.
Q8: Traction speed jitter or slipping
Reasons: Worn rubber traction pads, uneven clamping pressure, unstable VFD control. Solutions: Replace aging rubber pads; adjust clamping force; recalibrate traction inverter.
Q9: Oblique cutting, burrs and rough cutting edges
Reasons: Dull cutting blade, unstable pipe clamping during cutting, unsynchronized cutter tracking speed. Solutions: Sharpen or replace cutter blade; fix cutting fixture; synchronize cutter tracking signal with haul-off.
Q10: Inaccurate length counting
Reasons: Slipped measuring encoder wheel, worn measuring roller, wrong PLC parameter setting. Solutions: Fasten encoder wheel; replace worn measuring roller; reset length calculation parameters.
