Product Details

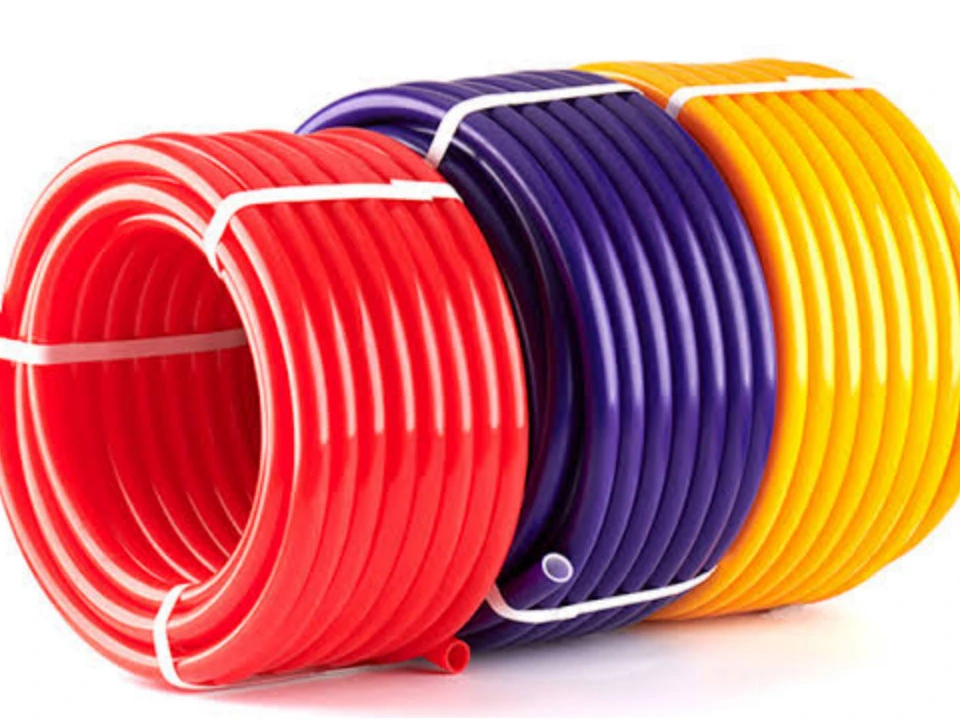

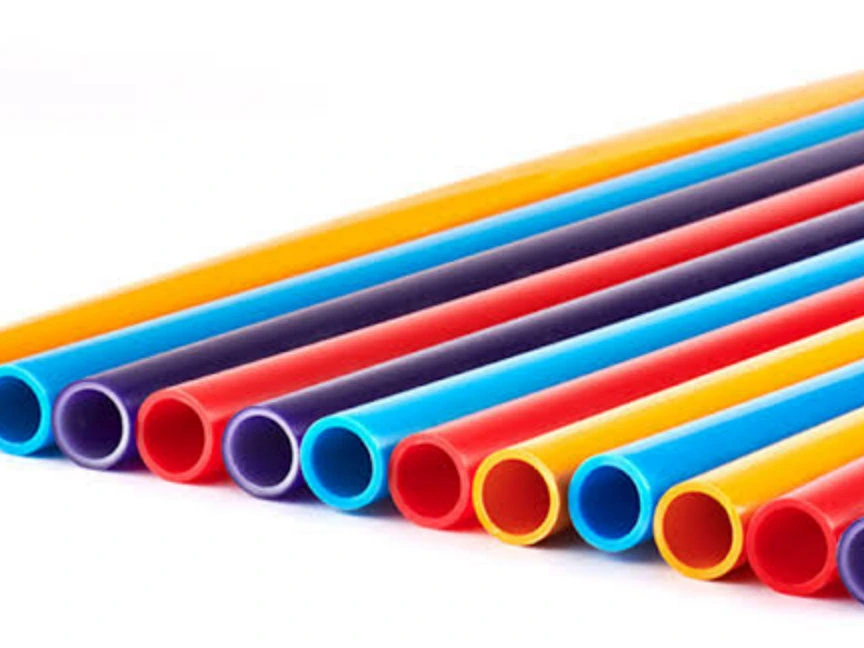

16-32MM PERT Pipe Extrusion Line is designed for PE-RT floor heating pipe, indoor hot and cold water pipe, radiator connecting lines and fan coil air conditioning circulation systems. Optimized PE-RT single screw extrusion, high-speed forming and cooling, Siemens PLC control and stable wall thickness control help produce smooth, bubble-free pipes for global underfloor heating standards.

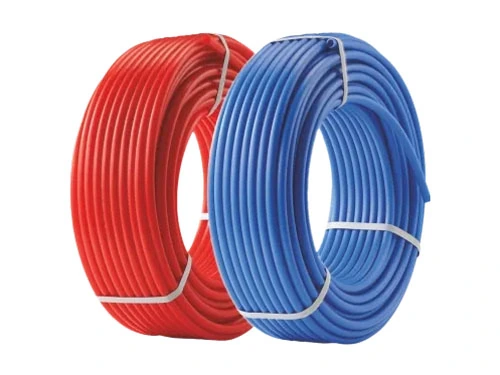

Finished Products & Applications
16-32 mmPipe Range
250 kg/hOutput Capacity
PE-RTPipe Material
250 kWTotal Power
03

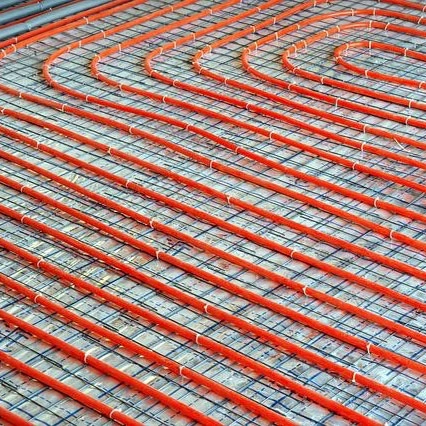

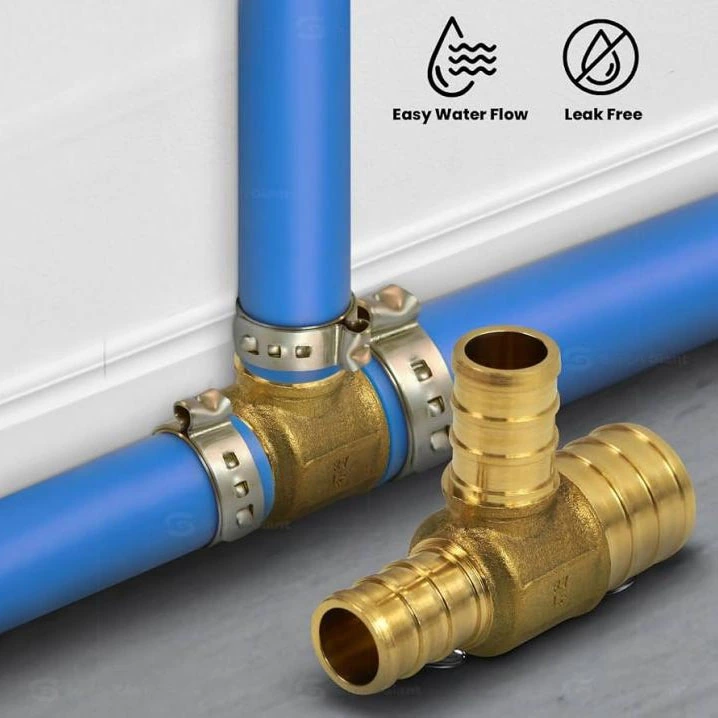

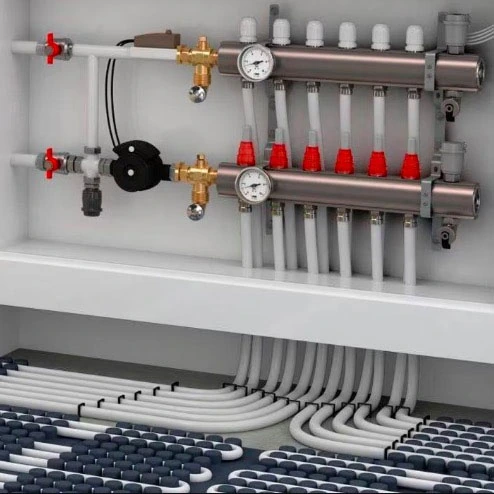

Applications
04
Core Advantages
PE-RT Dedicated Plasticizing
Optimized screw design improves plasticizing stability.
Precise Wall Thickness Control
PLC touch control simplifies operation and monitoring.
High-Speed Stable Production
Stable output supports efficient continuous production.
Siemens PLC Control
PLC touch control simplifies operation and monitoring.
Fast Size Switching
Stepless speed control matches line output.
Future Upgrade Ready
Reserved interfaces support future upgrades.
05
Machine Video
06
Production Process
01

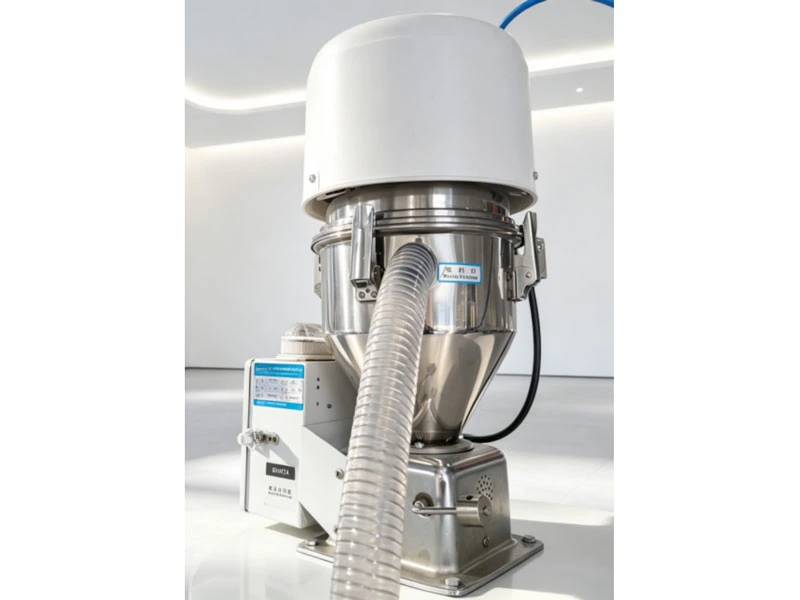

Raw Material Vacuum Loader
02

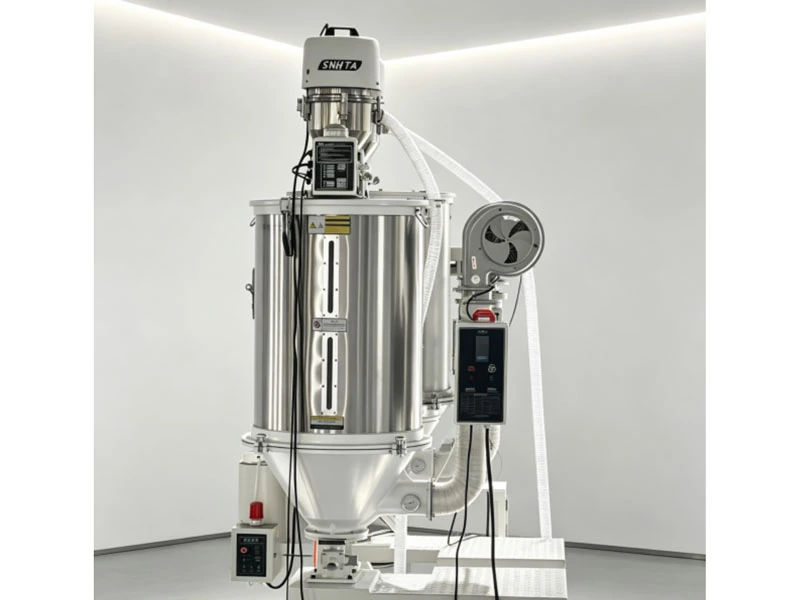

Hopper Dryer
03

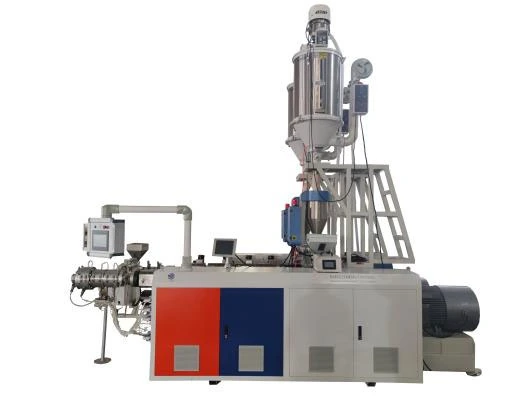

Single Screw Extruder
04

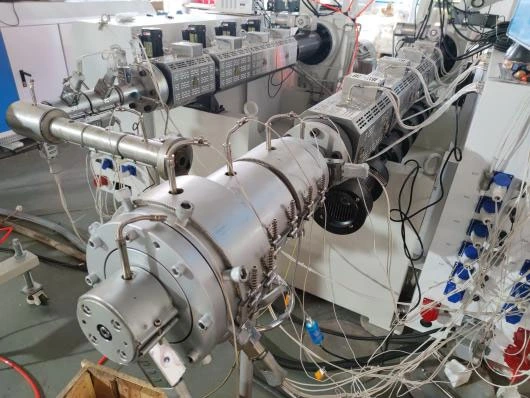

Extrusion Die Head
05

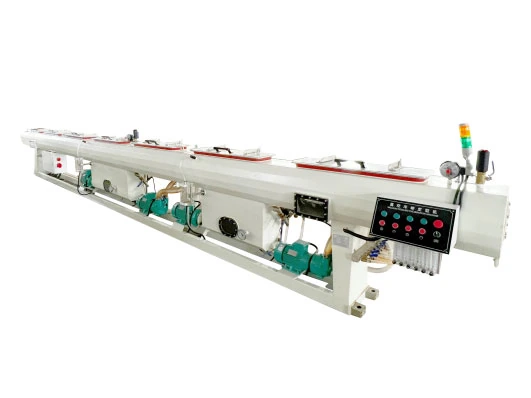

Vacuum Calibration Tank
06

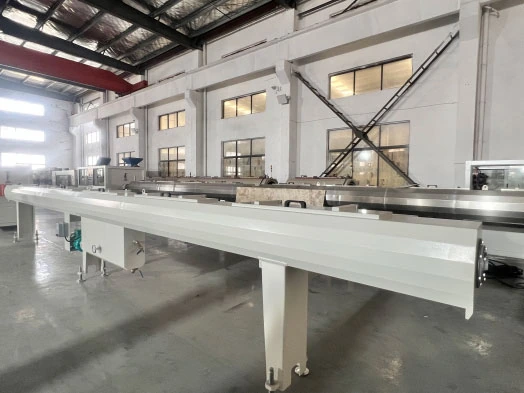

Spray Cooling Tank
07
Online Diameter Measurement
08

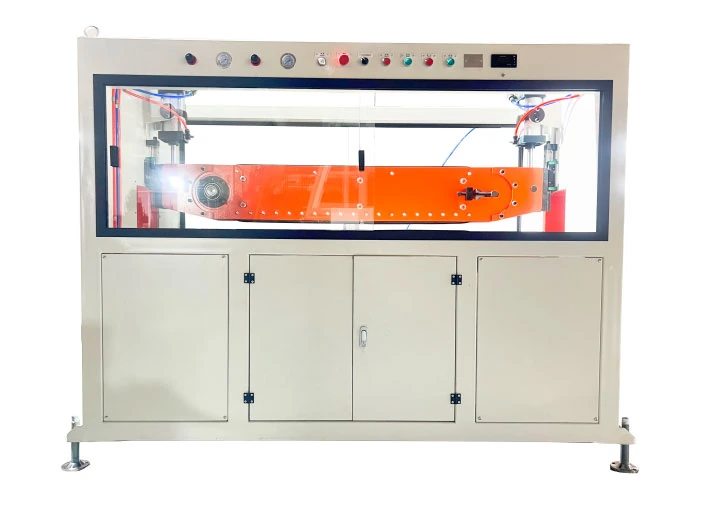

Haul-off Machine
09

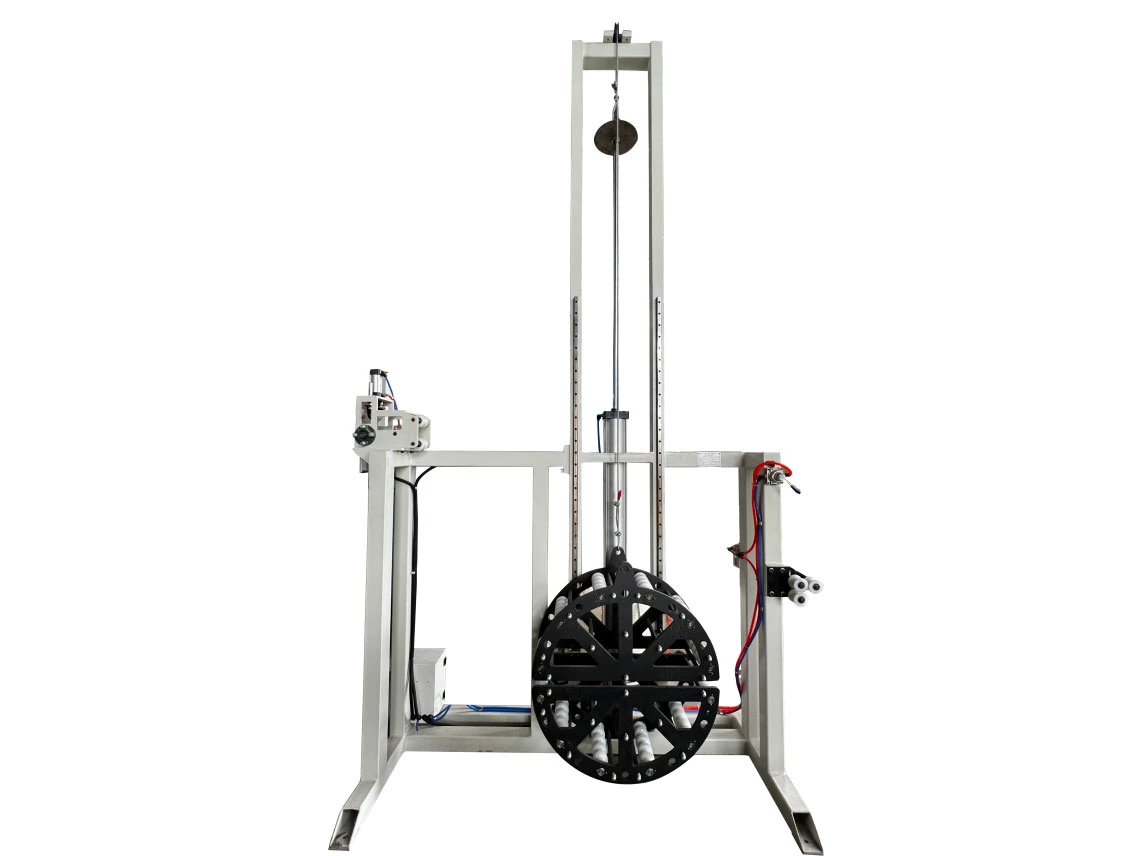

Pipe Compensator
10

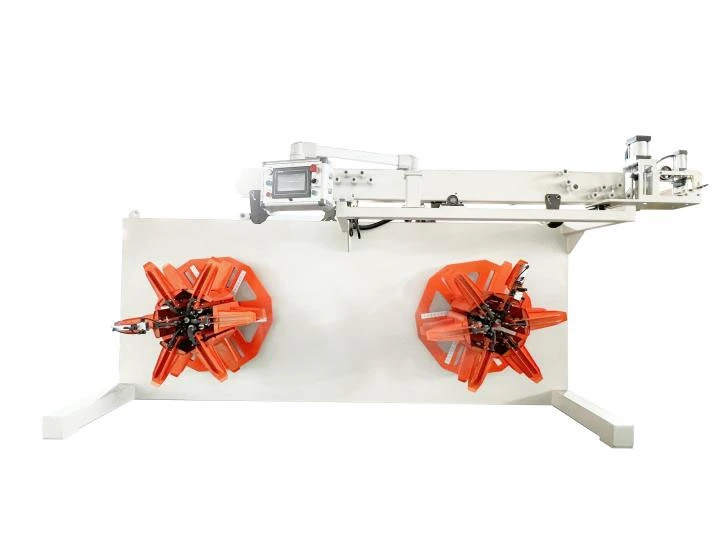

Double-station Pipe Winder
07
The Production Line Consists Of
Vacuum Loader
1 PCHopper Dryer
1 PCSingle Screw Extruder Machine
1 PCExtrusion Die Head
1 PCVacuum Calibration Tank
1 PCSpray Cooling Tank
1 PCOnline Diameter Measurement
1 PCHaul-off Machine
1 PCPipe Compensator
1 PCDouble-station Pipe Winder
1 PC08
Technical Parameters
| Model | Pipe Range | Extruder Model | Main Motor Power | Max. Line Speed | Max. Output |
|---|---|---|---|---|---|
| BQX63 | 20~63 MM | SJ65/33 | 55 KW | 12 m/min | 150 KG/H |
| BQX110 | 20~110 MM | SJ65/33 | 75 KW | 10 m/min | 180 KG/H |
| BQX160 | 75~160 MM | SJ75/33 | 110 KW | 8 m/min | 350 KG/H |
| BQX250 | 90~250 MM | SJ75/33 | 110 KW | 5 m/min | 350 KG/H |
| BQX315 | 110~315 MM | SJ90/33 | 160 KW | 3 m/min | 450 KG/H |
| BQX450 | 160~450 MM | SJ90/33 | 160 KW | 2 m/min | 450 KG/H |
| BQX630 | 315~630 MM | SJ120/33 | 280 KW | 1.6 m/min | 850 KG/H |
| BQX800 | 500~800 MM | SJ120/33 | 280 KW | 0.8 m/min | 850 KG/H |
| BQX1000 | 630~1000 MM | SJ150/33 | 400 KW | 0.8 m/min | 1200 KG/H |
| BQX1200 | 710~1200 MM | SJ120/38 | 355 KW | 0.6 m/min | 800~1200 KG/H |
| BQX1600 | 1000~1600 MM | SJ120/38+SJ90/38 | 355+250 KW | 0.3 m/min | 1600~1800 KG/H |
09
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
10
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
11
Customer Projects
12
Frequently Asked Questions
Q1: Can this line produce oxygen-barrier 3-layer PERT pipe (EVOH layer) within 16-32mm range?
We support both single-layer and 3-layer oxygen barrier PERT production. To realize EVOH oxygen barrier pipes, another small auxiliary extruder, co-extrusion die head and independent feeding drying unit need to be added.
Q2: What brand electrical components are equipped on standard 16-32mm PERT line? Can we switch to other specified brands upon request?
Standard electric configuration: Siemens PLC & touch screen, ABB main motor, Schneider contactors, Omron temperature controllers. All core parts are imported famous brands for stable long-run operation. We accept customization of electric brands as your local maintenance preference; we will adjust price accordingly.
Q3: Can you customize the machine voltage and frequency to fit our country’s power grid?
100% customizable. We support 380V/50Hz, 415V/50Hz, 220V/60Hz, 440V/60Hz and other regional power parameters without extra modification fee; only motor and control program will be adjusted freely.
Q4: What acceptable payment terms do you support for this PERT extrusion line? Can we use irrevocable L/C at sight as full payment?
Our regular payment term: 30% T/T deposit after PI confirmation, balance 70% T/T before shipment. We also accept irrevocable sight L/C issued by top international bank, with minor bank operation cost borne by buyer. D/P at sight is negotiable for long-term cooperative clients.
Q5: How long is production lead time for one complete 16-32mm PERT line after receiving deposit?
Standard production cycle: 35 working days after receiving your 30% deposit. For customized three-layer oxygen barrier model or double outlet version, lead time extends to 40 working days. We will update production progress photos/videos every week during manufacturing.
Q6: Does the quotation cover overseas engineer on-site installation, commissioning and operator training? What about engineer round-trip & accommodation fees?
Basic quotation includes free full English operation manual, remote video guidance and online technical training. If you need our engineers to go to your factory for on-site installation, commissioning and 3-5 days hands-on training, engineer round-trip air tickets, local hotel accommodation, local traffic and daily allowance shall be covered by buyer.
Q7: How fast can you supply spare parts after warranty expiration? Is there a preferential spare parts price list for RFQ attachment?
We keep full stock of all common spare parts for PERT line, delivery within 7 working days once receiving spare parts order. We will attach exclusive spare parts price list with 10% long-term client discount together with your RFQ quotation file. Remote lifetime technical consultation service is permanently free of charge.
Q8: Can we arrange factory inspection and full machine test run before shipment? Do you provide PERT pipe sample test video?
Warmly welcome your engineers or third-party inspection team to visit our factory for offline test run. Before loading container, we will complete full-load trial production with PERT raw material, record complete test video and produce finished 16-32mm pipe samples for your quality verification.
Q9: Is online printer for pipe size & logo marking an optional accessory? How much extra cost will it add?
Continuous inkjet printer for printing pipe specification, brand logo and production date is optional accessory. We will mark independent optional price for single-color printing machine in RFQ, supporting automatic tracking synchronous printing with pipe haul-off speed.
