Machine Advantage
Opposite dual-reel structure balances frame stress and reduces vibration.
02
Product Overview

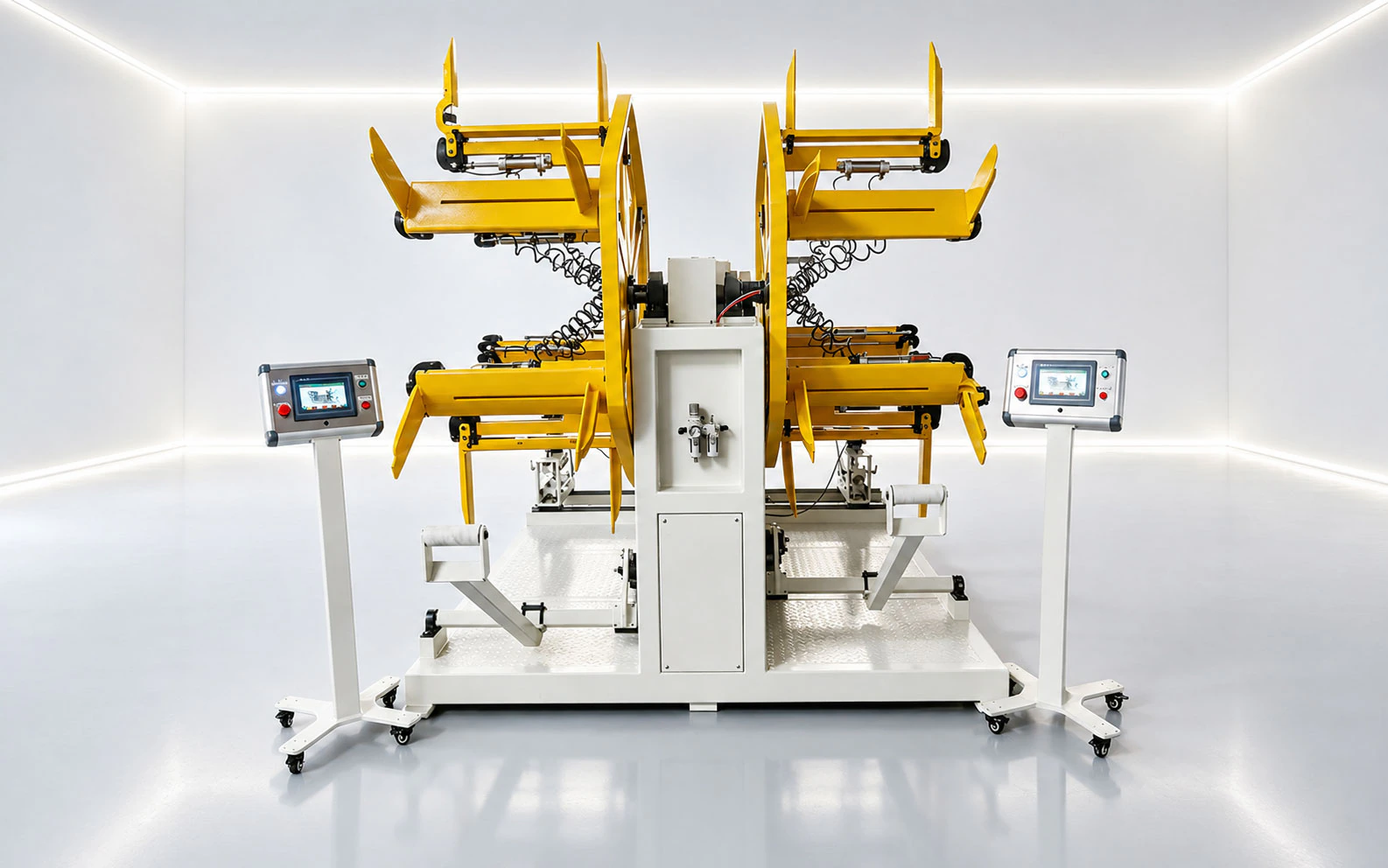

- JQ16-40-2VS is a high-stability opposite double-station coiler for 16-40 mm PE pipes. The unique opposite dual-reel structure ensures balanced frame stress, low vibration and stable alternating coiling without mutual interference.

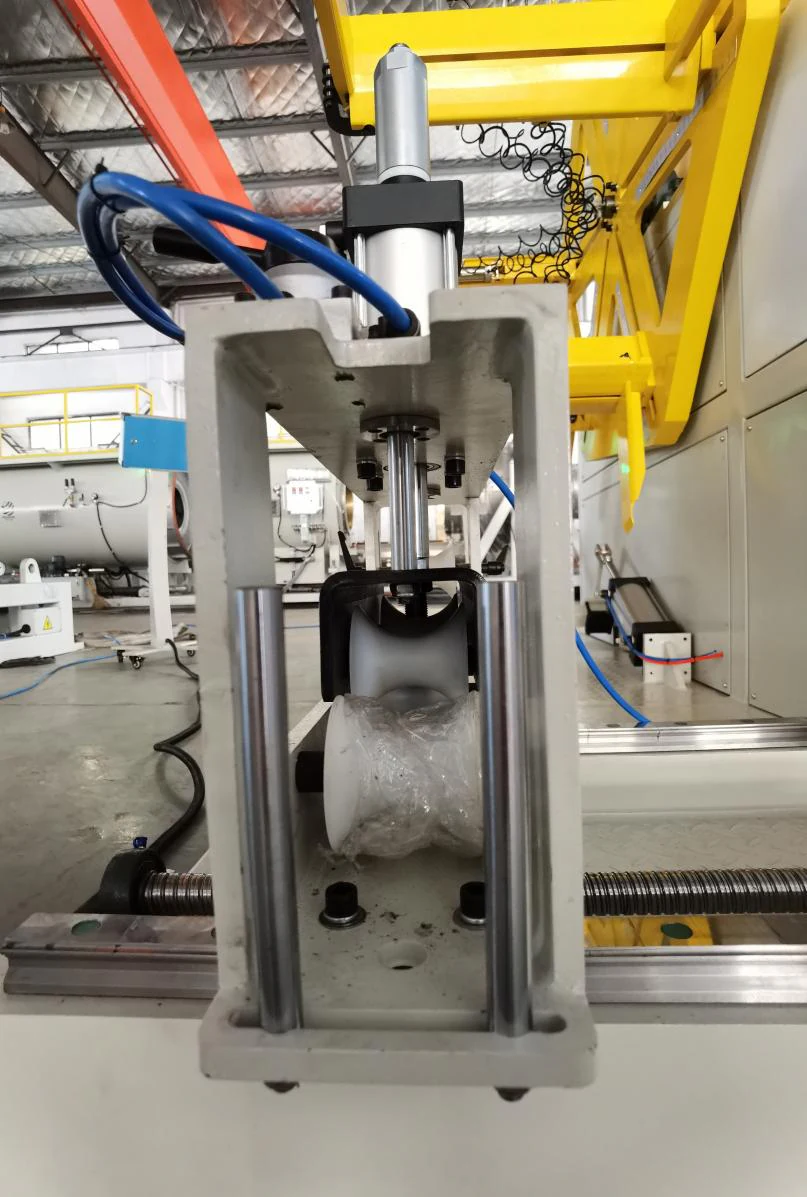

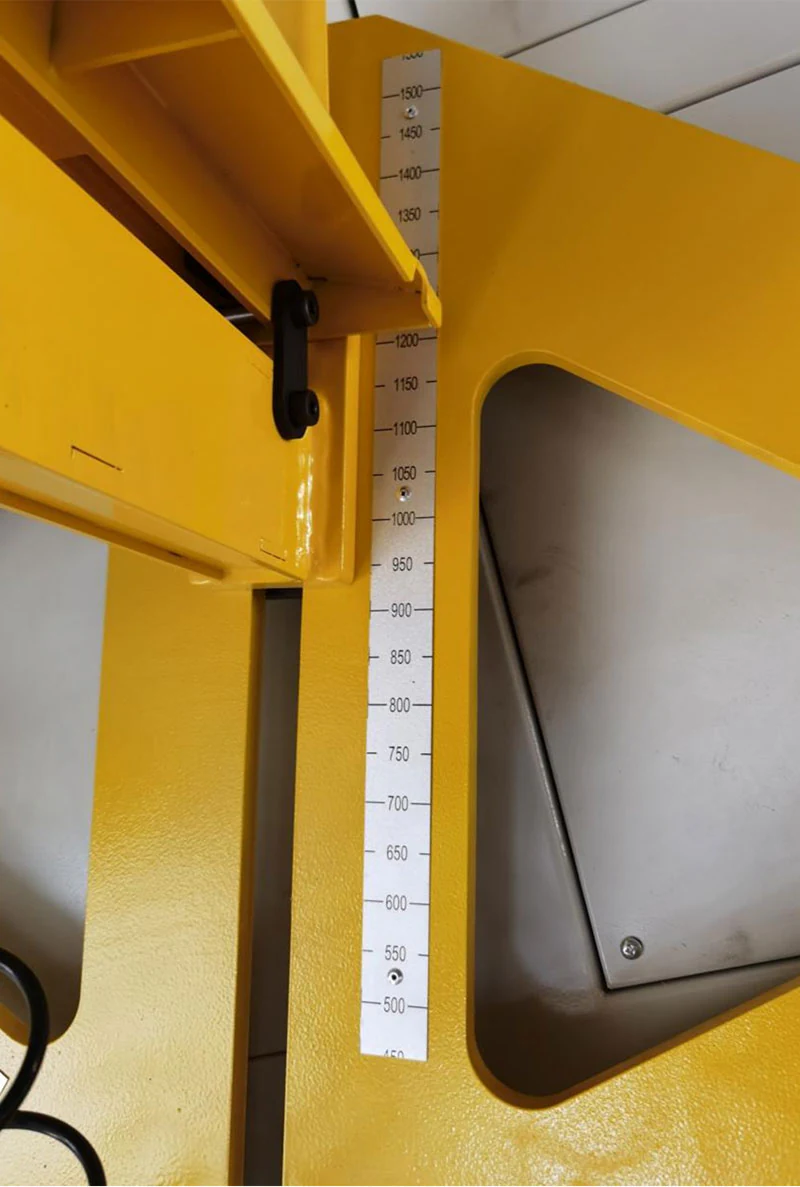

- It supports wide-range adjustable coil inner diameter, outer diameter and width, adapting to multiple coil specifications. Equipped with dual 1.5 KW DELTA inverter motors and 0.5 KW DELTA servo traverse motor, it adopts ultrasonic sensor automatic speed follow-up + potentiometer fine-tuning dual speed control to achieve perfect line speed synchronization.

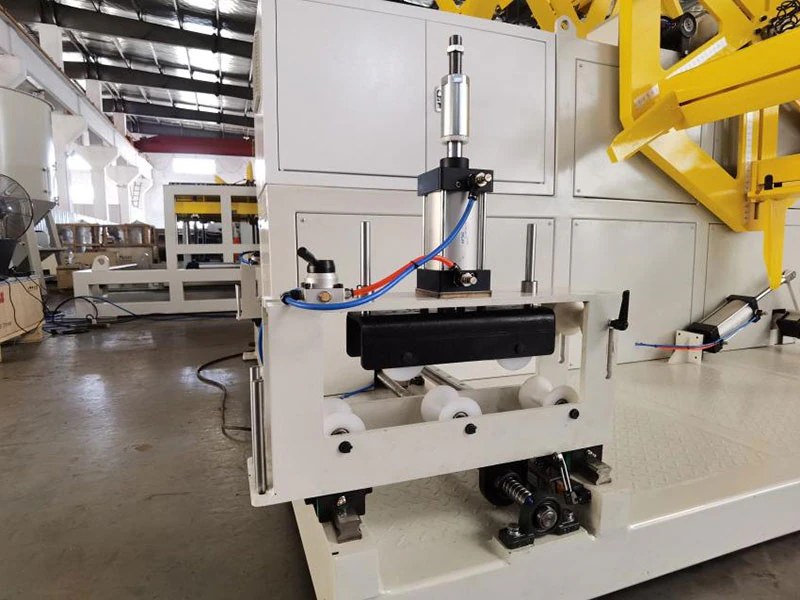

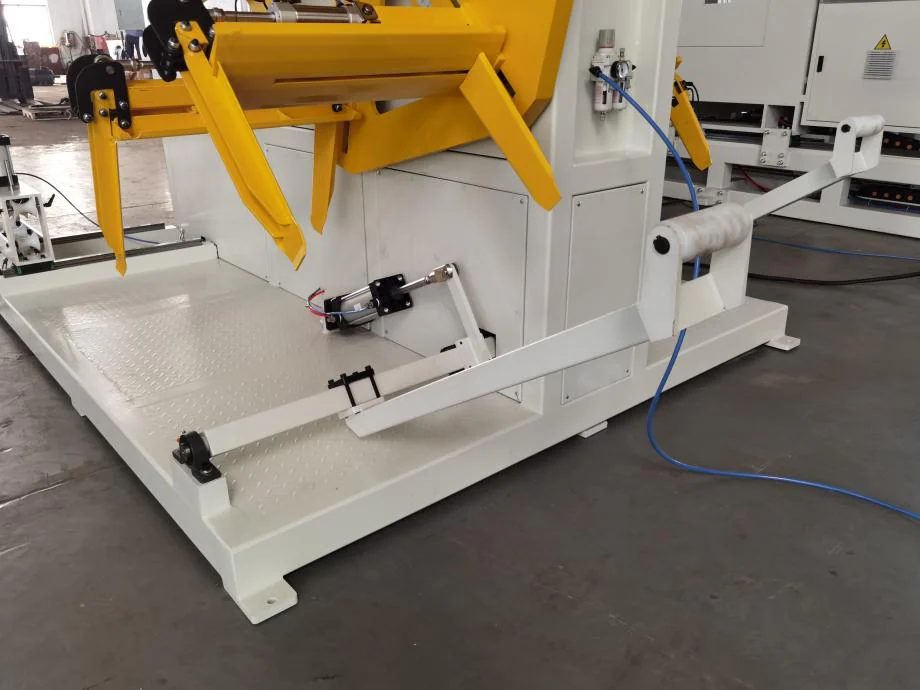

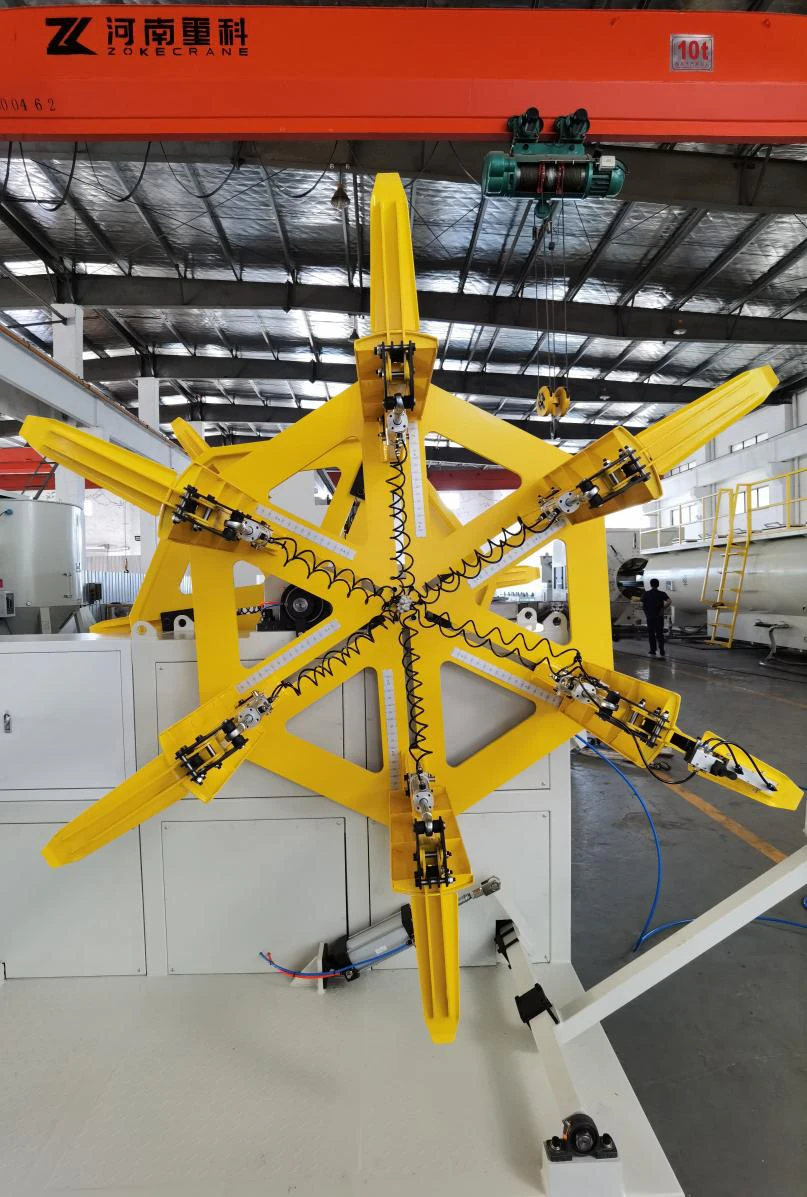

- Pneumatic clamping, pneumatic pressing and pneumatic discharging, the machine realizes full automatic coiling and unloading. The HMI visual human-machine operating system provides intelligent, simple and highly stable industrial control, ensuring neat, compact and consistent finished pipe coils.
03
Core Advantages
Machine Advantage
Stepless speed control matches line output.
Machine Advantage
Precise control keeps product quality stable.
Machine Advantage
Reliable drive control keeps operation stable.
Machine Advantage
Reliable drive control keeps operation stable.
Machine Advantage
PLC touch control simplifies operation and monitoring.
04

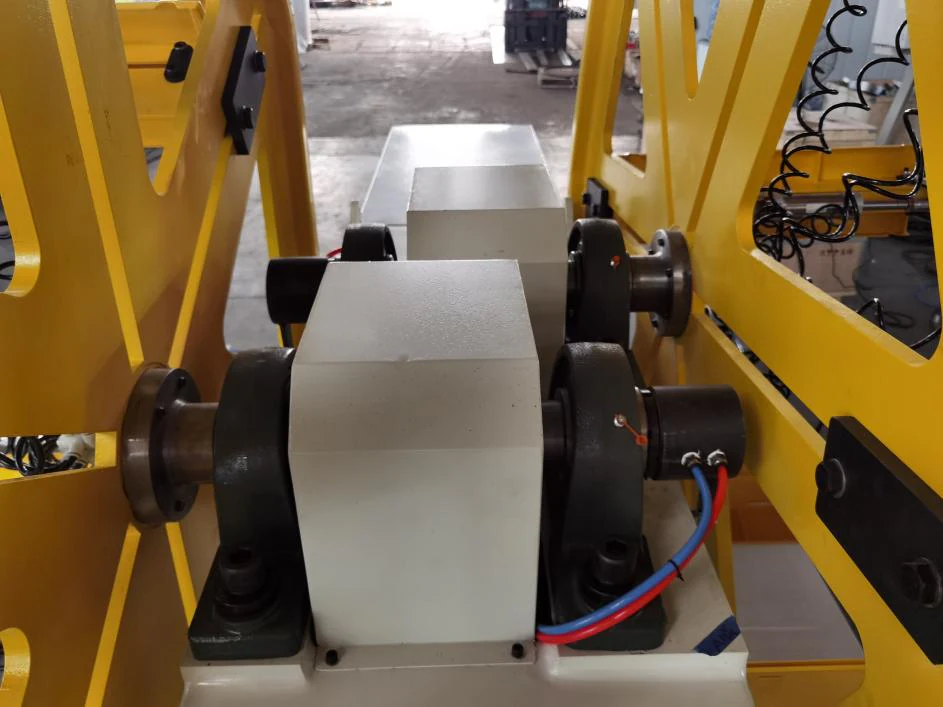

Product Details
05
Technical Parameters
| Model | Number of reels | Pipe range | Max. coiling speed | Coiling motor power | Traverse motor power |
|---|---|---|---|---|---|
| JQ16-32-2VS | Two (same position) | 16~32 MM | 35 M/Min. | 1.5 KW*2 | 0.9 KW |
| JQ16-32-4VS | Four | 16~32 MM | 30 M/Min. | 1.5 KW*4 | 0.9 KW*2 |
| JQ16-40-2VS | Two (opposite position) | 16~40 MM | 30 M/Min. | 1.5 KW*2 | 0.5 KW |
| JQ40-63-2VS | Two (same position) | 40~63 MM | 20 M/Min. | 1.0 KW*2 | 0.9 KW |
| JQ20-63-1VS | One | 20~63 MM | 20 M/Min. | 1.0 KW | 0.9 KW |
| JQ20-63-2VS | Two (same position) | 20~63 MM | 25 M/Min. | 2.2 KW*2 | 0.9 KW |
| JQ50-110-1VS | One | 50~110 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ50-125-1VS | One | 50~125 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ75-160-1VS | One | 75~160 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ76-225-1VS | One | 76~225 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ90-250-1VS | One | 90~250 MM | 23.5 M/Min. | 7.5 KW | - |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
Q1: What pipe range does JQ16-40-2VS Double-Reel Coiling Machine support?
Please refer to the technical parameters on this page. For special pipe sizes, Polestar Machinery can confirm the configuration according to your extrusion line.
Q2: Can this machine match an existing extrusion line?
Yes. Please provide your pipe material, pipe diameter range, line speed and coil specification, and our engineering team will check the matching configuration.
Q3: Can the machine be customized?
Yes. Coil diameter, control system, pneumatic functions and line layout can be configured according to project requirements.
Q4: What information is needed for quotation?
Please share pipe OD range, material, line speed, coil inner diameter, coil outer diameter, coil width and expected automation level.
