01 JQ20-63-1VS SINGLE-REEL COILING MACHINE

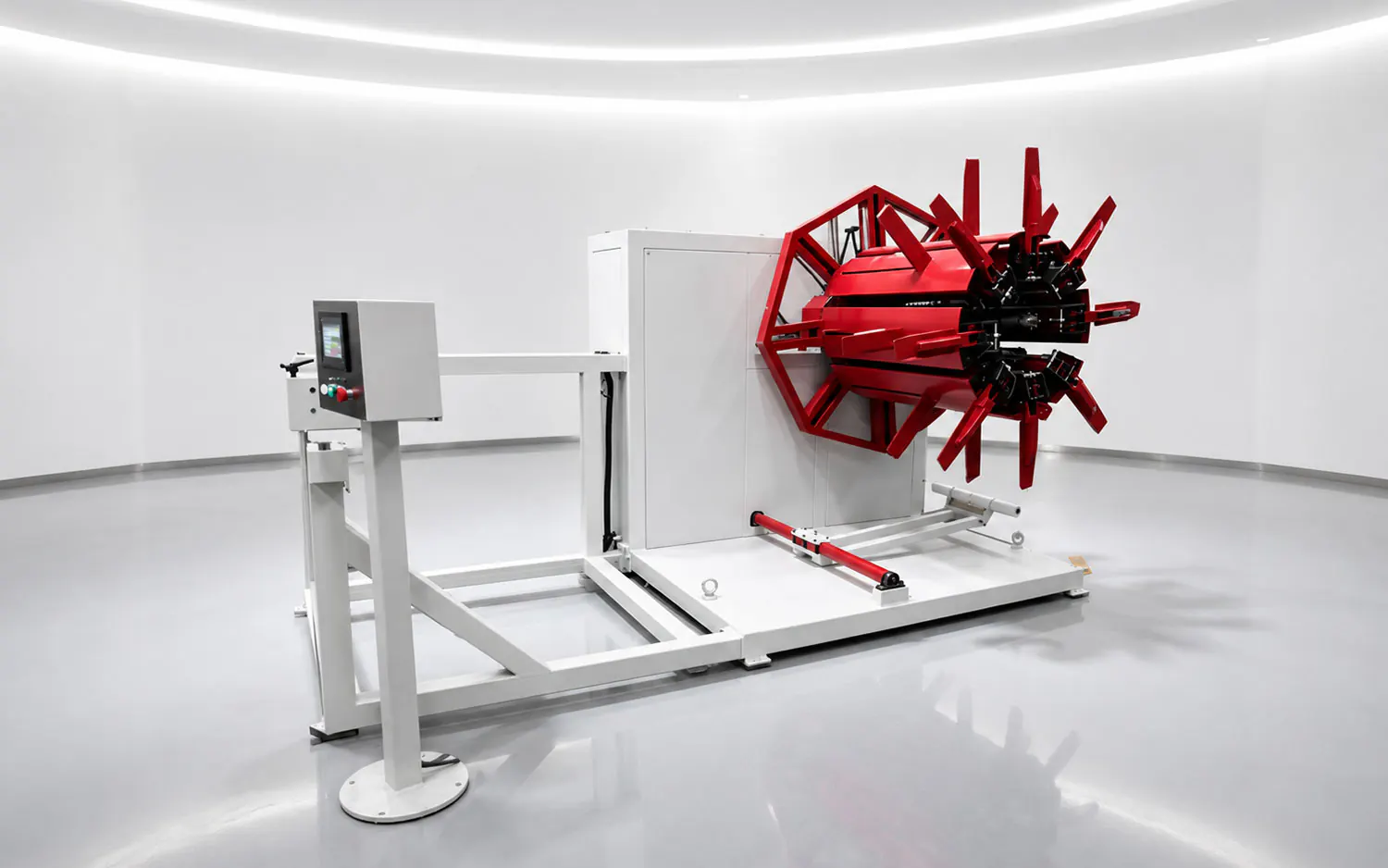

JQ20-63-1VS Single-Reel Coiling Machine

The JQ20-63-1VS single-station pipe coiler fits 20-63 mm PE pipe production.

It provides economical and reliable winding support for small and medium HDPE extrusion lines.

Get a Quote

Get a Quote

Product Overview

The JQ20-63-1VS single station pipe coiler fits 20-63mm PE pipe production. Adopting full Delta servo control and integrated pneumatic unloading system. Compact footprint and competitive price. Flexible adjustable coil sizes, stable winding performance. It is an economical and reliable supporting equipment for small and medium HDPE extrusion lines.

Core Advantages

Machine Advantage

Single-reel structure keeps footprint compact and investment practical.

Machine Advantage

Reliable drive control keeps operation stable.

Machine Advantage

Precise control keeps product quality stable.

Machine Advantage

Pneumatic clamping, coil pressing and coil discharging reduce manual operation.

Machine Advantage

Stepless speed control matches line output.

Machine Advantage

Durable parts support long service life.

Product Details

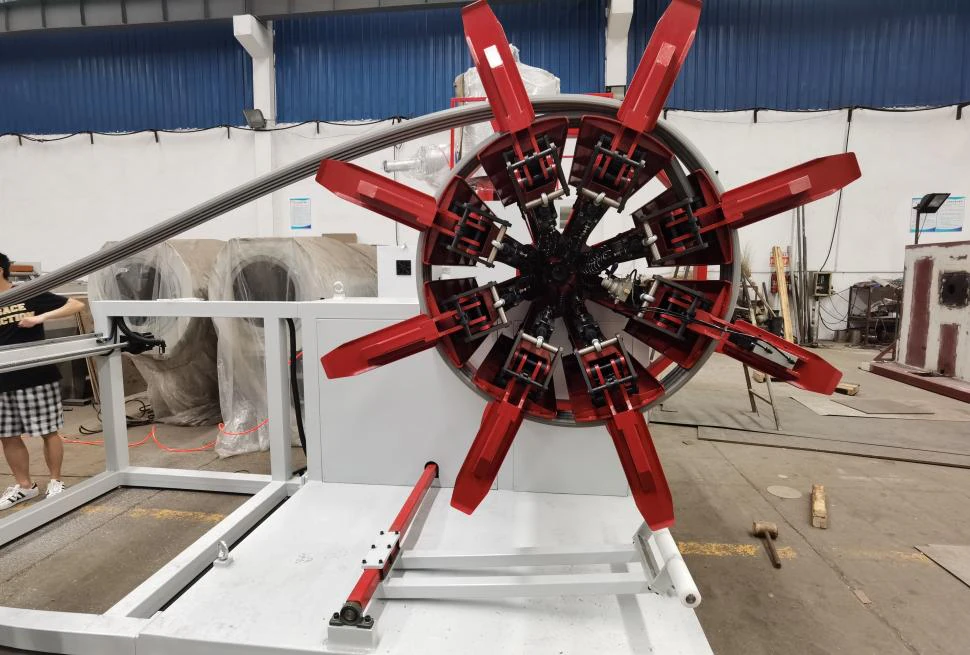

16 63 single station winding machine detail 1

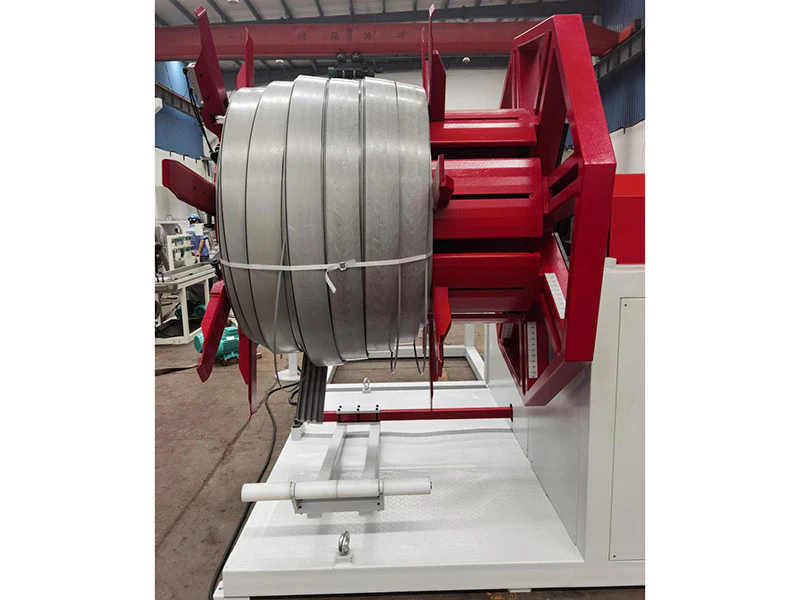

16 63 single station winding machine detail 2

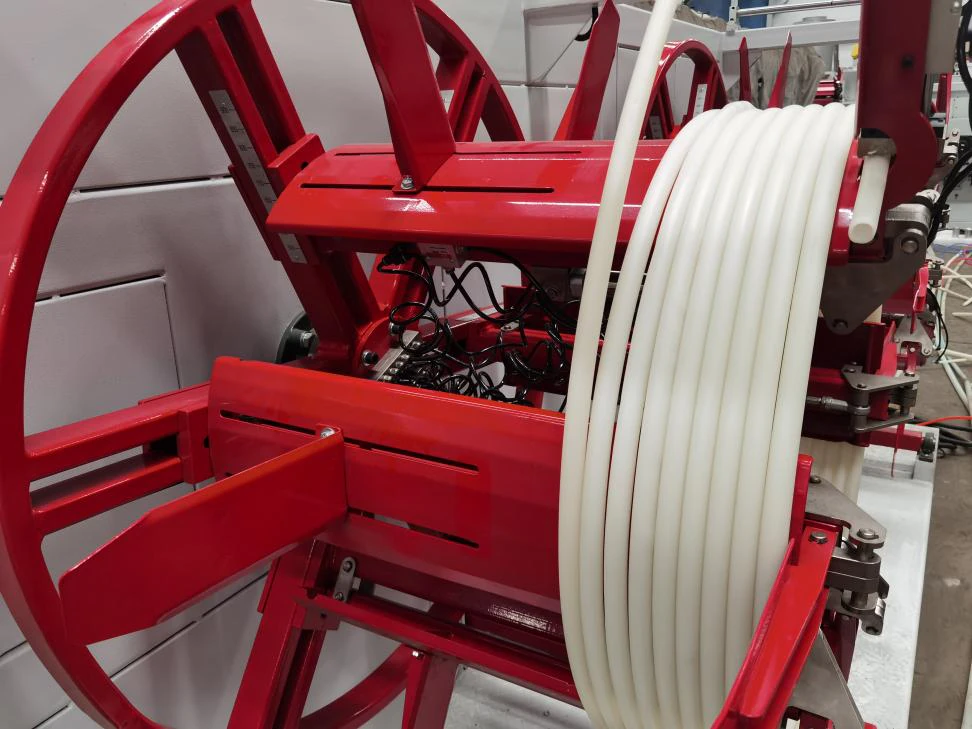

16 63 single station winding machine detail 3

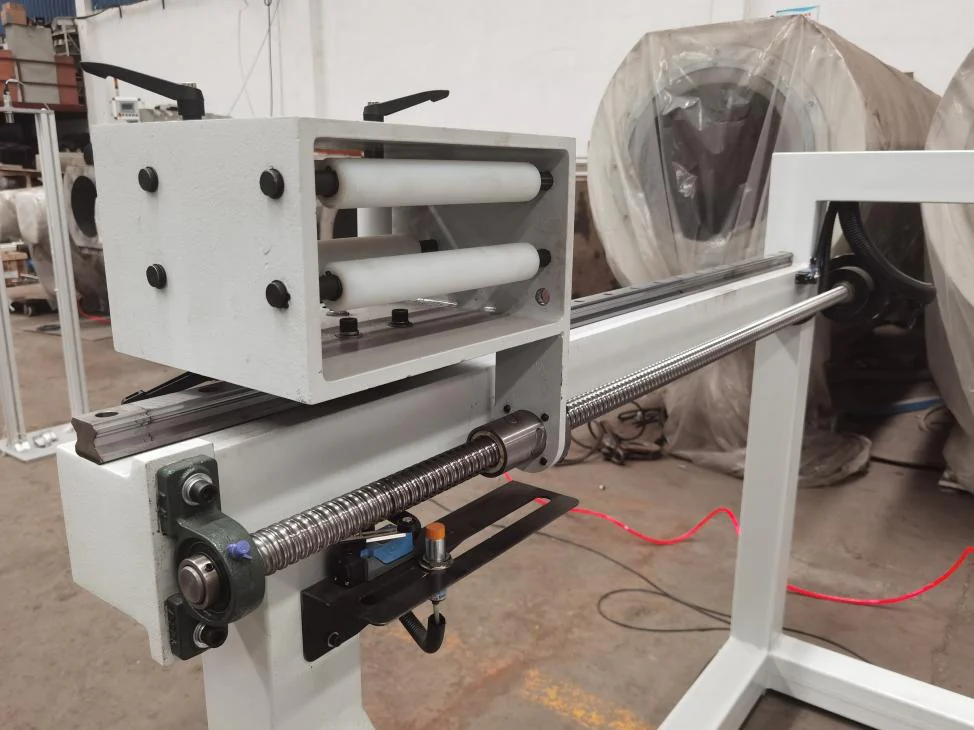

16 63 single station winding machine detail 4

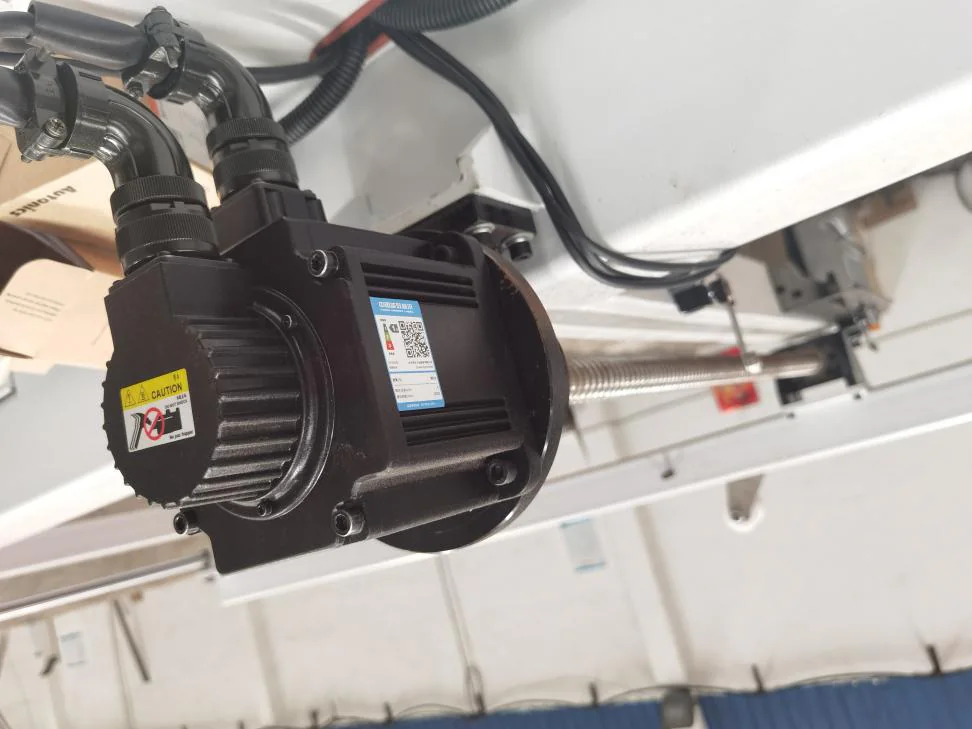

16 63 single station winding machine detail 5

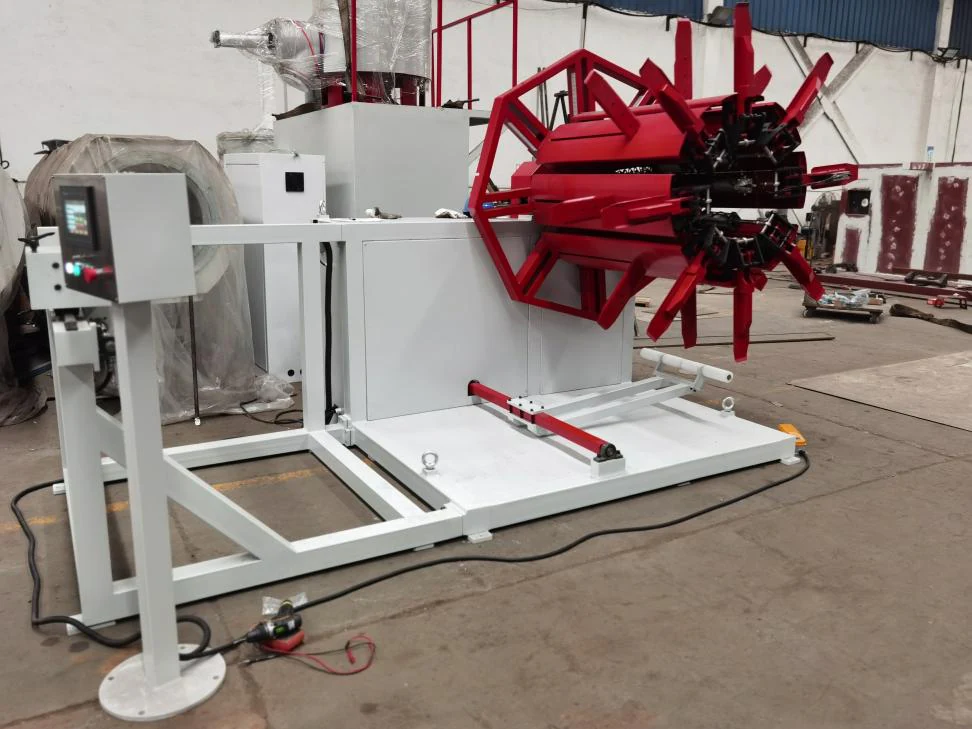

16 63 single station winding machine detail 6

Technical Parameters

Model	Number of reels	Pipe range	Max. coiling speed	Coiling motor power	Traverse motor power
JQ16-32-2VS	Two (same position)	16~32 MM	35 M/Min.	1.5 KW*2	0.9 KW
JQ16-32-4VS	Four	16~32 MM	30 M/Min.	1.5 KW*4	0.9 KW*2
JQ16-40-2VS	Two (opposite position)	16~40 MM	30 M/Min.	1.5 KW*2	0.5 KW
JQ40-63-2VS	Two (same position)	40~63 MM	20 M/Min.	1.0 KW*2	0.9 KW
JQ20-63-1VS	One	20~63 MM	20 M/Min.	1.0 KW	0.9 KW
JQ20-63-2VS	Two (same position)	20~63 MM	25 M/Min.	2.2 KW*2	0.9 KW
JQ50-110-1VS	One	50~110 MM	10 M/Min.	3.0 KW	0.9 KW
JQ50-125-1VS	One	50~125 MM	10 M/Min.	3.0 KW	0.9 KW
JQ75-160-1VS	One	75~160 MM	10 M/Min.	3.0 KW	0.9 KW
JQ76-225-1VS	One	76~225 MM	10 M/Min.	3.0 KW	0.9 KW
JQ90-250-1VS	One	90~250 MM	23.5 M/Min.	7.5 KW	-

Factory Strength

20+Years Experience

20MAnnual Sales

72hPre-delivery Test

CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production management

Polestar factory machining workshop for extrusion equipment parts

Polestar machinery assembly workshop for plastic pipe extrusion lines

Polestar machine inspection area for pre-delivery testing

Polestar production area for plastic pipe machinery manufacturing

Customer visit at Polestar factory for extrusion line inspection

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipment

Polestar Machinery machine packing and loading for export delivery

Plastic extrusion machine container loading at Polestar factory

Polestar Machinery container loading inspection before shipping

Plastic extrusion equipment shipment and container loading service

Polestar Machinery export shipment for plastic pipe extrusion line

Customer Projects

Plastic pipe machinery customer project 1

Plastic pipe machinery customer project 2

Plastic pipe machinery customer project 3

Plastic pipe machinery customer project 4

Plastic pipe machinery customer project 5

Plastic pipe machinery customer project 6

Frequently Asked Questions

Q1: What pipe range does JQ20-63-1VS Single-Reel Coiling Machine support?

Please refer to the technical parameters on this page. For special pipe sizes, Polestar Machinery can confirm the configuration according to your extrusion line.

Q2: Can this machine match an existing extrusion line?

Yes. Please provide your pipe material, pipe diameter range, line speed and coil specification, and our engineering team will check the matching configuration.

Q3: Can the machine be customized?

Yes. Coil diameter, control system, pneumatic functions and line layout can be configured according to project requirements.

Q4: What information is needed for quotation?

Please share pipe OD range, material, line speed, coil inner diameter, coil outer diameter, coil width and expected automation level.
