01 PVC MEDICAL TUBE EXTRUSION LINE

2~6MM PVC Medical Tube
Extrusion Line

Specialized extrusion line for thin PVC medical tubing with stable size control and cleanroom-friendly production.

316L stainless steel melt contact parts, low-shear screw, laser diameter control, servo traction and chip-free cutting.

Get a Quote
2~6MM PVC medical tube extrusion line
02

Product Details

  • Specialized extrusion line for 2~6mm thin PVC medical tubing
  • 316L stainless steel all melt contact parts, FDA & medical compliance
  • Micron-level OD & wall thickness tolerance, crystal-clear tube without fish eyes
  • Closed-loop laser diameter control, stable long-run production
  • High-speed servo traction & chip-free cutting, flat smooth cut ends
  • Low-shear medical screw, low PVC degradation, no yellow spots
  • Full PLC automatic control, easy operation & low material waste
  • CE certified, cleanroom-friendly design for medical device workshop

Finished Products & Applications

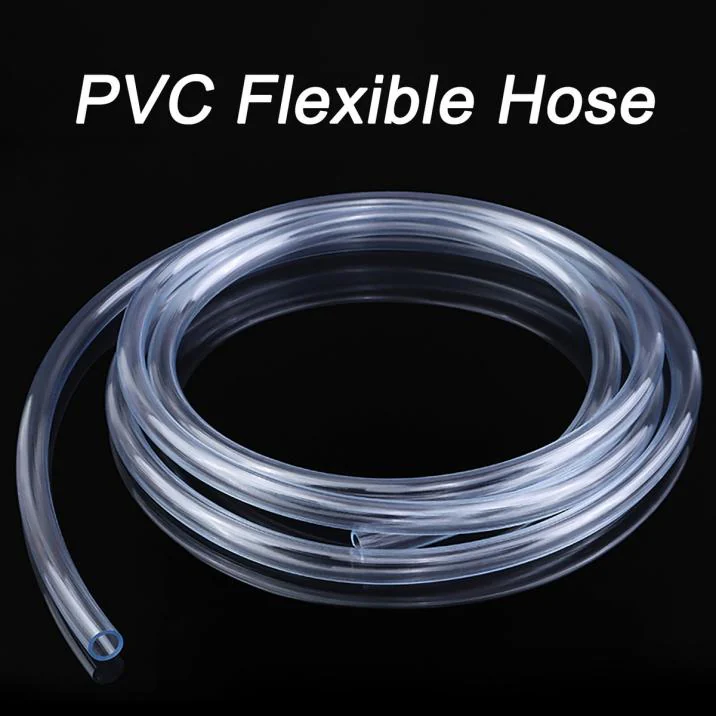

Transparent PVC medical micro tube
Transparent PVC medical micro tube

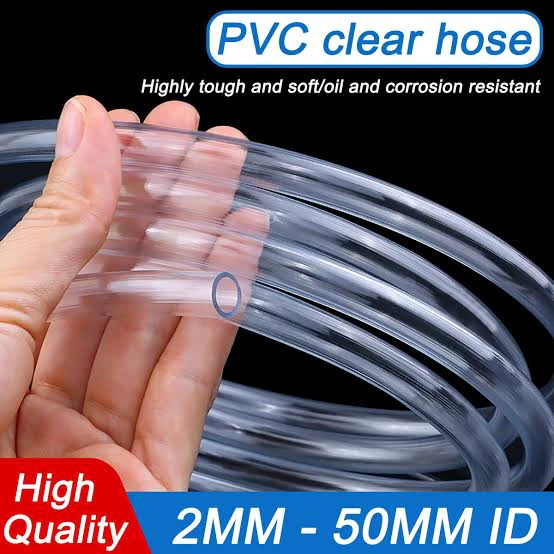

Soft PVC medical tubing
Soft PVC medical tubing

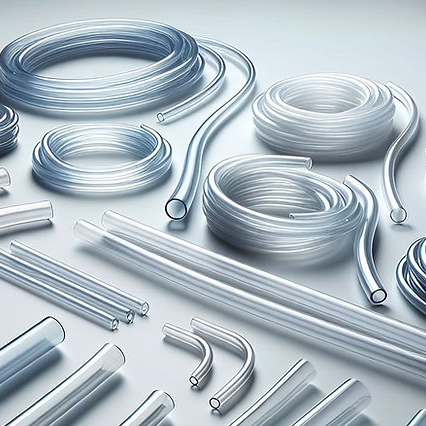

Precision small-diameter PVC tube
Precision small-diameter PVC tube
Φ2–6 mmPVC Pipe OD
15–20 m/minMax. Line Speed
25 kg/hOutput Capacity
50 kWTotal Power
03

Applications

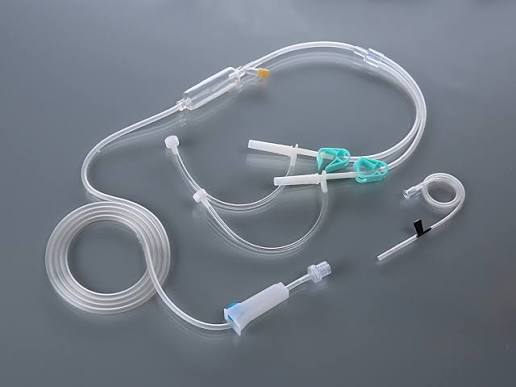

Infusion tube production

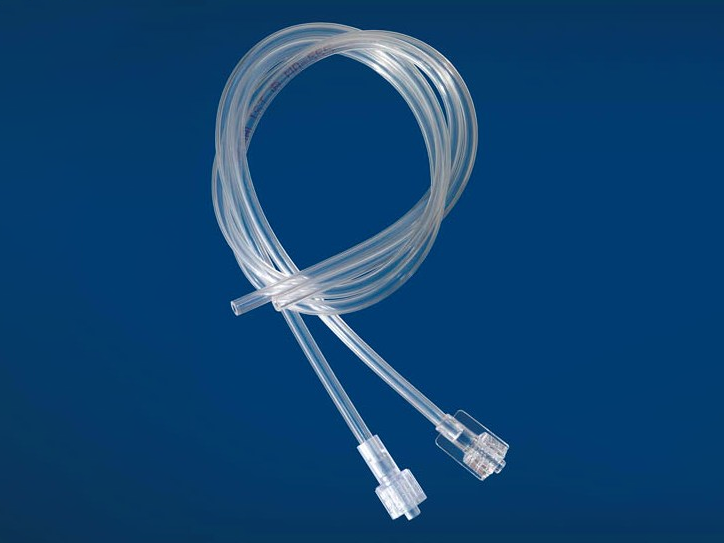

Oxygen connecting tube

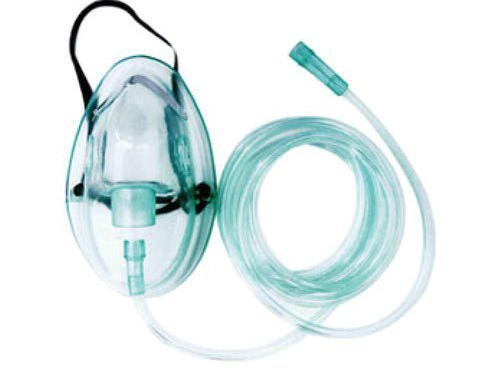

Medical drainage micro tube
04

Core Advantages

01

Medical sanitary structure

Stable output supports efficient continuous production.

02

Precision micro tube control

PLC touch control simplifies operation and monitoring.

03

Low material waste

Stable traction keeps pipe movement consistent.

04

Synchronous PLC control

Stable output supports efficient continuous production.

05

Clean and safe equipment

Stable feeding keeps material flow consistent.

06

Flexible turnkey configuration

Flexible configuration matches different projects.

05

Machine Video

06

Production Process

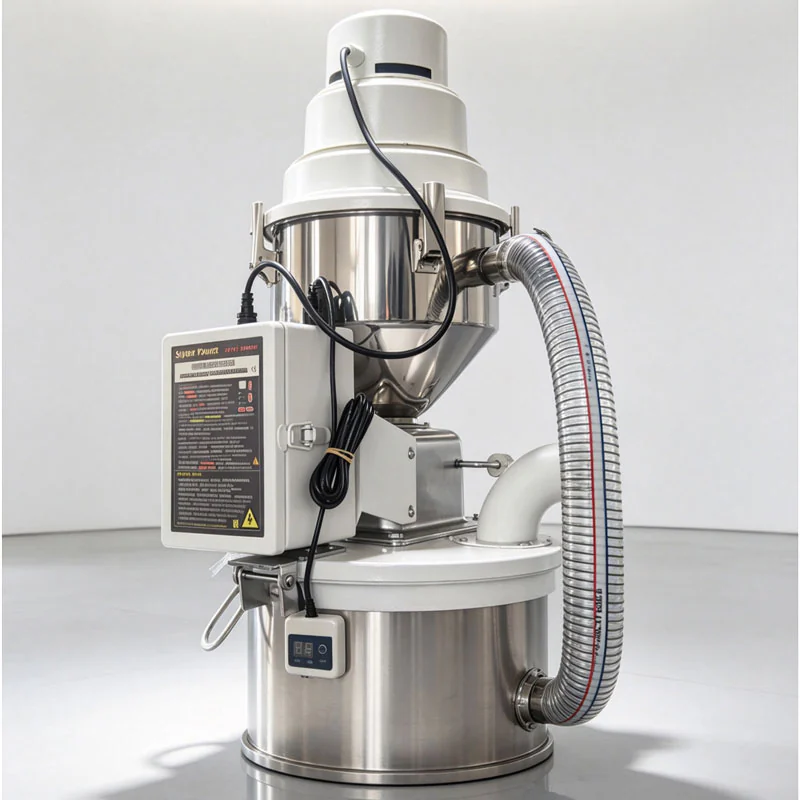

Raw Material Vacuum Loader
01

Raw Material Vacuum Loader

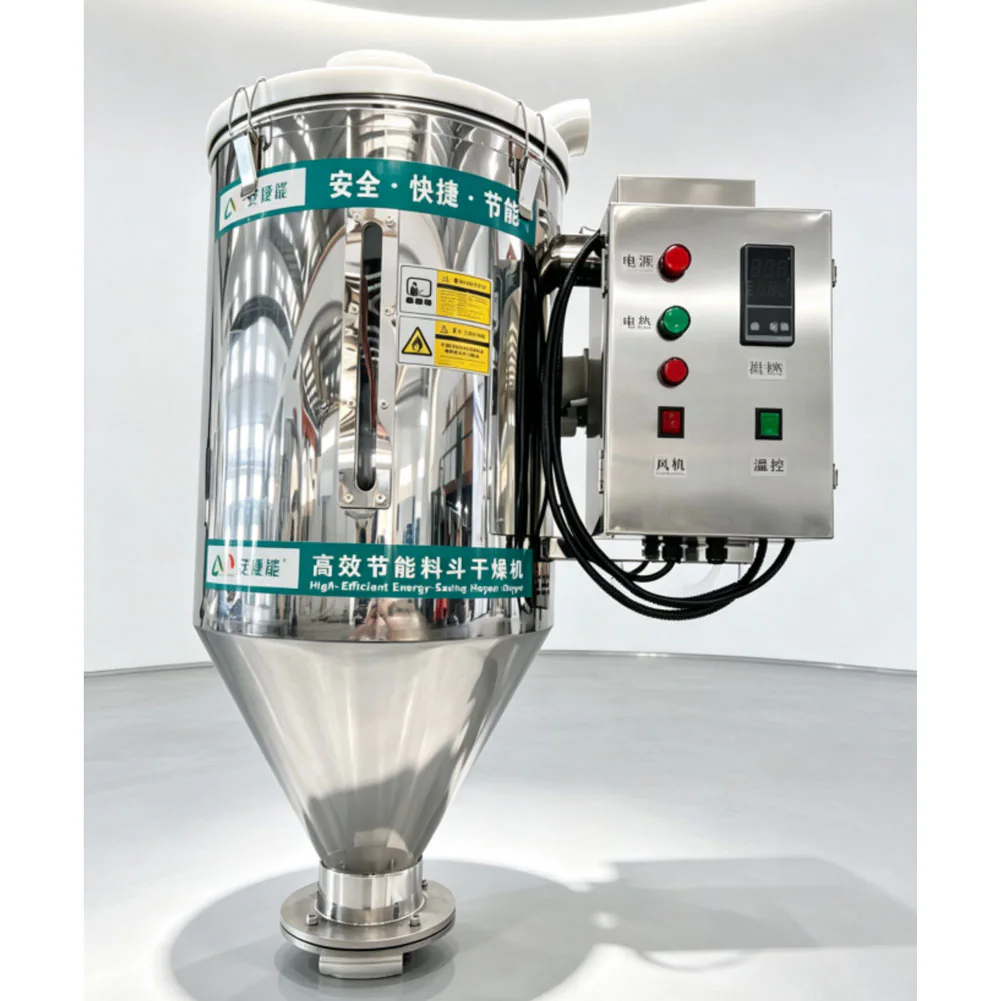

Hopper Dryer
02

Hopper Dryer

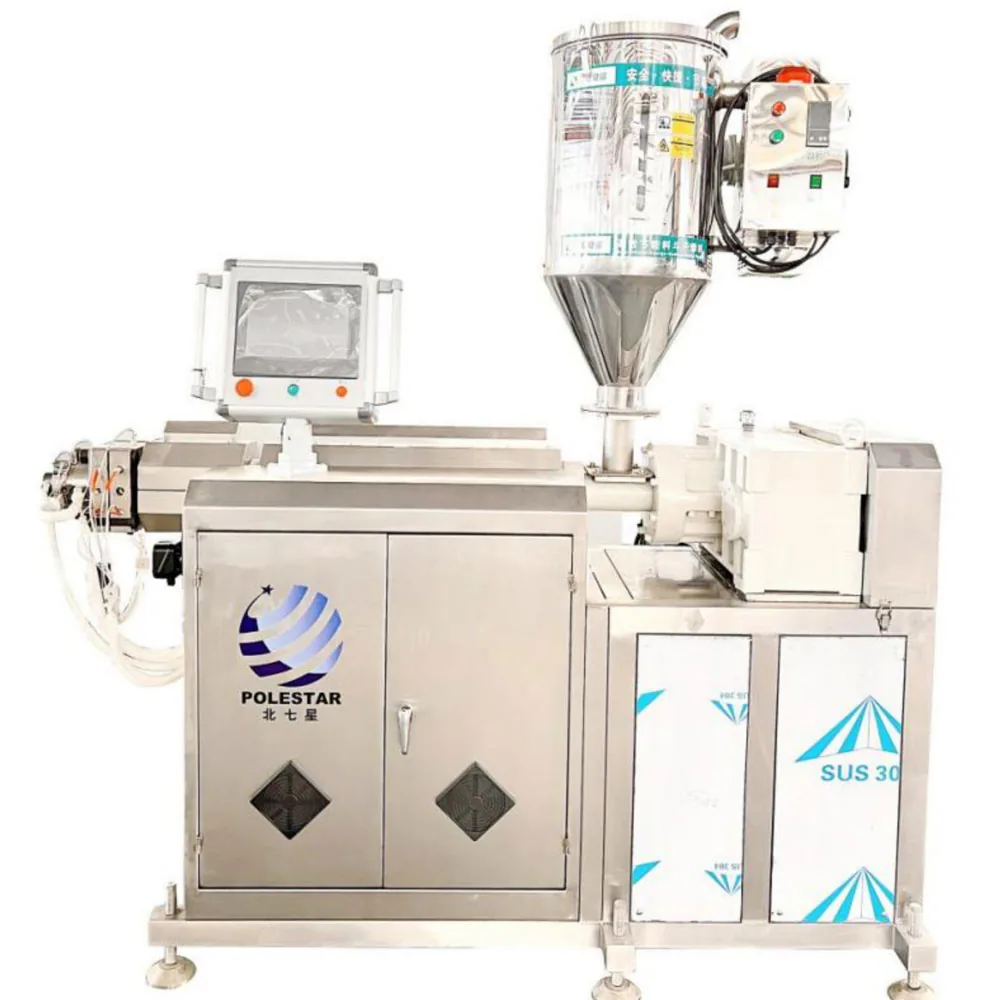

Single Screw Extruder
03

Single Screw Extruder

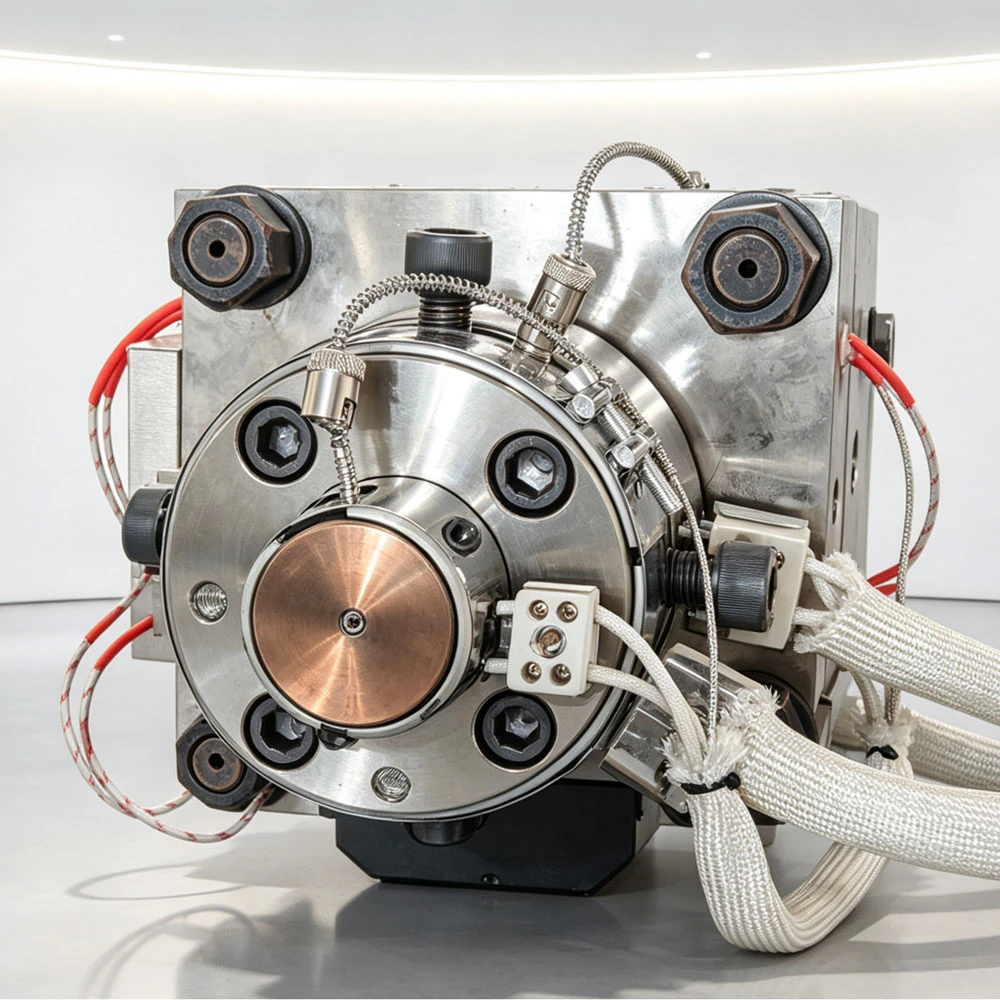

Extrusion Die Head
04

Extrusion Die Head

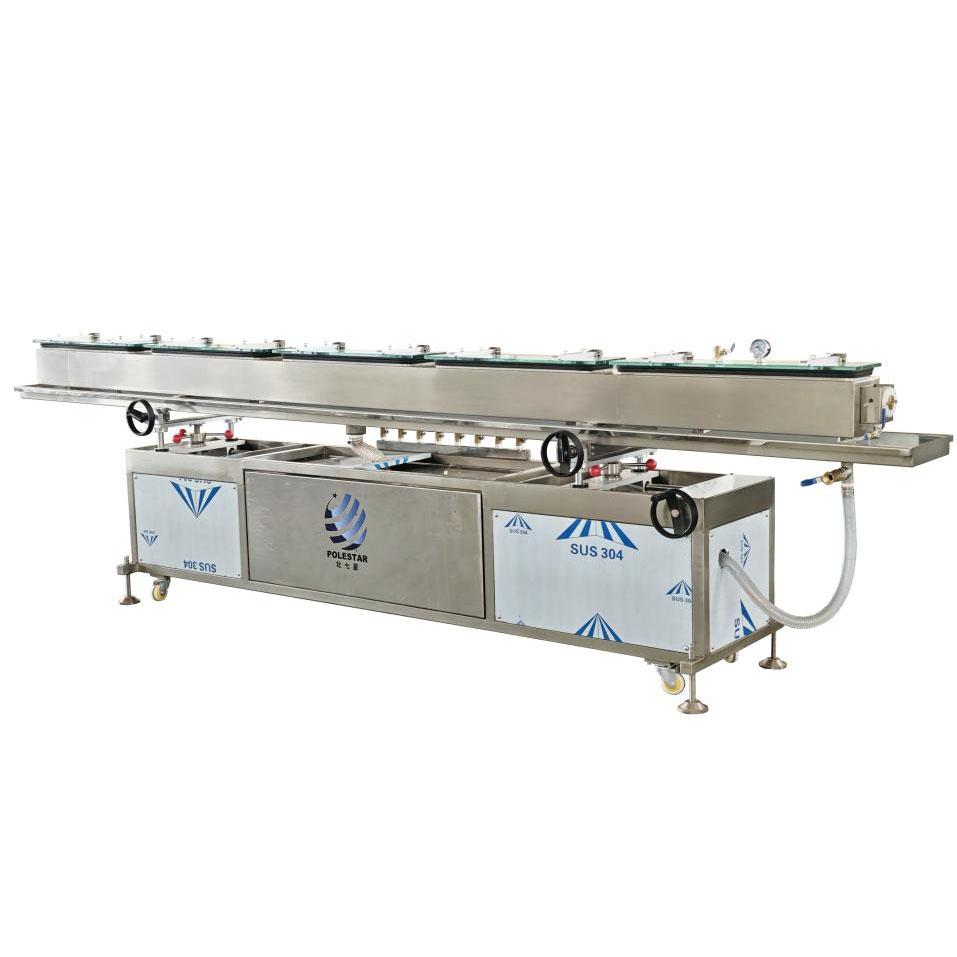

Vacuum Calibration Tank
05

Vacuum Calibration Tank

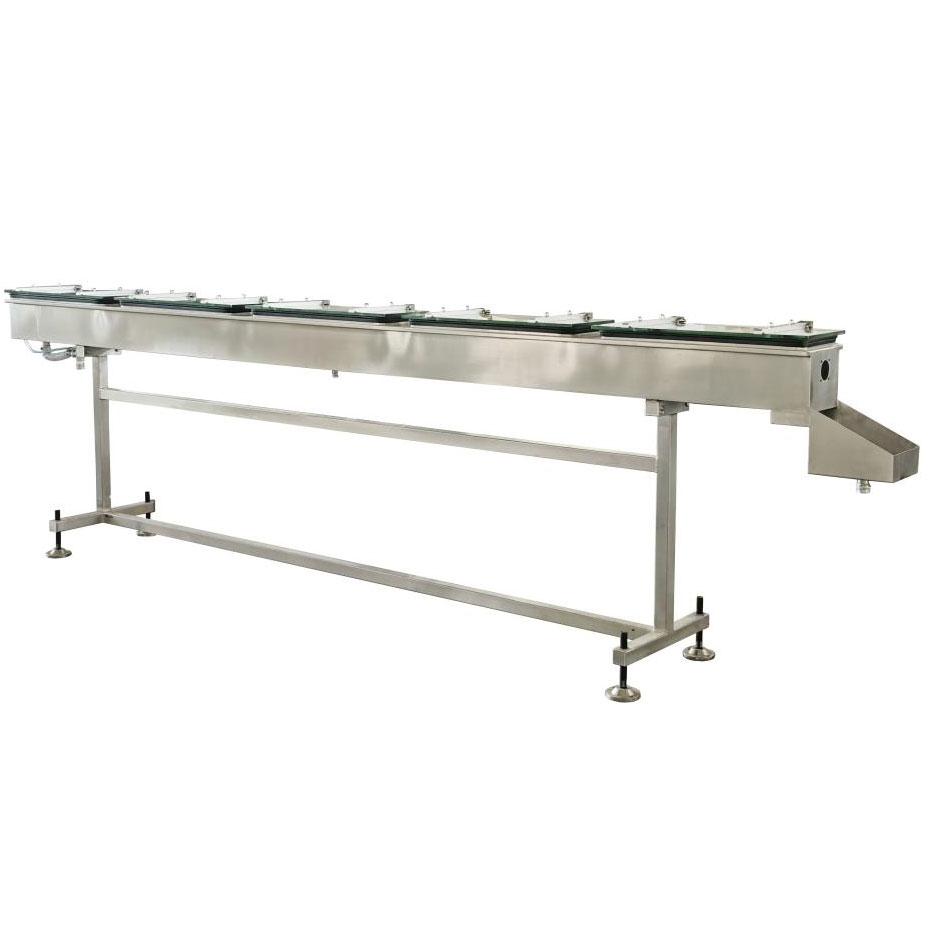

Water Cooling Tank
06

Water Cooling Tank

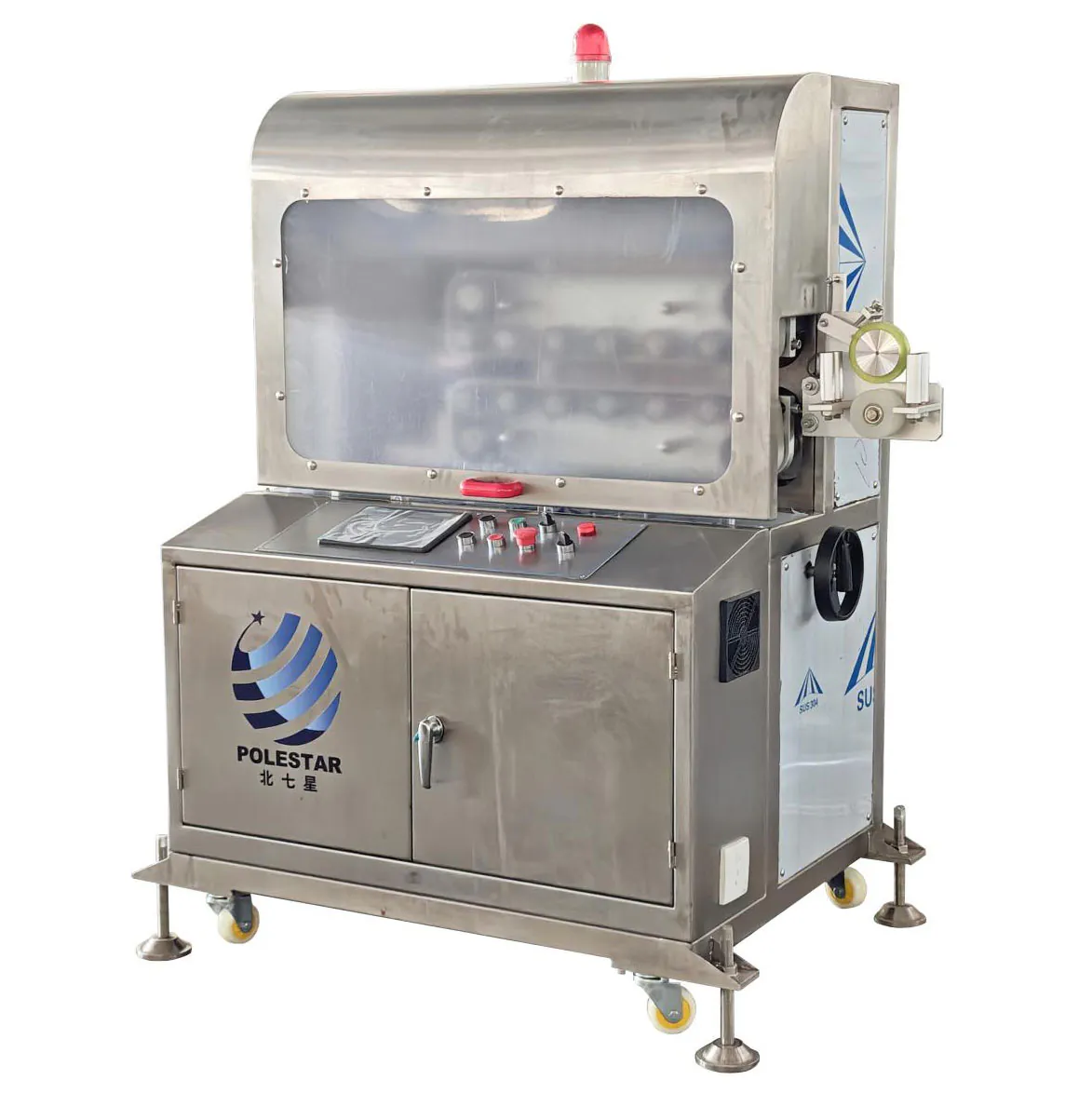

Haul-off & Cutting Machine
07

Haul-off & Cutting Machine

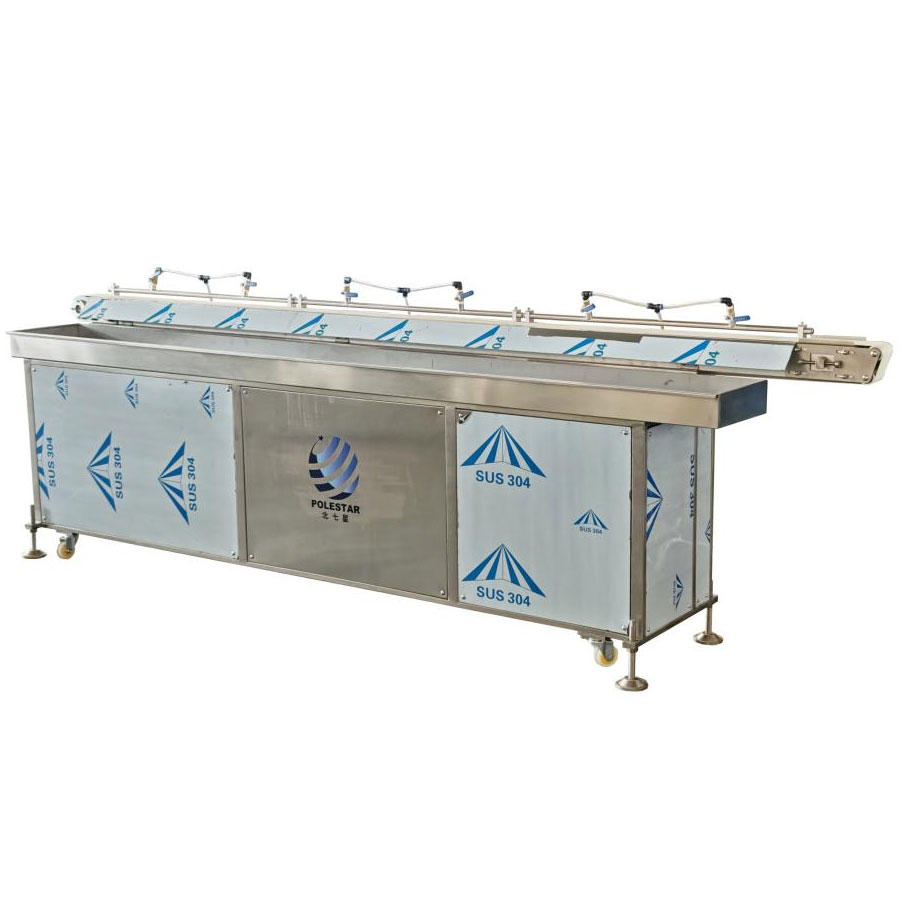

Conveyor Collection
08

Conveyor Collection

07

The Production Line Consists Of

Vacuum Loader

1 PC

Hopper Dryer

1 PC

Single Screw Extruder Machine

1 PC

Extrusion Die Head

1 PC

Vacuum Calibration Tank

1 PC

Water Cooling Tank

1 PC

Haul-off & Cutting Machine

1 PC

Conveyor Collection

1 PC
08

Technical Parameters

ModelPipe RangeExtruder ModelMain Motor PowerMax. Line SpeedMax. Output
BQX250.5–1.8 mmSJ253.0 kW60 m/min0–3 kg/h
BQX301.0–3.5 mmSJ307.5 kW50 m/min12–18 kg/h
BQX452.0–7.0 mmSJ4511 kW40 m/min18–30 kg/h
BQX503.0–9.5 mmSJ5015 kW30 m/min25–45 kg/h
BQX655.0–16 mmSJ6522 kW20 m/min40–70 kg/h
BQX7510–22 mmSJ7537 kW10 m/min70–100 kg/h
09

Factory Strength

20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production managementPolestar factory machining workshop for extrusion equipment partsPolestar machinery assembly workshop for plastic pipe extrusion linesPolestar machine inspection area for pre-delivery testingPolestar production area for plastic pipe machinery manufacturingCustomer visit at Polestar factory for extrusion line inspection
10

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipmentPolestar Machinery machine packing and loading for export deliveryPlastic extrusion machine container loading at Polestar factoryPolestar Machinery container loading inspection before shippingPlastic extrusion equipment shipment and container loading servicePolestar Machinery export shipment for plastic pipe extrusion line
11

Customer Projects

Plastic pipe machinery customer project 1Plastic pipe machinery customer project 2Plastic pipe machinery customer project 3Plastic pipe machinery customer project 4Plastic pipe machinery customer project 5Plastic pipe machinery customer project 6
12

Frequently Asked Questions

Which PVC raw material is suitable for 2~6MM medical tubes?

Medical-grade soft PVC compound that complies with ISO 10993, free of heavy metals and toxic stabilizers. Transparent low-migration PVC pellets are recommended for infusion and catheter tubes.

Why does liquid precipitation appear on tube surfaces?

Excessive plasticizer or incompatible auxiliary agents can cause migration. Reduce plasticizer proportion, use medical non-migratory additives and optimize extrusion temperature.

Will the tube turn yellow after long-time production?

PVC decomposes under overheating. Control barrel and die temperature within 160-185 deg C, add medical heat stabilizer and avoid long idle heating.

What causes unstable melt pressure and fluctuating tube OD?

Uneven feeding, worn screw flights or unstable temperature zones. Clean the hopper, repair worn screws and calibrate each heating zone.

Can one die produce all sizes from 2mm to 6mm?

No. Each outer diameter needs a matched die mandrel and sleeve. Interchangeable die sets are supplied for fast size switching.

Does this line fit cleanroom medical production?

Yes. Material contact parts adopt 316L stainless steel and can be wiped and disinfected for medical cleanroom production.

What medical tubes can this line produce?

Infusion tubes, oxygen connecting tubes, catheter sleeves and medical drainage micro tubes in the 2~6MM range.

What is the hourly output of this medical tube line?

Typical output is around 15-35 kg/h depending on tube diameter and wall thickness.
