Machine Advantage
Precise control keeps product quality stable.
02
Product Overview

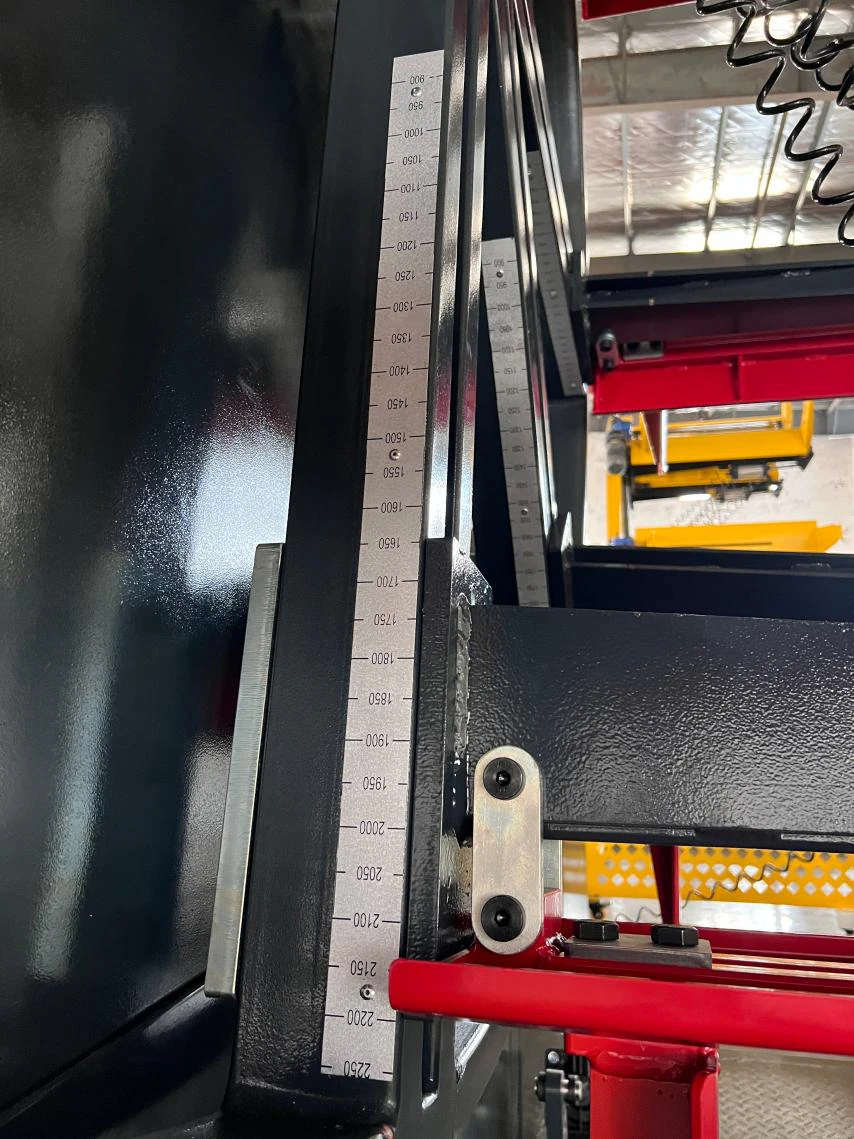

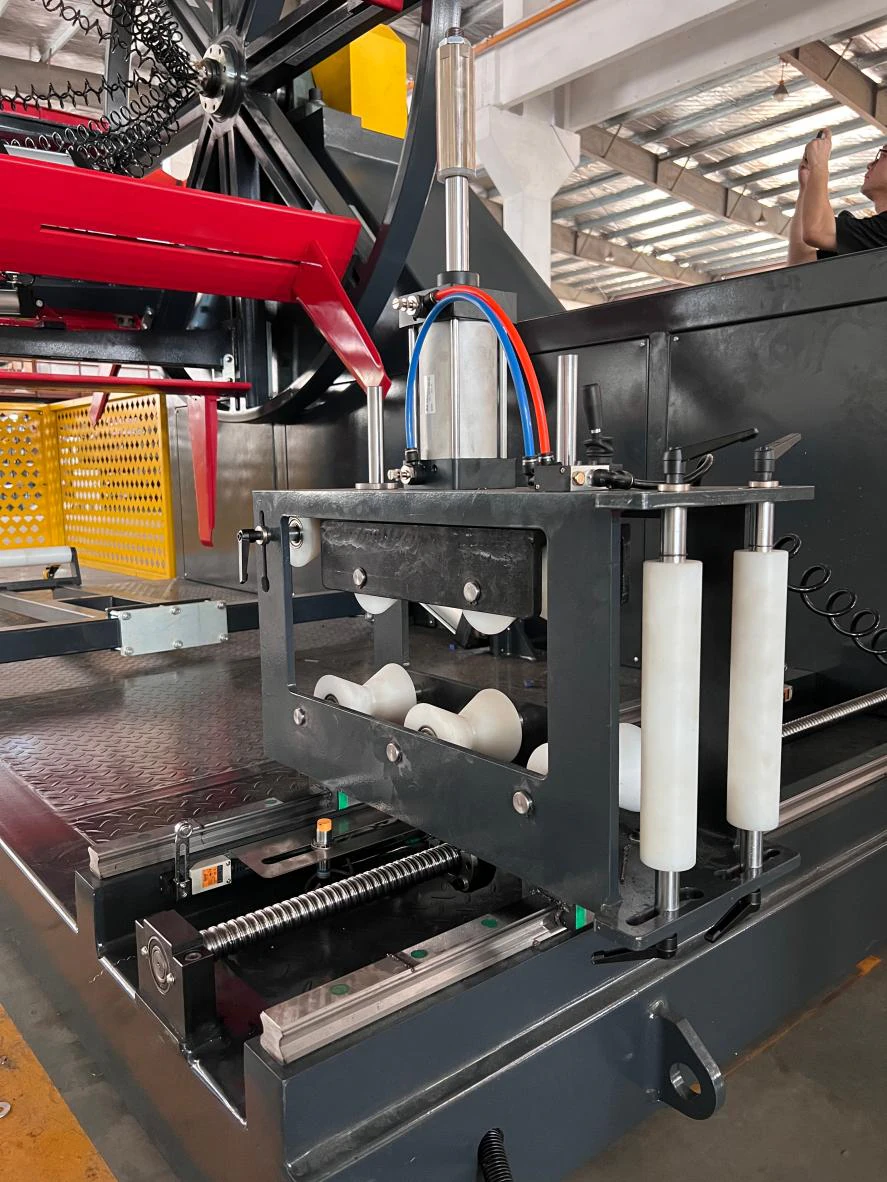

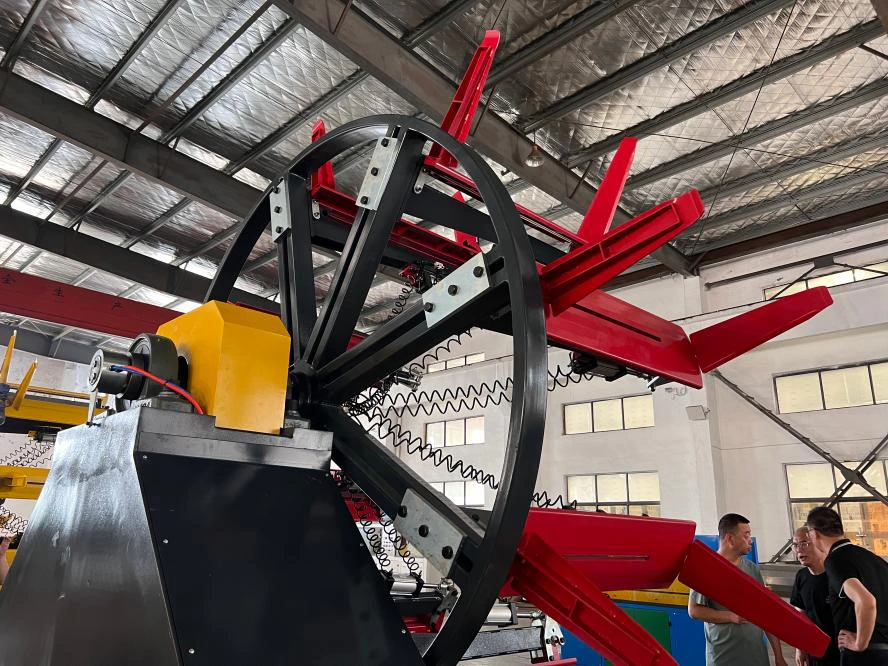

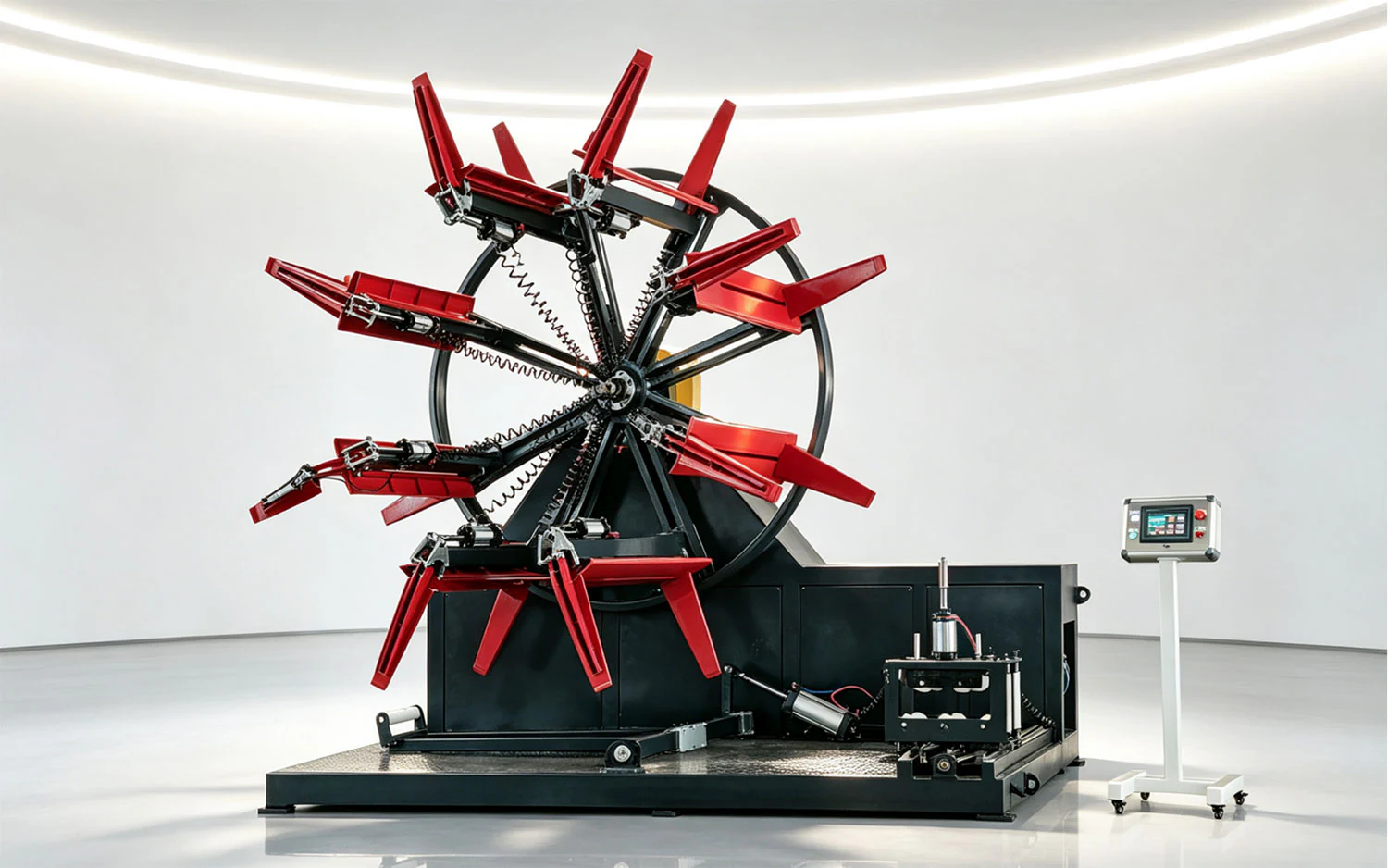

- JQ50-125 single station pipe coiler is designed for 50~125mm PE pipe production. It adopts manual adjustable coil inner diameter, Delta servo traversing system and full pneumatic unloading function. Heavy-duty frame supports large coil size up to 3400mm outer diameter. Cost-effective and reliable, it is an ideal supporting machine for medium and large diameter HDPE extrusion lines.
03
Core Advantages
Machine Advantage
Precise control keeps product quality stable.
Machine Advantage

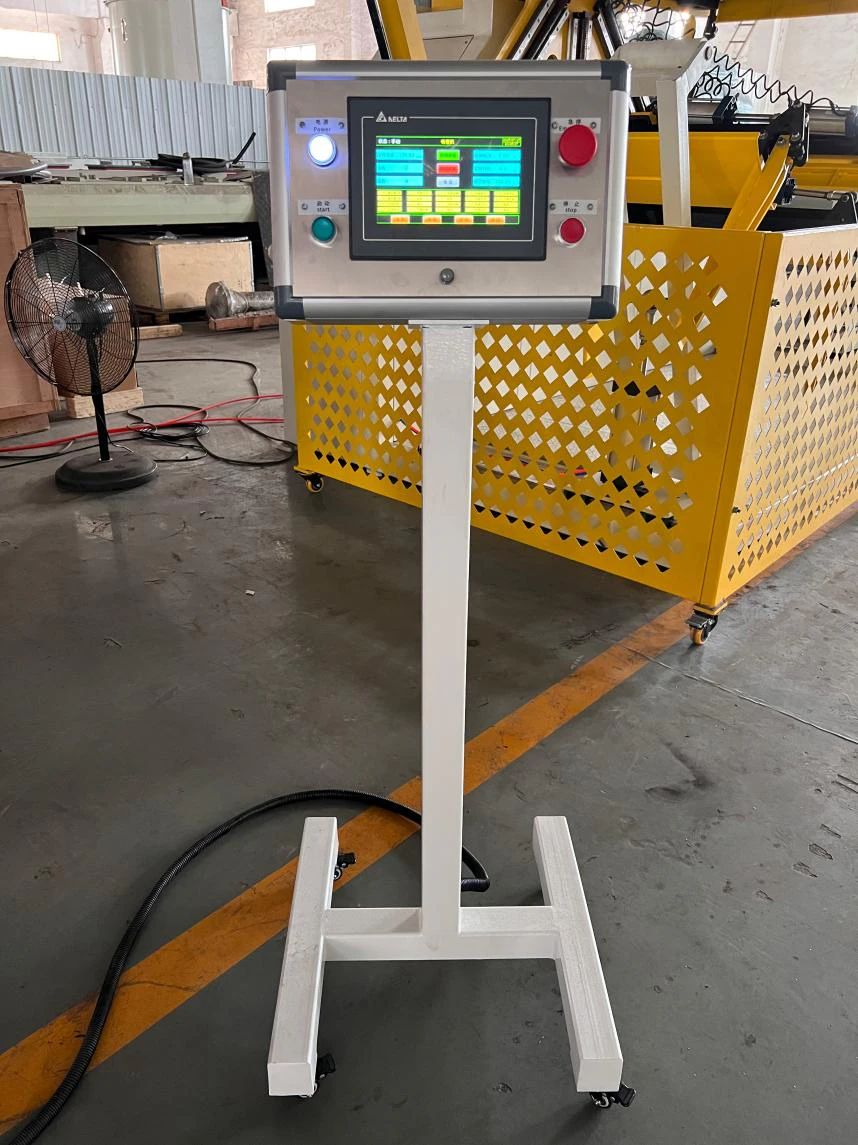

Reliable drive control keeps operation stable.
Machine Advantage
Reliable drive control keeps operation stable.
Machine Advantage

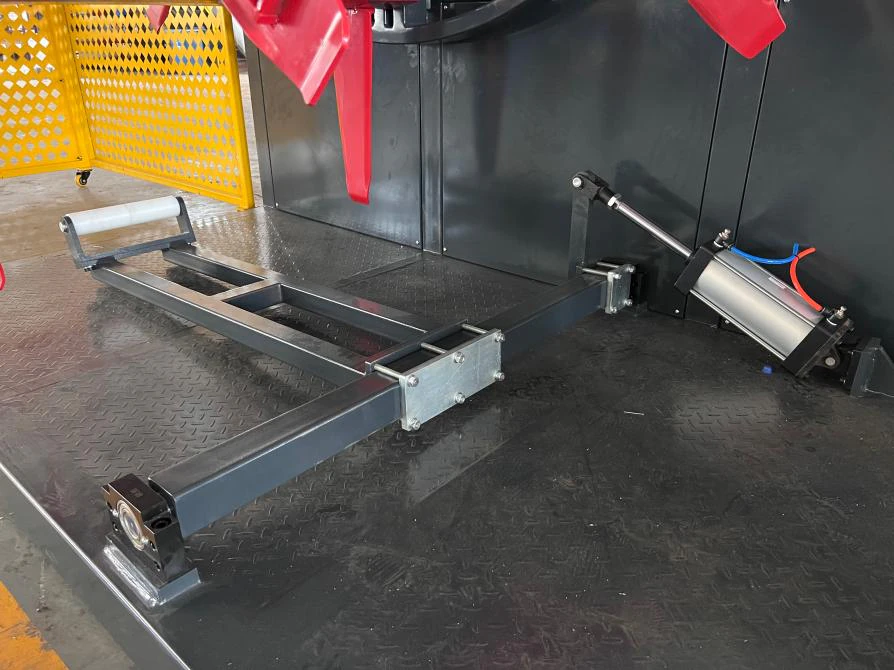

Pneumatic clamping, pressing and coil discharging improve operation efficiency.
Machine Advantage
Stepless speed control matches line output.
04
Product Details
05
Technical Parameters
| Model | Number of reels | Pipe range | Max. coiling speed | Coiling motor power | Traverse motor power |
|---|---|---|---|---|---|
| JQ16-32-2VS | Two (same position) | 16~32 MM | 35 M/Min. | 1.5 KW*2 | 0.9 KW |
| JQ16-32-4VS | Four | 16~32 MM | 30 M/Min. | 1.5 KW*4 | 0.9 KW*2 |
| JQ16-40-2VS | Two (opposite position) | 16~40 MM | 30 M/Min. | 1.5 KW*2 | 0.5 KW |
| JQ40-63-2VS | Two (same position) | 40~63 MM | 20 M/Min. | 1.0 KW*2 | 0.9 KW |
| JQ20-63-1VS | One | 20~63 MM | 20 M/Min. | 1.0 KW | 0.9 KW |
| JQ20-63-2VS | Two (same position) | 20~63 MM | 25 M/Min. | 2.2 KW*2 | 0.9 KW |
| JQ50-110-1VS | One | 50~110 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ50-125-1VS | One | 50~125 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ75-160-1VS | One | 75~160 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ76-225-1VS | One | 76~225 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ90-250-1VS | One | 90~250 MM | 23.5 M/Min. | 7.5 KW | - |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
Q1: What pipe range does JQ50-125 Manual Inner Diameter Single-Reel Coiling Machine support?
Please refer to the technical parameters on this page. For special pipe sizes, Polestar Machinery can confirm the configuration according to your extrusion line.
Q2: Can this machine match an existing extrusion line?
Yes. Please provide your pipe material, pipe diameter range, line speed and coil specification, and our engineering team will check the matching configuration.
Q3: Can the machine be customized?
Yes. Coil diameter, control system, pneumatic functions and line layout can be configured according to project requirements.
Q4: What information is needed for quotation?
Please share pipe OD range, material, line speed, coil inner diameter, coil outer diameter, coil width and expected automation level.
