Machine Advantage
Precise control keeps product quality stable.
02
Product Overview

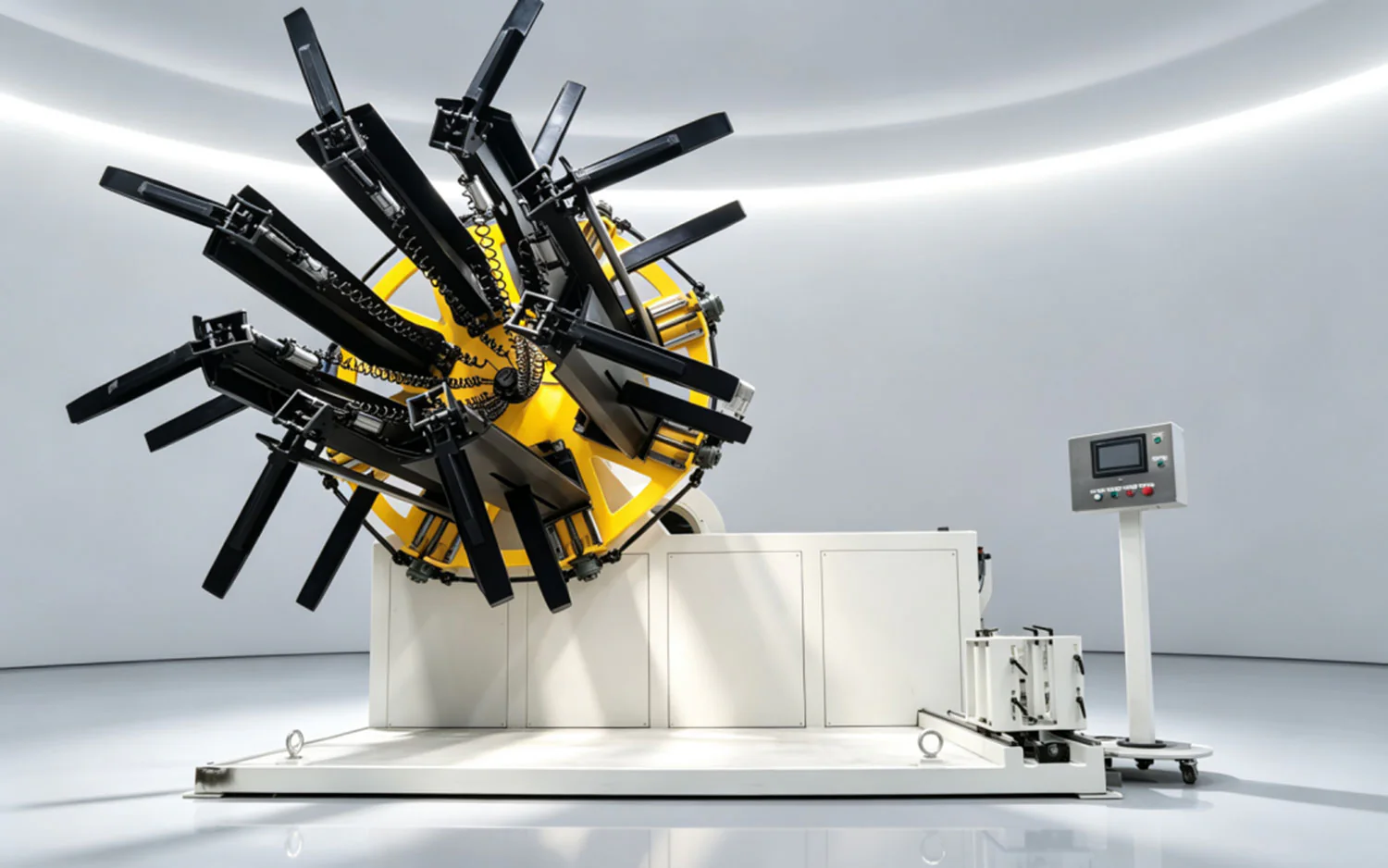

- This single-station pipe coiler is professionally designed for 75-160mm large-size PE pipes, covering water supply pipes, drainage pipes and engineering plastic pipes. It adopts electric adjustable coil inner diameter, Delta intelligent control system and full pneumatic auxiliary functions, solving the pain points of difficult adjustment, low precision and labor waste of traditional large pipe coilers, being high-efficiency and stable supporting equipment for large-diameter PE pipe extrusion lines.
03
Core Advantages
Machine Advantage
Precise control keeps product quality stable.
Machine Advantage
PLC touch control simplifies operation and monitoring.
Machine Advantage
Reliable drive control keeps operation stable.
Machine Advantage
Reliable drive control keeps operation stable.
Machine Advantage
Stable output supports efficient continuous production.
04

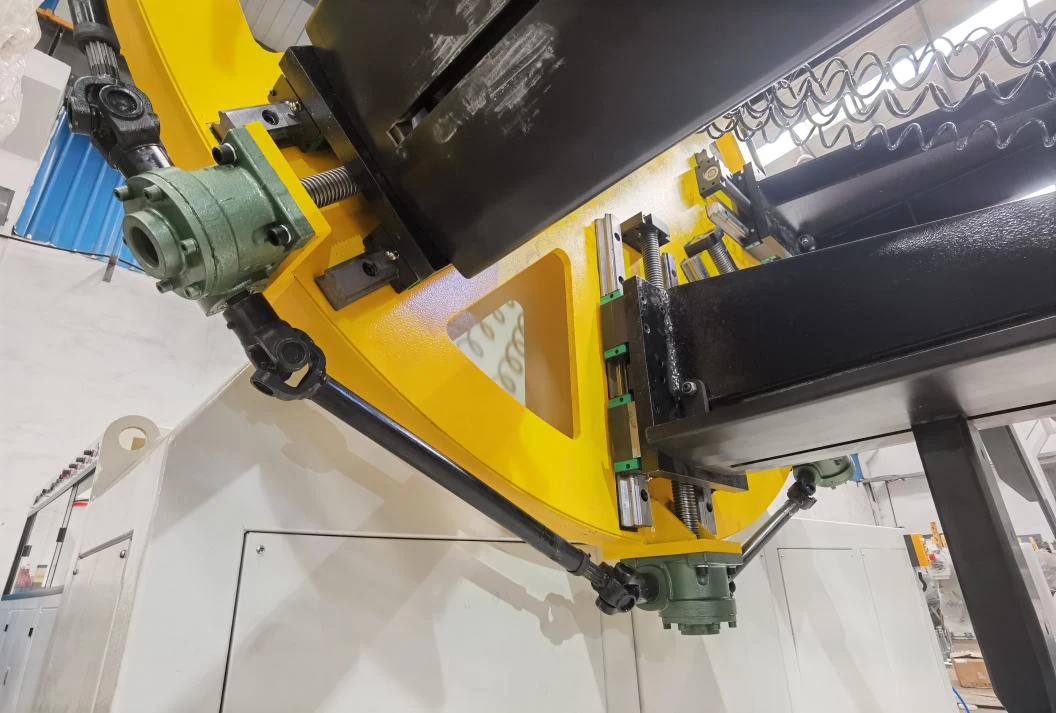

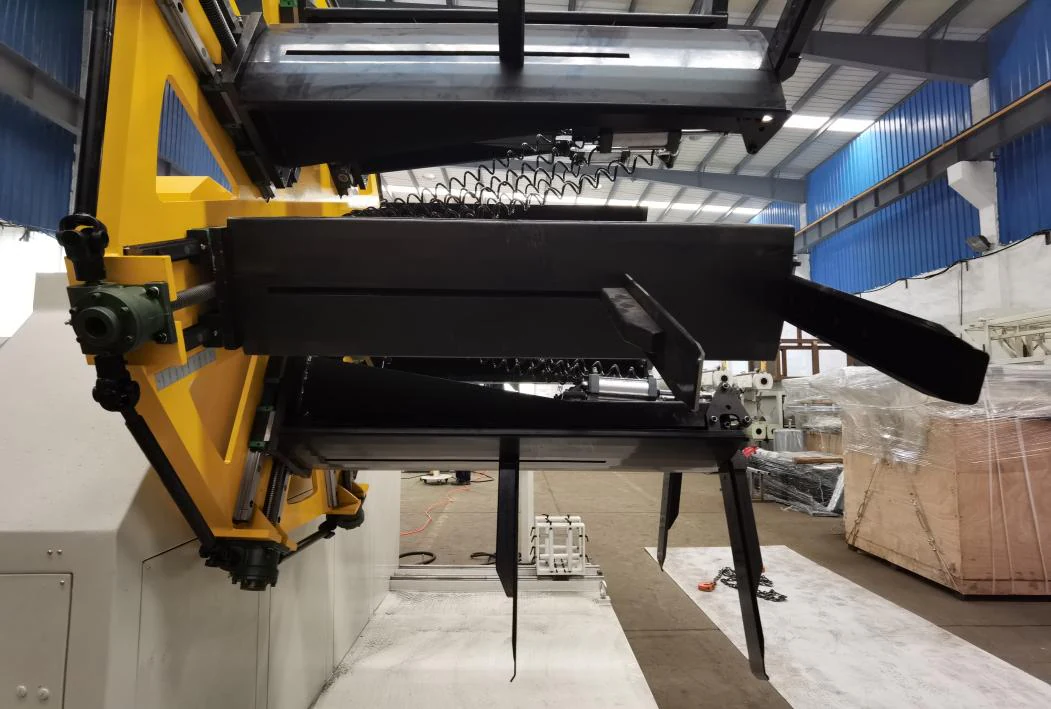

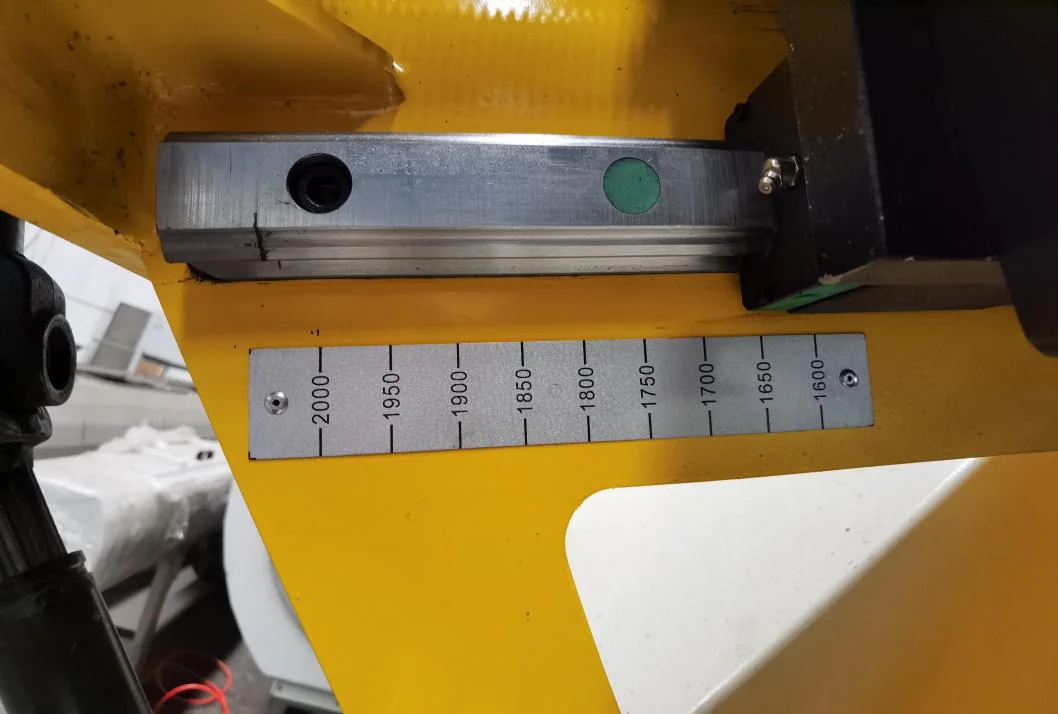

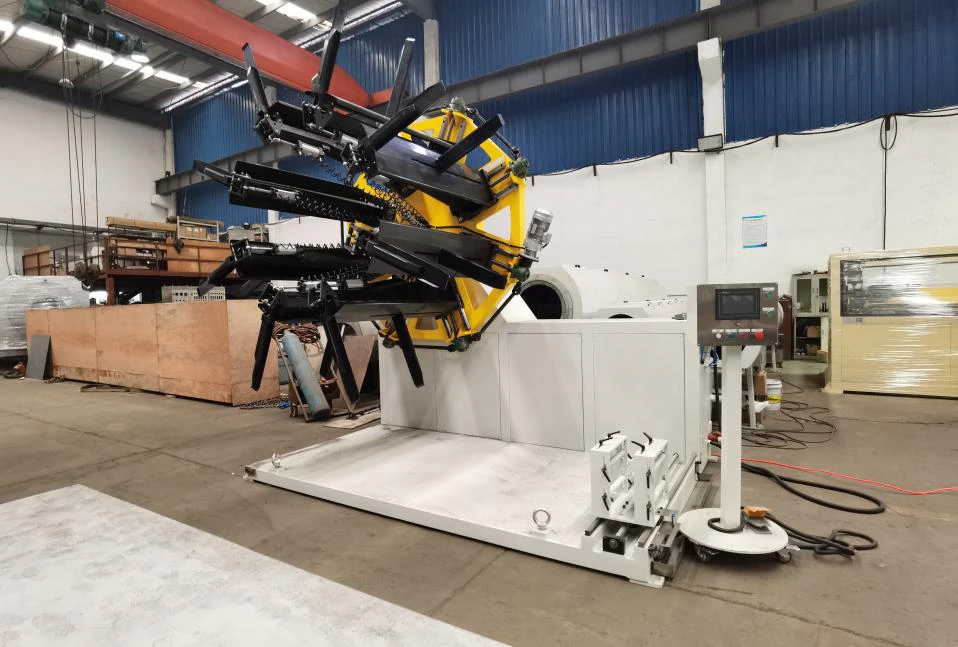

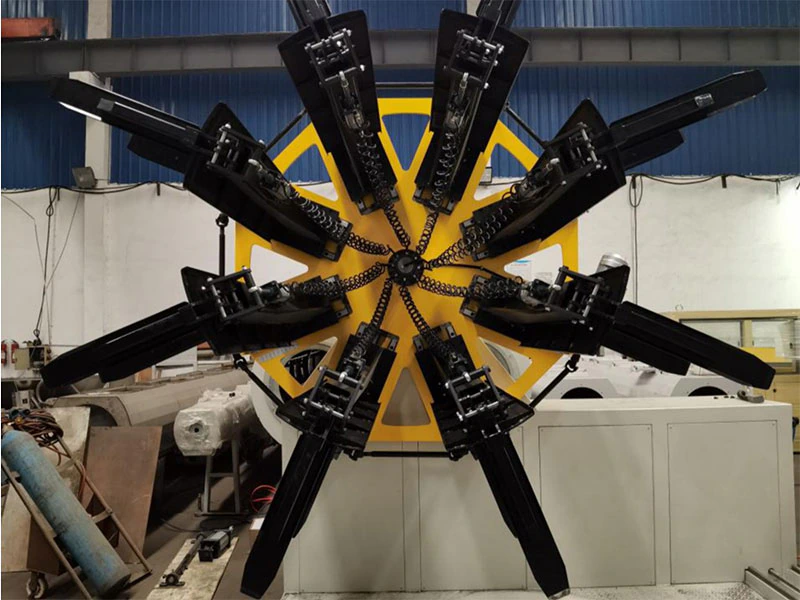

Product Details
05
Technical Parameters
| Model | Number of reels | Pipe range | Max. coiling speed | Coiling motor power | Traverse motor power |
|---|---|---|---|---|---|
| JQ16-32-2VS | Two (same position) | 16~32 MM | 35 M/Min. | 1.5 KW*2 | 0.9 KW |
| JQ16-32-4VS | Four | 16~32 MM | 30 M/Min. | 1.5 KW*4 | 0.9 KW*2 |
| JQ16-40-2VS | Two (opposite position) | 16~40 MM | 30 M/Min. | 1.5 KW*2 | 0.5 KW |
| JQ40-63-2VS | Two (same position) | 40~63 MM | 20 M/Min. | 1.0 KW*2 | 0.9 KW |
| JQ20-63-1VS | One | 20~63 MM | 20 M/Min. | 1.0 KW | 0.9 KW |
| JQ20-63-2VS | Two (same position) | 20~63 MM | 25 M/Min. | 2.2 KW*2 | 0.9 KW |
| JQ50-110-1VS | One | 50~110 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ50-125-1VS | One | 50~125 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ75-160-1VS | One | 75~160 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ76-225-1VS | One | 76~225 MM | 10 M/Min. | 3.0 KW | 0.9 KW |
| JQ90-250-1VS | One | 90~250 MM | 23.5 M/Min. | 7.5 KW | - |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
Q1: What pipe range does JQ75-160-1VS Single-Reel Coiling Machine support?
Please refer to the technical parameters on this page. For special pipe sizes, Polestar Machinery can confirm the configuration according to your extrusion line.
Q2: Can this machine match an existing extrusion line?
Yes. Please provide your pipe material, pipe diameter range, line speed and coil specification, and our engineering team will check the matching configuration.
Q3: Can the machine be customized?
Yes. Coil diameter, control system, pneumatic functions and line layout can be configured according to project requirements.
Q4: What information is needed for quotation?
Please share pipe OD range, material, line speed, coil inner diameter, coil outer diameter, coil width and expected automation level.
