01 PVC PIPE EXTRUSION LINE

75–250 PVC Pipe
Extrusion Line

Full automatic PVC-U pipe production for water supply, drainage and construction applications.

Energy-saving twin-screw extrusion, precise cooling and cutting, with intelligent PLC control.

Get a Quote

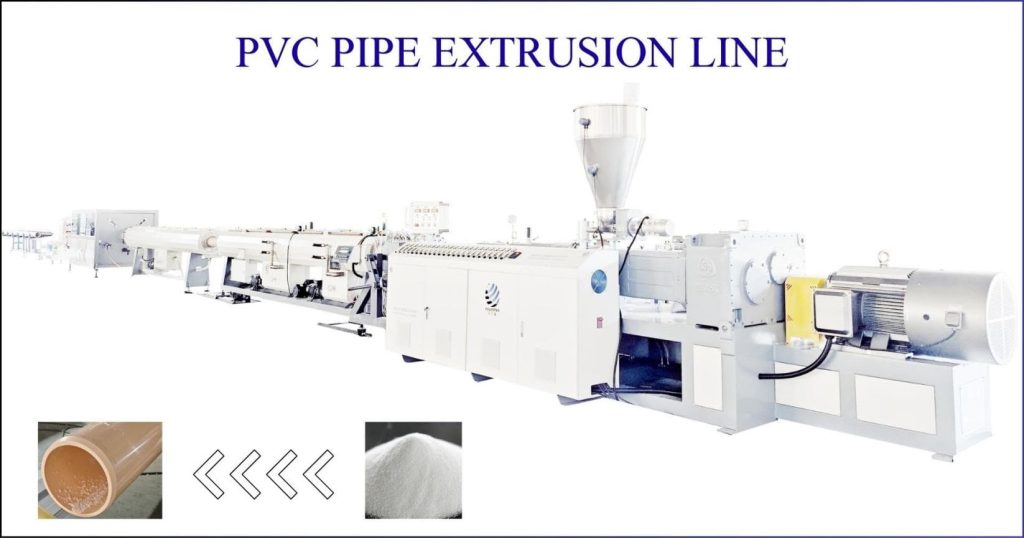

75–250 PVC pipe extrusion line
Get a Quote
02

Product Details

Full auto 75–250mm PVC water/drainage pipe production line. Energy-saving twin screw extruder, precise cooling & cutting, PLC intelligent control. Stable output, low power consumption, customizable full-automatic configuration. Durable structure, high-quality finished pipes for municipal & construction projects.

Finished Products & Applications

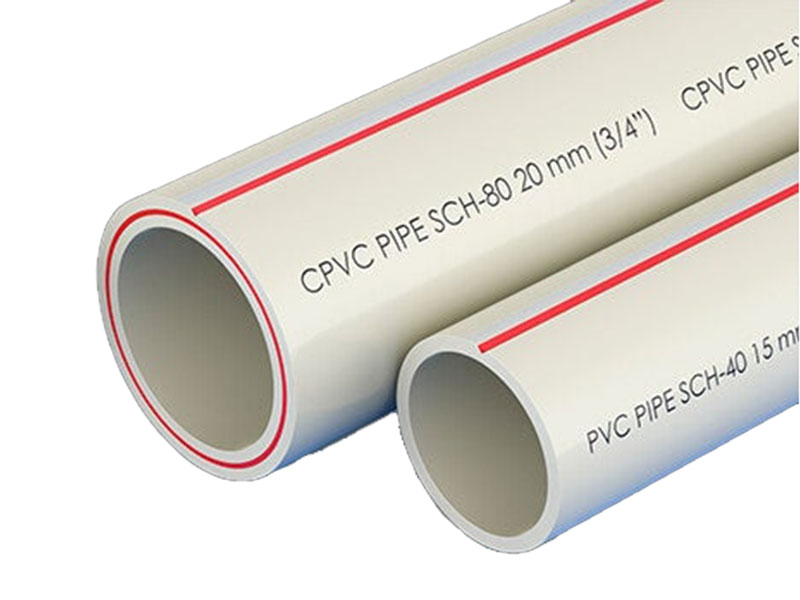

PVC water supply pipe
PVC water supply pipe

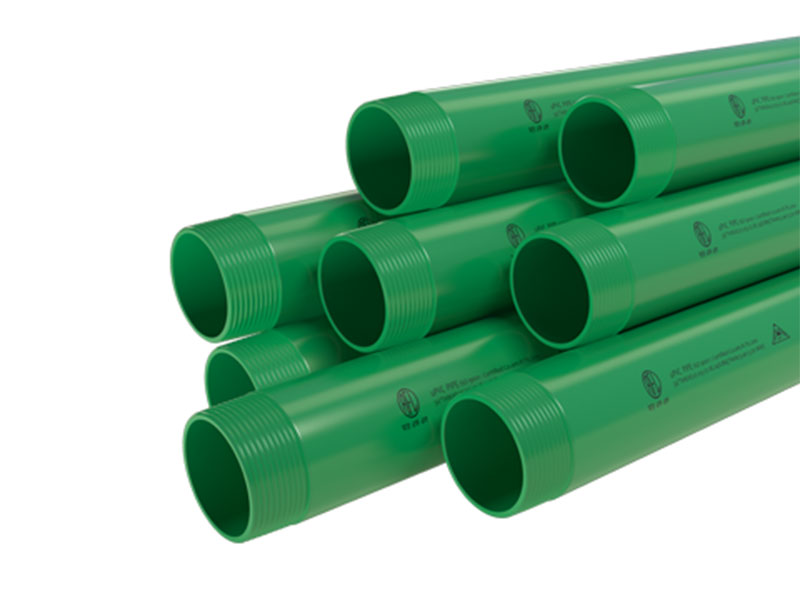

PVC drainage pipe
PVC drainage pipe

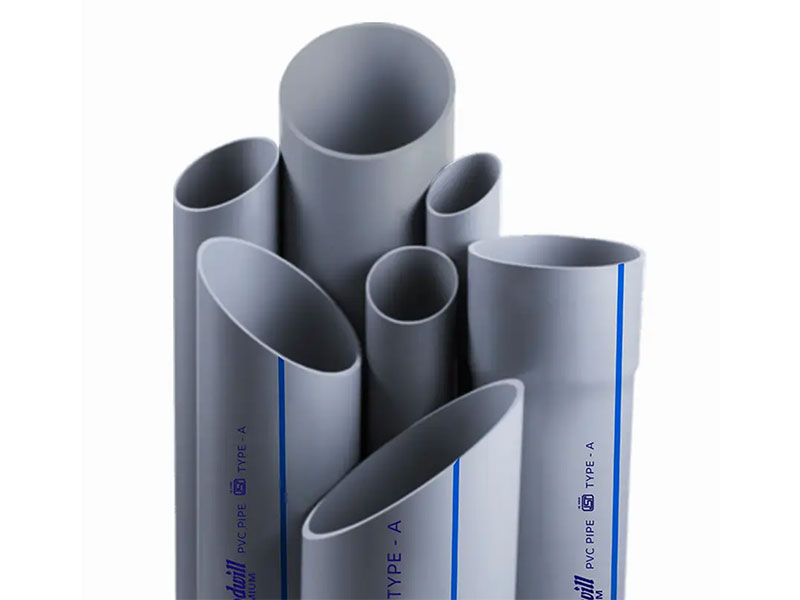

PVC conduit pipe
PVC conduit pipe

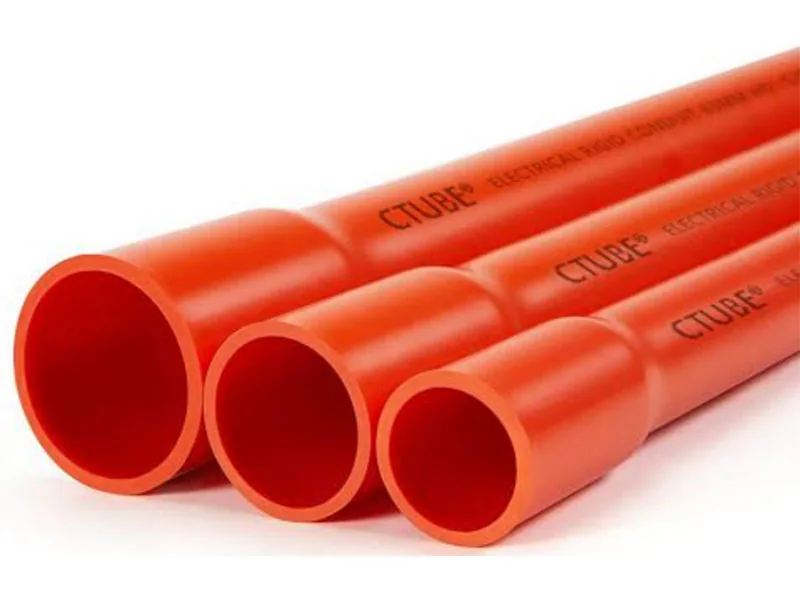

PVC pressure pipe
PVC pressure pipe

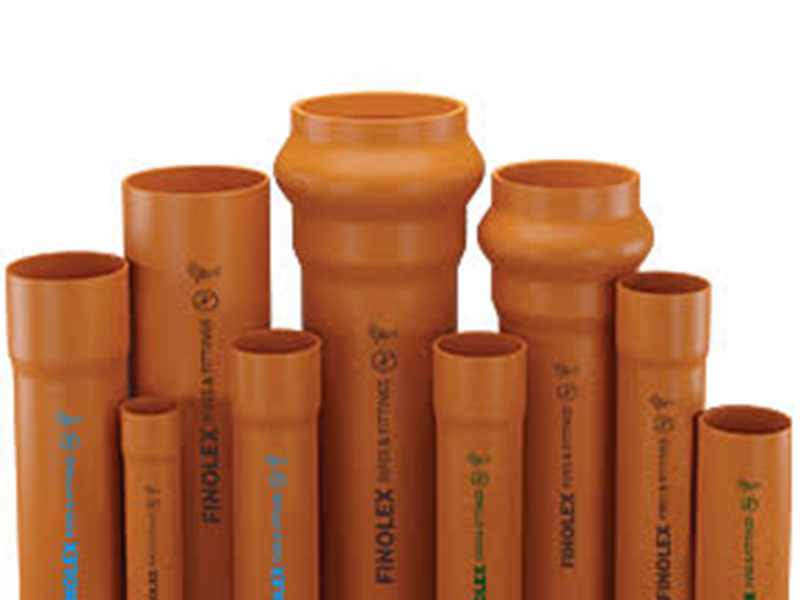

Large diameter PVC pipe
Large diameter PVC pipe
20+Years Experience
72hPre-delivery Test
CE & ISOCertified Quality
GlobalService Support
03

Applications

Municipal Water Supply

Municipal Water Supply

Reliable PVC-U pipe production for demanding infrastructure projects.

Drainage & Sewer

Drainage & Sewer

Reliable PVC-U pipe production for demanding infrastructure projects.

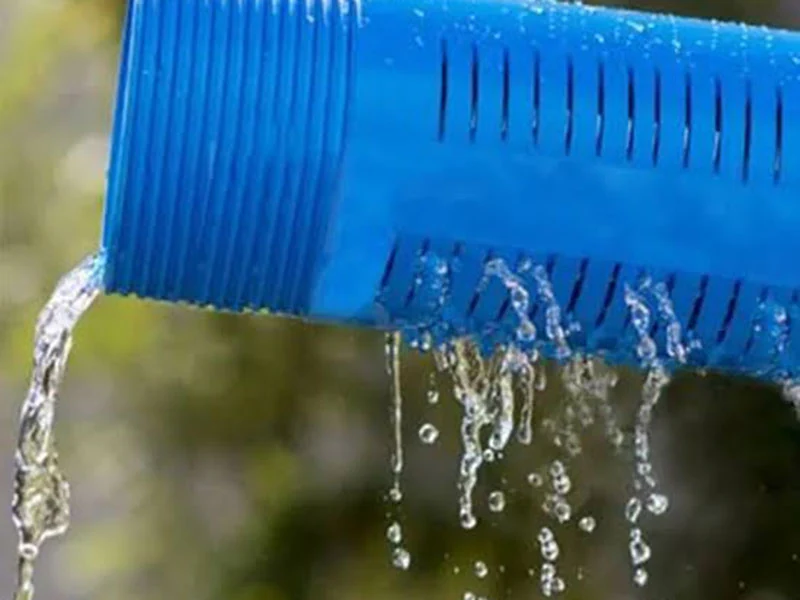

Construction Plumbing

Construction Plumbing

Reliable PVC-U pipe production for demanding infrastructure projects.

Cable Protection

Cable Protection

Reliable PVC-U pipe production for demanding infrastructure projects.

04

Core Advantages

01

One Line, Full Range

Covers key pipe sizes for flexible production.

02

Energy-Saving Output

Stable output supports efficient continuous production.

03

Precise Pipe Quality

Precise control keeps product quality stable.

04

PLC Automation

Reliable drive control keeps operation stable.

05

Durable Components

Stable output supports efficient continuous production.

06

Global Service

Global service supports installation and training.

05

Machine Video

06

Production Process

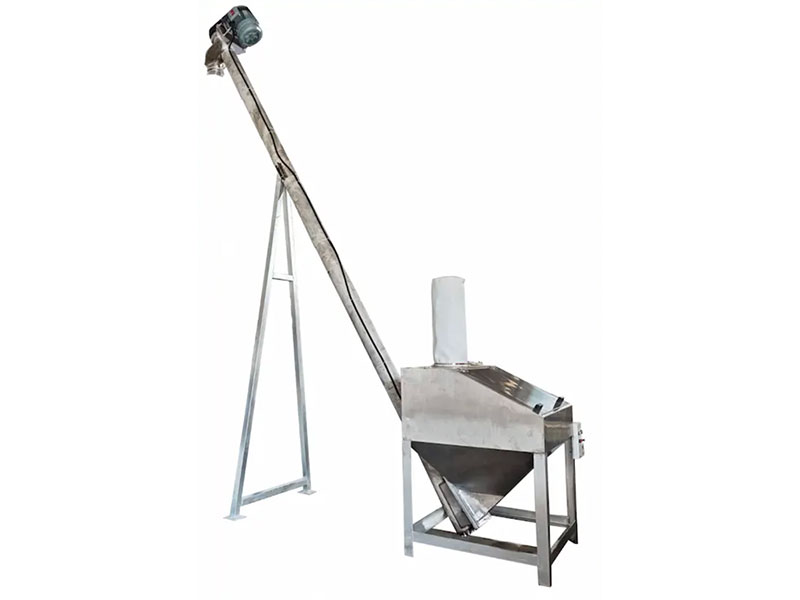

Raw Material Loading
01

Raw Material Loading

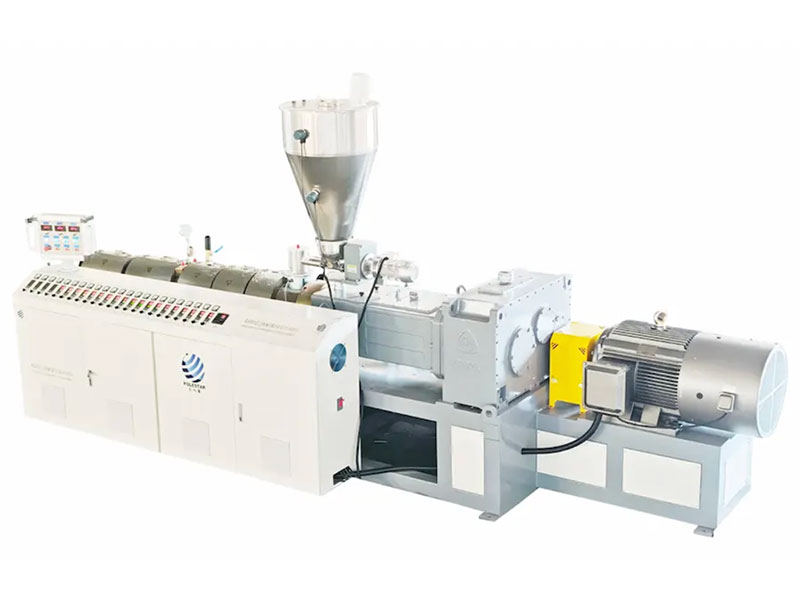

Conical Twin-screw Extrusion
02

Conical Twin-screw Extrusion

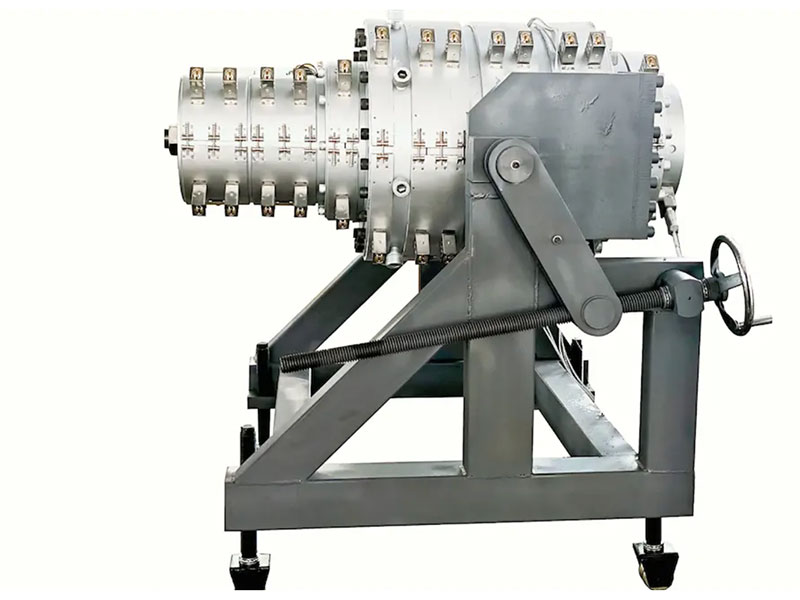

Extrusion Die Head
03

Extrusion Die Head

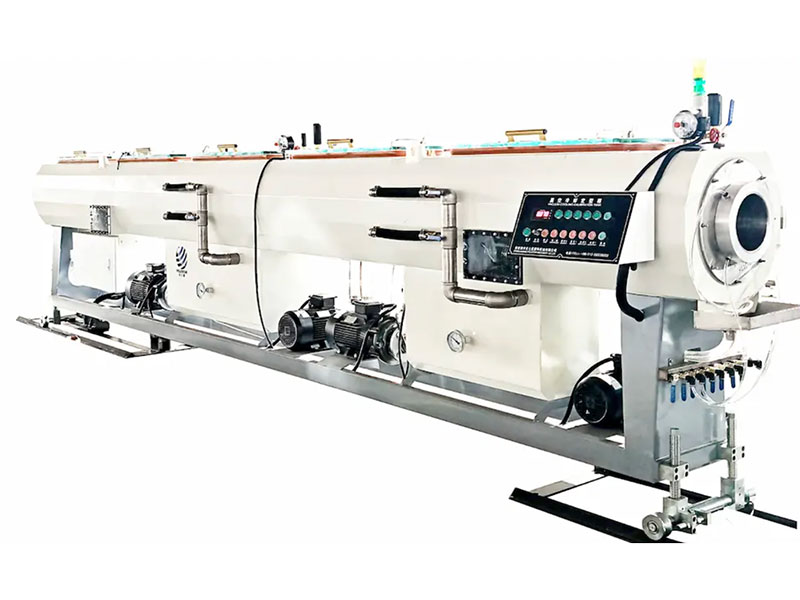

Vacuum Calibration
04

Vacuum Calibration

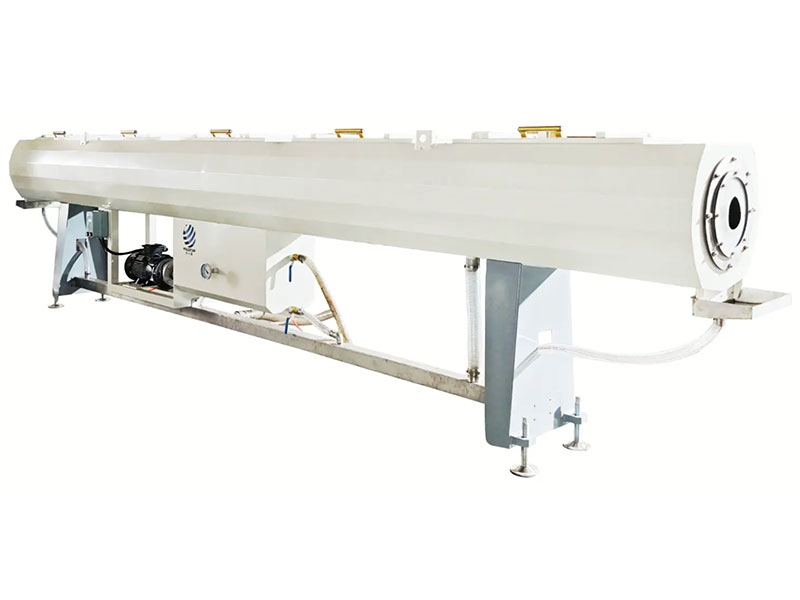

Spray Cooling
05

Spray Cooling

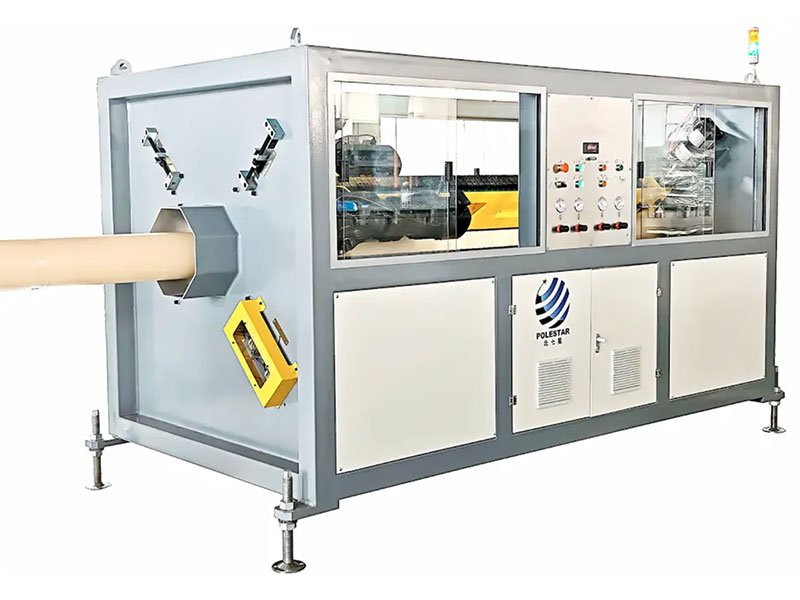

Haul-off
06

Haul-off

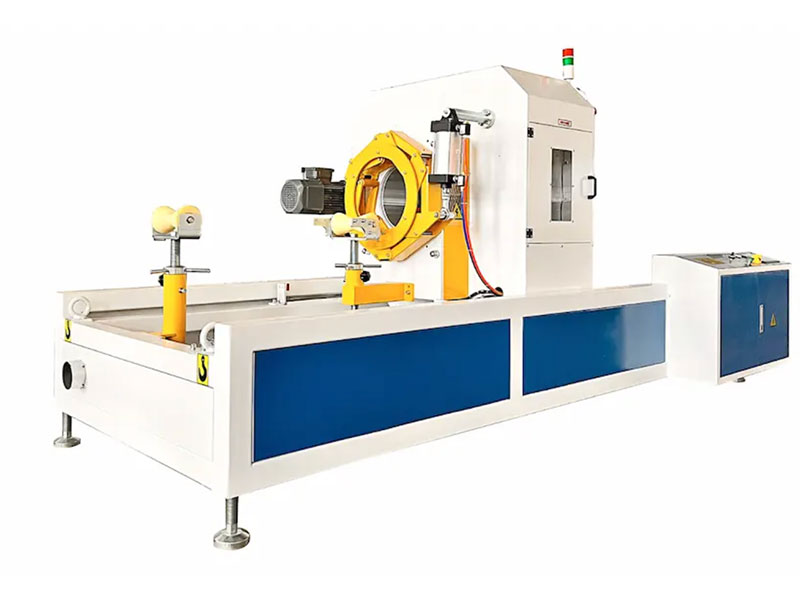

Planetary Cutting
07

Planetary Cutting

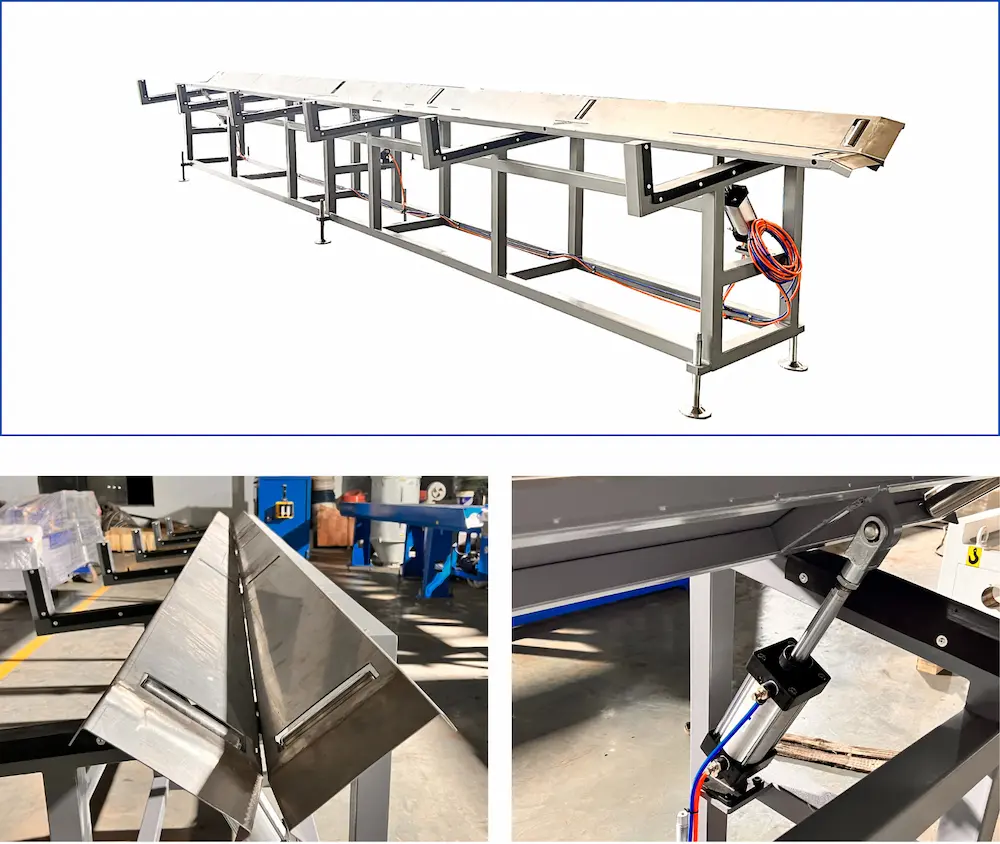

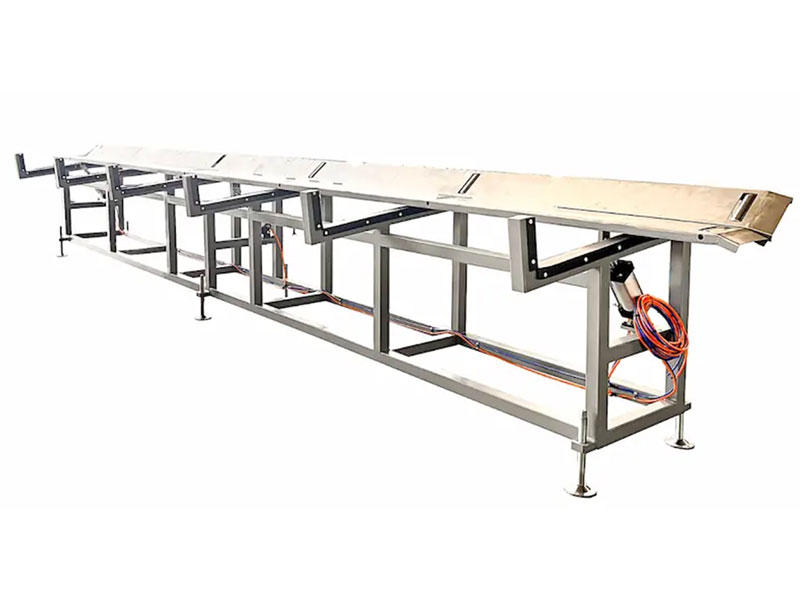

Pipe Stacking
08

Pipe Stacking

07

The Production Line Consists Of

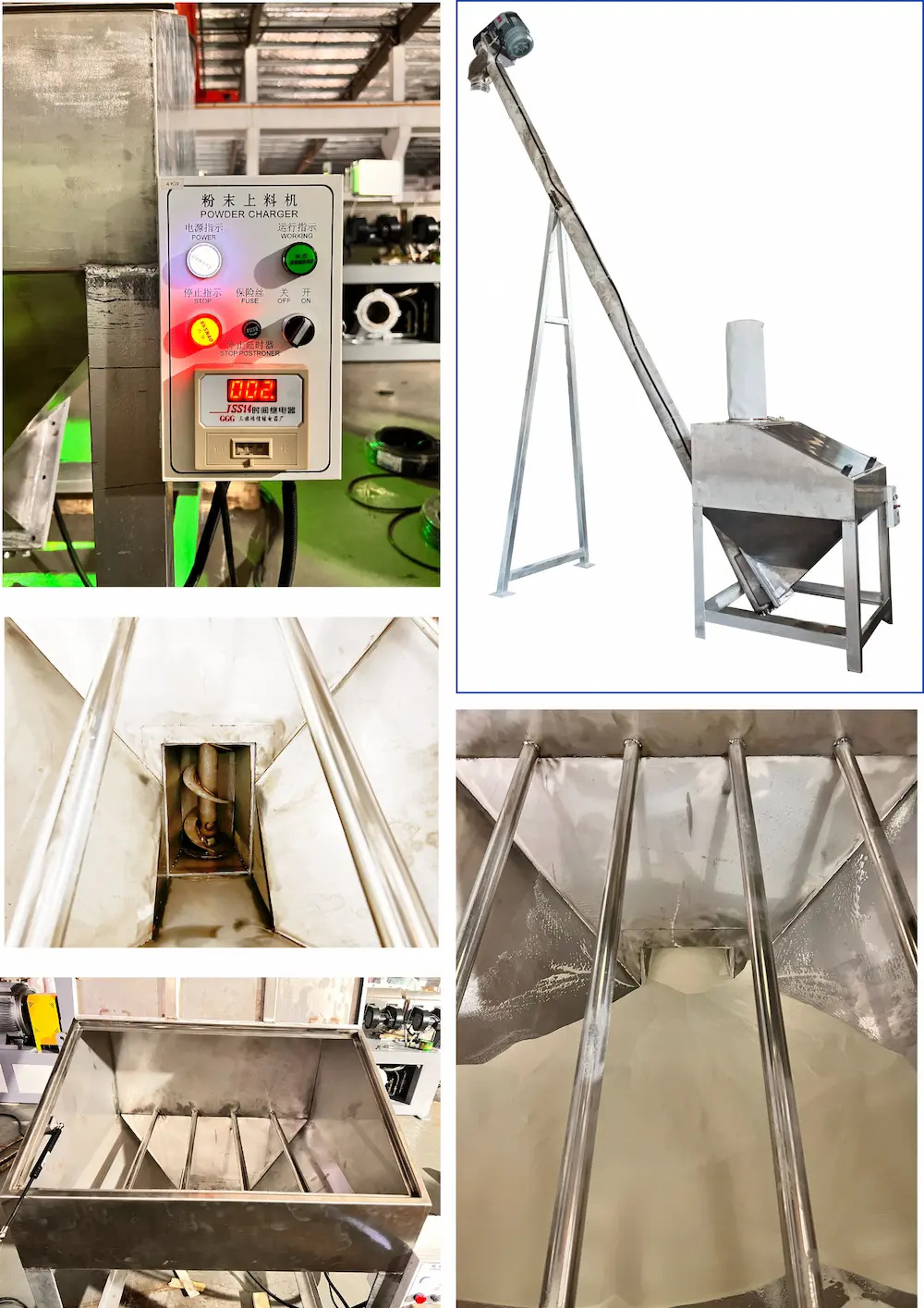

Screw Loader

1 PC

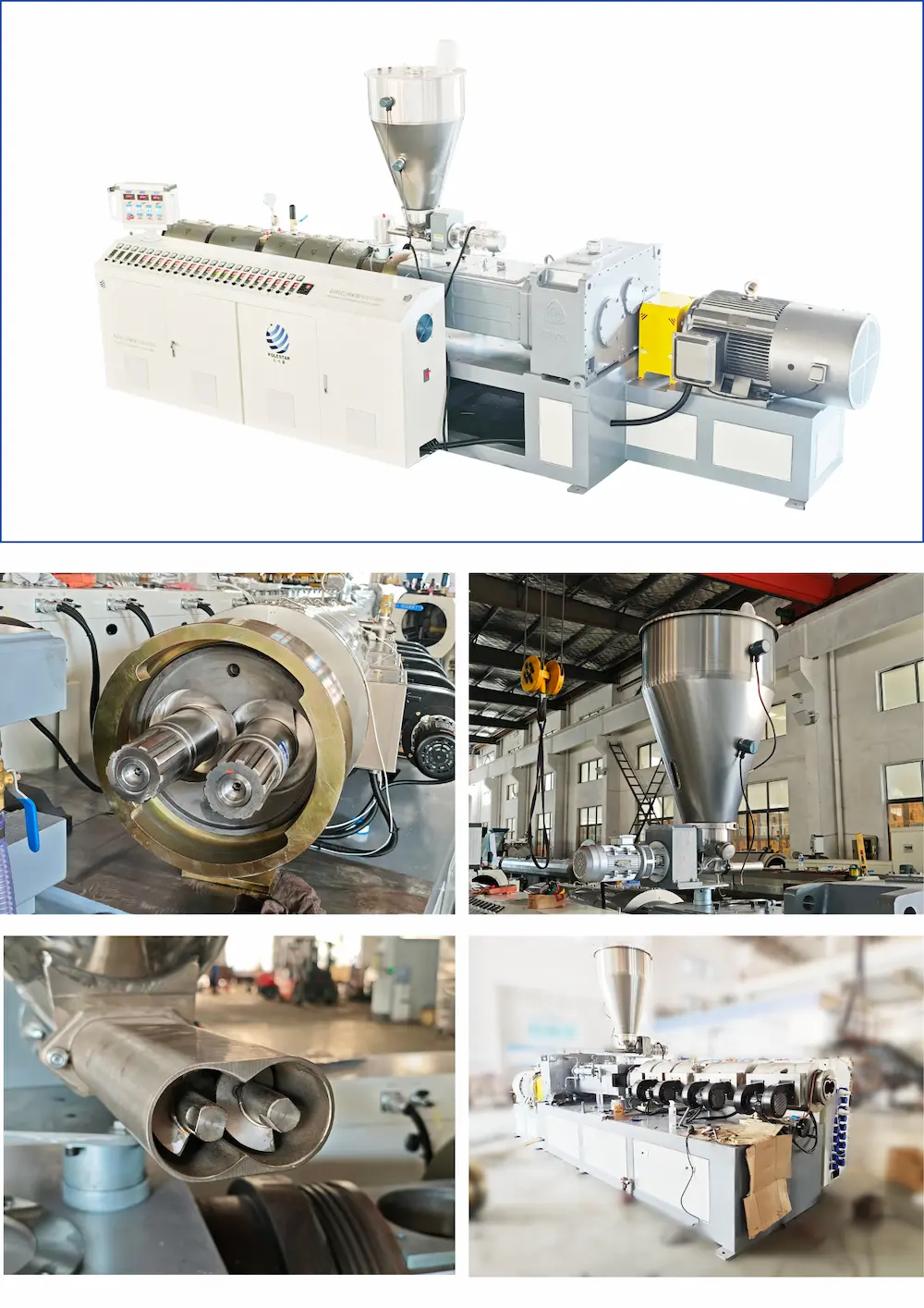

SJZ92/188 Conical Twin-screw Extruder Machine

1 PC

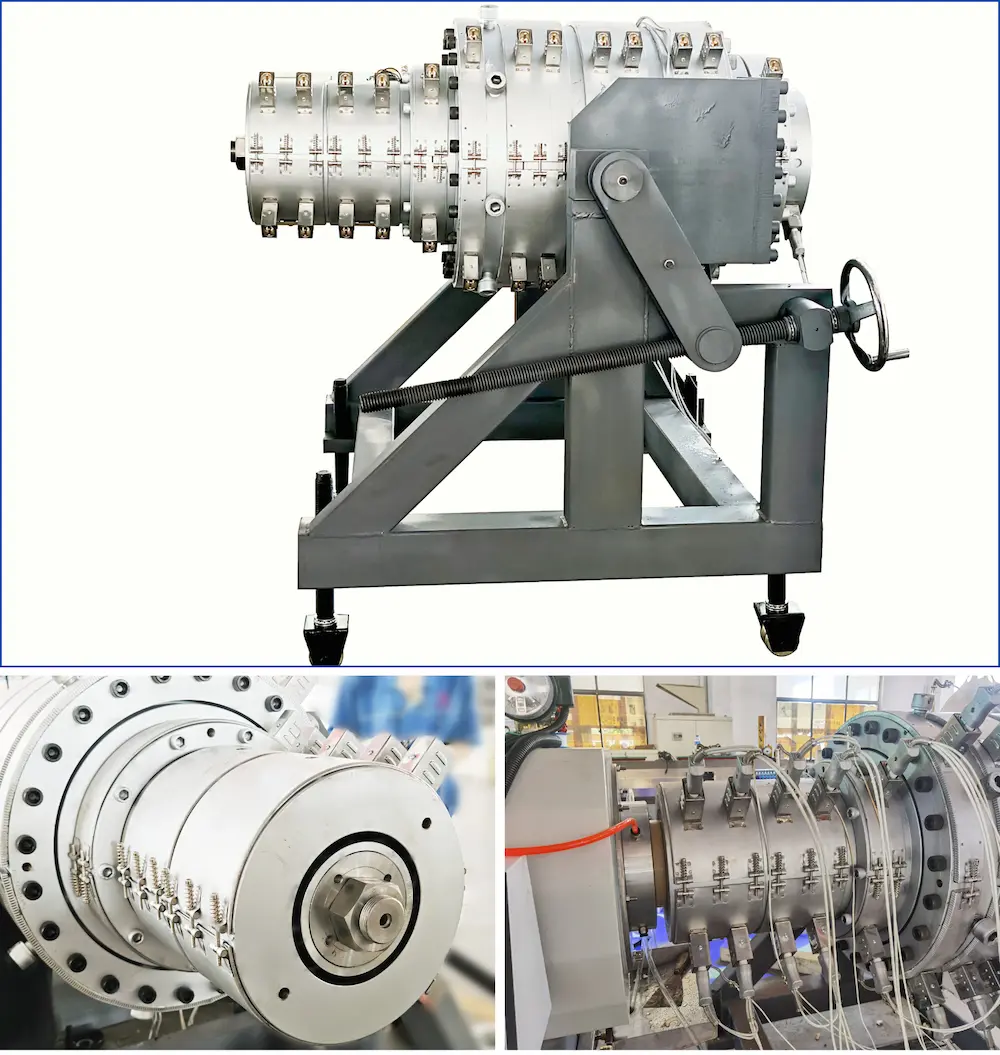

Extrusion Die Head

1 PC

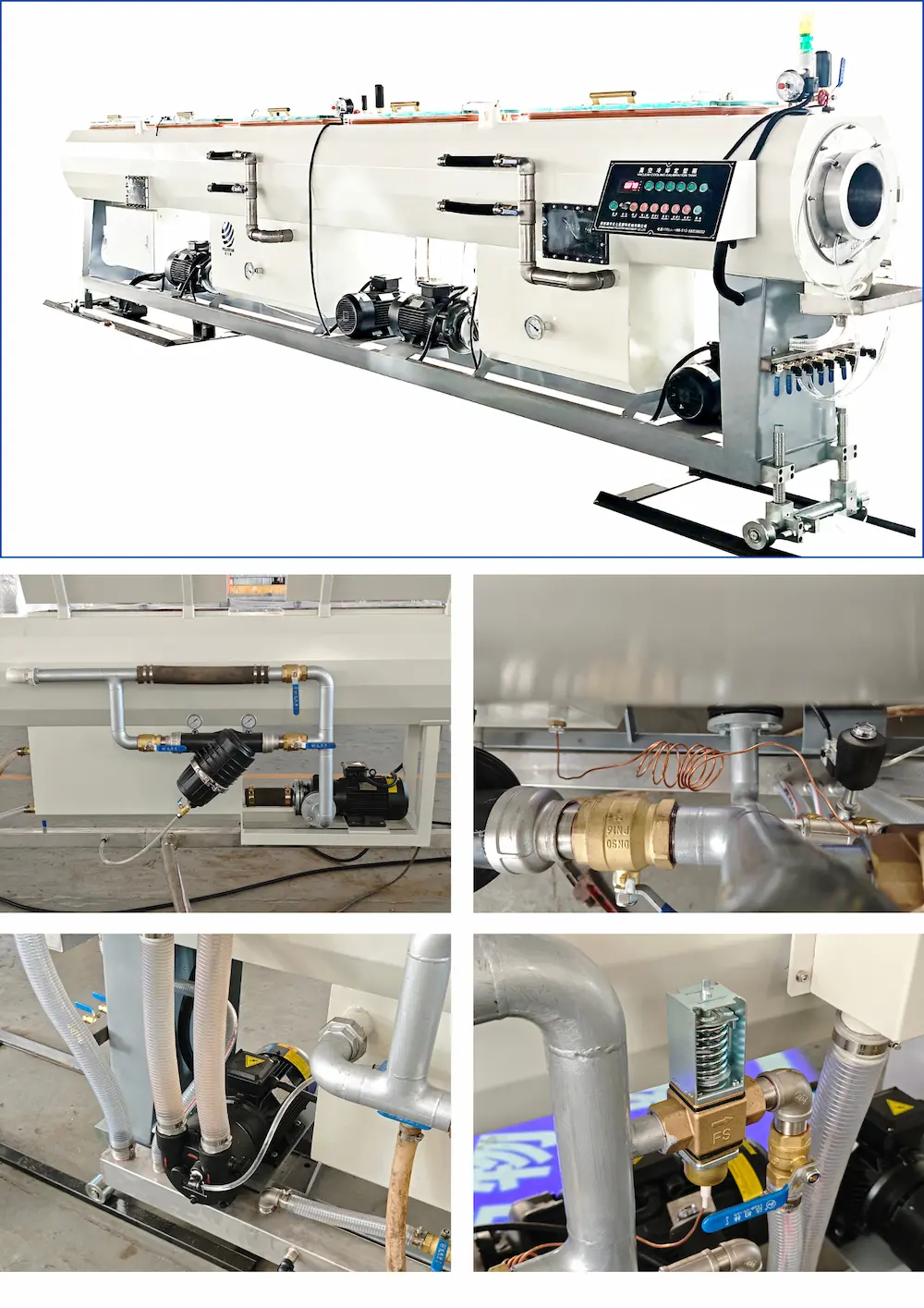

Vacuum Calibration Tank

1 PC

Cooling Tank

1 PC

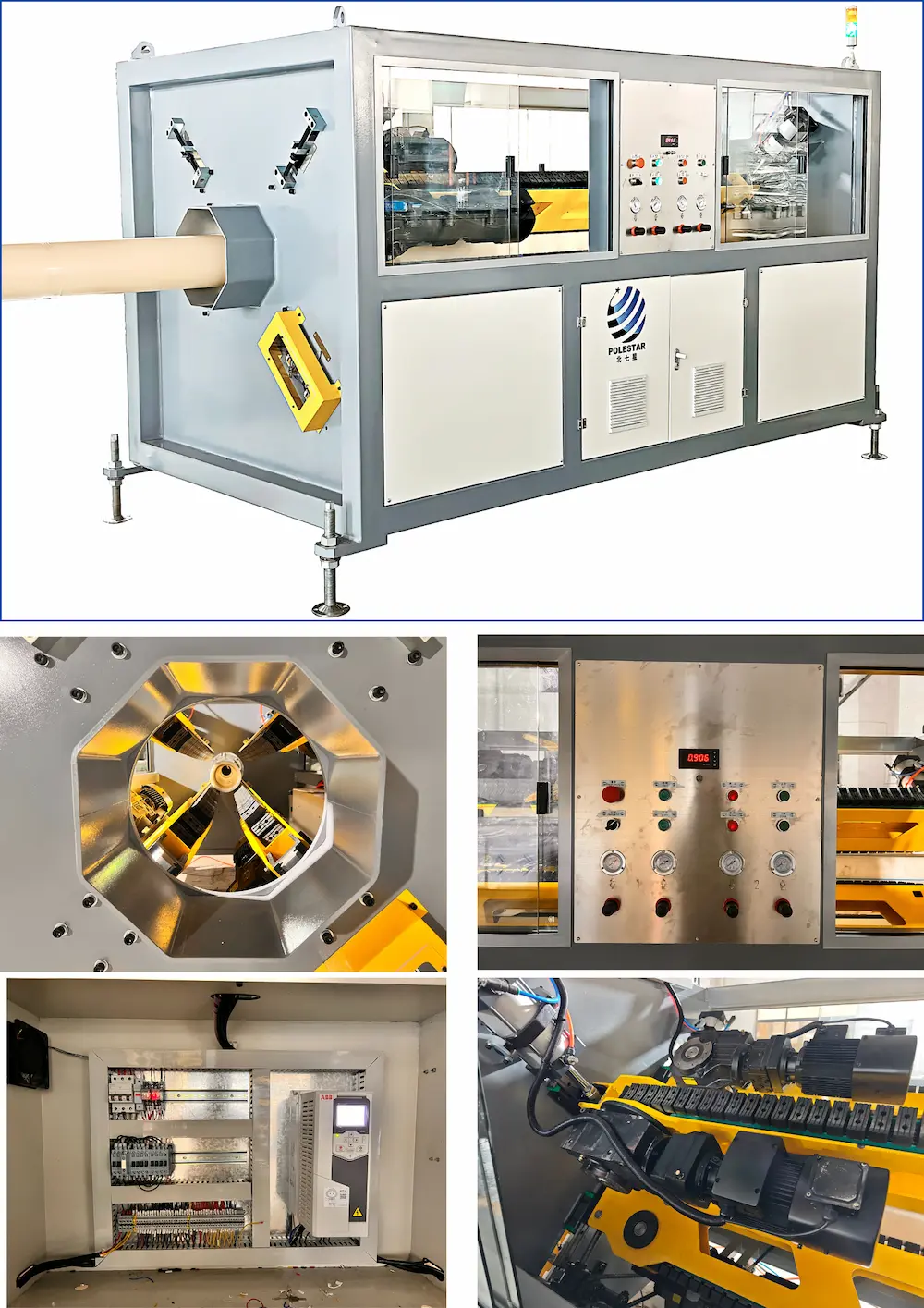

Haul-off Machine

1 PC

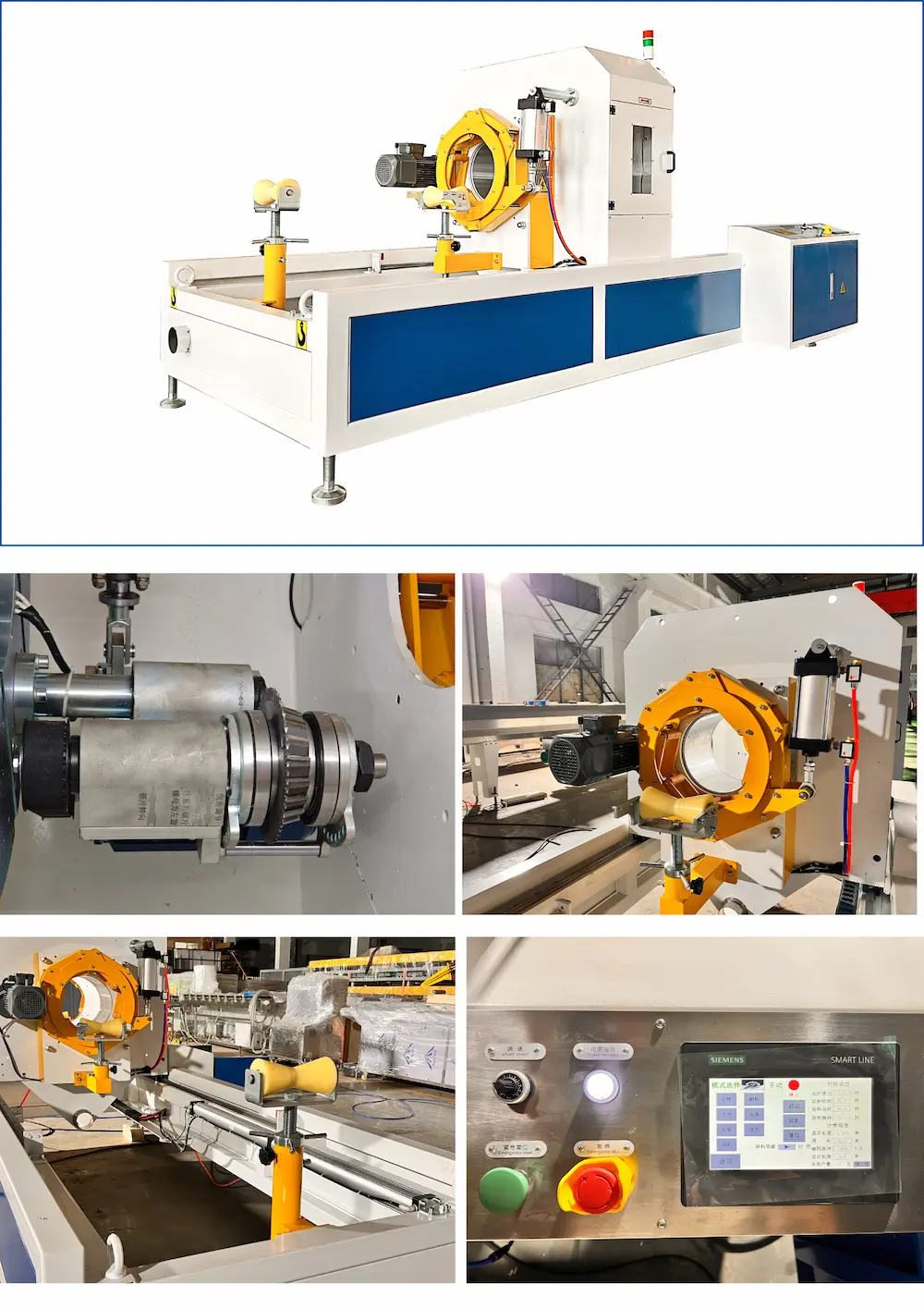

Cutting Machine

1 PC

Stacker

1 PC
08

Technical Parameters

ModelPipe RangeExtruder ModelMain Motor PowerMax. Line SpeedMax. Output
BQS40-216~40SJZ51/10518.5 KW10 m/min.120 kg/h
BQS63-220~63SJZ65/13237 KW15 m/min.250 kg/h
BQS6320~63SJZ51/10518.5 KW15 m/min.120 kg/h
BQS16050~160SJZ65/13237 KW8 m/min.250 kg/h
BQS20063~200SJZ65/13237 KW3.5 m/min.250 kg/h
BQS315160~315SJZ80/15655 KW2 m/min.350 kg/h
BQS630315~630SJZ92/188110 KW1.2 m/min.600 kg/h
09

Factory Strength

20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production managementPolestar factory machining workshop for extrusion equipment partsPolestar machinery assembly workshop for plastic pipe extrusion linesPolestar machine inspection area for pre-delivery testingPolestar production area for plastic pipe machinery manufacturingCustomer visit at Polestar factory for extrusion line inspection
10

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipmentPolestar Machinery machine packing and loading for export deliveryPlastic extrusion machine container loading at Polestar factoryPolestar Machinery container loading inspection before shippingPlastic extrusion equipment shipment and container loading servicePolestar Machinery export shipment for plastic pipe extrusion line
11

Customer Projects

Plastic pipe machinery customer project 1Plastic pipe machinery customer project 2Plastic pipe machinery customer project 3Plastic pipe machinery customer project 4Plastic pipe machinery customer project 5Plastic pipe machinery customer project 6
12

Frequently Asked Questions

Q1: Unstable extrusion output, fluctuating pipe diameter & wall thickness

Reasons: Blocked feeding system, uneven mixing of raw materials, worn screw/barrel, unstable main motor frequency. Solutions: Clean the feeder; check mixing formula; repair or replace worn screw; calibrate VFD parameters.

Q2: Poor plasticization, crystal dots & fish eyes on pipe surface

Reasons: Improper heating temperature, wet raw materials, mismatched screw speed, unmelted resin particles. Solutions: Dry raw materials fully; adjust barrel temperature curve; optimize screw rotation speed.

Q3: Vertical scratches & streaks on pipe inner/outer surface

Reasons: Scratched mold inner cavity, accumulated impurities, worn die lip, precipitated lubricant residues. Solutions: Polish mold surface; disassemble & clean die regularly; replace damaged die lip.

Q4: Bubbles & blisters inside pipe wall

Reasons: Excessive moisture in raw materials; cooling water seepage into un-solidified pipe. Solutions: Dry pellets before production; check sealing of sizing sleeve to stop water leakage.

Q5: Traction speed jitter, slipping between pipe & traction pads

Reasons: Worn rubber traction pads, uneven clamping pressure, unstable VFD control. Consequence: Fluctuating pipe size & wall thickness. Solutions: Replace aging rubber pads; adjust clamping force; recalibrate traction inverter.

Q6: Indentations & compression marks on pipe surface

Reason: Over-tight clamping force of haul-off tracks. Solution: Loosen traction pressure appropriately.
