76-225 Single Station PE Pipe Coiler and Uncoiler
Description
PE plastic pipe coiler is a machine used to wind or coil plastic pipes onto a reel. It helps to neatly organize and store the plastic pipes, making them easier to transport and handle. The coiling process also helps to prevent tangling and damage to the pipes.

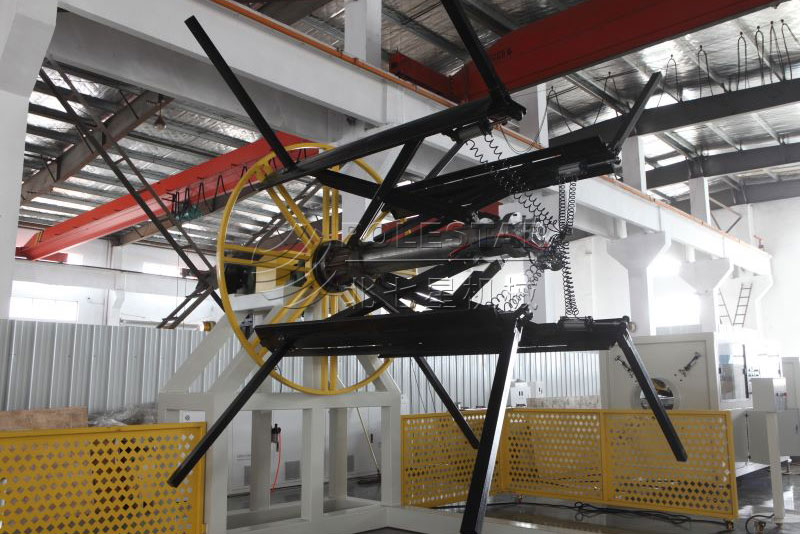

PE plastic pipe uncoiler is used to uncoil or unwind plastic pipes from a reel. It provides support and tension to the pipe as it is being uncoiled, allowing for a smooth and controlled feeding of the pipe during various applications.
Both the coiler and uncoiler play important roles in the handling and processing of plastic pipes, contributing to efficiency and convenience in various industrial and manufacturing settings.
PE plastic pipe uncoiler is used to uncoil or unwind plastic pipes from a reel. It provides support and tension to the pipe as it is being uncoiled, allowing for a smooth and controlled feeding of the pipe during various applications.
Both the coiler and uncoiler play important roles in the handling and processing of plastic pipes, contributing to efficiency and convenience in various industrial and manufacturing settings.
Technical Parameter
- JQ76-225 Single Station PE Pipe Coiler
- Pipe range: Φ76~225MM

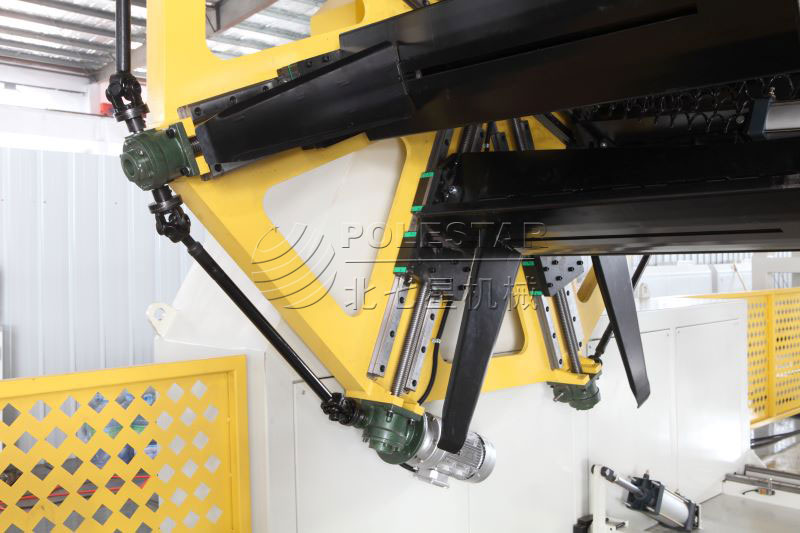

- Inner diameter: 1600-2000 MM (adjusted by servo motor)
- Inner diameter adjust motor: 1.5 KW
- Outer diameter: 3200 MM
- Roll up width: 400~1200 MM
- Roll up thickness: 600 MM
- Pipe winding speed: 1~10 M/Min.
- Main motor power: 3 KW
- Wire wind motor power: 1 KW
- Air pressure: 3-0.6Mpa
- Quantity of air cylinder: 8 pcs
- BP76-225 Single Station PE Pipe Uncoiler
- Pipe range: Φ76~225MM
- Inner diameter: 1000~2100 MM (adjusted by manual)
- Outer diameter: 3800 MM
- Roll up width: 400~2400 MM
- Roll up thickness: 1400 MM
- Pipe winding speed: 1~10 M/Min.
