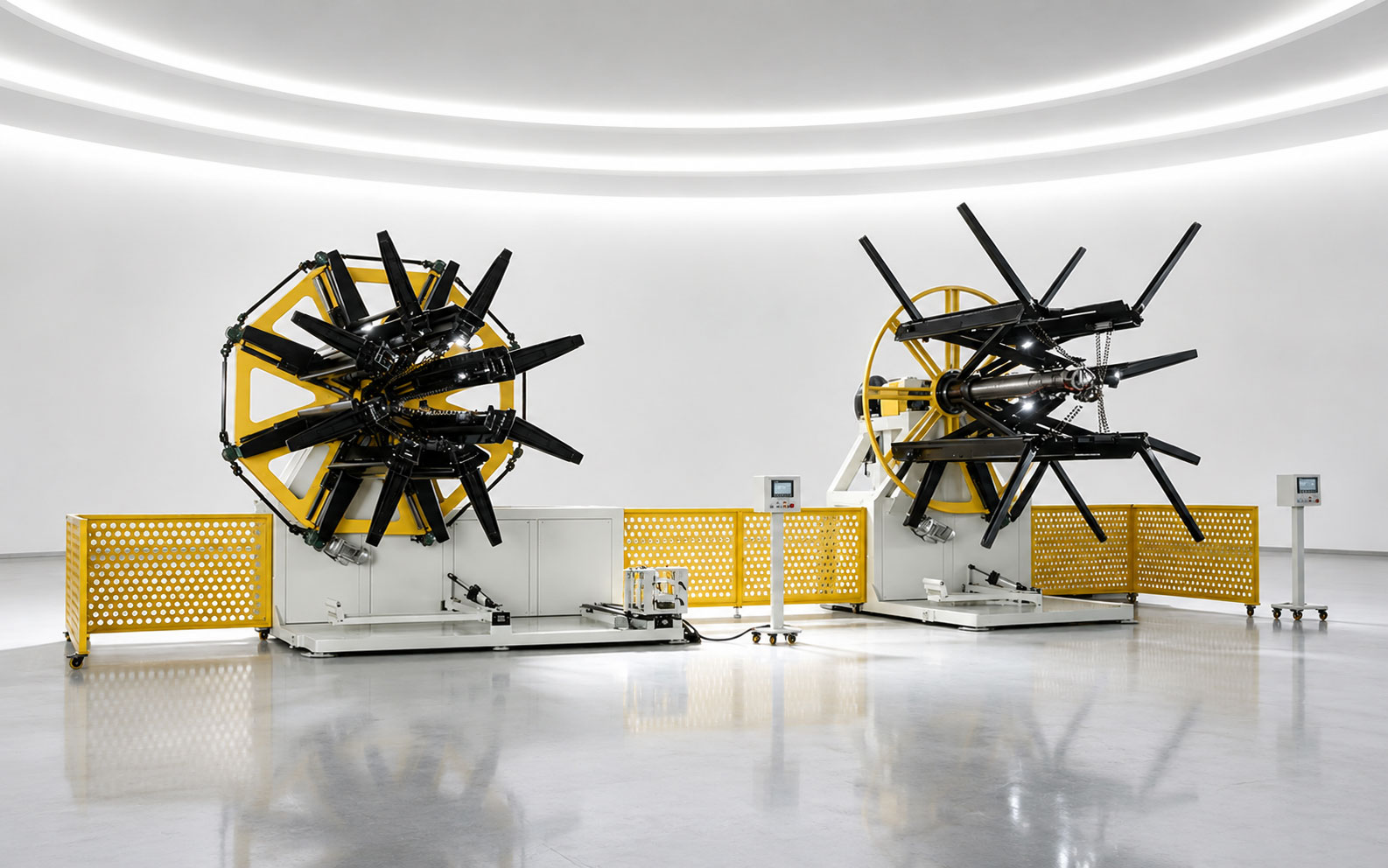

01 JQ76-225 COILER AND UNCOILER MACHINE

JQ76-225 Coiler and Uncoiler Machine

JQ76-225 single-station PE pipe coiler is matched with BP76-225 PE pipe uncoiler for large coiled pipe production.

The system is suitable for 76-225 mm PE pipes used in water supply, geothermal and engineering applications.

Get a Quote

Get a Quote

Product Overview

1. JQ76-225 Single Station PE Pipe Coiler
Specially designed for 76~225mm medium & large diameter PE pipes, matching HDPE water supply pipe, geothermal pipe and engineering plastic pipe extrusion production line.
Electric adjustable coil inner diameter (Core Advantage): 1.5kW independent drive motor, adjustable range 1600-2000mm, no manual disassembly, high precision, uniform frame stress, avoid coil frame deformation, greatly reduce labor workload and shorten specification switching time.
Wide forming range: Max coil outer diameter 3200mm, winding width 400~1200mm, coil thickness up to 600mm, support diversified packaging requirements.
Stepless winding speed: 1~10 m/min. Low-speed stable constant tension winding, suitable for thick-wall large-diameter PE pipe, prevent loose coils, pipe distortion and surface damage.
2. BP76-225 Single Station PE Pipe Uncoiler
Matching supporting uncoiler for dia. 76~225mm PE coiled pipes, cooperate with pipe coiler.
Manual adjustable coil inner diameter 1000~2100mm, mechanical locking after adjustment, solid structure and strong load capacity.
Super large bearing capacity: Max coil outer diameter reach 3800mm, unwinding width 400~2400mm, maximum coil thickness 1400mm, compatible with large-volume finished pipe coils.
Unwinding speed 1~10 m/min, stepless speed regulation, synchronous speed matching with coiler or downstream equipment, guarantee smooth unwinding without pipe jumping and twisting.

Core Advantages

Machine Advantage

Stable output supports efficient continuous production.

Machine Advantage

Precise control keeps product quality stable.

Machine Advantage

Precise control keeps product quality stable.

Machine Advantage

Precise control keeps product quality stable.

Machine Advantage

Stable output supports efficient continuous production.

Machine Advantage

Heavy-duty frame and pneumatic functions improve stability for medium and.

Product Details

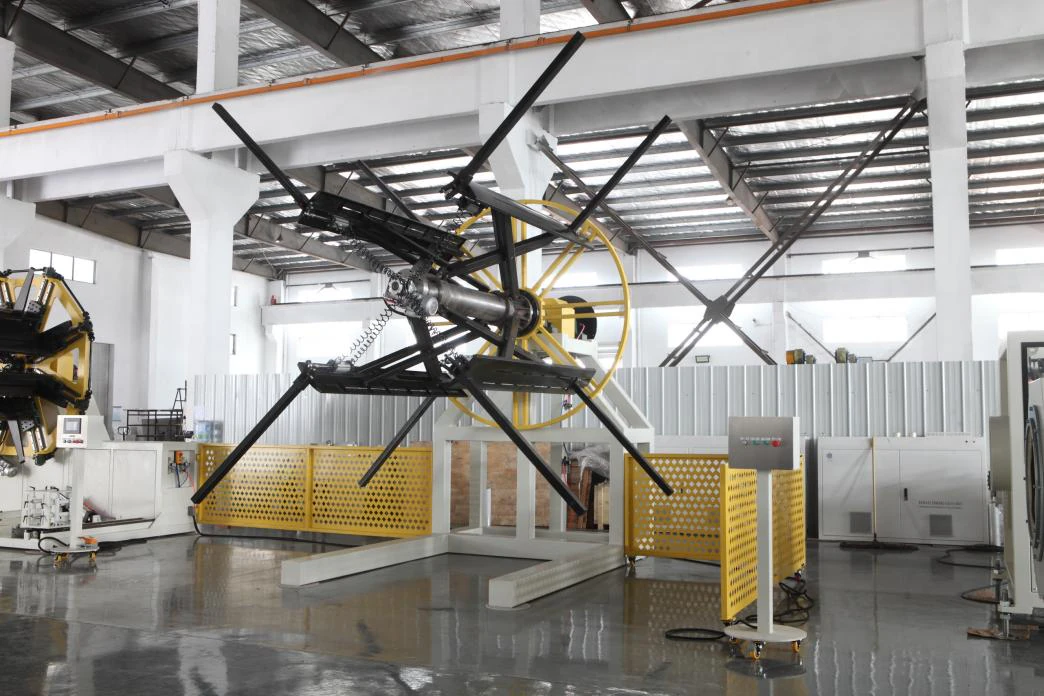

76 225 single station winding machine detail 1

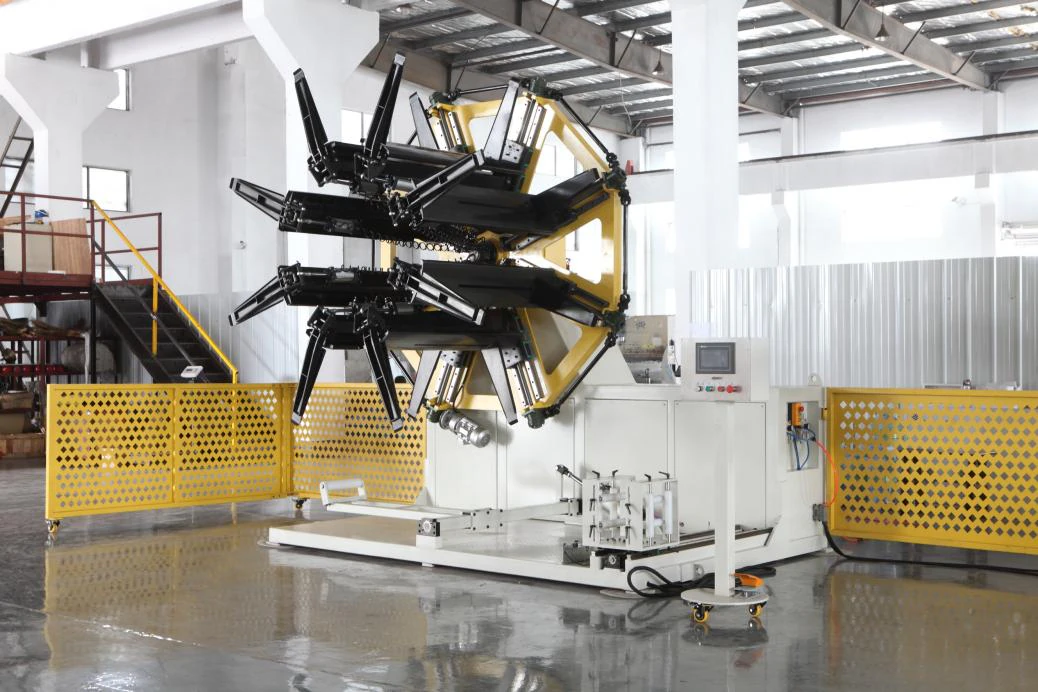

76 225 single station winding machine detail 2

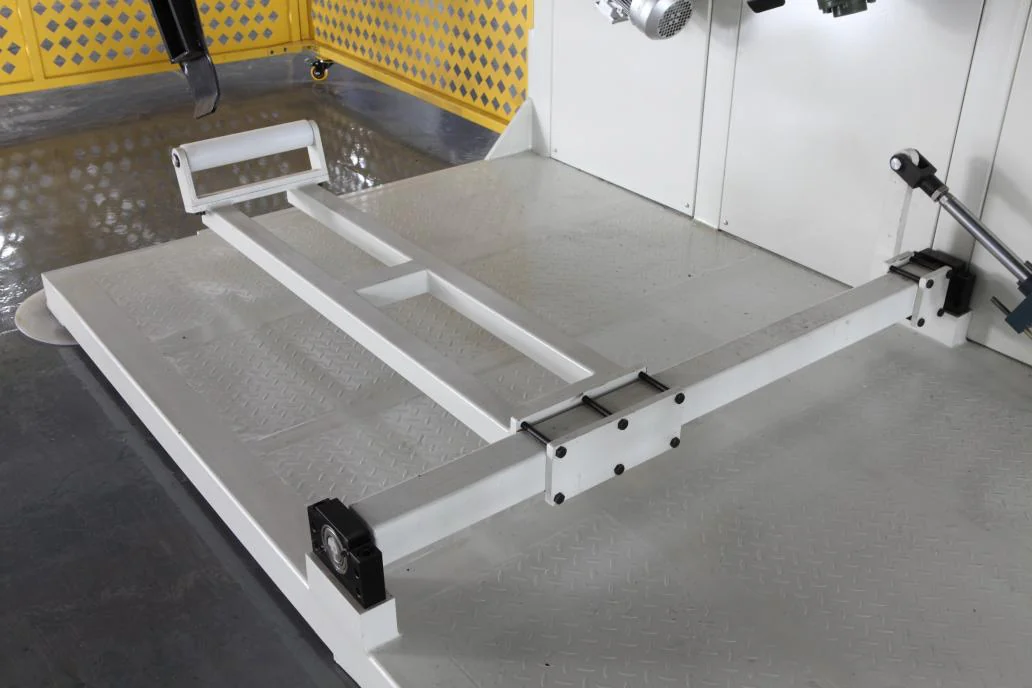

76 225 single station winding machine detail 3

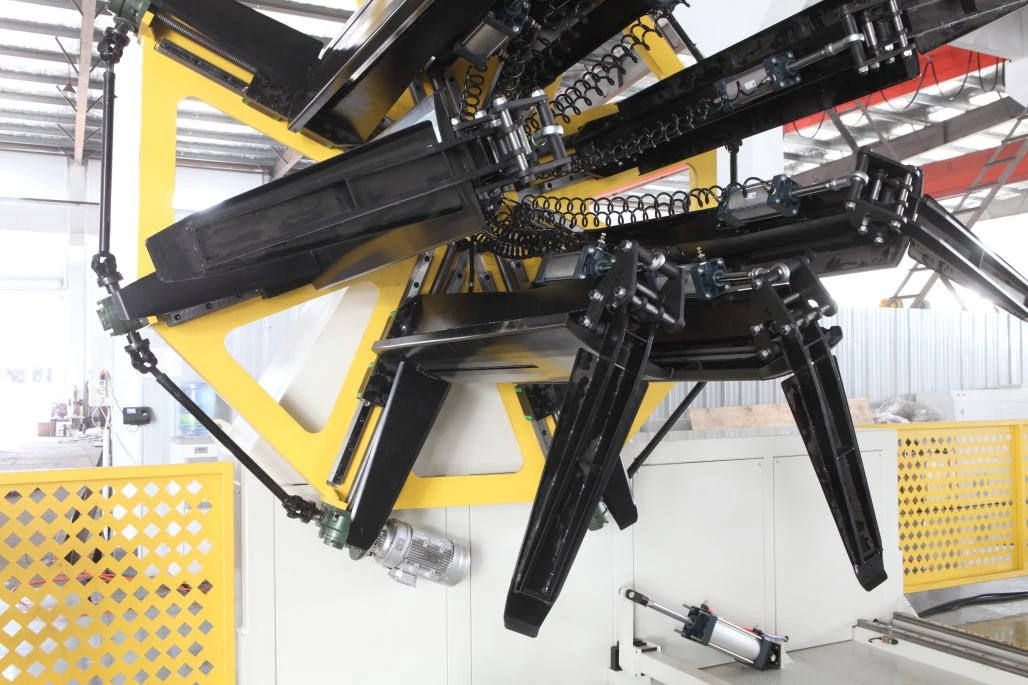

76 225 single station winding machine detail 4

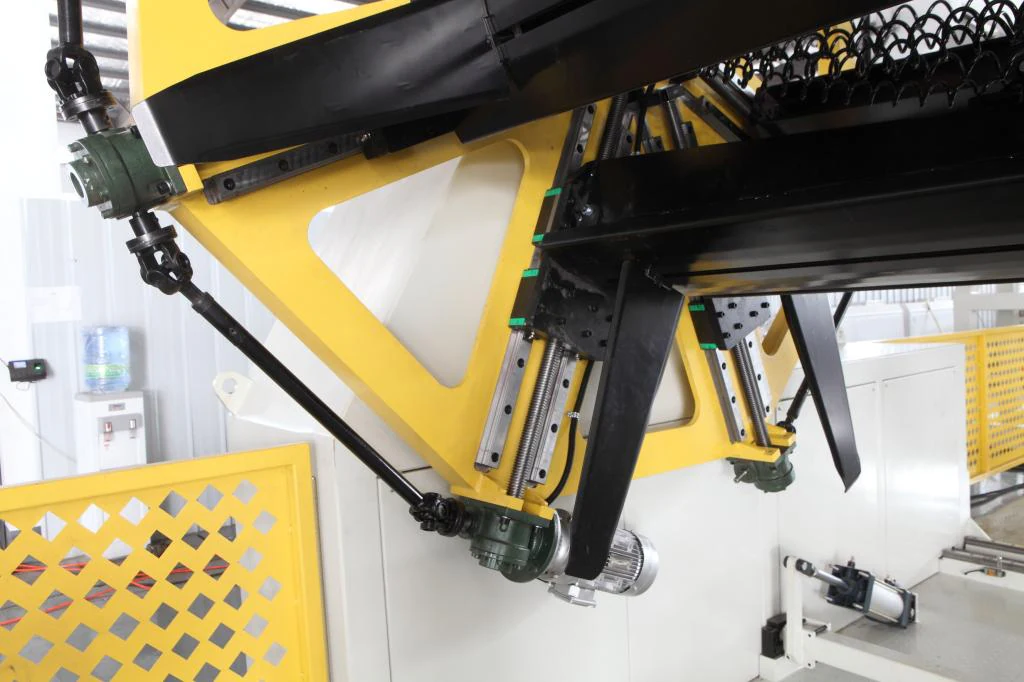

76 225 single station winding machine detail 5

Technical Parameters

Model	Number of reels	Pipe range	Max. coiling speed	Coiling motor power	Traverse motor power
JQ16-32-2VS	Two (same position)	16~32 MM	35 M/Min.	1.5 KW*2	0.9 KW
JQ16-32-4VS	Four	16~32 MM	30 M/Min.	1.5 KW*4	0.9 KW*2
JQ16-40-2VS	Two (opposite position)	16~40 MM	30 M/Min.	1.5 KW*2	0.5 KW
JQ40-63-2VS	Two (same position)	40~63 MM	20 M/Min.	1.0 KW*2	0.9 KW
JQ20-63-1VS	One	20~63 MM	20 M/Min.	1.0 KW	0.9 KW
JQ20-63-2VS	Two (same position)	20~63 MM	25 M/Min.	2.2 KW*2	0.9 KW
JQ50-110-1VS	One	50~110 MM	10 M/Min.	3.0 KW	0.9 KW
JQ50-125-1VS	One	50~125 MM	10 M/Min.	3.0 KW	0.9 KW
JQ75-160-1VS	One	75~160 MM	10 M/Min.	3.0 KW	0.9 KW
JQ76-225-1VS	One	76~225 MM	10 M/Min.	3.0 KW	0.9 KW
JQ90-250-1VS	One	90~250 MM	23.5 M/Min.	7.5 KW	-

Factory Strength

20+Years Experience

20MAnnual Sales

72hPre-delivery Test

CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production management

Polestar factory machining workshop for extrusion equipment parts

Polestar machinery assembly workshop for plastic pipe extrusion lines

Polestar machine inspection area for pre-delivery testing

Polestar production area for plastic pipe machinery manufacturing

Customer visit at Polestar factory for extrusion line inspection

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipment

Polestar Machinery machine packing and loading for export delivery

Plastic extrusion machine container loading at Polestar factory

Polestar Machinery container loading inspection before shipping

Plastic extrusion equipment shipment and container loading service

Polestar Machinery export shipment for plastic pipe extrusion line

Customer Projects

Plastic pipe machinery customer project 1

Plastic pipe machinery customer project 2

Plastic pipe machinery customer project 3

Plastic pipe machinery customer project 4

Plastic pipe machinery customer project 5

Plastic pipe machinery customer project 6

Frequently Asked Questions

Q1: What pipe range does JQ76-225 Coiler and Uncoiler Machine support?

Please refer to the technical parameters on this page. For special pipe sizes, Polestar Machinery can confirm the configuration according to your extrusion line.

Q2: Can this machine match an existing extrusion line?

Yes. Please provide your pipe material, pipe diameter range, line speed and coil specification, and our engineering team will check the matching configuration.

Q3: Can the machine be customized?

Yes. Coil diameter, control system, pneumatic functions and line layout can be configured according to project requirements.

Q4: What information is needed for quotation?

Please share pipe OD range, material, line speed, coil inner diameter, coil outer diameter, coil width and expected automation level.
