01 JQ90-250 SINGLE-REEL PE PIPE COILER

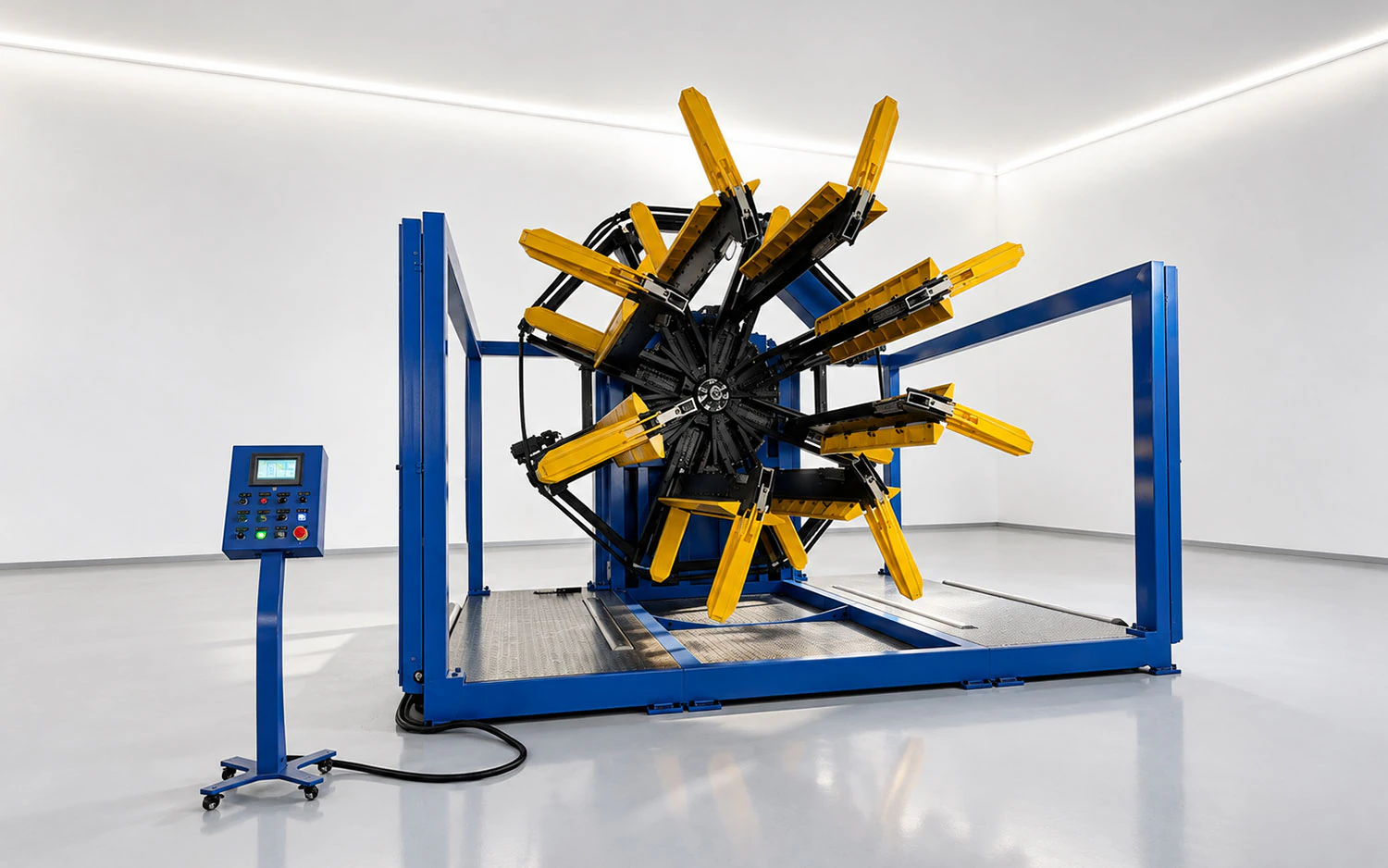

JQ90-250 Single-Reel PE Pipe Coiler

JQ90-250 single-reel coiler is customized for 90-250 mm large-diameter PE pipe.

Its key advantage is electric adjustment of both coil inner diameter and axial winding width.

Get a Quote

Get a Quote

Product Overview

JQ90-250 single reel coiler is customized for dia. 90-250mm large diameter PE pipe. The biggest highlight is electric adjustable coil inner diameter AND electric adjustable winding width. Equipped with Delta control & inverter, ultra-large 4000mm max coil outer diameter, full pneumatic coil unloading. Ideal intelligent heavy-duty winding equipment for manufacturers frequently switching multiple coil specifications.

Core Advantages

Machine Advantage

Precise control keeps product quality stable.

Machine Advantage

Precise control keeps product quality stable.

Machine Advantage

Axial winding width adjusts from 300 mm to 2500 mm for multiple coil sizes.

Machine Advantage

Reliable drive control keeps operation stable.

Machine Advantage

Reliable drive control keeps operation stable.

Machine Advantage

Pneumatic clamping, pressing and discharge support efficient coil handling.

Product Details

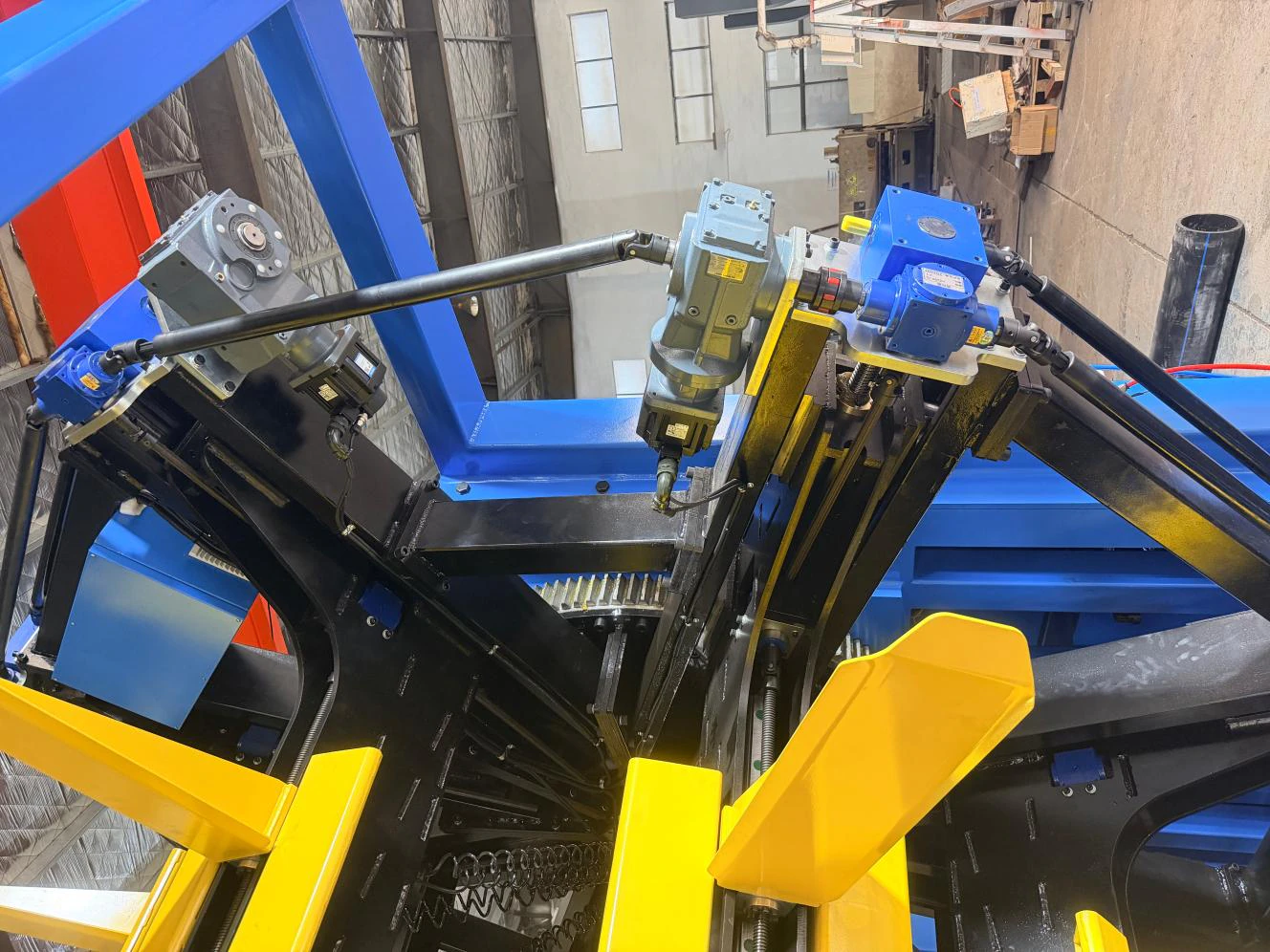

90 250 single station winding machine detail 1

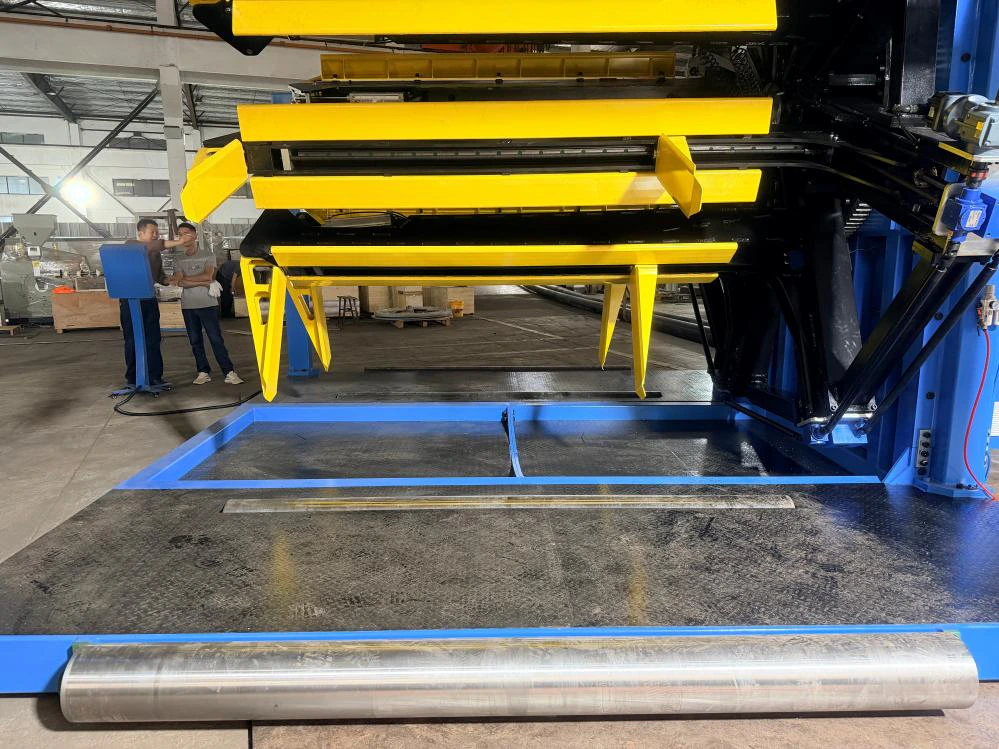

90 250 single station winding machine detail 2

90 250 single station winding machine detail 3

90 250 single station winding machine detail 4

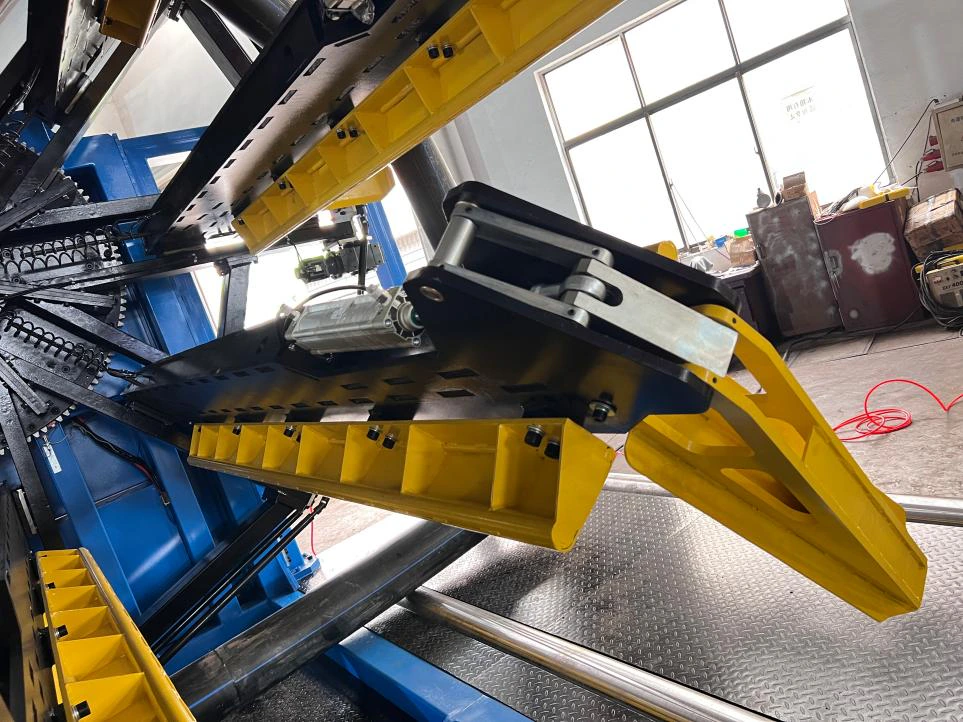

90 250 single station winding machine detail 5

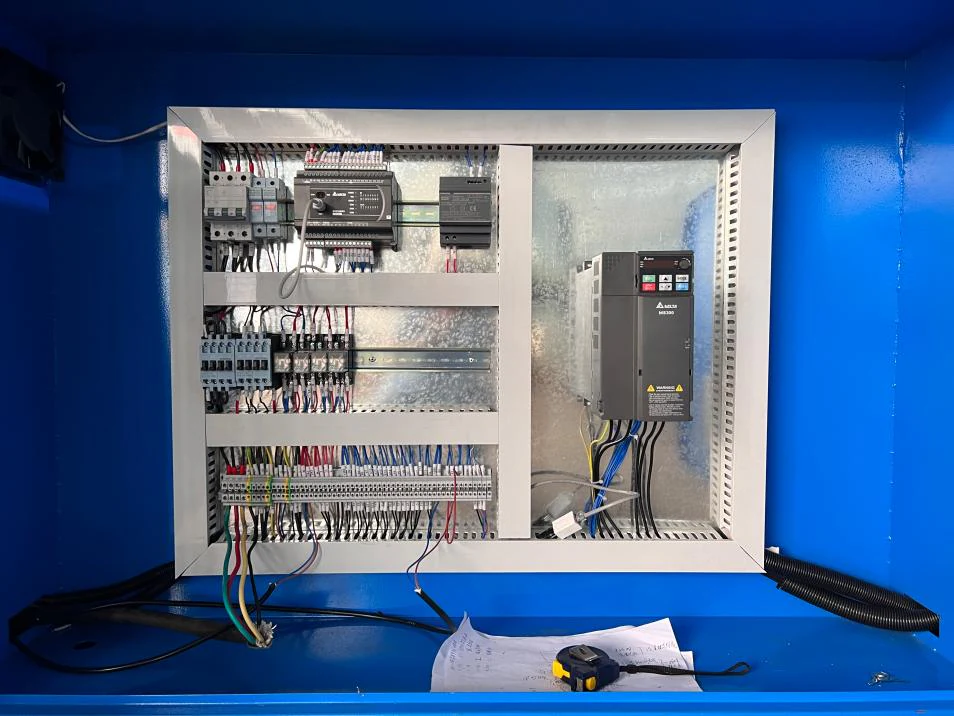

90 250 single station winding machine detail 6

Technical Parameters

Model	Number of reels	Pipe range	Max. coiling speed	Coiling motor power	Traverse motor power
JQ16-32-2VS	Two (same position)	16~32 MM	35 M/Min.	1.5 KW*2	0.9 KW
JQ16-32-4VS	Four	16~32 MM	30 M/Min.	1.5 KW*4	0.9 KW*2
JQ16-40-2VS	Two (opposite position)	16~40 MM	30 M/Min.	1.5 KW*2	0.5 KW
JQ40-63-2VS	Two (same position)	40~63 MM	20 M/Min.	1.0 KW*2	0.9 KW
JQ20-63-1VS	One	20~63 MM	20 M/Min.	1.0 KW	0.9 KW
JQ20-63-2VS	Two (same position)	20~63 MM	25 M/Min.	2.2 KW*2	0.9 KW
JQ50-110-1VS	One	50~110 MM	10 M/Min.	3.0 KW	0.9 KW
JQ50-125-1VS	One	50~125 MM	10 M/Min.	3.0 KW	0.9 KW
JQ75-160-1VS	One	75~160 MM	10 M/Min.	3.0 KW	0.9 KW
JQ76-225-1VS	One	76~225 MM	10 M/Min.	3.0 KW	0.9 KW
JQ90-250-1VS	One	90~250 MM	23.5 M/Min.	7.5 KW	-

Factory Strength

20+Years Experience

20MAnnual Sales

72hPre-delivery Test

CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production management

Polestar factory machining workshop for extrusion equipment parts

Polestar machinery assembly workshop for plastic pipe extrusion lines

Polestar machine inspection area for pre-delivery testing

Polestar production area for plastic pipe machinery manufacturing

Customer visit at Polestar factory for extrusion line inspection

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipment

Polestar Machinery machine packing and loading for export delivery

Plastic extrusion machine container loading at Polestar factory

Polestar Machinery container loading inspection before shipping

Plastic extrusion equipment shipment and container loading service

Polestar Machinery export shipment for plastic pipe extrusion line

Customer Projects

Plastic pipe machinery customer project 1

Plastic pipe machinery customer project 2

Plastic pipe machinery customer project 3

Plastic pipe machinery customer project 4

Plastic pipe machinery customer project 5

Plastic pipe machinery customer project 6

Frequently Asked Questions

Q1: What pipe range does JQ90-250 Single-Reel PE Pipe Coiler support?

Please refer to the technical parameters on this page. For special pipe sizes, Polestar Machinery can confirm the configuration according to your extrusion line.

Q2: Can this machine match an existing extrusion line?

Yes. Please provide your pipe material, pipe diameter range, line speed and coil specification, and our engineering team will check the matching configuration.

Q3: Can the machine be customized?

Yes. Coil diameter, control system, pneumatic functions and line layout can be configured according to project requirements.

Q4: What information is needed for quotation?

Please share pipe OD range, material, line speed, coil inner diameter, coil outer diameter, coil width and expected automation level.
