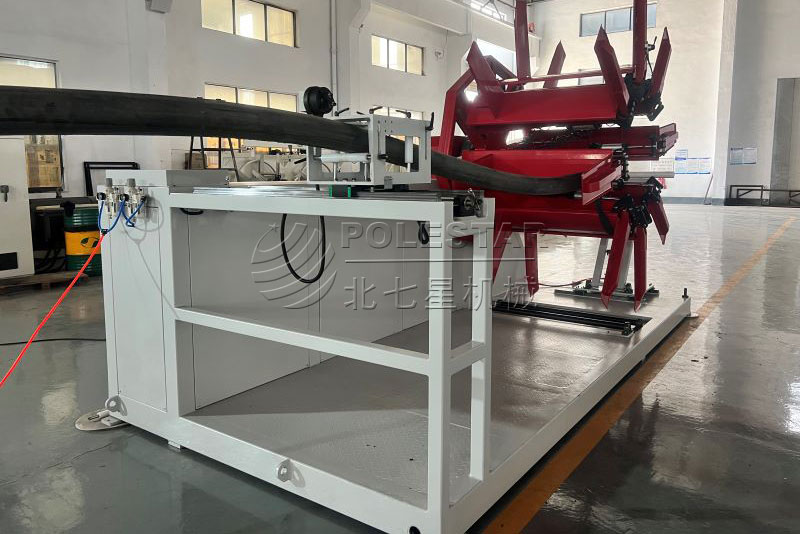

90~160MM Single Station Pipe Winder

Description

The single station plastic pipe winding machine serves the purpose of coiling and winding plastic pipes onto reels in a precise and controlled manner.

Its main functions can include:
Winding and Coiling: The machine is designed to wind plastic pipes onto spools or reels, providing a neat and organized coiling process.
Size Flexibility: It can accommodate various sizes and lengths of plastic pipes, offering versatility and adaptability to different production requirements.

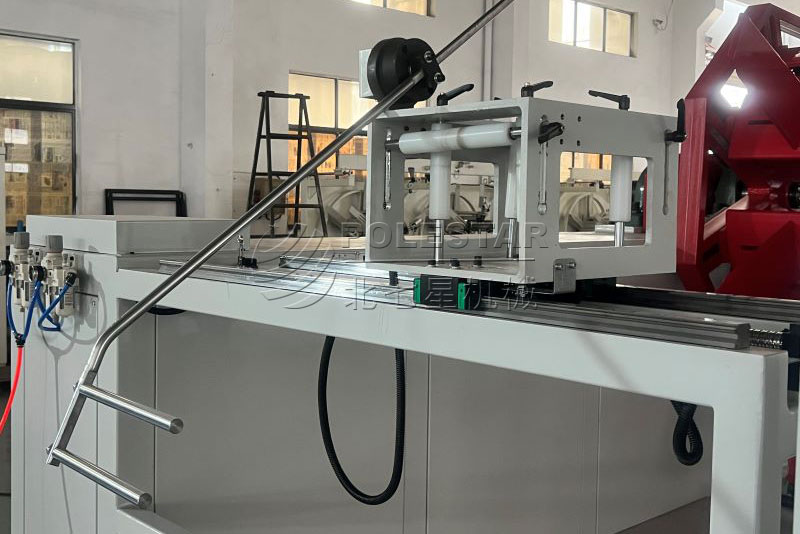

Tension Control: The machine may offer tension control mechanisms to ensure that the winding process maintains proper tension, preventing deformation or damage to the plastic pipes.
Automated Operation: Some models may feature automation for the winding process, reducing manual labor and increasing productivity.
Spooling Efficiency: The machine aims to efficiently transfer the plastic pipes onto reels, optimizing storage and transportation.

Overall, the single station plastic pipe winding machine contributes to the efficient and uniform coiling of plastic pipes, preparing them for storage, transportation, or further processing in the manufacturing and distribution of plastic pipe products.

Technical Parameter

  • Pipe range: Φ90~160 MM
  • Inner diameter: 1620~2900MM (adjusted by servo motor)
  • Inner diameter adjust motor: 1.5 KW
  • Outer diameter: 3900 MM
  • Roll up width: 460~850MM
  • Pipe winding speed: 1~8 M/Min.
  • Main motor power: 3 KW
  • Wire wind motor power: 0.9 KW
  • Air pressure: 3~0.6Mpa

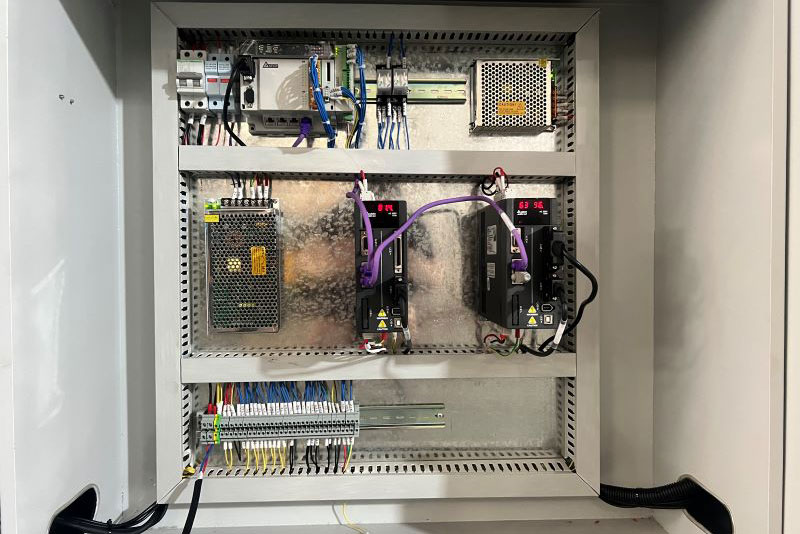

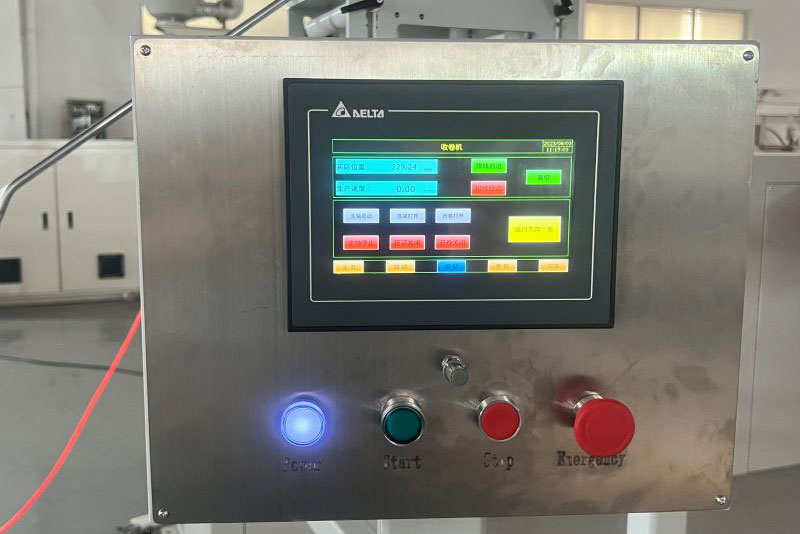

  • Speed regulation method:PLC+HMI “DELTA” Inverter
