Industrial-Grade Configuration
A full 22 kW motor, SKD-11 integral alloy blades and a 2.2 kW hydraulic system provide stable power, durability and a low failure rate.
02

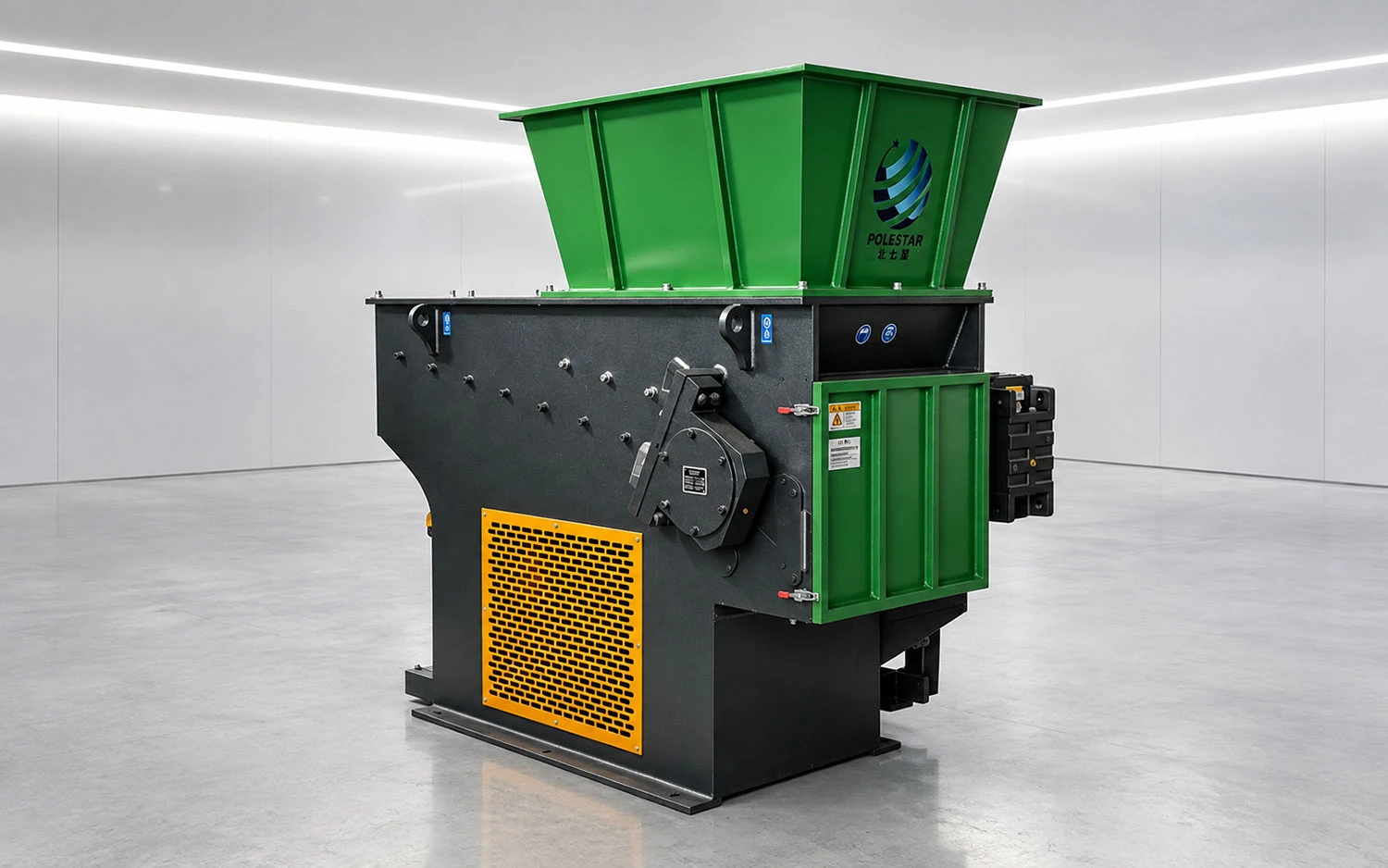

Product Overview
The BQX600 single shaft shredder is a high-efficiency, stable, and cost-effective plastic recycling solution specially optimized for PVC pipes, plastic profiles, hard plastic scraps, and plastic lumps. All core configurations are standardized and industrial-grade, ensuring stable long-term operation and uniform shredded output.
03

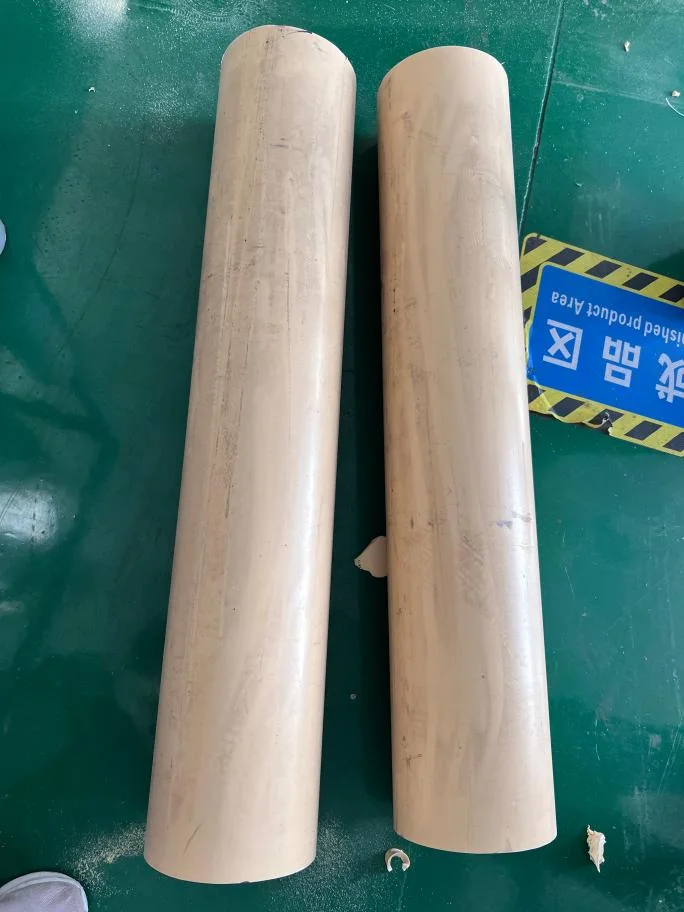

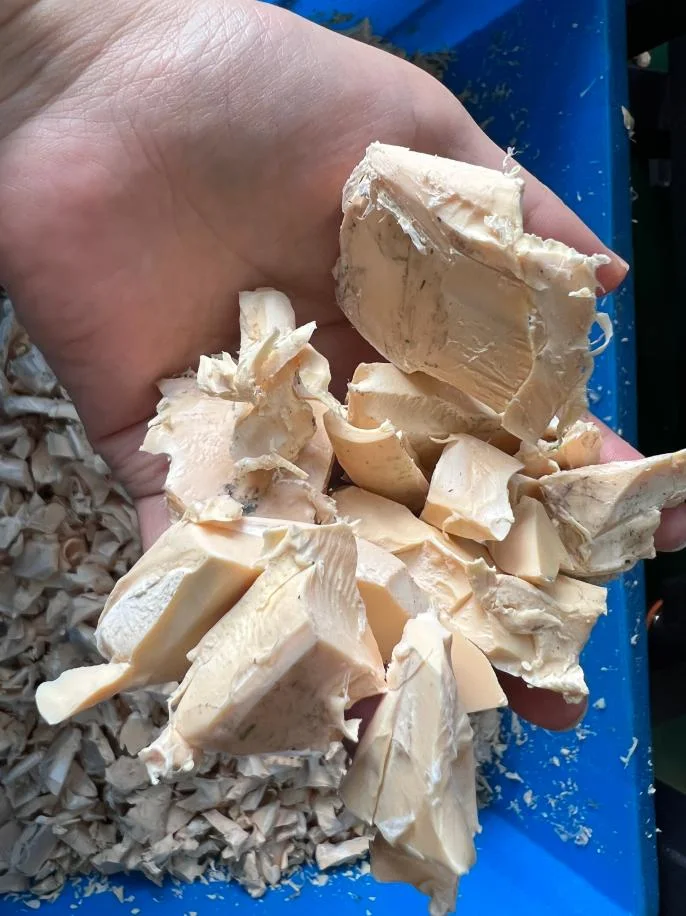

Materials & Output
04
Core Advantages
Optimized for Plastic Recycling
Wear-resistant, corrosion-resistant SKD-11 blades and moderate rotor speed suit PVC and other rigid plastics while limiting friction heat.
Lower Maintenance Cost
Long-life resharpenable blades, a mature hydraulic ram and stable 300–500 kg/h output reduce downtime and improve return on investment.
05

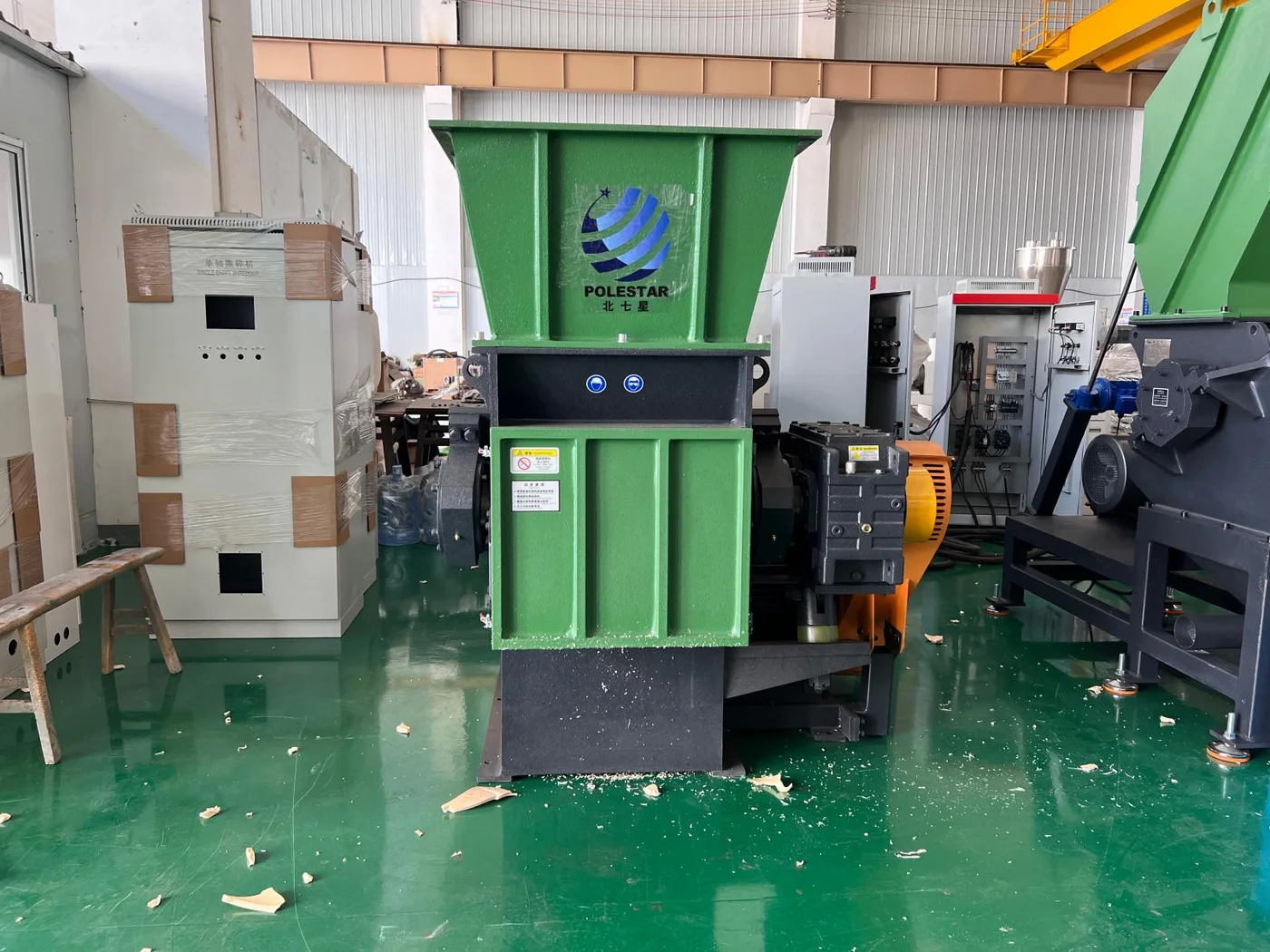

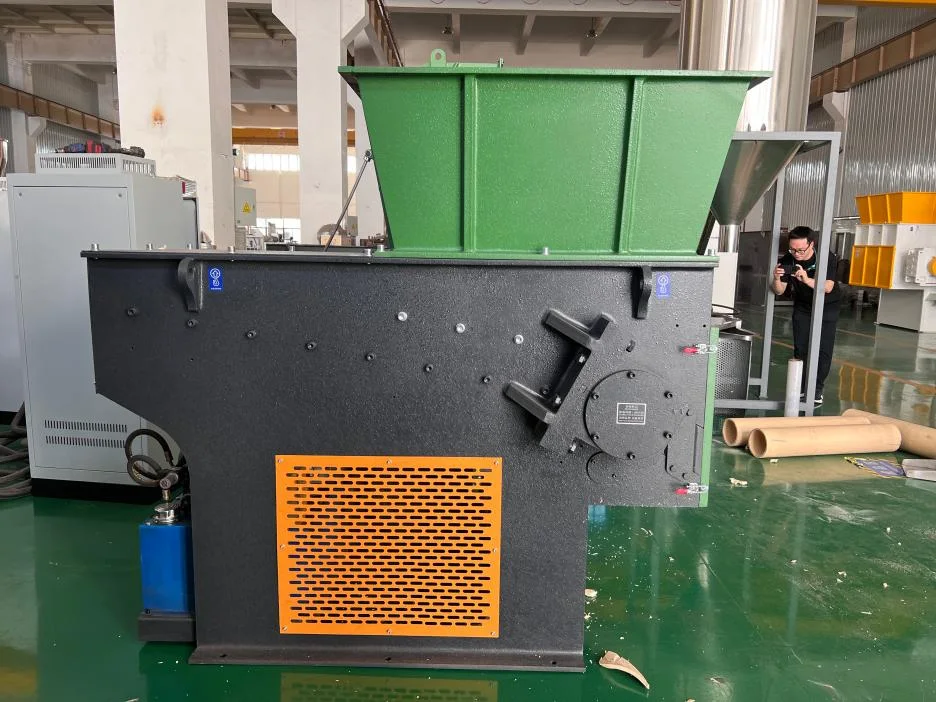

Product Details
06
Machine Video
07
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | BQX600 |
| Main motor power | 22 KW |
| Moving knives | 26 pcs |
| Rotor speed | 80 RPM |
| Fixed knives | 1 pc |
| Blade material | SKD-11 |
| Hydraulic ram power | 2.2 KW |
| Screen mesh diameter | 50 mm |
| Approx. shredded size | 100 × 40 × 6 mm |
| Capacity | 300–500 kg/h |
08
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
09
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
10
Customer Projects
11
Frequently Asked Questions
What materials can the BQX600 shredder process?
Rigid plastics including PVC, PE and PP pipes, profiles, lumps, purge, waste plates and other hard plastic scraps.
What is the actual output?
The standard stable output is 300–500 kg/h with conventional PVC pipes and a 50 mm screen. Material thickness, hardness and feeding continuity affect actual output.
What are the blades made from?

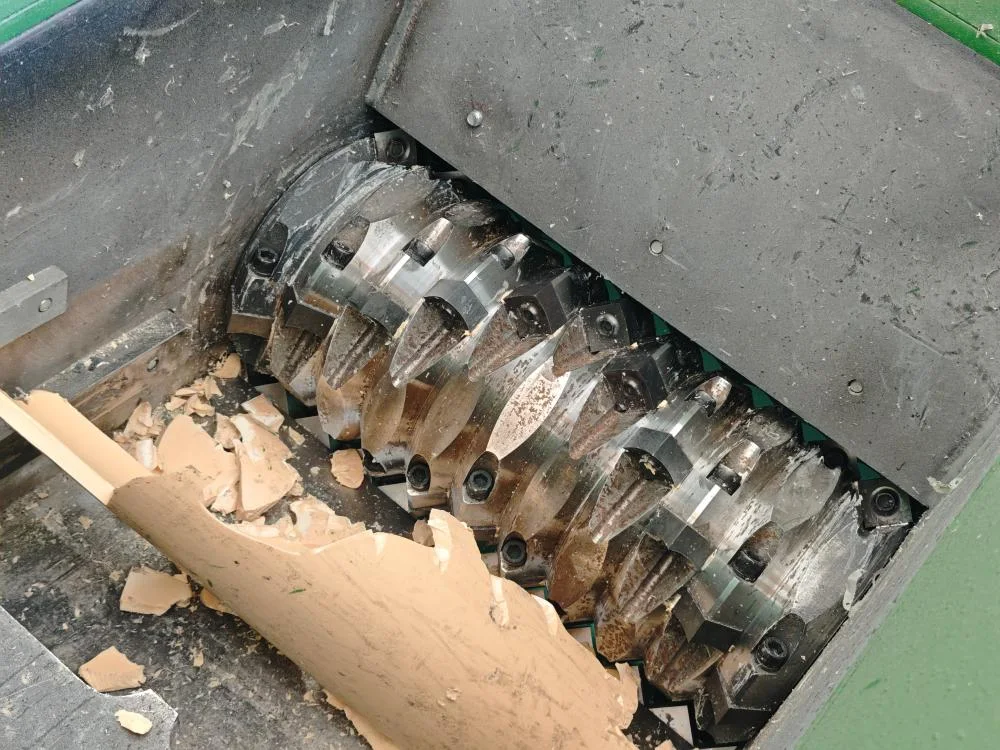

It uses 26 moving knives and one fixed knife made from SKD-11 alloy steel. The blades resist wear and corrosion and can be resharpened.
Can the discharge size be adjusted?

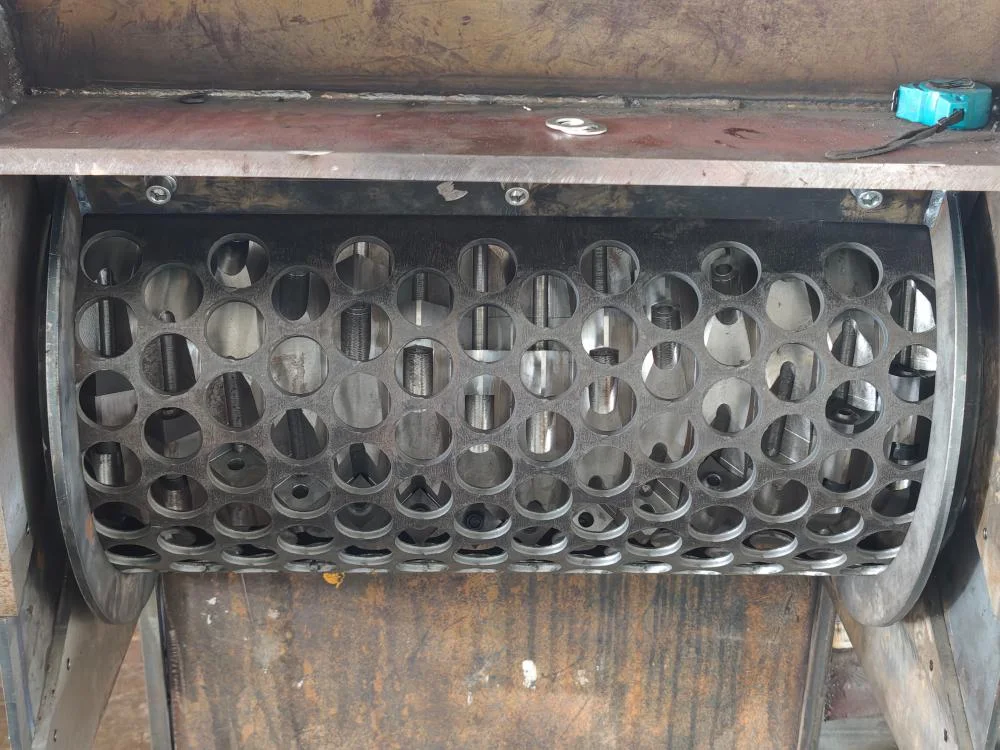

Yes. The standard screen is 50 mm, with 30–80 mm screens available for different downstream requirements.
How does the machine handle jamming?
The 2.2 kW hydraulic feeding system can retreat and reverse during overload or a jam to protect the motor and blades.
Will the 80 RPM rotor burn PVC?
The moderate 80 RPM speed limits friction heat and helps avoid burning, discoloration and decomposition.
Can long plastic pipes be fed without pre-cutting?
Yes. The moving hopper and hydraulic pushing structure support direct feeding of long plastic pipes.
What is the motor configuration?
The main motor is 22 kW and the hydraulic ram motor is 2.2 kW.
