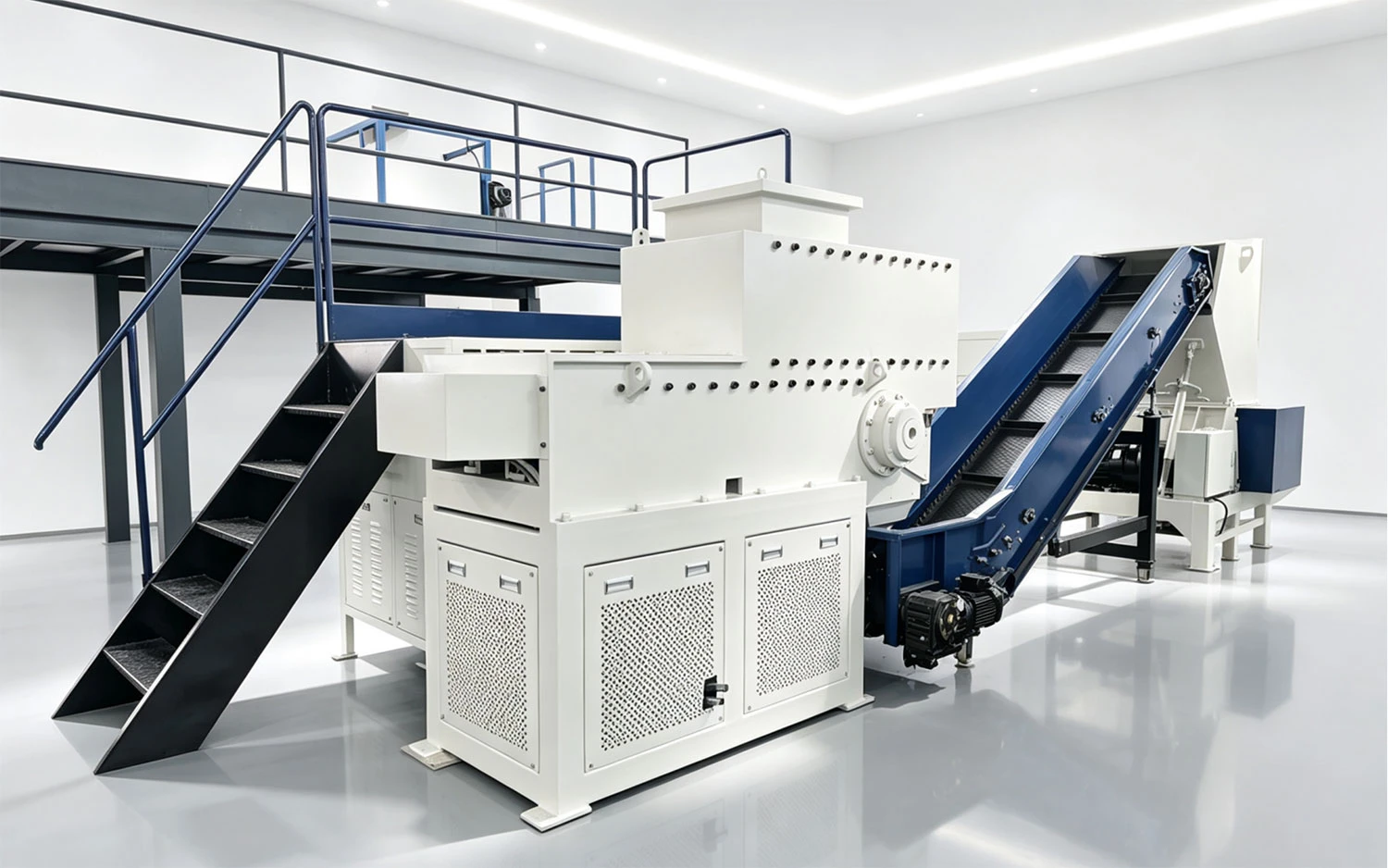

BQX800 Single-Shaft Shredder and Crusher

✓Running at 50RPM low speed with 45KW high-power main motor, the machine delivers strong torque without high friction heat.

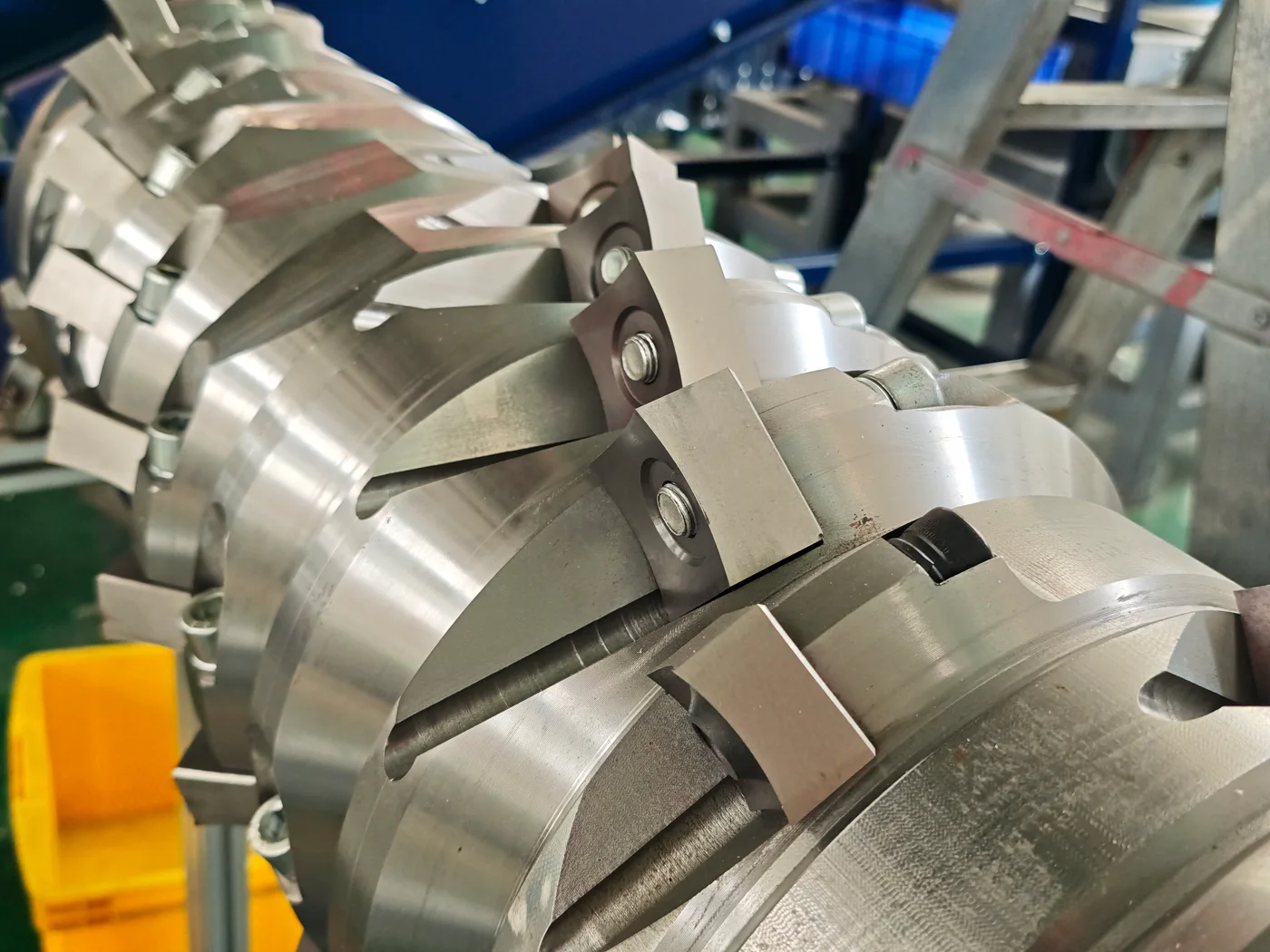

✓Equipped with 39 moving knives + 2 fixed knives made of high-quality DC53 alloy steel. Compared with ordinary blade materials, DC53 features higher hardness, better wear resistance and excellent anti-corrosion performance.

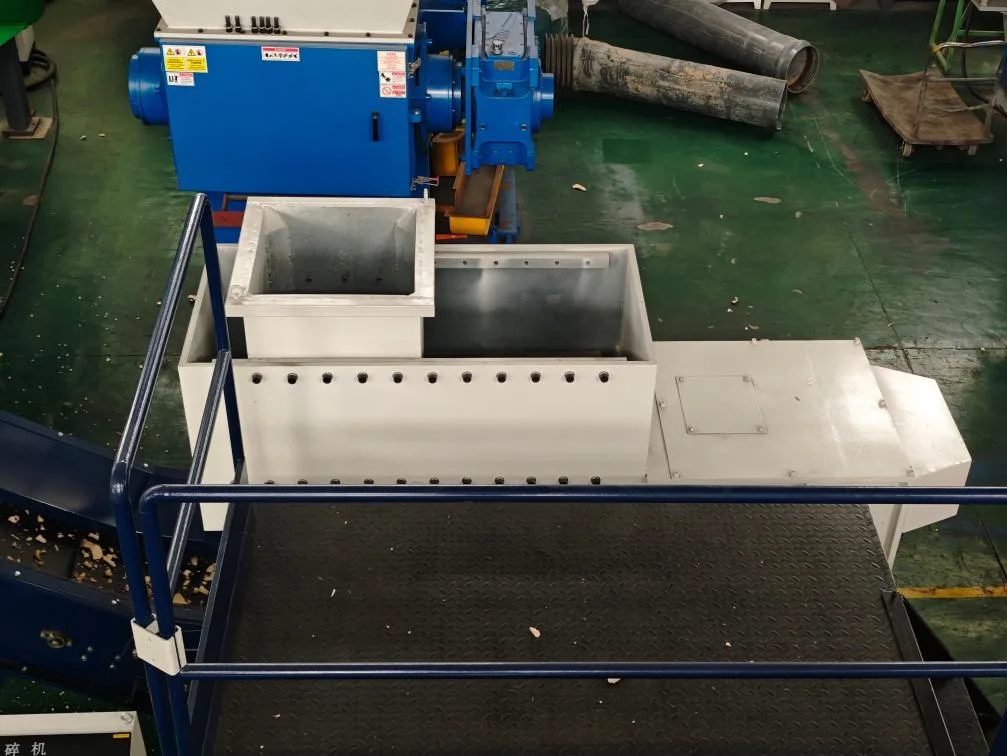

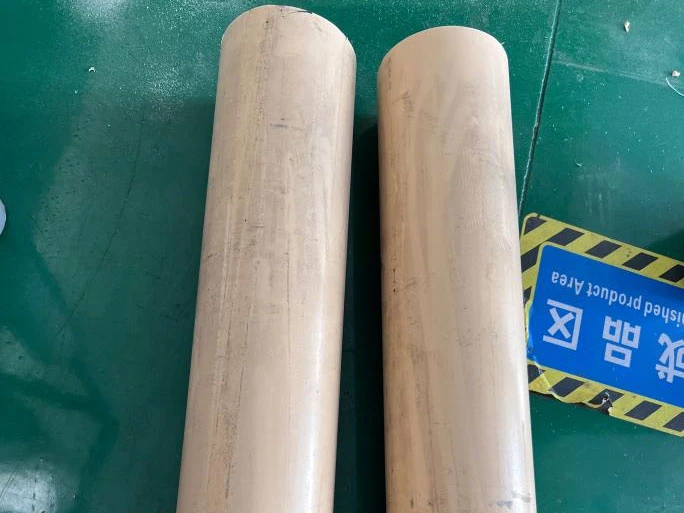

✓Supported by a 5.5KW hydraulic ram system, it realizes automatic, continuous and stable material pushing. It can handle long plastic pipes, bulky plastic profiles and lump materials directly without pre-cutting.

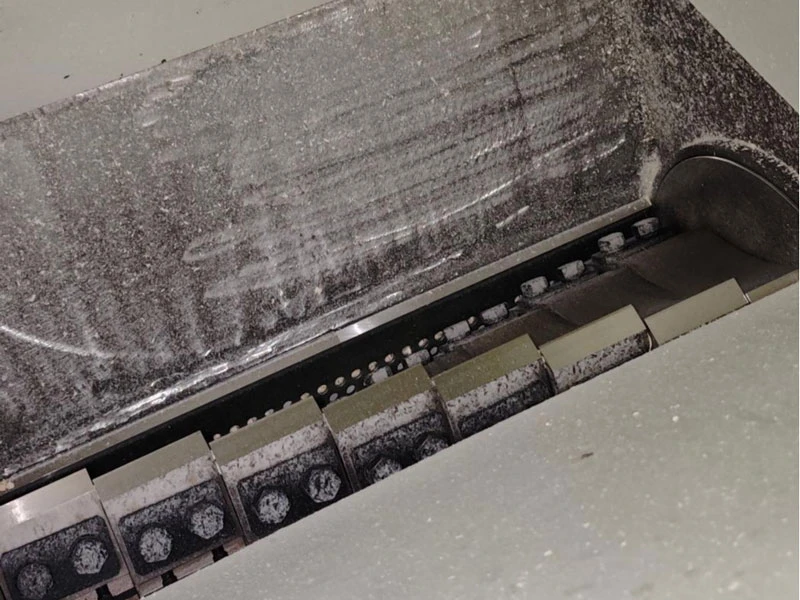

✓Matched with 60MM standard screen mesh, the shredded materials have uniform particle size with no oversized bulk materials.

✓With a stable hourly output of 500-700KG, it fully meets the primary shredding demand of medium-sized plastic recycling factories, featuring high operational stability and low failure rate for long-time continuous production.

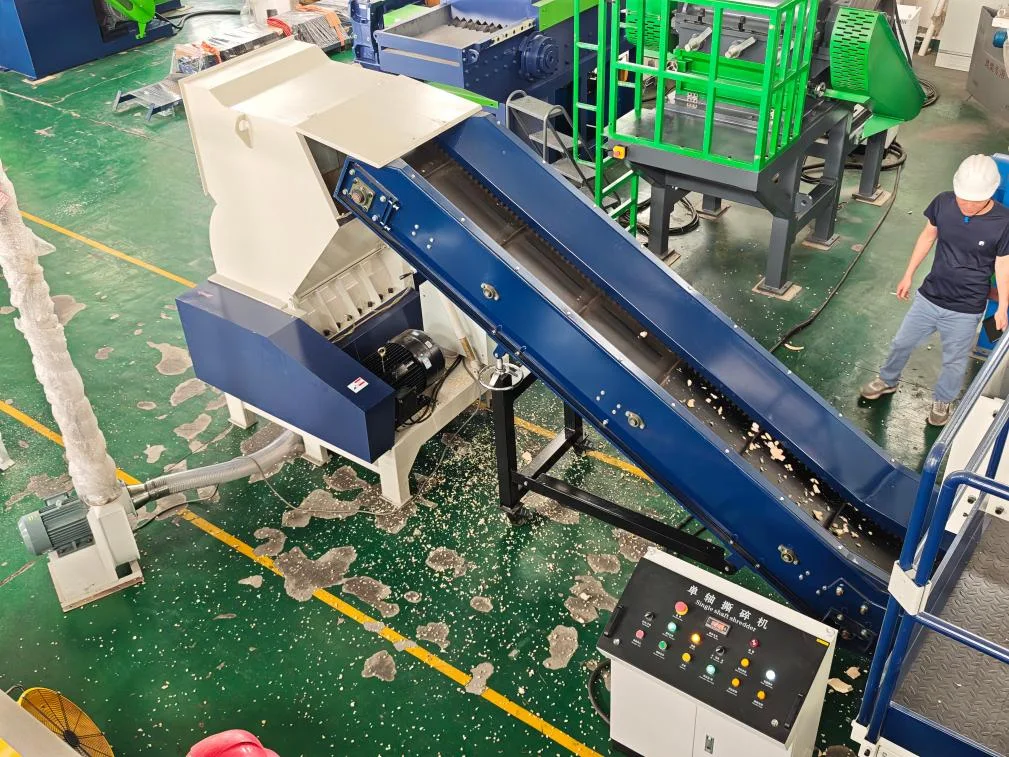

✓Adopting 480RPM high-speed rotor design and 37KW matched power, it performs precise secondary fine crushing on coarse shredded materials.

✓The final 12MM uniform granules are fine and even, which can be directly used for granulation, mixing and reprocessing.

✓Equipped with 24 moving knives + 2 fixed knives, the dense and sharp blade combination forms an efficient circulating shearing system.

✓The whole set of blades adopts 9CrSi tool steel, which has high hardness, good toughness and excellent cutting performance.

✓Stable fine crushing capacity reaches 400-500KG/Hr. The power configuration is reasonably matched, which avoids energy waste while ensuring crushing efficiency, realizing energy-saving and high-efficiency production.
