Integrated Material Handling

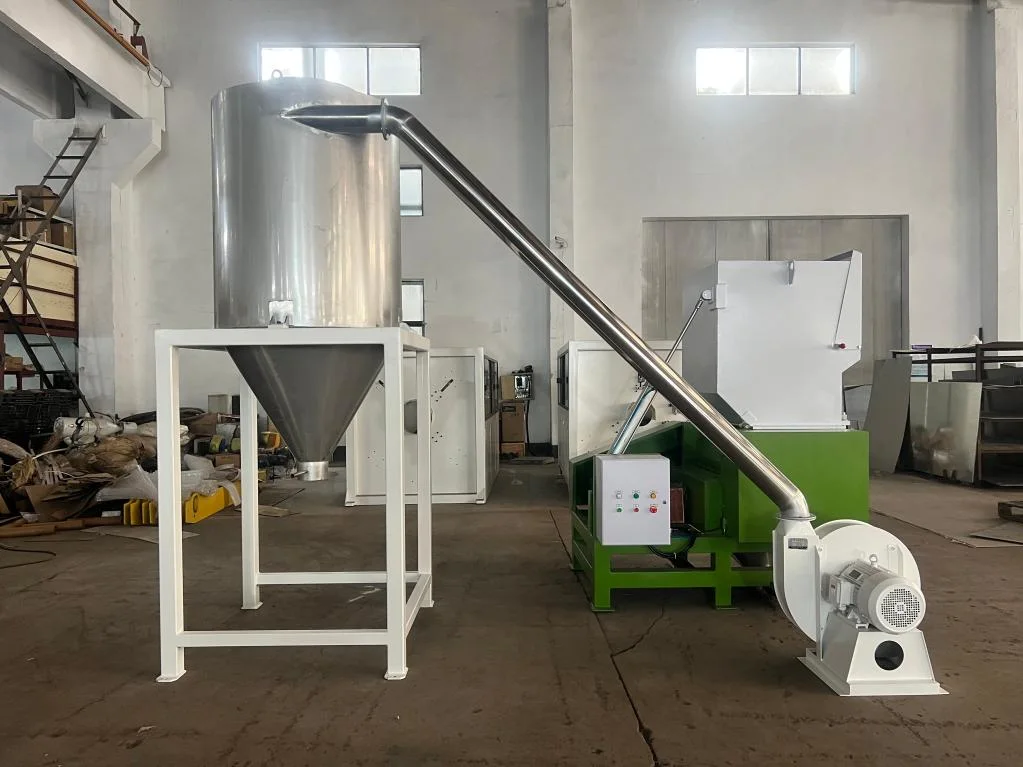

Pneumatic conveying moves crushed material directly to a 0.6 m³ silo while the dust system supports cleaner production.
02
Product Overview

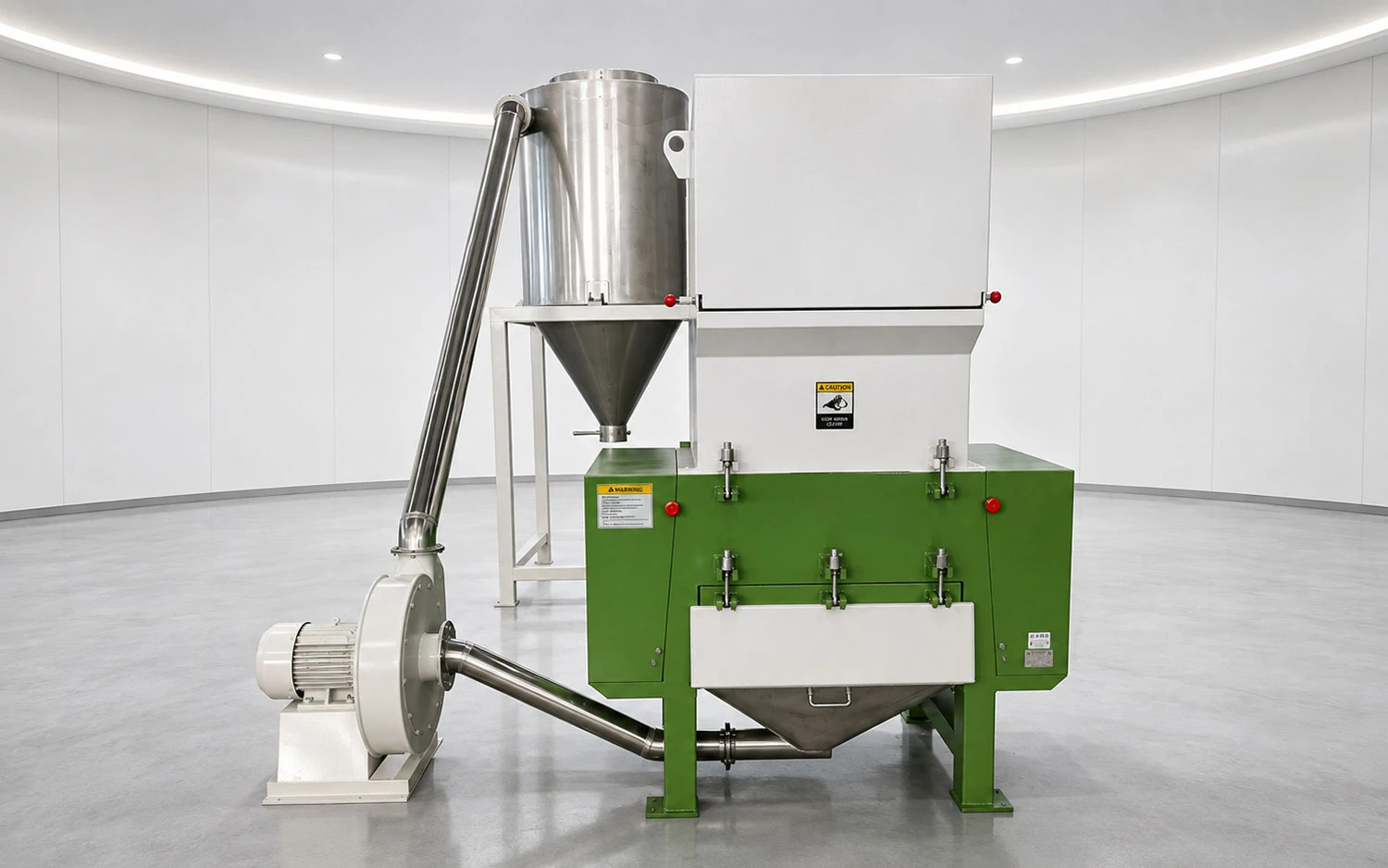

The PC800 industrial crusher is a high-efficiency, intelligent and safe crushing equipment integrated with crushing, dust removal and wind feeding storage functions, professionally optimized for medium and fine crushing of various materials. It adopts a mature and reliable structural design with full electric intelligent control, stable performance and convenient operation, meeting the continuous and high-standard production needs of industrial processing scenarios.
03
Core Advantages
High-Capacity Cutting

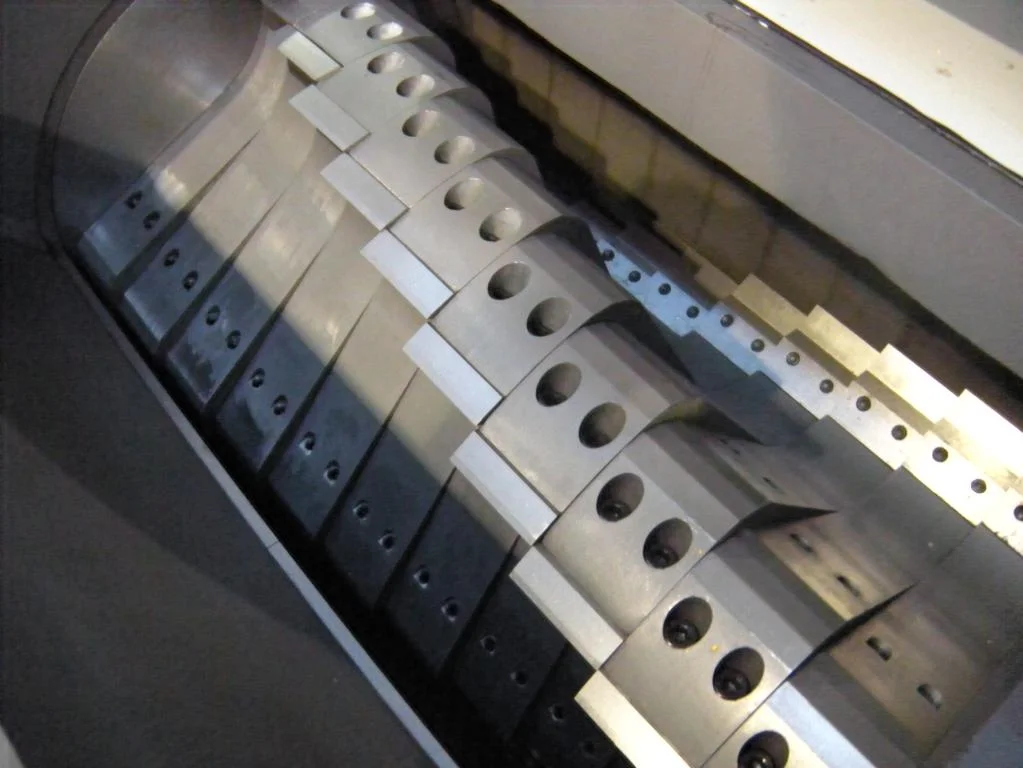

A 37 kW motor, 24 rotary blades and four fixed blades produce stable 600–700 kg/h output.
Electric Maintenance Access
Electric screen replacement and cover opening simplify cleaning, inspection and routine servicing.
Uniform Output
The 820 × 480 mm feed opening and 8 mm screen support efficient feeding and consistent particle size.
04

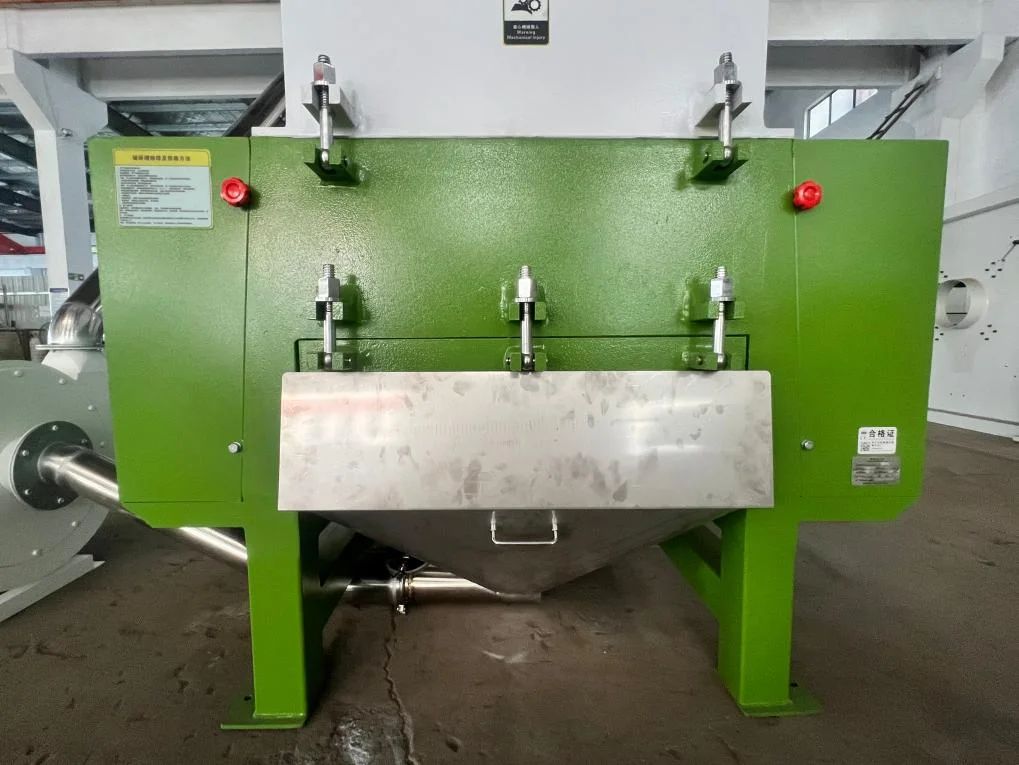

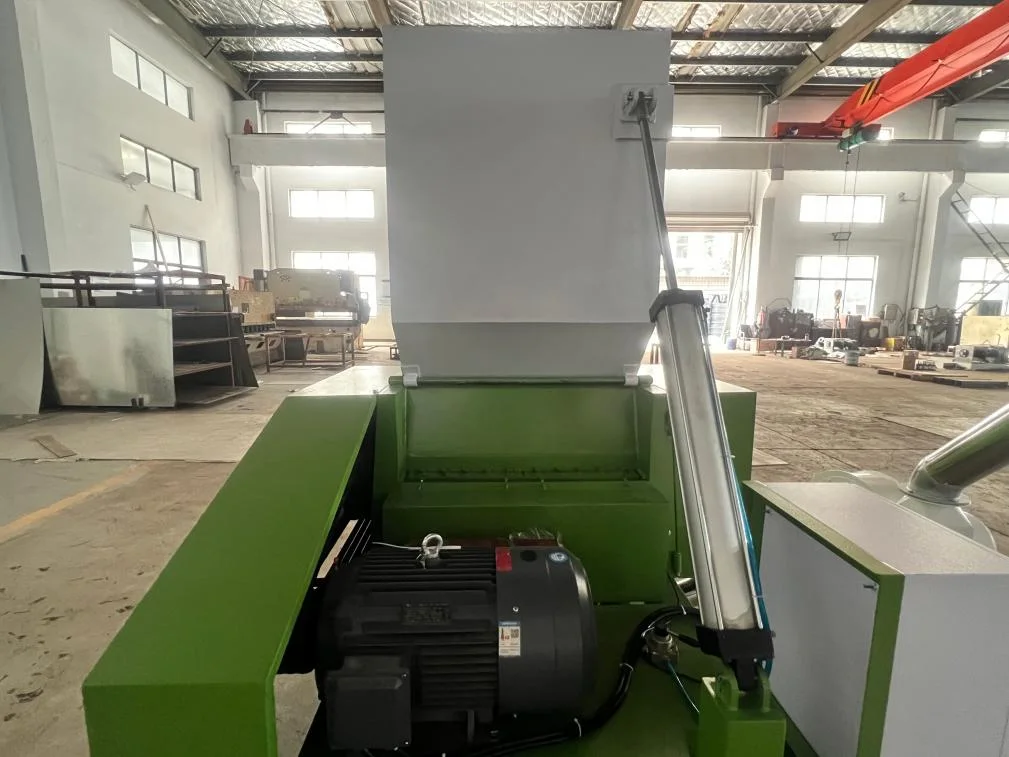

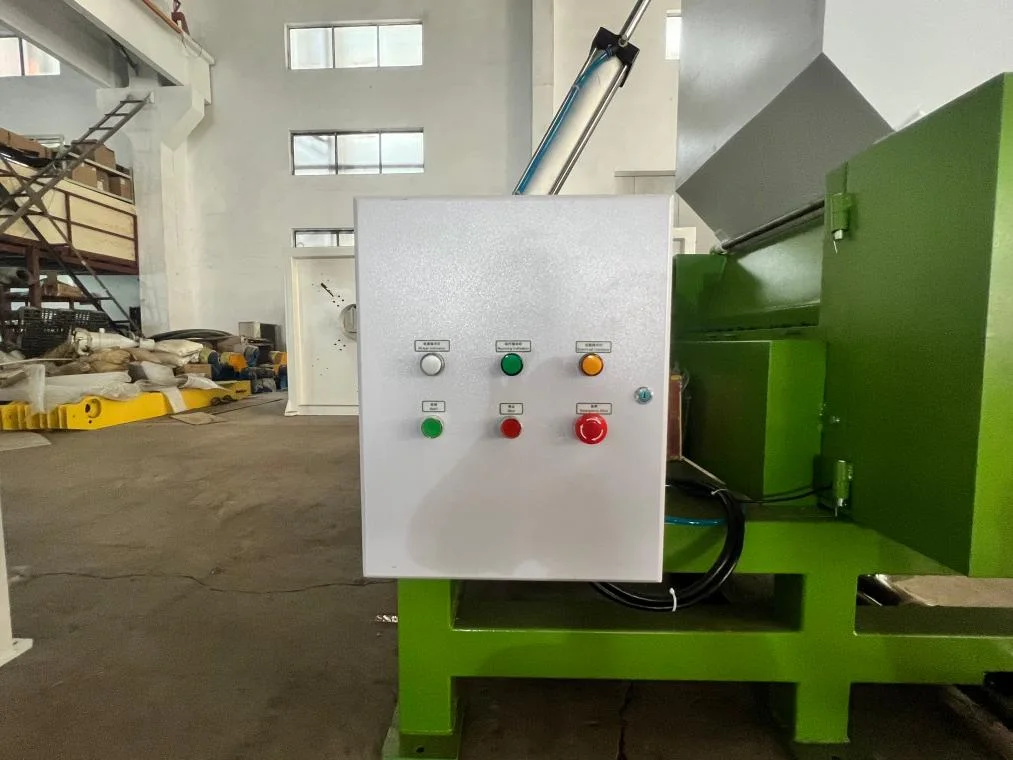

Product Details
05
Machine Video
06
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | PC800 |
| Main motor | 37 KW with head and over-current protection |
| Screen hole diameter | 8 mm |
| Inlet dimensions | 820 × 480 mm |
| Screen replacement | Electric |
| Dust removal system | Included |
| Cover opening | Electric |
| Rotary blades | 24 pcs |
| Stationary blades | 4 pcs |
| Blade material | 9CrSi |
| Fan motor | 5.5 KW |
| Storage silo | 0.6 m³ |
| Capacity | 600–700 kg/h |
07
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
08
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
09
Customer Projects
10
Frequently Asked Questions
What is the production capacity?
Standard stable capacity is 600–700 kg/h, depending on hardness, moisture and feeding size.
What blades are used?
It uses 24 rotary and four stationary 9CrSi alloy steel blades.
Does it support dust-controlled production?
Yes. A complete dust removal system absorbs and filters dust generated during crushing.
What does the storage system include?
A 0.6 m³ silo with pneumatic conveying automatically collects crushed material.
Are screen replacement and cover opening electric?
Yes. Both functions are electrically controlled for faster maintenance.
What motor protection is included?
The 37 kW motor includes head protection and over-current protection.
What are the inlet and screen sizes?
The inlet is 820 × 480 mm and the standard screen hole diameter is 8 mm.
What is the fan motor power?
The fan motor is 5.5 kW.
Which industries can use this crusher?
It suits plastic recycling and can be configured for other compatible granular or block materials after evaluation.
Is customization and after-sales support available?
Yes. Polestar provides configuration support, operation guidance, maintenance support and spare-parts supply.
