Product Details

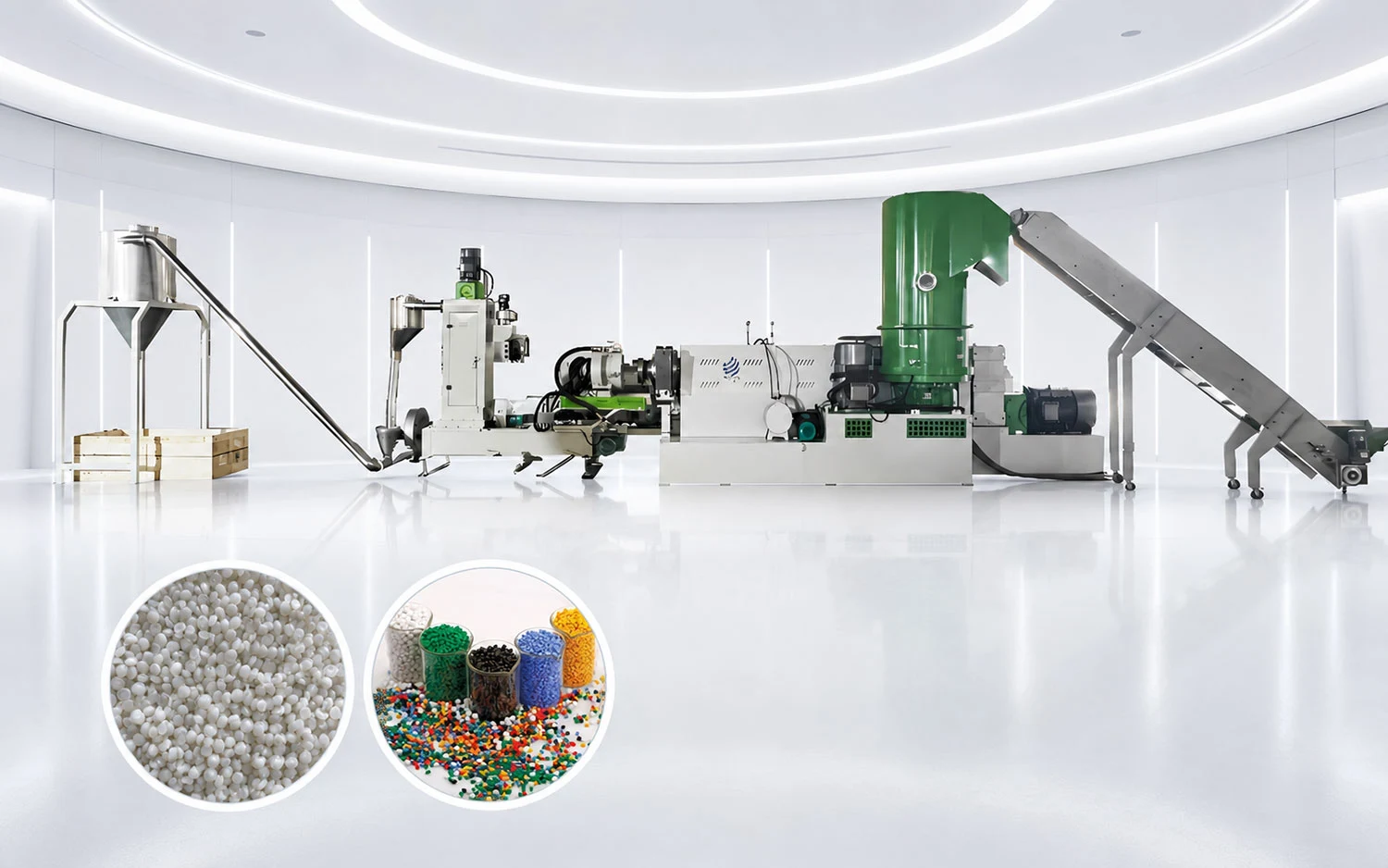

PE Film Granulation/Pelletizing Line is designed for recycling soft PE/PP film, plastic bags, stretch film, courier bags and agricultural film into reusable PE/PP pellets. The complete line integrates belt conveyor, HSA-1000 agglomerator, SJ100/33 single screw extruder, DSS-150 double station screen changer, face-cut pelletizing system, centrifugal dewatering, air conveying silo and electrical control cabinet for stable 300~400 KG/Hr production.
Waste materials to be processed

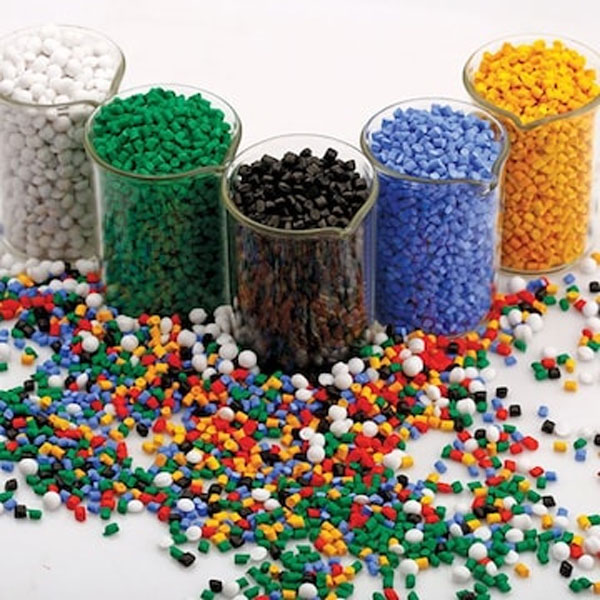

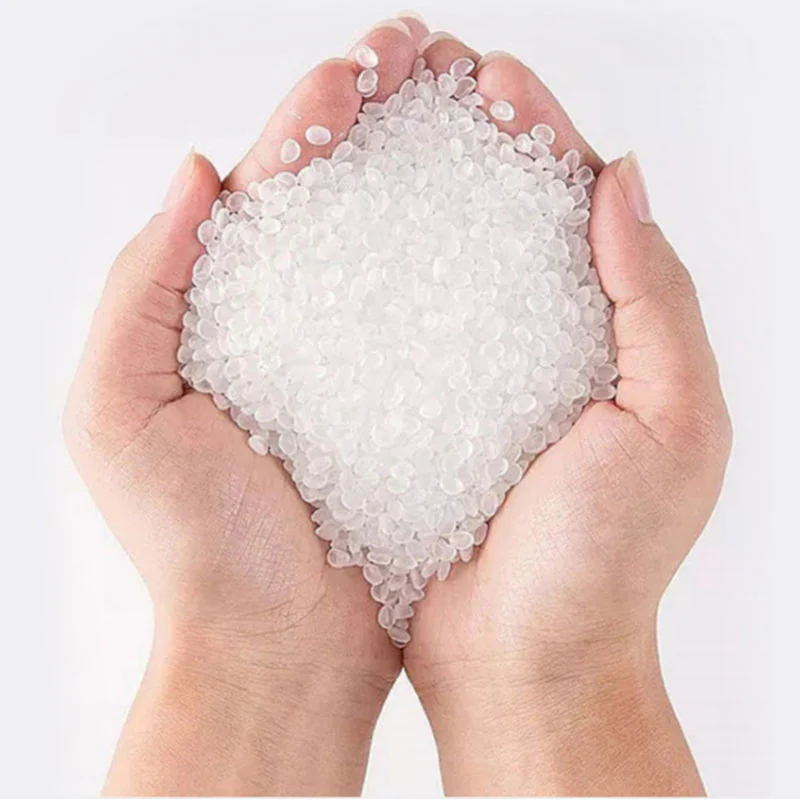

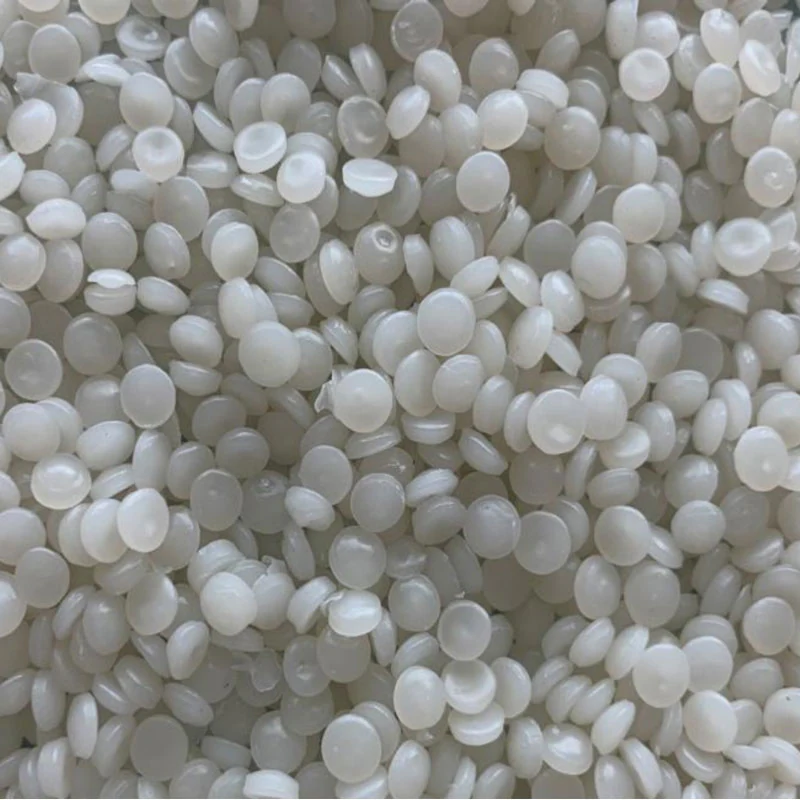

Finished Products (PE/PP pellets)
PE/PP filmRaw Material
300-400 KG/HrOutput Capacity
SJ100/33Extruder Model
PE/PP pelletsFinal Product
03
Applications
04
Core Advantages
Soft Film Recycling Integration
Optimized screw design improves plasticizing stability.
Stable Film Feeding
Stable feeding keeps material flow consistent.
Double Vacuum Venting
Optimized screw design improves plasticizing stability.
Energy-saving Design
PLC touch control simplifies operation and monitoring.
Wear-resistant Screw Barrel
Durable parts support long service life.
Fast Screen Changing
Fast screen changing reduces downtime.
High Dewatering Efficiency
Moisture and gas removal reduces bubbles.
Low Labor Operation
Moisture and gas removal reduces bubbles.
05
Machine Video
06
Production Process
01

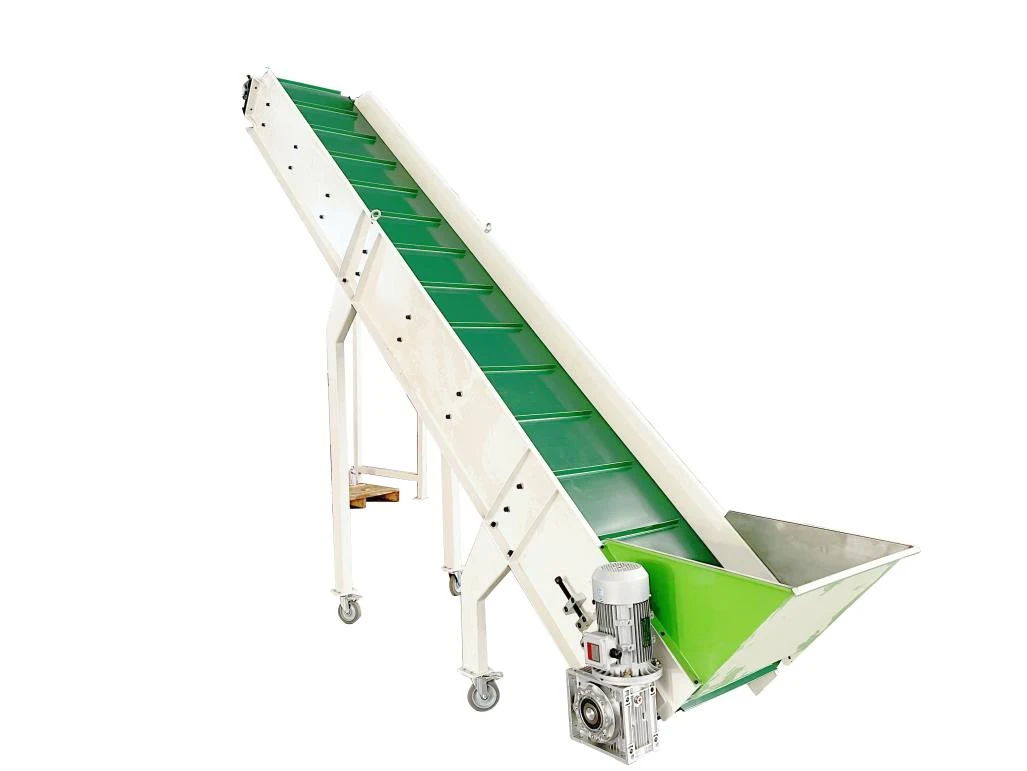

Belt Conveyor
02

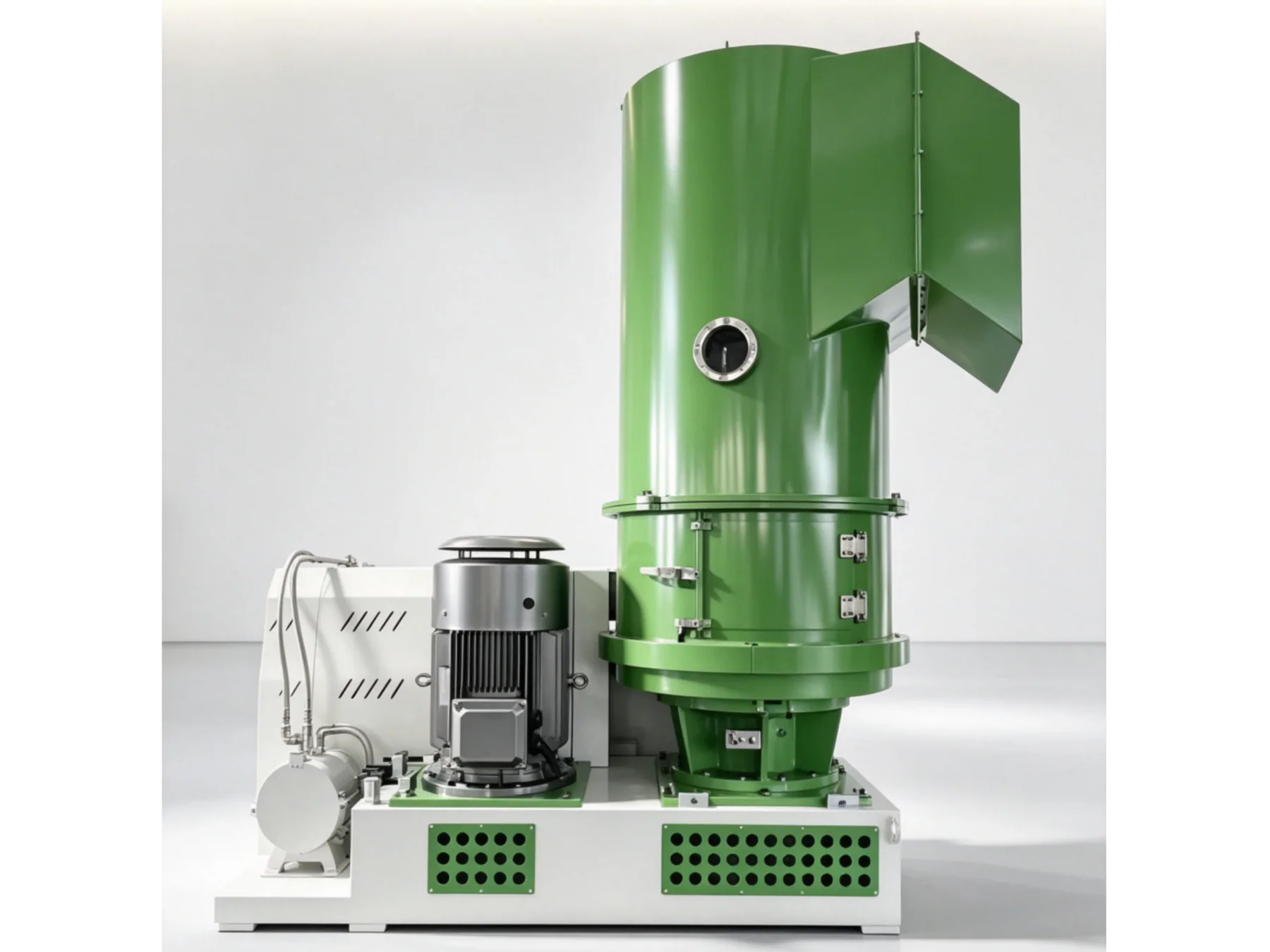

HSA-1000 Agglomerator
03

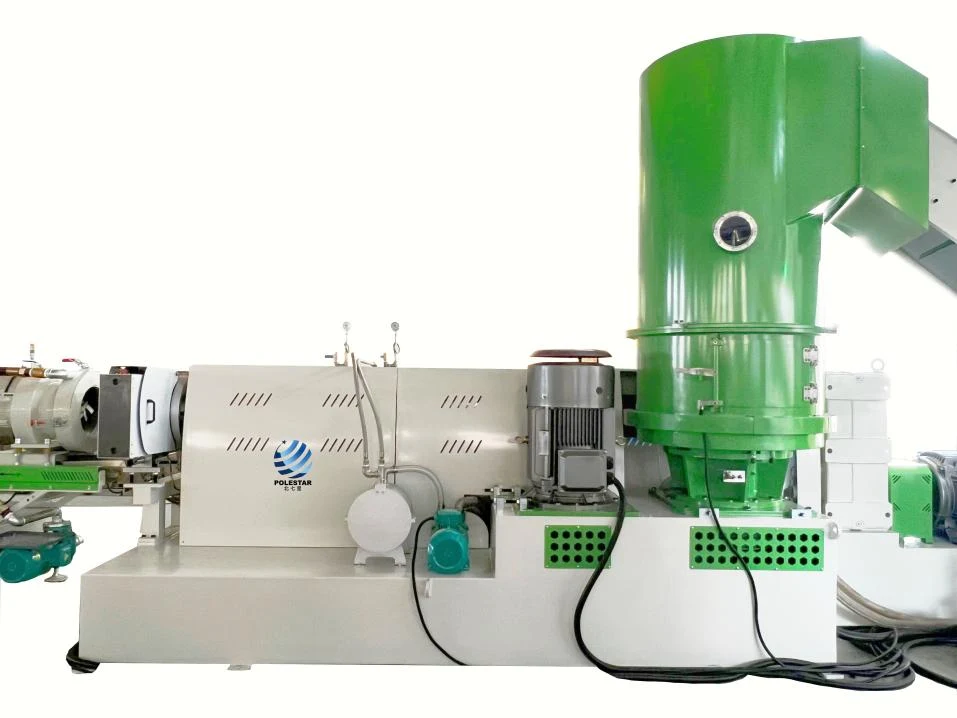

SJ100/33 Single Screw Extruder
04

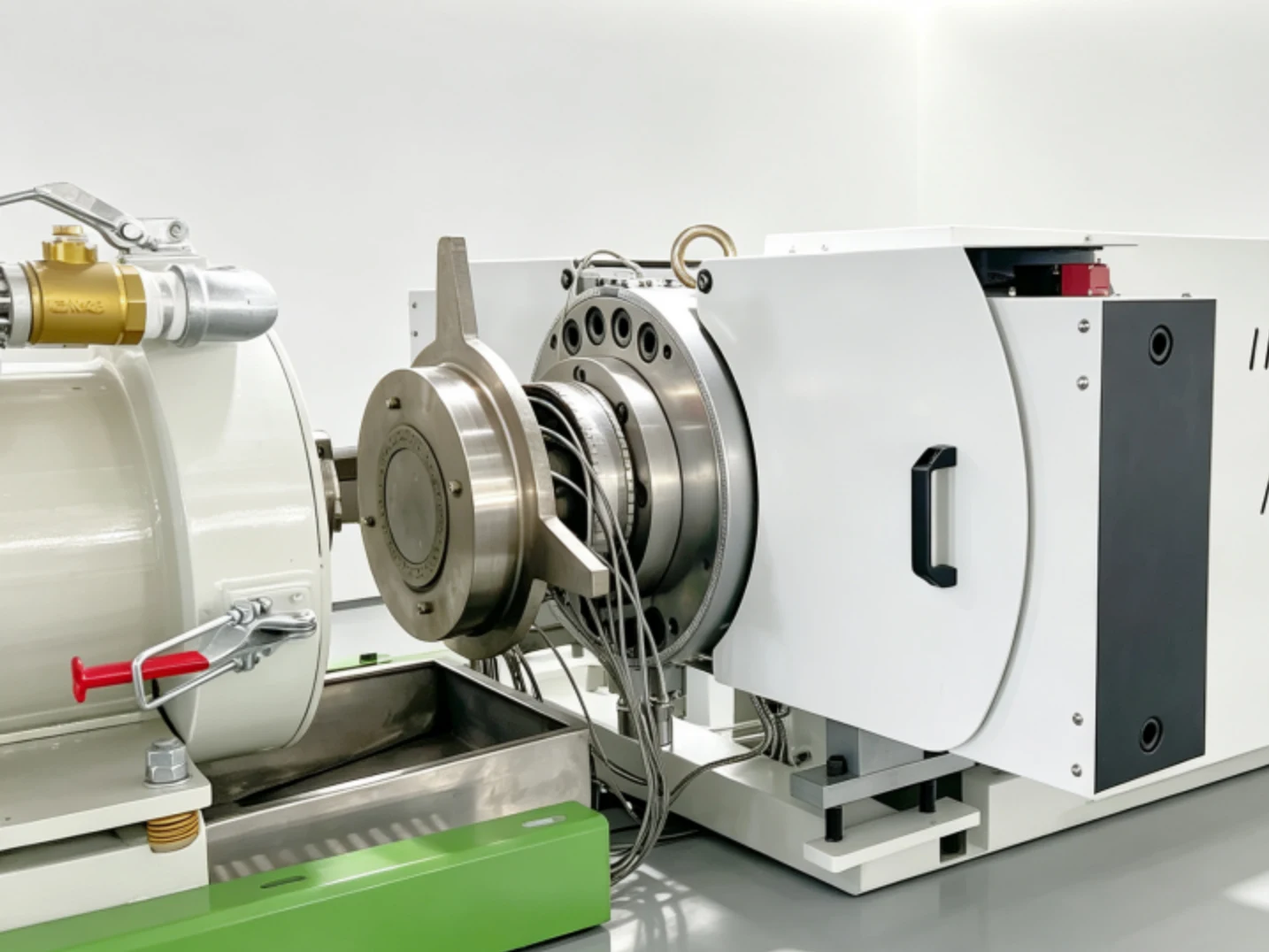

Double Station Screen Changer & Face-cut Pelletizing
05

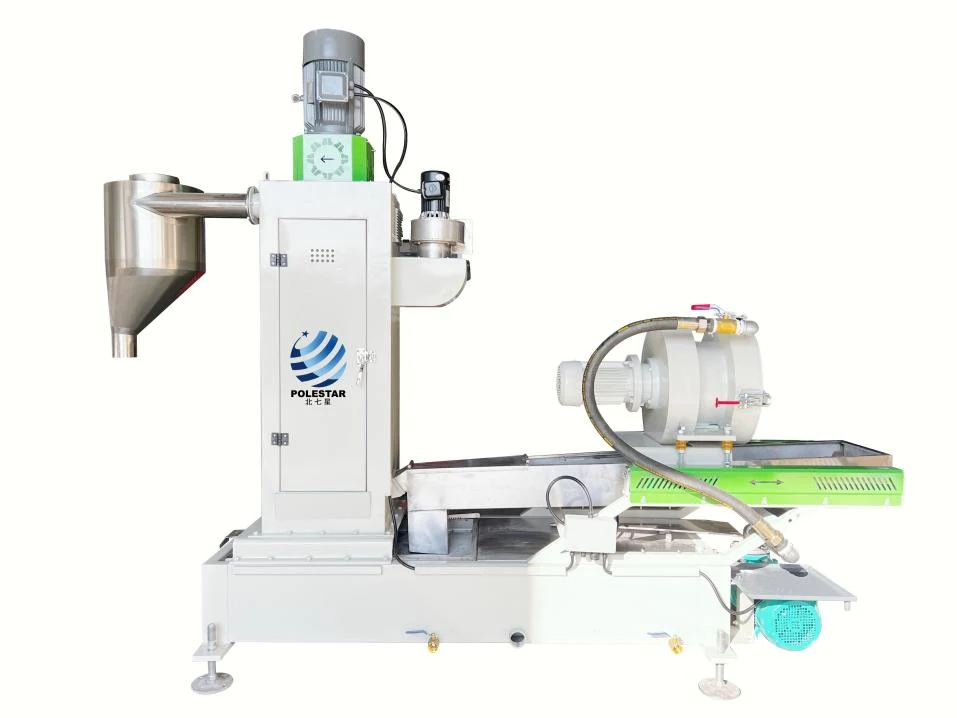

Centrifugar Dewatering Machine
06

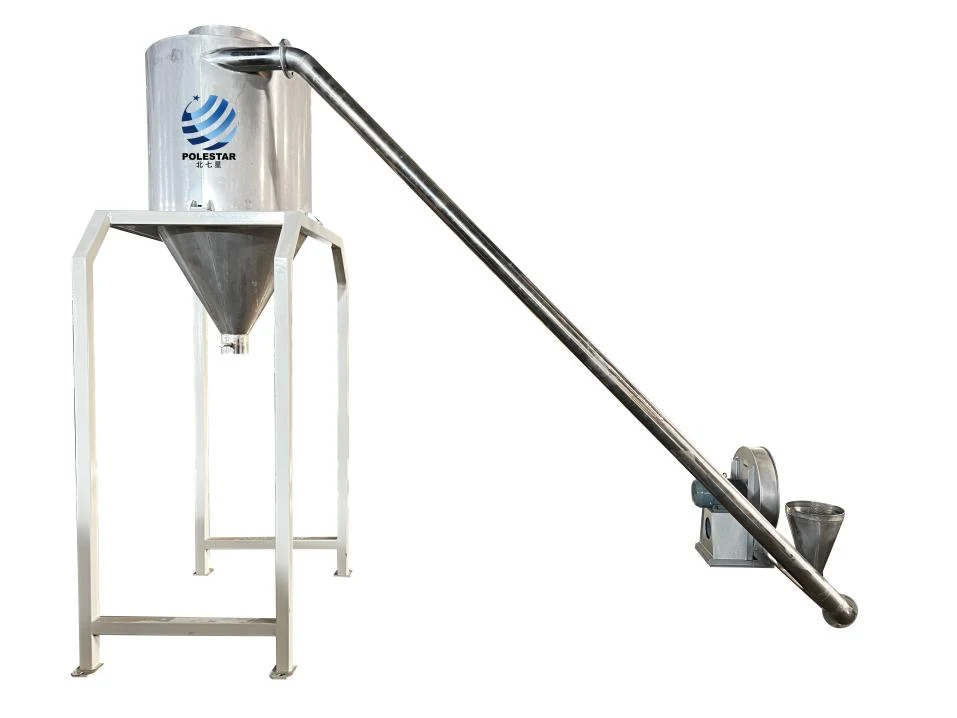

Air-sending
07
Material Silo
07
The Production Line Consists Of
Belt Conveyor
1 PCHSA-1000 Agglomerator
1 PCSJ100/33 Single Screw Extruder
1 PCDSS-150 Double Station Screen Changer
1 PCFace-cut Pelletizing System
1 PCCentrifugal Dewatering Machine
1 PCAir-sending Material Silo
1 PCElectrical Control Cabinet
1 PC08
Technical Parameters
| Agglomerator Model | Extruder Model | Agglomerator Motor Power | Extruder Motor Power | Max. Output |
|---|---|---|---|---|
| HSA-800 | SJ100/33 | 37 KW | 55 KW | 200~250 KG/H |
| HSA-1000 | SJ130/33 | 55 KW | 90 KW | 300~400 KG/H |
| HSA-1200 | SJ150/33 | 75 KW | 110 KW | 400~500 KG/H |
| HSA-1400 | SJ160/33 | 90 KW | 132 KW | 550~650 KG/H |
09
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
10
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
11
Customer Projects
12
Frequently Asked Questions
Q1: What waste materials can this PE PP film granulation line process?
It is suitable for LDPE film, HDPE film, PP shopping bags, stretch film, courier bags, agricultural film and similar soft plastic film waste.
Q2: What is the standard output capacity?
The configured HSA-1000 line is designed for 300~400 KG/Hr. Higher capacity models from 400~650 KG/H can also be configured according to raw material conditions.
Q3: How does the line reduce bubbles in finished pellets?
The single screw extruder uses double vacuum venting to remove ink, moisture and volatile matters from molten PE/PP material before pelletizing.
Q4: How many operators are needed?
After feeding waste film through the belt conveyor, the line automatically completes agglomerating, melting, filtering, pelletizing, dewatering, screening and storage. Usually one operator can supervise the full line.
Q5: Can it process printed or muddy waste film?
Yes. Wear-resistant alloy screw and barrel liner can be configured for printed or muddy waste film, and hydraulic screen changing helps handle higher impurity levels.
Q6: What is the finished product?
The final product is reusable PE/PP pellets for plastic film, bag, sheet, injection or other plastic processing applications.
