Description:

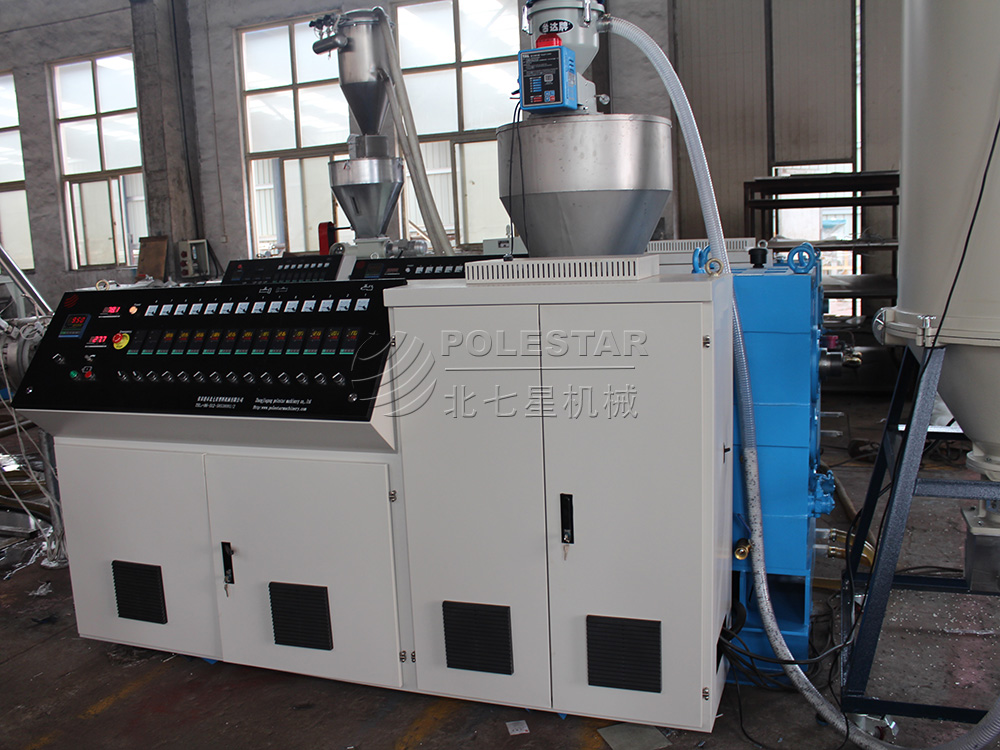

Hdpe pipe extruder machine used in extruding PE,polyolefin and other thermoplastic, to make pipe,sheet,bar and other plastic products from the PE material equipped with different type of machine and downstream.
Hdpe extruder can processes all kinds of plastic products with auxiliary machine concerned,such as film,pipe,bar,plate,thread,ribbon,insulating layer of cable,hollow products and so on.It is also used in graining.
The machine design is advanced .Its production capacity is high.Its plasticization is good ,and its energy consumption is low. It adopt hard tooth face of gear for transmission , it has advantage of low noise,smooth operation ,large loading,long use-life and so on.

Applications:
PE water & Gas PIPE EXTRUSION
For SJ serial screw extruder,the screw diameter is from 20 to 200mm,and the screw L/D is 10-40.You can choose the type of the extruder according to your products,specification and capacity.
The feeding system uses YASKAWA .and main bearing adopts Japan NSK original imported parts,the extruder is good value for money.we also promise excellent after-sales service.

Competitive Advantage:
connection reliability: polyethylene pipe system connected between the use of electric hotmelt, the joint strength is higher than pipe body strength.
good low temperature impact resistance: low temperature brittleness of polyethylene low temperature can be within a temperature range of subzero 60 to 60 degrees Celsius safe to use. Construction in winter, because of materials, impact resistance is good, tube embrittlement will not occur.
good stress cracking resistance: HDPE has a low gap sensitivity, high shear strength and excellent anti scratch capabilities, resistance to environmental stress cracking performance is also very prominent.
good resistance to chemical corrosion: HDPE pipe can be resistant to a variety of chemical media, corrosion, chemical substances that exist in the soil will not cause any degradation of the pipeline. Polyethylene is the electrical insulator, it will not happen rot, rust or electrochemical corrosion phenomenon; In addition, it will not promote algae, bacteria or fungal growth.
anti aging, long life: containing 2% to 2.5% of the uniform distribution of carbon black in polyethylene pipe can be outdoor storage or use of 50 years, will not be subjected to ultraviolet radiation damage.
abrasion resistance: HDPE Pipe and comparison tests showed the wear resistance of steel pipe, HDPE pipe 4 times the wear resistance of steel pipe. In the mud transportation field, as compared with the steel pipe, HDPE pipe has better wear resistance, which means that HDPE pipe has a longer life and better economy.
flexible good: HDPE pipe flexible makes it easy to bend, works by changing the pipes can be a way to bypass the obstacles towards, and in many occasions, the flexible pipe fittings to reduce consumption and lower installation costs.
flow resistance: HDPE pipe has a smooth inner surface, the Manning coefficient of 0.009. The performance smooth and non adhesion properties ensure the HDPE pipe has a higher than traditional pipe transmission capacity, but also reduce the pipeline pressure loss and water consumption.

Pipe diameter(mm)16-6320-11075-16090-250110-315160-450315-630500-800
ExtruderSJ45SJ60SJ75SJ75SJ90SJ90SJ120SJ150
Motor power(KW)AC30DC75DC110DC110DC160DC160DC280DC335
Capacity(KG)60-100100-150250-300250-300350-400350-400650-700850-900
Max line speed(m/min)1066631.20.91.7
