PVC Pipe Crusher

Get Quotation Now

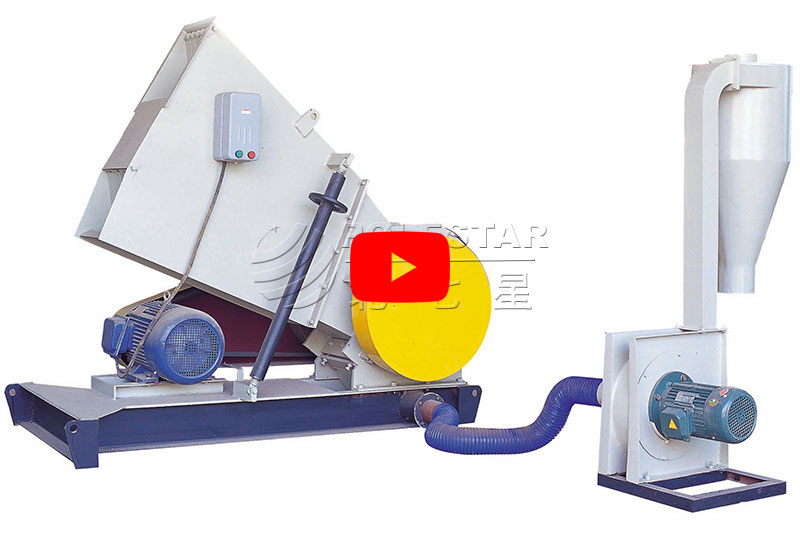

A PVC pipe crusher is a machine designed to efficiently break down and reduce the size of PVC pipes and other plastic materials. Its primary function is to process and recycle PVC pipes and fittings, transforming them into smaller particles or flakes for further processing or recycling.

Description

  • PVC pipe crushers typically consist of a heavy-duty motor, crushing chamber, cutting blades, and a control panel.
  • The crushing chamber is designed to accommodate the PVC pipes, and it often contains sharp rotating blades or crushing elements that effectively break down the plastic material.
  • The control panel allows operators to adjust settings such as speed, feed rate, and crushing chamber configuration to achieve the desired output particle size.

Technical Parameter

  • Model: SWP-560
  • Quantity of movable blade:5 PCS
  • Quantity of fixed blade: 4 PCS
  • Blade specifications:420×100×22 MM
  • Motor power:22 KW
  • Fan power: 2.2 KW
  • Production capacity: 350~400 KG/H
  • Convey abality: 300~500KG/H
  • Overall dimension: 2050x1150x1730 MM
  • Weight: 1600 KG

Function

  • Feeding: PVC pipes and other plastic materials are fed into the crushing chamber of the machine either manually or through a feeding system.
  • Crushing and Grinding: The motor powers the rotating blades or crushing elements within the chamber, which effectively grind and crush the PVC pipes into smaller pieces or particles.
  • Size Reduction: The PVC pipe crusher reduces the size of the plastic material, breaking it down into manageable particles or flakes suitable for further processing or recycling.
  • Discharge: The processed PVC particles or flakes are discharged from the machine for collection or further processing, such as melting, molding, or extrusion into new plastic products.

Applications

  • PVC pipe crushers are used in recycling facilities, plastic manufacturing plants, and waste management operations to process and recycle PVC pipes and other plastic materials.
  • The processed PVC particles or flakes can be used as raw material for manufacturing new PVC pipes, fittings, profiles, or other plastic products.
  • Recycling PVC pipes through crushing and processing helps reduce waste, conserves resources, and contributes to environmental sustainability by promoting the reuse of plastic materials.
