Product Details

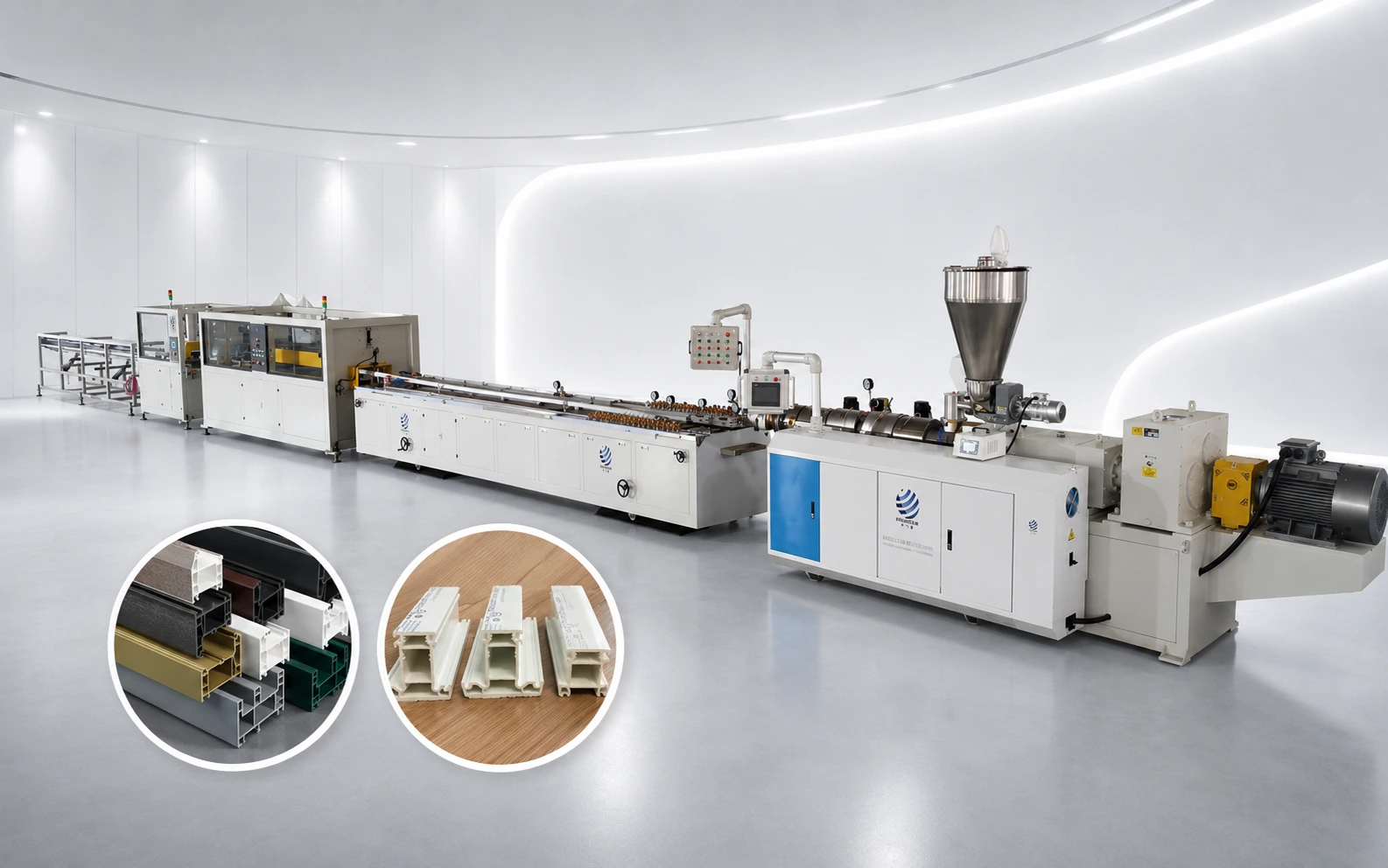

PVC Window Door Profiles Extrusion Line integrates high-efficiency extrusion, precision cooling and intelligent control. The line processes rigid UPVC compound into weather-resistant window and door profiles with uniform wall thickness, smooth surface quality and stable profile molding.

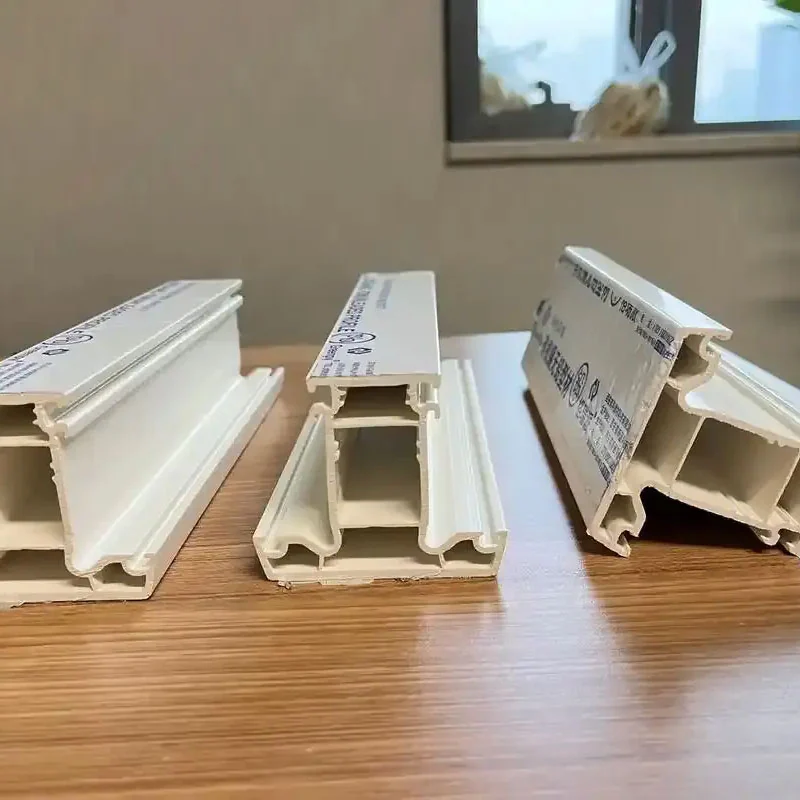

Finished Products
Rigid UPVC compoundRaw Material
400-450 KG/HrOutput Capacity
SJZ80/156Extruder Model
PVC profilesFinal Product
03
Applications
04
Core Advantages
Top-Grade Core Configuration
Reliable drive control keeps operation stable.
ABB Frequency Control
Optimized screw design improves plasticizing stability.
High Production Capacity
Optimized screw design improves plasticizing stability.
Synchronous Speed Control
PLC touch control simplifies operation and monitoring.
Precise Profile Molding
PLC touch control simplifies operation and monitoring.
Flexible Product Compatibility
Flexible configuration matches different projects.
Customizable Configuration
Reserved interfaces support future upgrades.
Long-Term Reliability
Stable output supports efficient continuous production.
05
Machine Video
06
Production Process
01

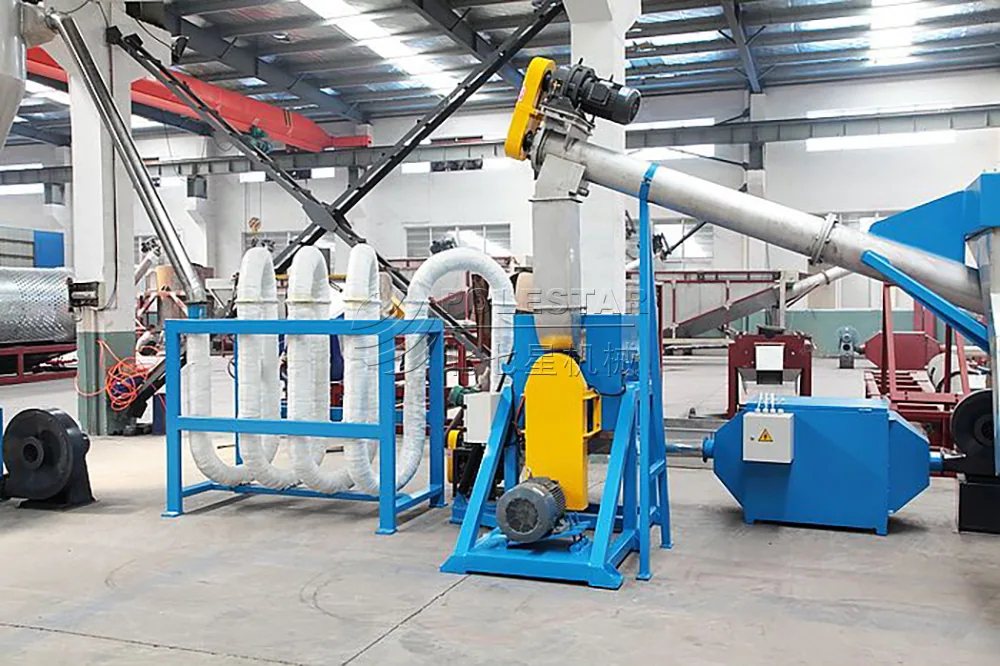

Screw Loader
02

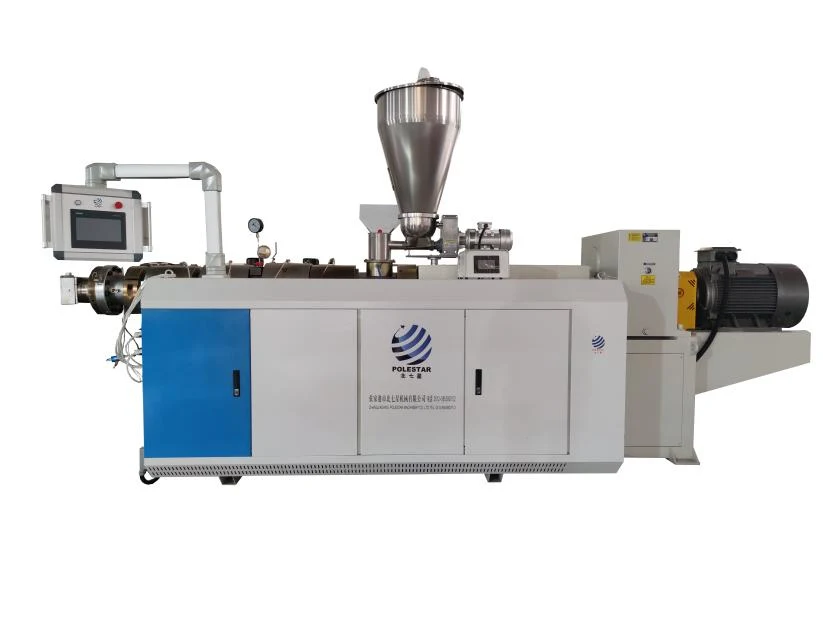

Conical Twin-screw Extruder
03

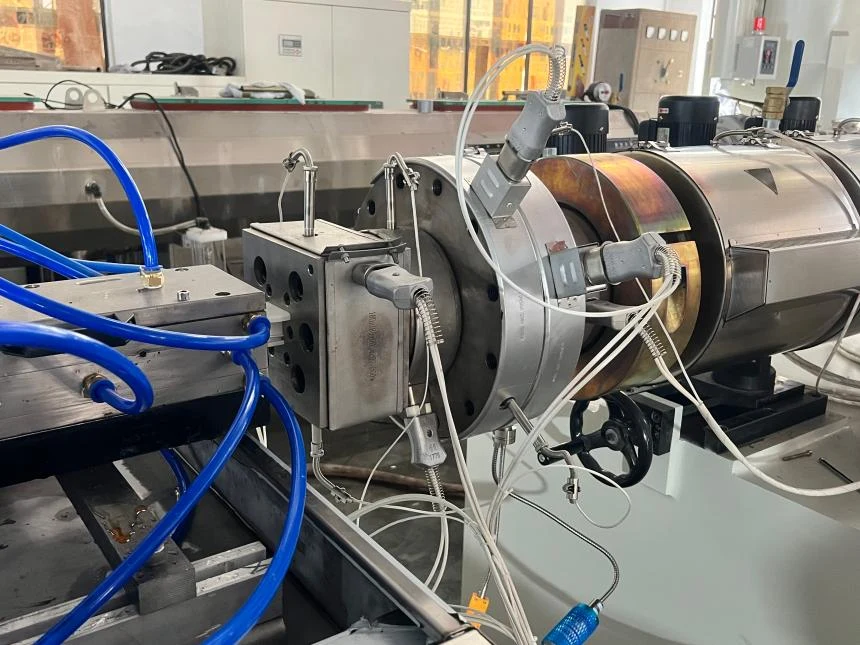

Extrusion Die Head
04

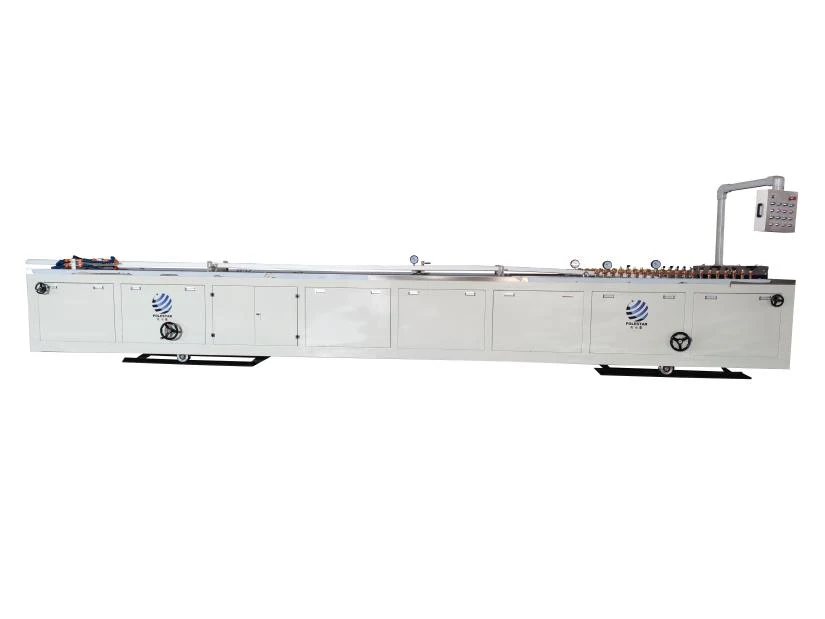

Vacuum Calibration Table
05

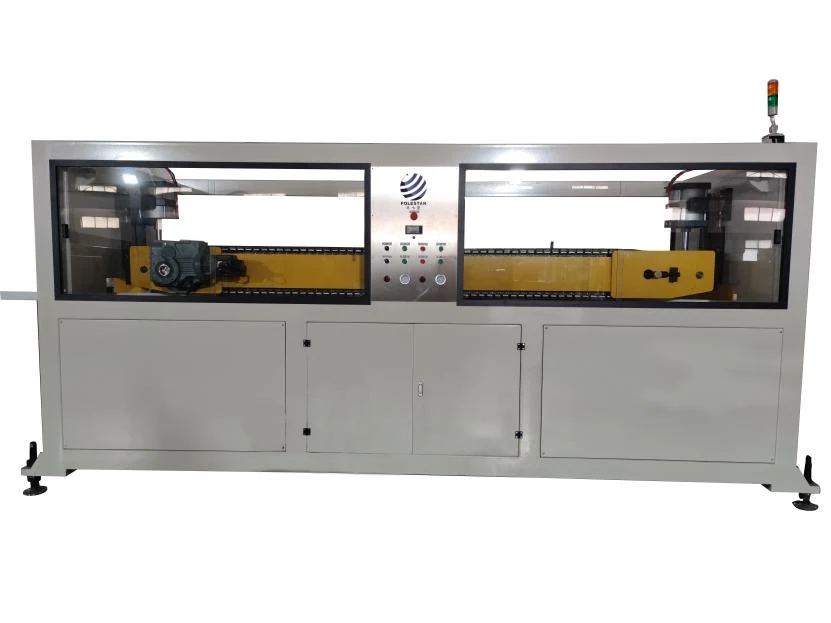

Haul-off Machine
06

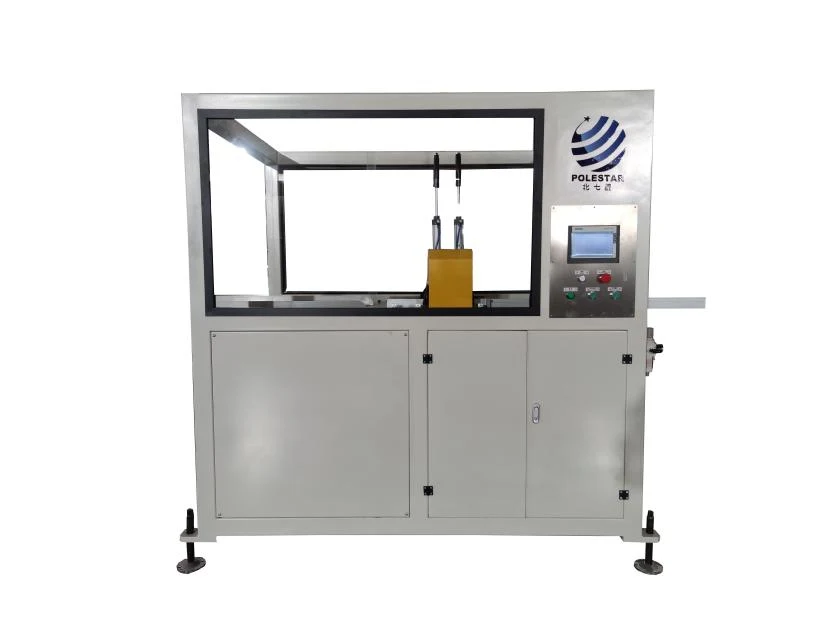

Lift Cutting Machine
07

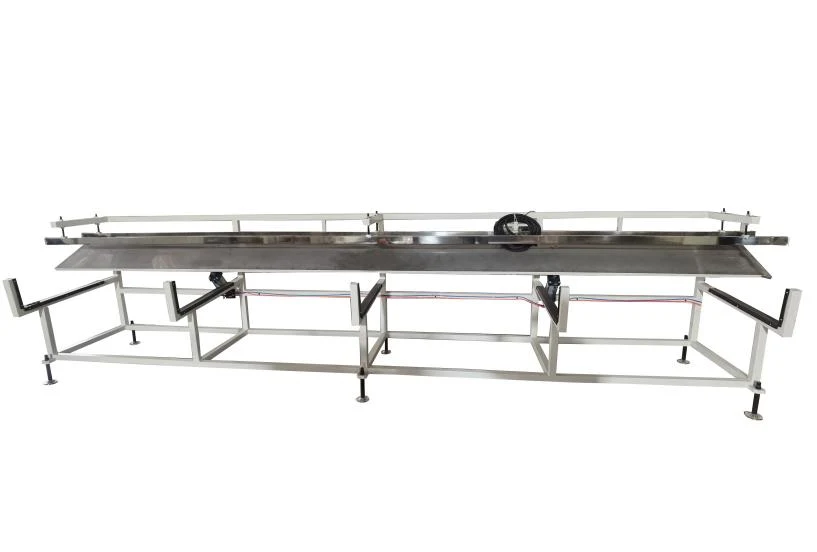

Conveyor Collection
07
The Production Line Consists Of
Conical Twin-screw Extruder Machine
1 PCExtrusion Die Head
1 PCVacuum Calibration Table
1 PCHaul-off Machine
1 PCLift Cutting Machine
1 PCConveyor Collection
1 PC08
Technical Parameters
| Model | Final Product W*H | Extruder Model | Main Motor Power | Max. Line Speed | Max. Output |
|---|---|---|---|---|---|
| YF180 | 180 * 60 MM | SJZ51/105 | 18.5 KW | 2~6 M/Min. | 80~120 kg/h |
| YF240 | 240 * 120 MM | SJZ65/132 | 37 KW | 1.5~4 M/Min. | 200~250 kg/h |
| YF300 | 300 * 150 MM | SJZ80/156 | 55 KW | 1~3 M/Min. | 400~450 kg/h |
| YF400 | 400 * 150 MM | SJZ80/156 | 55 KW | 1~3 M/Min. | 400~450 kg/h |
| YF700 | 800 * 80 MM | SJZ92/188 | 110 KW | 0.8~2.5 M/Min. | 600~800 kg/h |
| YF800 | 800 * 80 MM | SJZ92/188 | 110 KW | 0.8~2.5 M/Min. | 600~800 kg/h |
09
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
10
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
11
Customer Projects
12
Frequently Asked Questions
Q1: What types of PVC profiles can this extrusion line produce?

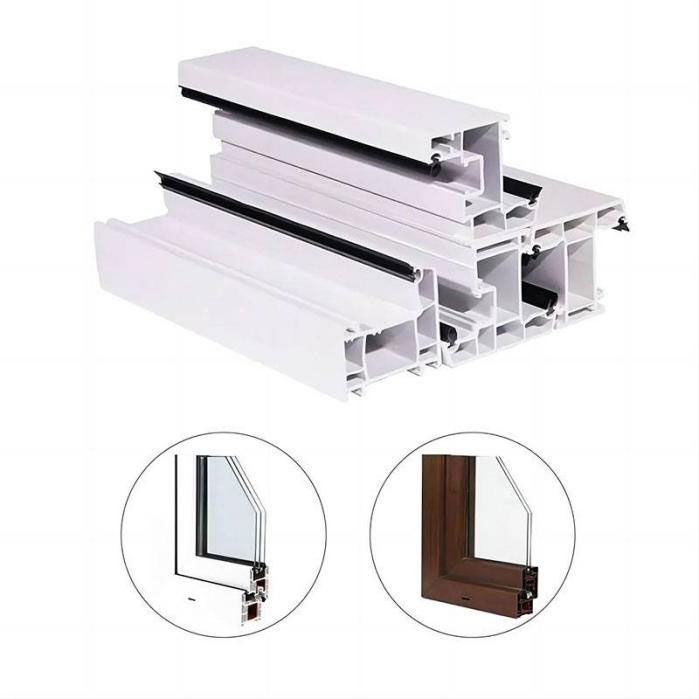

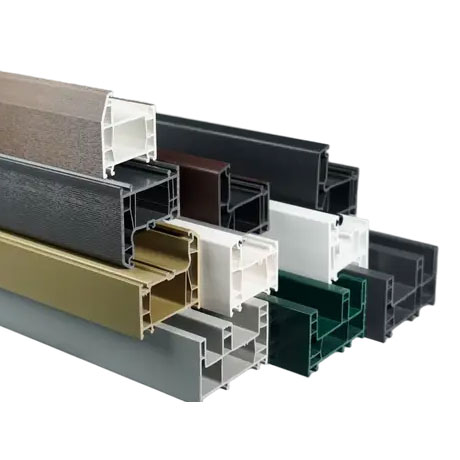

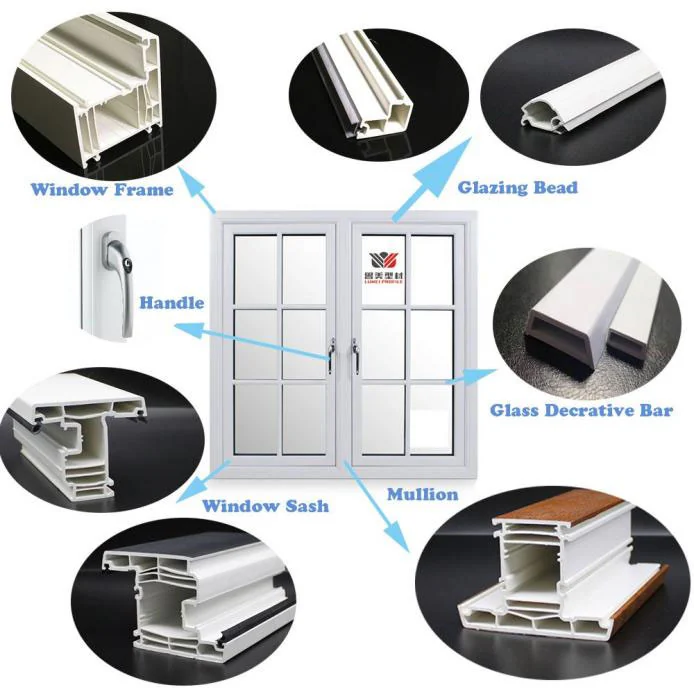

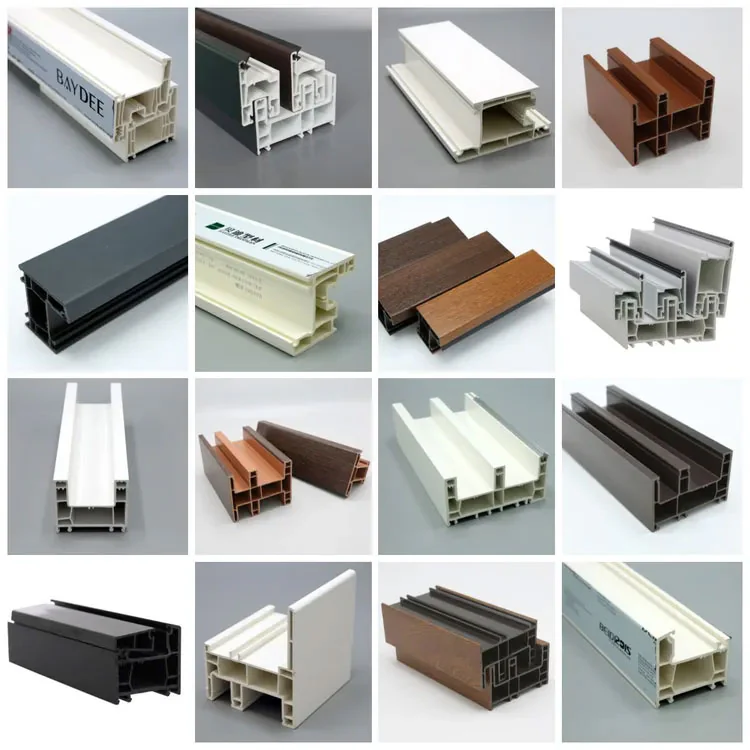

The complete line is applicable to UPVC window and door profiles, including casement window, sliding window, tilt-and-turn window, louver, auxiliary frame, mullion and glazing bead. It also supports ASA two-color co-extrusion profiles.
Q2: What is the profile size range?
Typical profile width range is 60-120 mm, with wall thickness adjustable from 1.8 mm to 3.0 mm. Single-cavity and multi-cavity thermal insulation profiles can be configured.
Q3: What is the hourly output of one full line?
For the configured SJZ80/156 line, output capacity is about 400-450 kg/h. Single extruder configuration supports ordinary single-layer profiles, while twin extruder co-extrusion can be configured for ABA double-layer profiles.
Q4: How many meters of finished profiles can be produced per hour?
Taking a standard 60-series window profile at 1.2 kg/m as reference, 250 kg/h is about 208 meters per hour and 350 kg/h is about 290 meters per hour. Line speed is stepless adjustable according to formula and mould.
Q5: Is the screw and barrel wear-resistant for high calcium carbonate filled PVC formula?
Screw and barrel are overall nitrided, with optional bimetallic wear-resistant coating. The screw structure is optimized for high-filler PVC formulas with even plasticization and stable output.
Q6: What brands are used for motors, PLC and inverters?
The standard configuration uses reliable branded motors, inverters and PLC. Optional upgrades include Siemens PLC, Schneider electrical components, ABB motors and Schneider temperature control modules.
