Application Range
Stable output supports efficient continuous production.
02
Product Overview

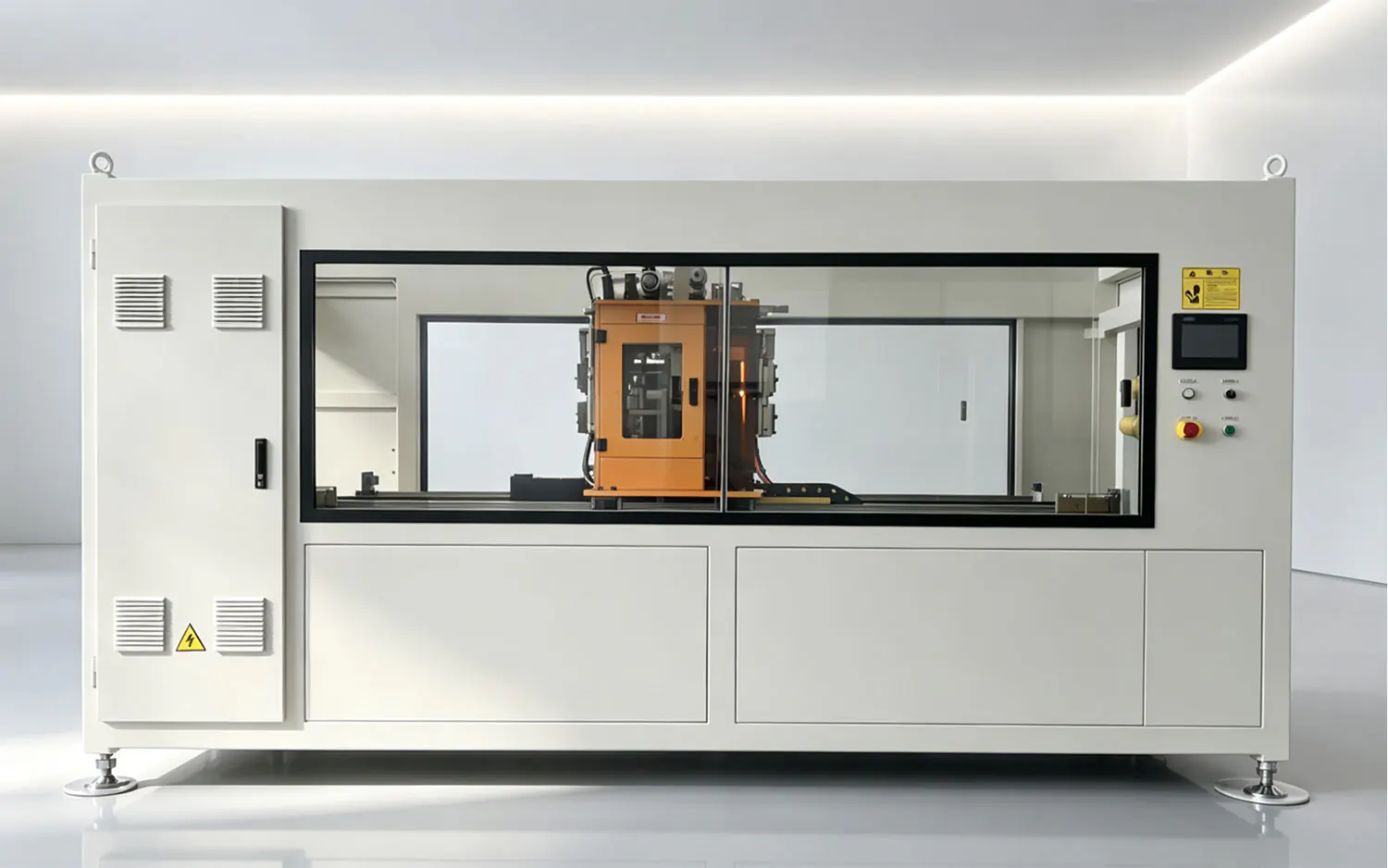

The QG160 is a heavy-duty automatic pneumatic pipe cutting machine designed for high-precision cutting of HDPE plastic pipes ranging from 20 mm to 160 mm. It supports a maximum cutting wall thickness of 20 mm and adapts to an extrusion line speed of up to 8 m/min, perfectly matching medium and large-diameter pipe production lines with thick-wall specifications.
20-160 MMPipe Range
20 MMMax. Cutting Thickness
2.2 KWCutting Motor Power
8 m/min.Max. Line Speed
03
Core Advantages
Cutting Capacity
Reliable drive control keeps operation stable.
Cutting Precision
Stable output supports efficient continuous production.
Control System
PLC touch control simplifies operation and monitoring.
04
Product Details
05
Technical Parameters
| Model | Pipe range | Cutting motor power | Max. Cutting thickness | Cutting blade specifications | Cutting feed method | Max. line speed | Center height |
|---|---|---|---|---|---|---|---|
| QG63 | 20~63 mm | 1.1 KW | 10 mm | Ф65xФ12x1.0 | pneumatic | 20 m/min. | 1000±50 mm |
| QG110 | 20~110 mm | 1.1 KW | 15 mm | Ф65xФ12x1.0 | pneumatic | 15 m/min. | 1000±50 mm |
| QG160 | 20~160 mm | 2.2 KW | 20 mm | Ф100xФ12x1.3 | pneumatic | 8 m/min. | 1000±50 mm |
| QG250 | 50~250 mm | 2.2 KW | 30 mm | 105x45x3 | hydraulic | 8 m/min. | 1050±50 mm |
| QG315 | 75~315 mm | 2.2 KW | 35 mm | 105x45x3 | hydraulic | 5 m/min. | 1050±50 mm |
| QG450 | 110~450 mm | 3.0 KW | 45 mm | 115x45x3 | hydraulic | 3 m/min. | 1100±50 mm |
| QG630 | 250~630 mm | 4.0 KW | 65 mm | 130x45x4 | hydraulic | 3 m/min. | 1250±50 mm |
| QG800 | 315~800 mm | 7.5 KW | 80 mm | 175x80x5 | hydraulic | 1 m/min. | 1350±50 mm |
| QG1200 | 630~1200 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
| QG1600 | 900~1600 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
What is the applicable pipe range of QG160 cutter?
It is suitable for HDPE pipes with outer diameter from 20 mm to 160 mm.
What is the maximum cutting wall thickness?
The maximum cutting thickness is 20 mm, supporting various thick-wall pipe specifications.
What is the maximum matching line speed?
It can adapt to an extrusion line speed up to 8 m/min.
What is the cutting motor power?
Equipped with a 2.2 kW high-power cutting motor for strong cutting torque.
What is the blade specification?
Standard blade size: Φ100×Φ12×1.3 mm.
What feeding method does this machine adopt?
Pneumatic feeding cutting, featuring stable pressure and fast cutting response.
What brand are the electrical components?
PLC, touch screen and all main electrical components are SIEMENS original brand.
Can it realize online synchronous cutting?
Yes, it supports automatic tracking and non-stop fixed-length cutting during pipe running.
Will thick-wall pipes crack or deform after cutting?
No. High-torque motor and professional blade ensure flat cutting without burrs, cracks or pipe deformation.
Is the machine easy to operate?

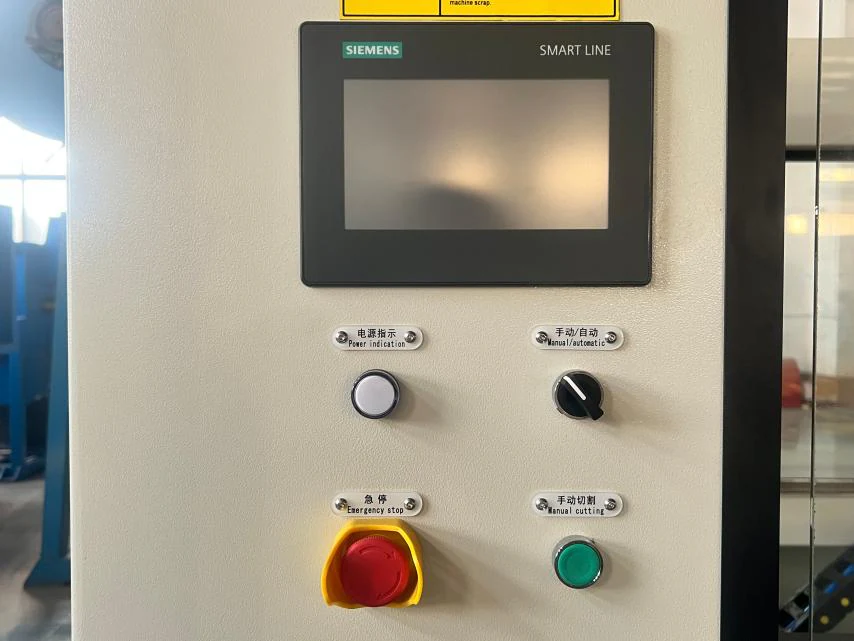

Adopting SIEMENS touch screen intelligent control, simple operation, precise parameter adjustment and fully automatic running.
What is your delivery time and warranty?
Delivery time is 20–30 working days after deposit. 12-month machine warranty (excluding wearing parts) and lifelong technical support are available.
