Application Range
Stable output supports efficient continuous production.
02
Product Overview

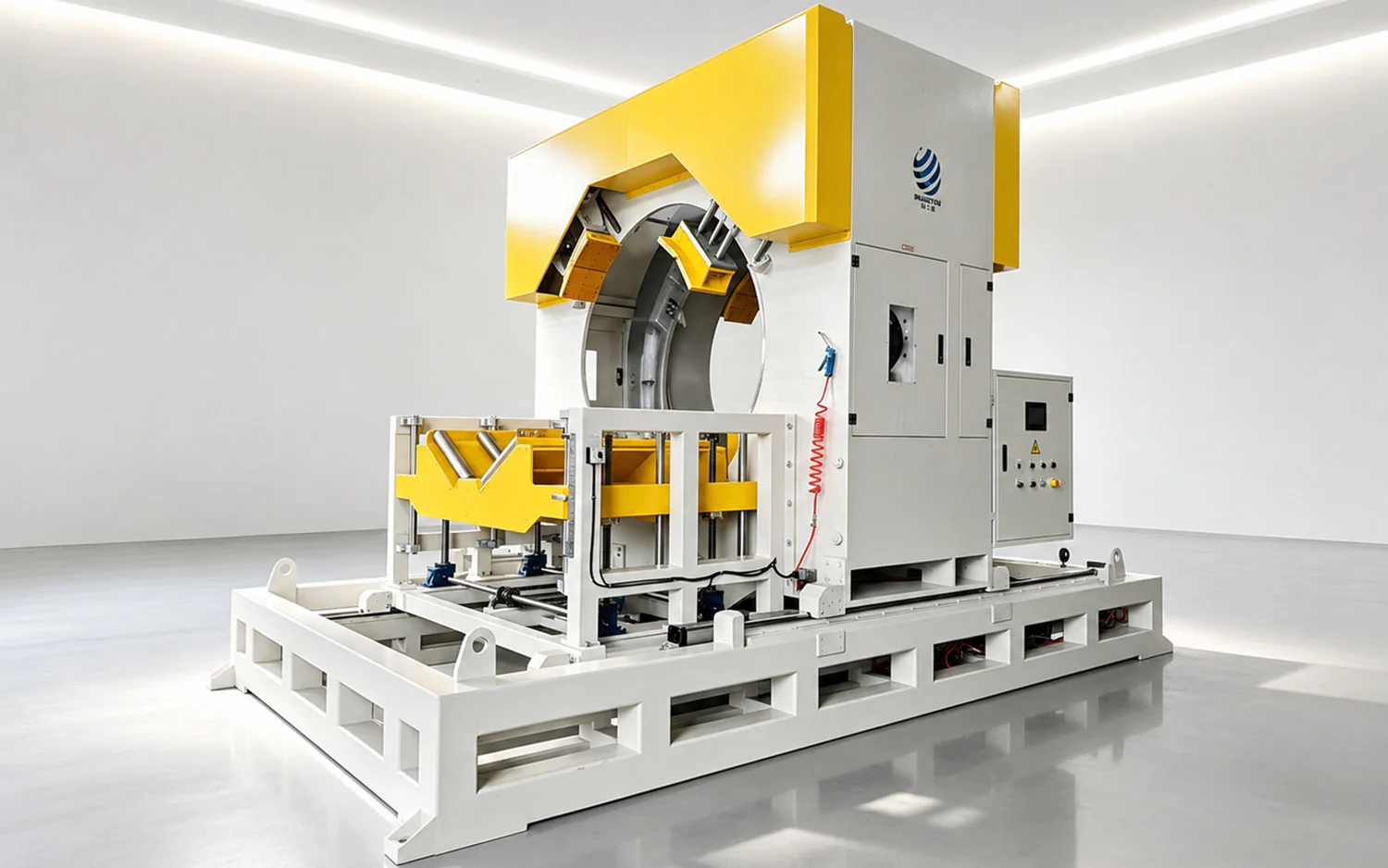

QG1600 ultra-large planetary & chipless pipe cutter is applicable to 900–1600 mm super-large pipes with a maximum cutting thickness of 110 mm. It adopts an advanced planetary dual-cutting and full chip-free cutting system, supporting dual-purpose processing for HDPE and PVC pipes with strong material versatility.
900-1600 MMPipe Range
110 MMMax. Cutting Thickness
11 KWCutting Motor Power
1 m/min.Max. Line Speed
03
Core Advantages
Cutting Capacity
Stable output supports efficient continuous production.
Cutting Precision
Stable output supports efficient continuous production.

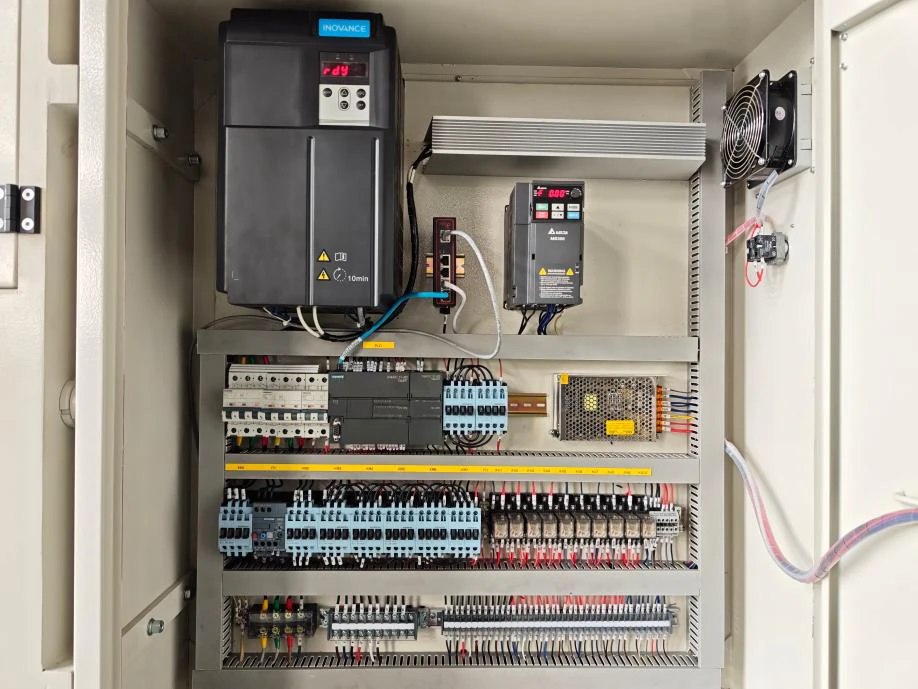

Control System

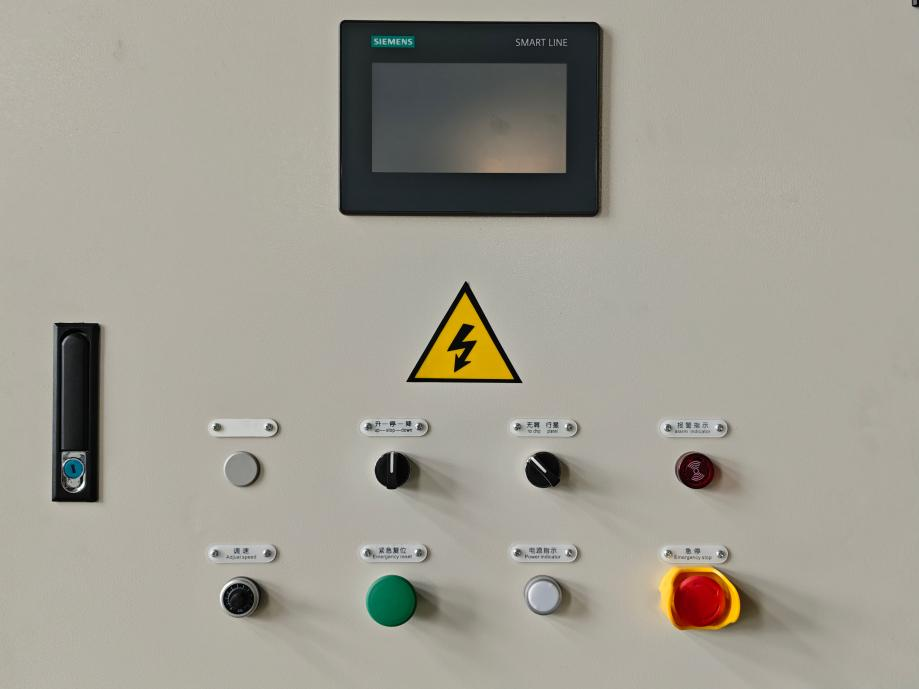

PLC touch control simplifies operation and monitoring.
04

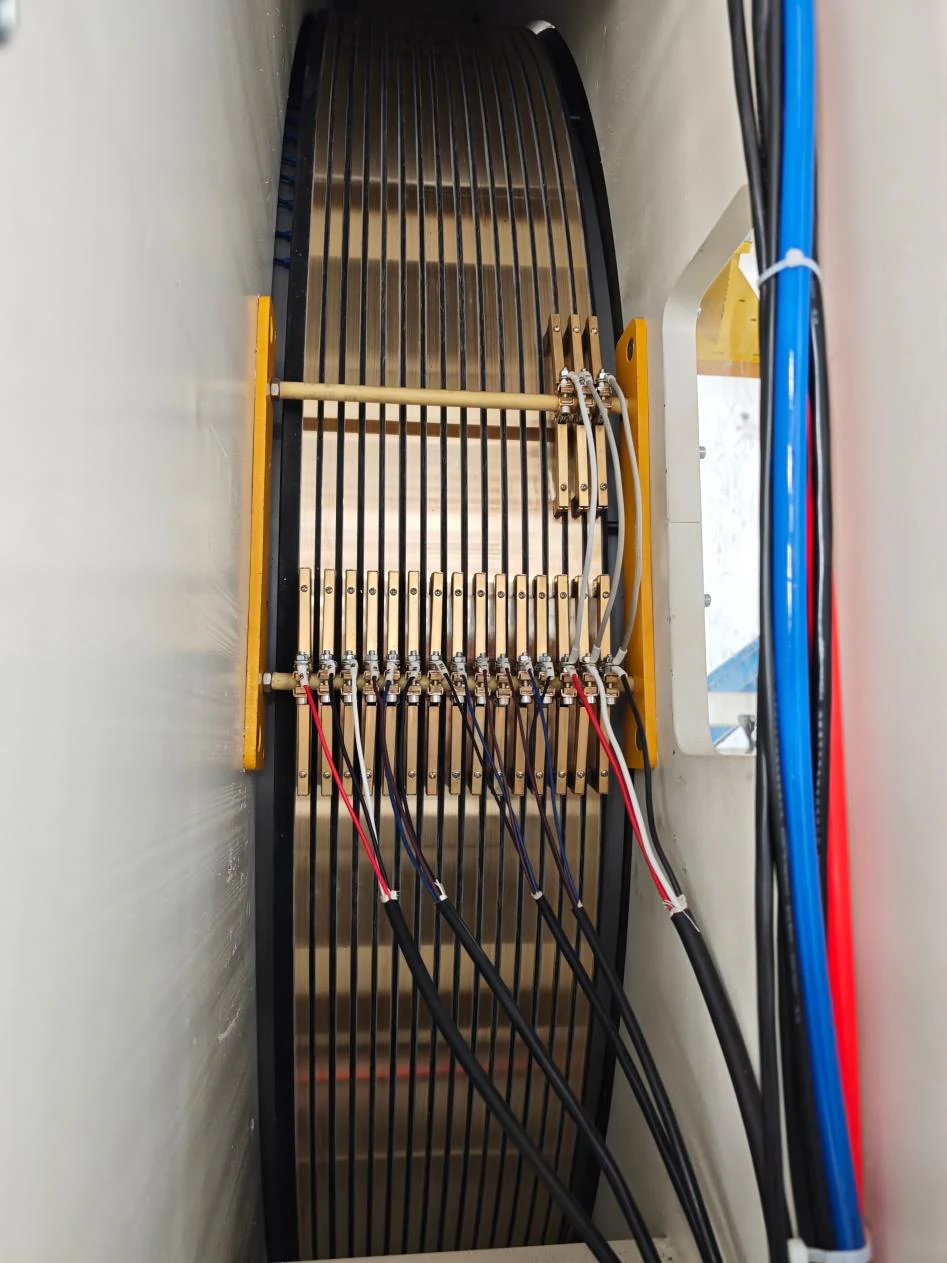

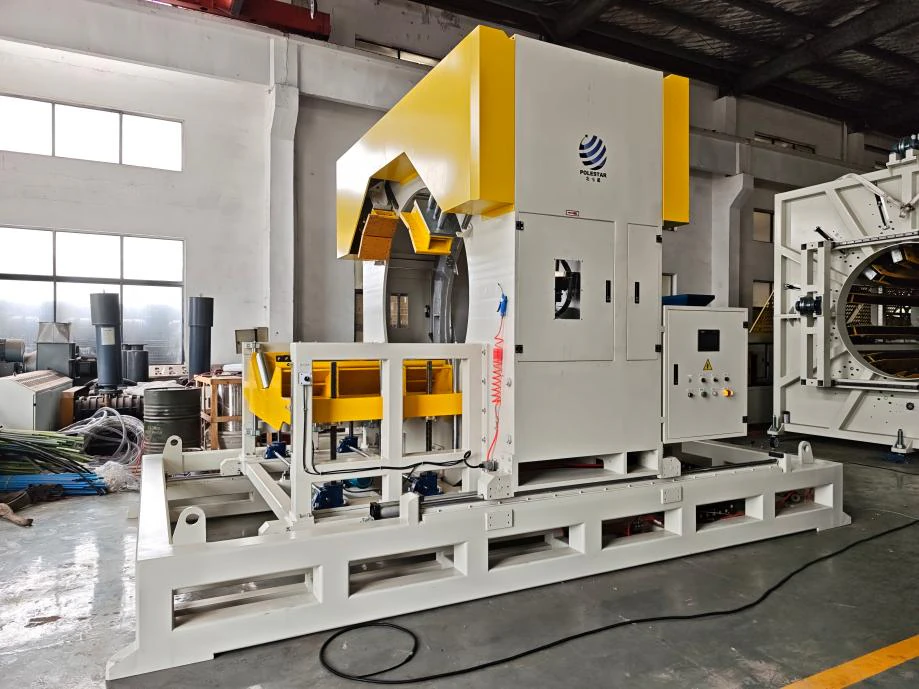

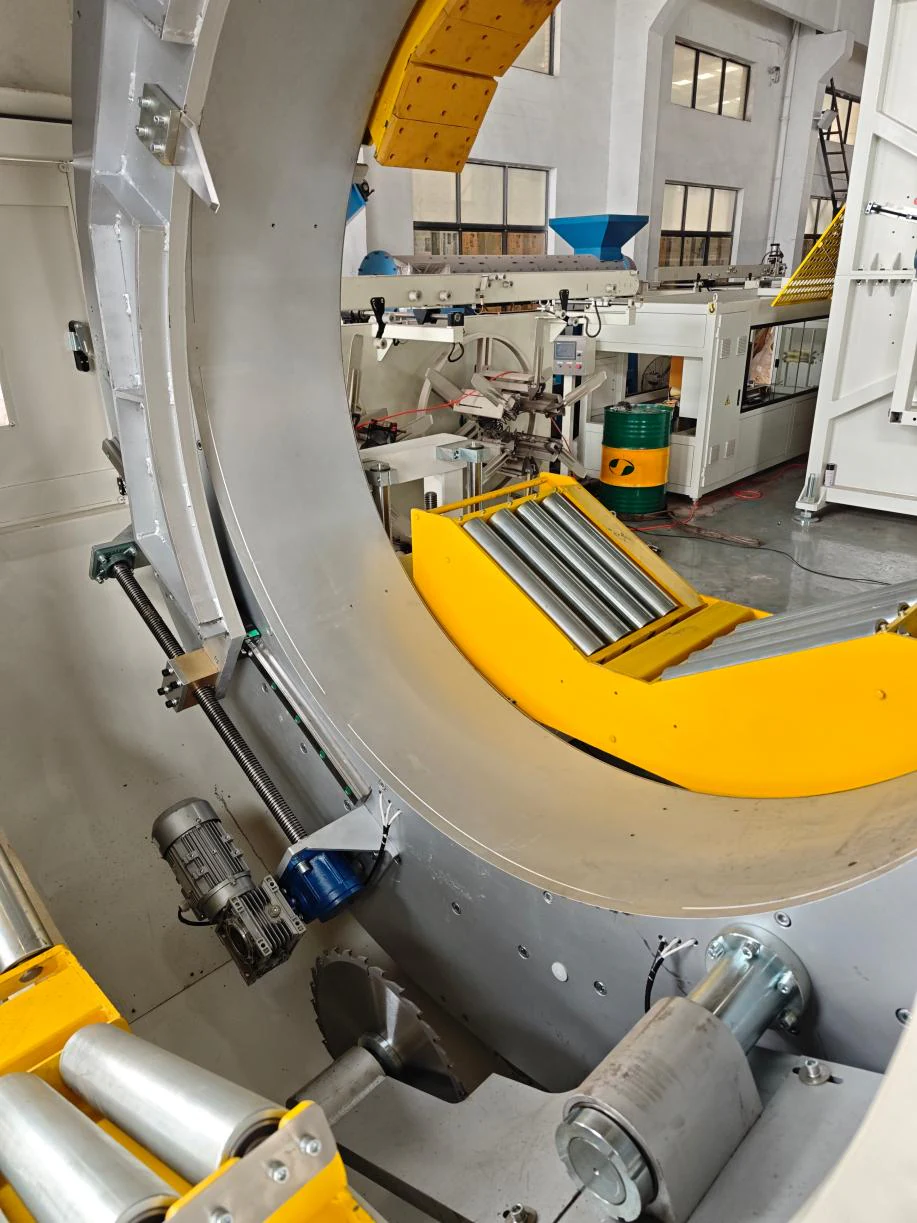

Product Details
05
Technical Parameters
| Model | Pipe range | Cutting motor power | Max. Cutting thickness | Cutting blade specifications | Cutting feed method | Max. line speed | Center height |
|---|---|---|---|---|---|---|---|
| QG63 | 20~63 mm | 1.1 KW | 10 mm | Ф65xФ12x1.0 | pneumatic | 20 m/min. | 1000±50 mm |
| QG110 | 20~110 mm | 1.1 KW | 15 mm | Ф65xФ12x1.0 | pneumatic | 15 m/min. | 1000±50 mm |
| QG160 | 20~160 mm | 2.2 KW | 20 mm | Ф100xФ12x1.3 | pneumatic | 8 m/min. | 1000±50 mm |
| QG250 | 50~250 mm | 2.2 KW | 30 mm | 105x45x3 | hydraulic | 8 m/min. | 1050±50 mm |
| QG315 | 75~315 mm | 2.2 KW | 35 mm | 105x45x3 | hydraulic | 5 m/min. | 1050±50 mm |
| QG450 | 110~450 mm | 3.0 KW | 45 mm | 115x45x3 | hydraulic | 3 m/min. | 1100±50 mm |
| QG630 | 250~630 mm | 4.0 KW | 65 mm | 130x45x4 | hydraulic | 3 m/min. | 1250±50 mm |
| QG800 | 315~800 mm | 7.5 KW | 80 mm | 175x80x5 | hydraulic | 1 m/min. | 1350±50 mm |
| QG1200 | 630~1200 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
| QG1600 | 900~1600 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
What is the cutting range of QG1600 pipe cutter?
It is specially designed for ultra-large pipes with outer diameter from 900 mm to 1600 mm.
What is the maximum cutting wall thickness?
It supports an ultra-high maximum cutting thickness of 110 mm, suitable for all kinds of super-thick-wall engineering pipes.
Can this machine cut both HDPE and PVC pipes?
Yes. QG1600 is a dual-purpose cutter for HDPE and PVC pipes, with perfect adaptability for both soft and hard plastic pipes.
What cutting technology does QG1600 adopt?
It adopts advanced sharp knife + planetary dual-cutting system with full chip-free cutting function.
Does this machine achieve chip-free cutting?
Yes. The professional planetary rotary dual-cutting structure realizes 100% chip-free, burr-free and ultra-flat cutting without any residue or pipe damage.
What is the motor power and blade size?
Cutting motor power: 11 kW; Heavy-duty blade specification: 215×80×5 mm.
What feeding method is used?
Industrial heavy-duty hydraulic feeding system, providing stable and strong heavy-load cutting pressure.
What is the maximum working line speed?
Max line speed: 1 m/min, matching high-precision low-speed forming of ultra-large thick-wall pipes.
What brand are the electrical components?
PLC, touch screen and all core electrical components are original SIEMENS brand.
What are the unique advantages of planetary dual-cutting system?
The 360° planetary dual-cutting ensures uniform circumferential force, effectively avoiding pipe deformation and edge cracks. It realizes full chip-free cutting and supports switching between HDPE and PVC pipe production, with wider application than ordinary single-cutting machines.
Is it suitable for long-term full-load industrial production?
Yes. High-power motor, high-strength thick blade and stable hydraulic system support 24-hour uninterrupted ultra-heavy-load operation.
What is your delivery time and warranty policy?
12-month warranty for the whole machine (excluding wearable parts), 20–30 working days delivery, lifelong technical support.
