Application Range
Stable output supports efficient continuous production.
02
Product Overview

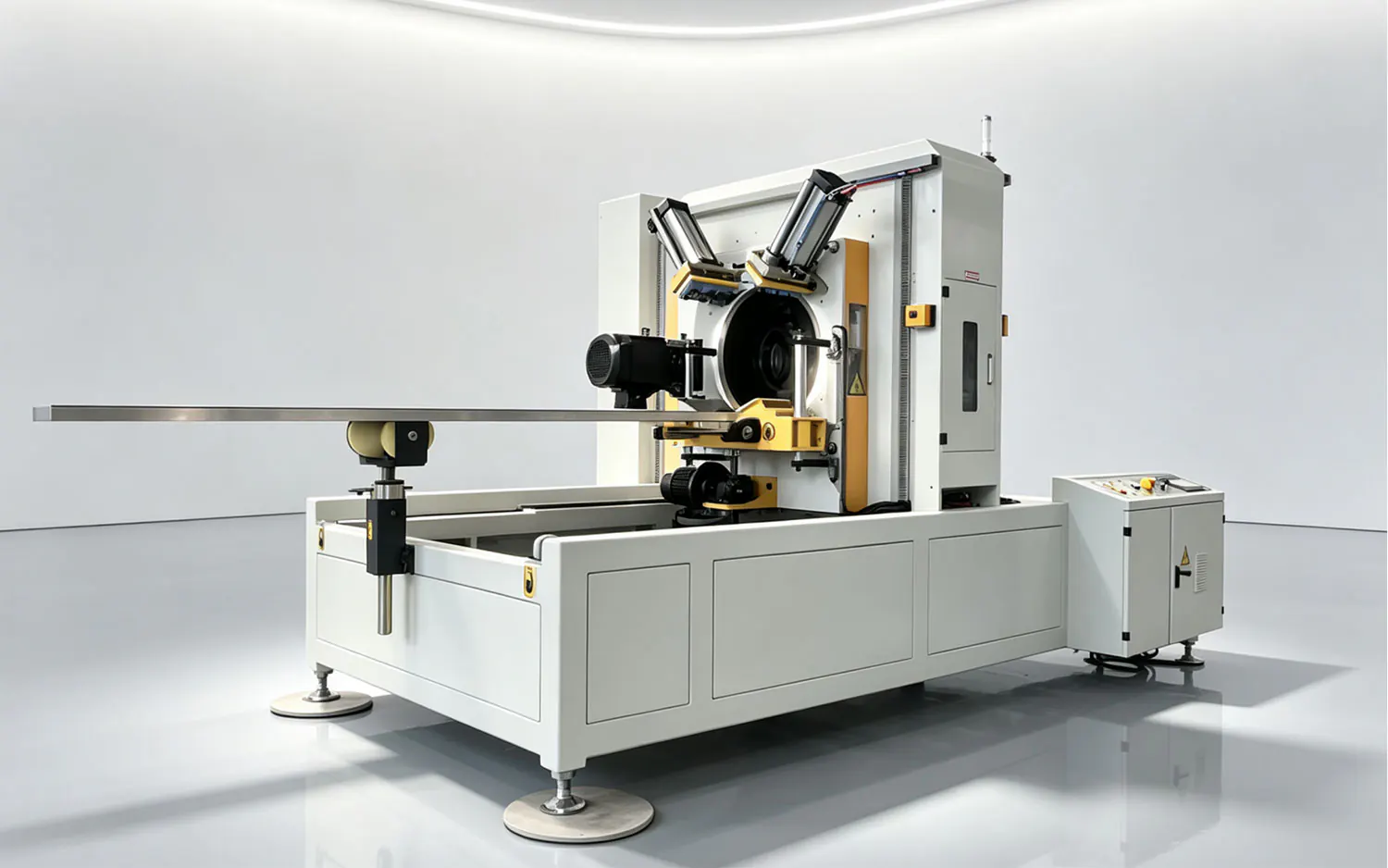

QG450 chipless pipe cutter is designed for 110–450 mm large-diameter HDPE pipes, with an ultra-high maximum cutting thickness of 45 mm. Powered by a 3.0 kW cutting motor and equipped with a heavy-duty sharp knife, it delivers strong cutting capacity for super-thick-wall pipes.
110-450 MMPipe Range
45 MMMax. Cutting Thickness
3.0 KWCutting Motor Power
3 m/min.Max. Line Speed
03
Core Advantages
Cutting Capacity
Stable output supports efficient continuous production.
Cutting Precision
Reliable drive control keeps operation stable.
Control System
Stable output supports efficient continuous production.
04

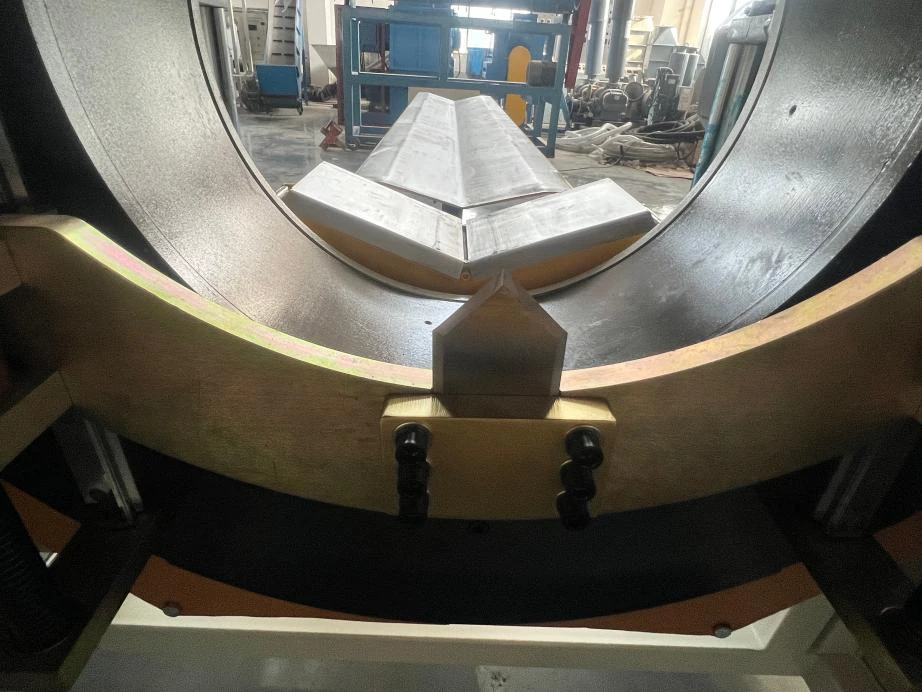

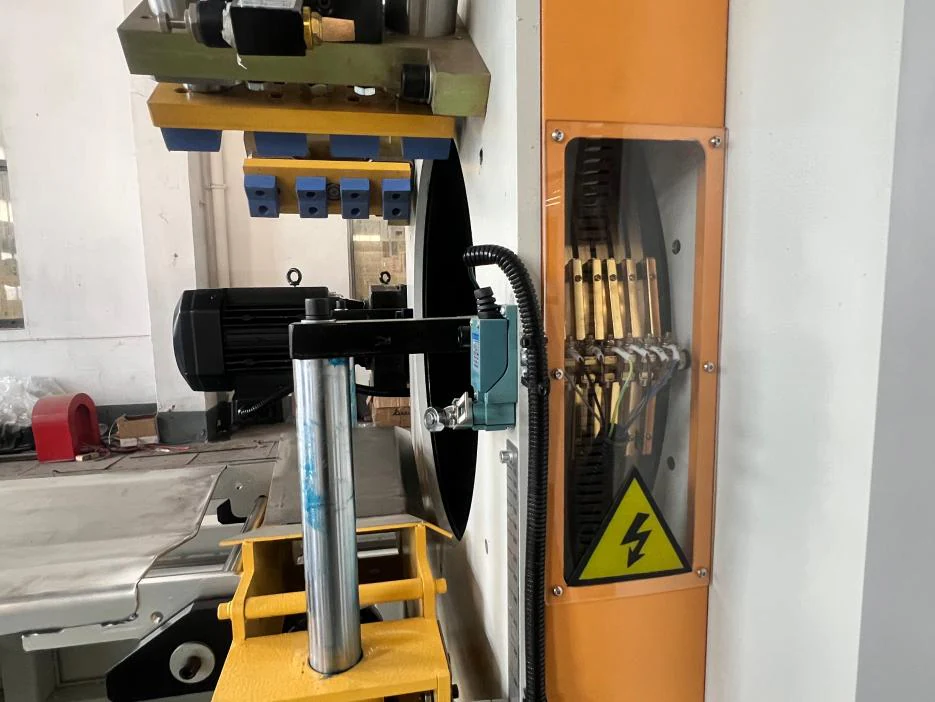

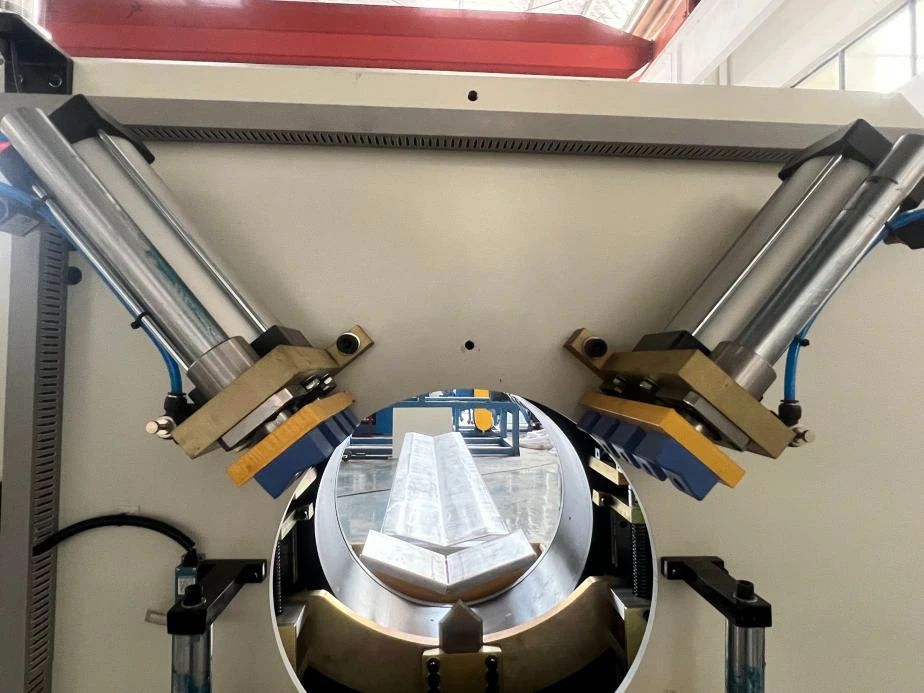

Product Details
05
Technical Parameters
| Model | Pipe range | Cutting motor power | Max. Cutting thickness | Cutting blade specifications | Cutting feed method | Max. line speed | Center height |
|---|---|---|---|---|---|---|---|
| QG63 | 20~63 mm | 1.1 KW | 10 mm | Ф65xФ12x1.0 | pneumatic | 20 m/min. | 1000±50 mm |
| QG110 | 20~110 mm | 1.1 KW | 15 mm | Ф65xФ12x1.0 | pneumatic | 15 m/min. | 1000±50 mm |
| QG160 | 20~160 mm | 2.2 KW | 20 mm | Ф100xФ12x1.3 | pneumatic | 8 m/min. | 1000±50 mm |
| QG250 | 50~250 mm | 2.2 KW | 30 mm | 105x45x3 | hydraulic | 8 m/min. | 1050±50 mm |
| QG315 | 75~315 mm | 2.2 KW | 35 mm | 105x45x3 | hydraulic | 5 m/min. | 1050±50 mm |
| QG450 | 110~450 mm | 3.0 KW | 45 mm | 115x45x3 | hydraulic | 3 m/min. | 1100±50 mm |
| QG630 | 250~630 mm | 4.0 KW | 65 mm | 130x45x4 | hydraulic | 3 m/min. | 1250±50 mm |
| QG800 | 315~800 mm | 7.5 KW | 80 mm | 175x80x5 | hydraulic | 1 m/min. | 1350±50 mm |
| QG1200 | 630~1200 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
| QG1600 | 900~1600 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
What pipe range does QG450 cutter apply to?
It is suitable for large-diameter HDPE pipes with outer diameter from 110 mm to 450 mm.
What is the maximum cutting wall thickness?
Ultra-high max cutting thickness up to 45 mm, suitable for all kinds of super-thick-wall large pipes.
What is the maximum adaptable extrusion line speed?
Max line speed: 3 m/min, perfectly matching low-speed stable production of large thick-wall pipes.
What is the cutting motor power?
3.0 kW high-torque cutting motor for heavy-load cutting.
What is the blade specification?
Heavy-duty blade size: 115×45×3 mm, thickened and wear-resistant design.
What cutting feeding method does it adopt?
Hydraulic feeding cutting system, providing stronger and more stable cutting pressure than pneumatic type.

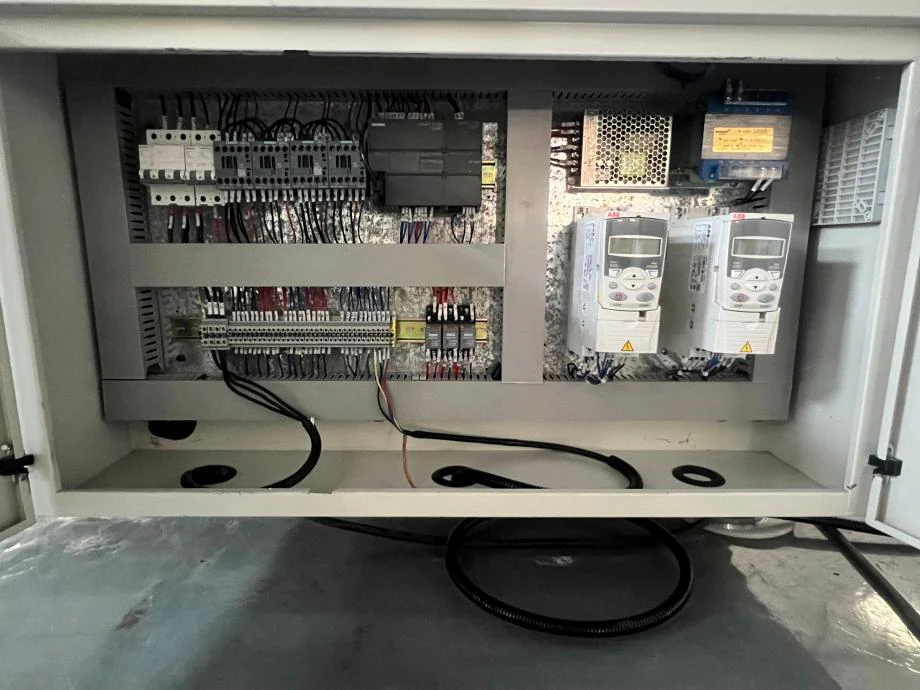

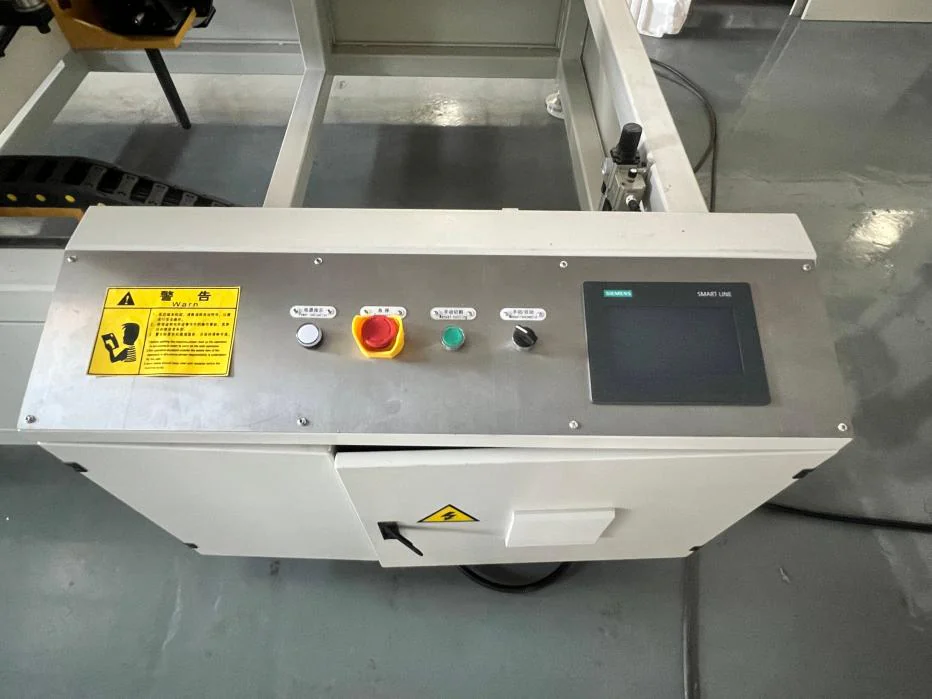

What brand are the main electrical components?
PLC, touch screen and all core electric parts are original SIEMENS brand.
Can it cut super-thick 45 mm pipe wall smoothly?
Yes. Professional hydraulic system and high-power motor ensure stable cutting without jamming, deformation or burrs.
Does it support online synchronous tracking cutting?
Yes, automatic synchronous following and non-stop fixed-length cutting during pipe extrusion.
What are the advantages of hydraulic cutting compared with pneumatic?
Hydraulic feeding provides greater cutting force, more stable pressure and stronger heavy-load resistance, specially designed for ultra-thick large pipes.
What is the warranty and delivery time?
12-month machine warranty (excluding wearable parts), 20–30 working days delivery, lifelong technical support.
