Application Range
Stable output supports efficient continuous production.
02
Product Overview

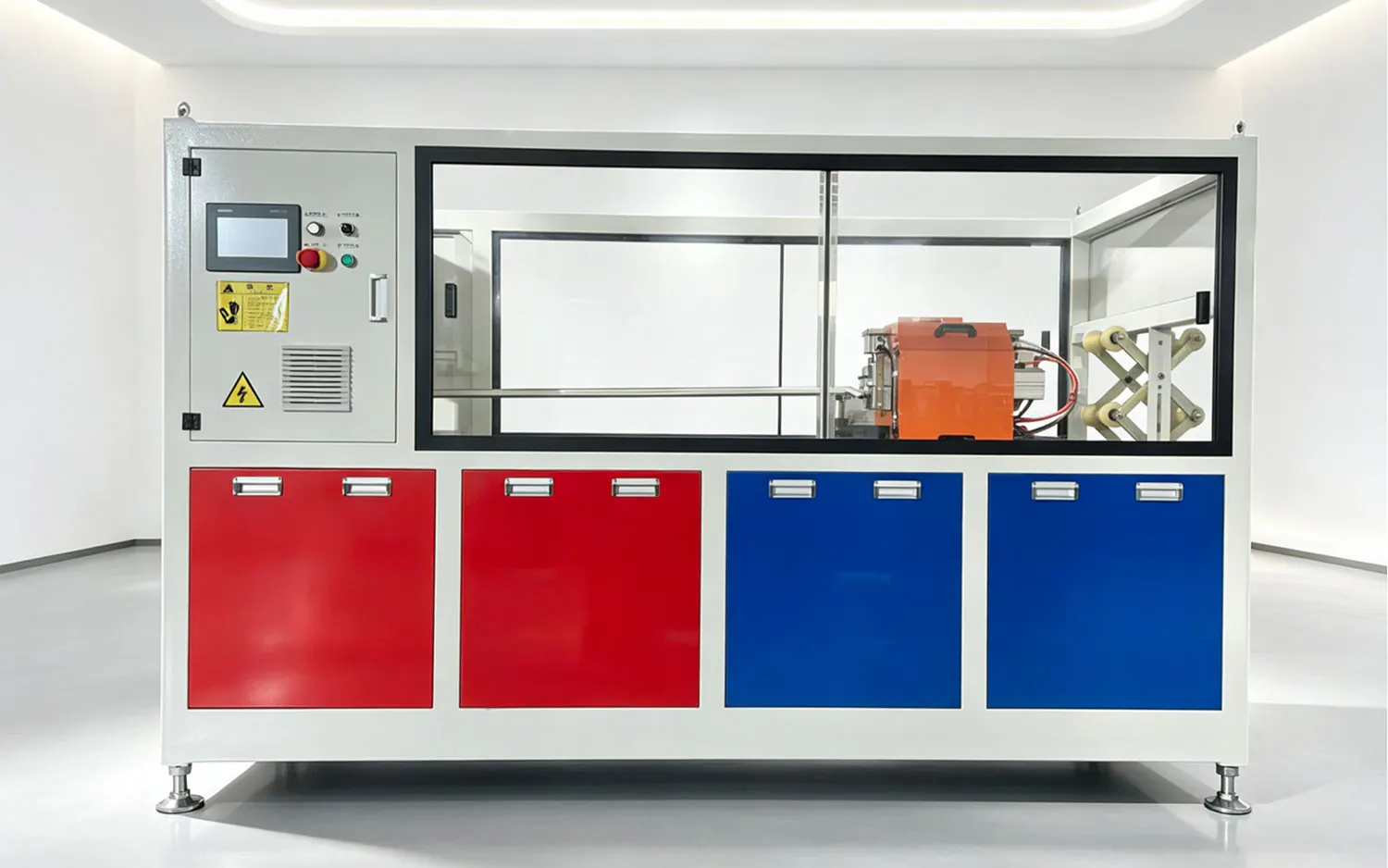

The QG63 is a high-precision automatic pneumatic pipe cutter specially designed for HDPE plastic pipes with a diameter range of 20 mm to 63 mm. It supports a maximum cutting wall thickness of 10 mm and adapts to an online production line speed of up to 25 m/min, perfectly matching the high-speed operation of small and medium-sized pipe extrusion lines.
20-63 MMPipe Range
10 MMMax. Cutting Thickness
1.1 KWCutting Motor Power
25 m/min.Max. Line Speed
03
Core Advantages
Cutting Capacity
Stable output supports efficient continuous production.
Cutting Precision
Stable output supports efficient continuous production.
Control System
Stable output supports efficient continuous production.
04

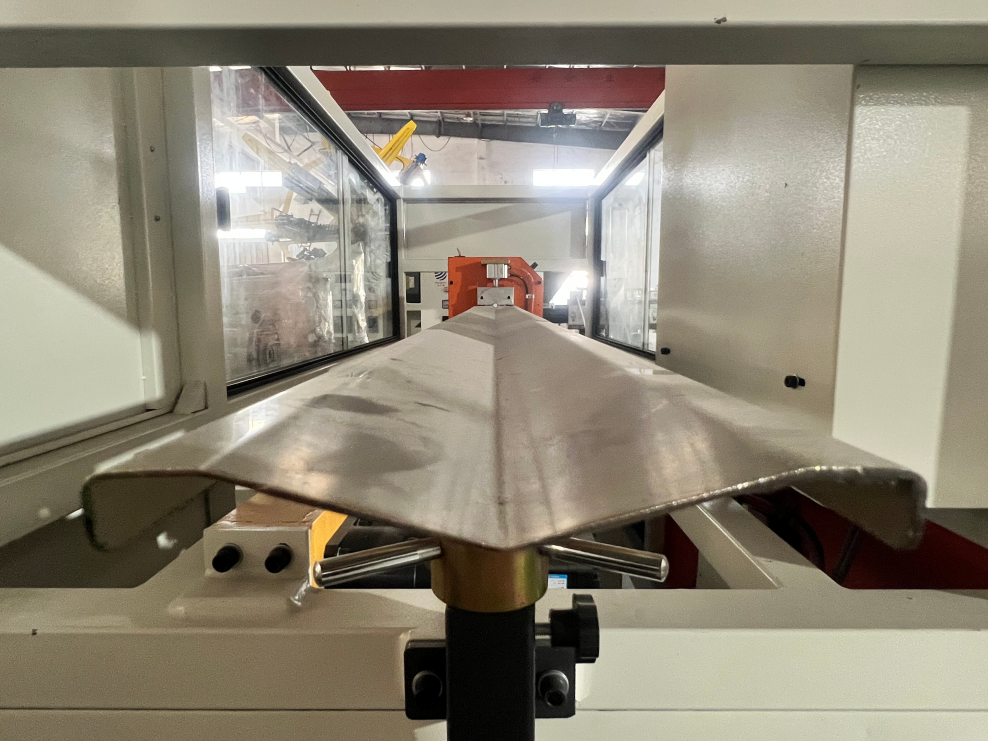

Product Details
05
Technical Parameters
| Model | Pipe range | Cutting motor power | Max. Cutting thickness | Cutting blade specifications | Cutting feed method | Max. line speed | Center height |
|---|---|---|---|---|---|---|---|
| QG63 | 20~63 mm | 1.1 KW | 10 mm | Ф65xФ12x1.0 | pneumatic | 20 m/min. | 1000±50 mm |
| QG110 | 20~110 mm | 1.1 KW | 15 mm | Ф65xФ12x1.0 | pneumatic | 15 m/min. | 1000±50 mm |
| QG160 | 20~160 mm | 2.2 KW | 20 mm | Ф100xФ12x1.3 | pneumatic | 8 m/min. | 1000±50 mm |
| QG250 | 50~250 mm | 2.2 KW | 30 mm | 105x45x3 | hydraulic | 8 m/min. | 1050±50 mm |
| QG315 | 75~315 mm | 2.2 KW | 35 mm | 105x45x3 | hydraulic | 5 m/min. | 1050±50 mm |
| QG450 | 110~450 mm | 3.0 KW | 45 mm | 115x45x3 | hydraulic | 3 m/min. | 1100±50 mm |
| QG630 | 250~630 mm | 4.0 KW | 65 mm | 130x45x4 | hydraulic | 3 m/min. | 1250±50 mm |
| QG800 | 315~800 mm | 7.5 KW | 80 mm | 175x80x5 | hydraulic | 1 m/min. | 1350±50 mm |
| QG1200 | 630~1200 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
| QG1600 | 900~1600 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
What pipe range does the QG63 cutting machine apply to?
It is specially designed for HDPE pipes with outer diameter from 20 mm to 63 mm.
What is the maximum cutting wall thickness?
The maximum cutting thickness is 10 mm, suitable for conventional thick-wall small-diameter pipes.
What is the maximum adaptable production line speed?
It can match a maximum line speed of 20 m/min, adapting to high-speed extrusion production.
What is the motor configuration?

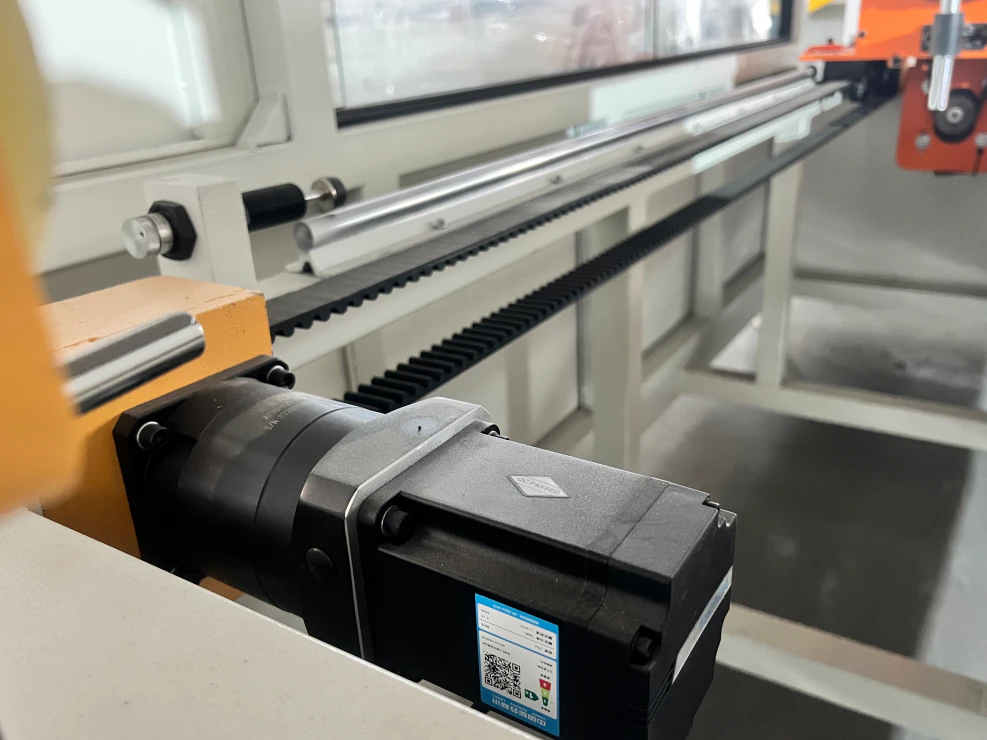

Cutting motor power: 1.1 kW; Synchronous tracking motor power: 0.55 kW.
What is the cutting blade size?
Blade specification: Φ65×Φ12×1.0, ensuring flat and clean cutting surface.
What is the cutting feeding method?

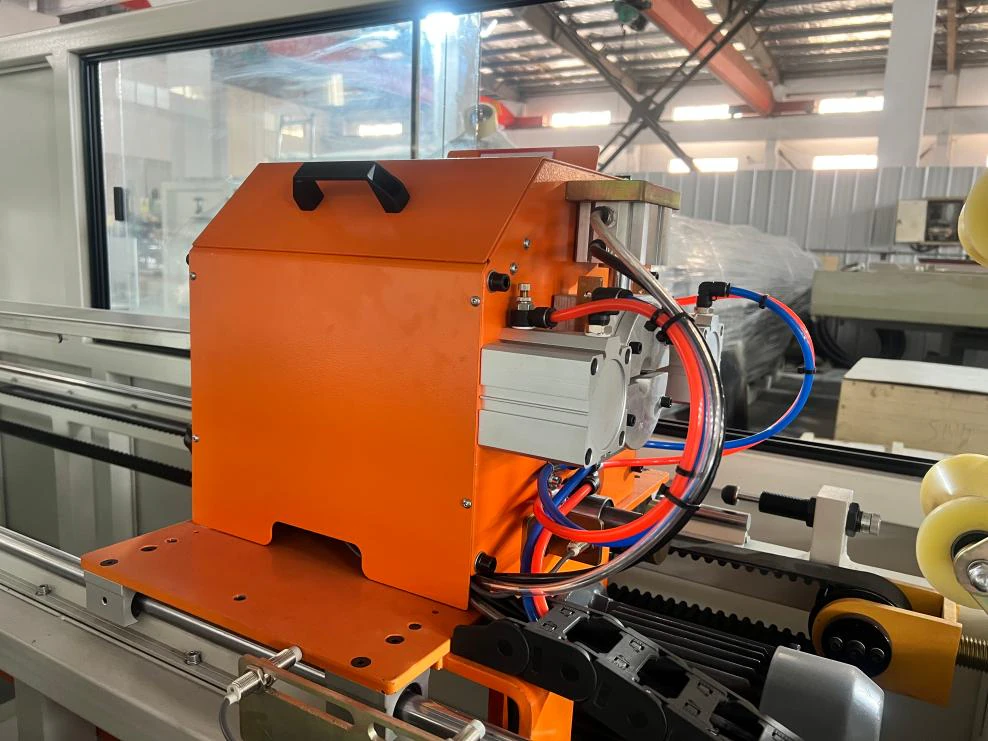

Pneumatic feeding cutting, with fast response and stable cutting pressure.
What brand are the main electrical components?

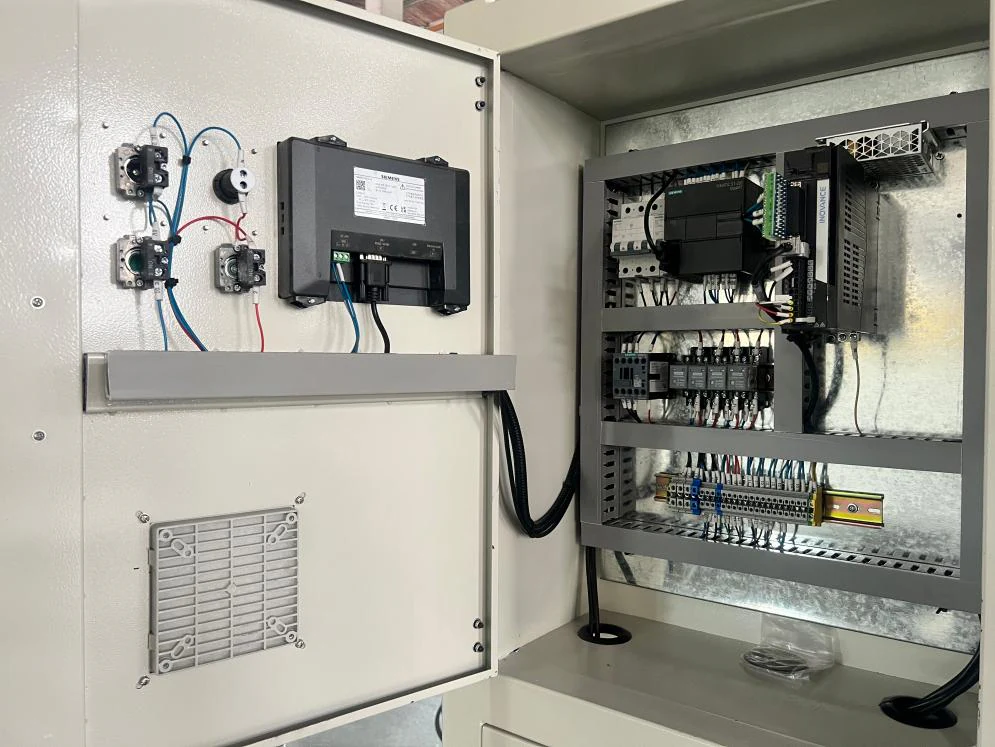

All core electrical parts including PLC and touch screen are SIEMENS brand for stable and durable performance.
Does it support online synchronous cutting?
Yes. It tracks the running pipe synchronously and realizes non-stop automatic fixed-length cutting.
Will the cutting section have burrs or deformation?
No. Professional blade and stable pneumatic cutting ensure burr-free, flat and neat pipe end without extrusion deformation.
Is the operation intelligent and simple?

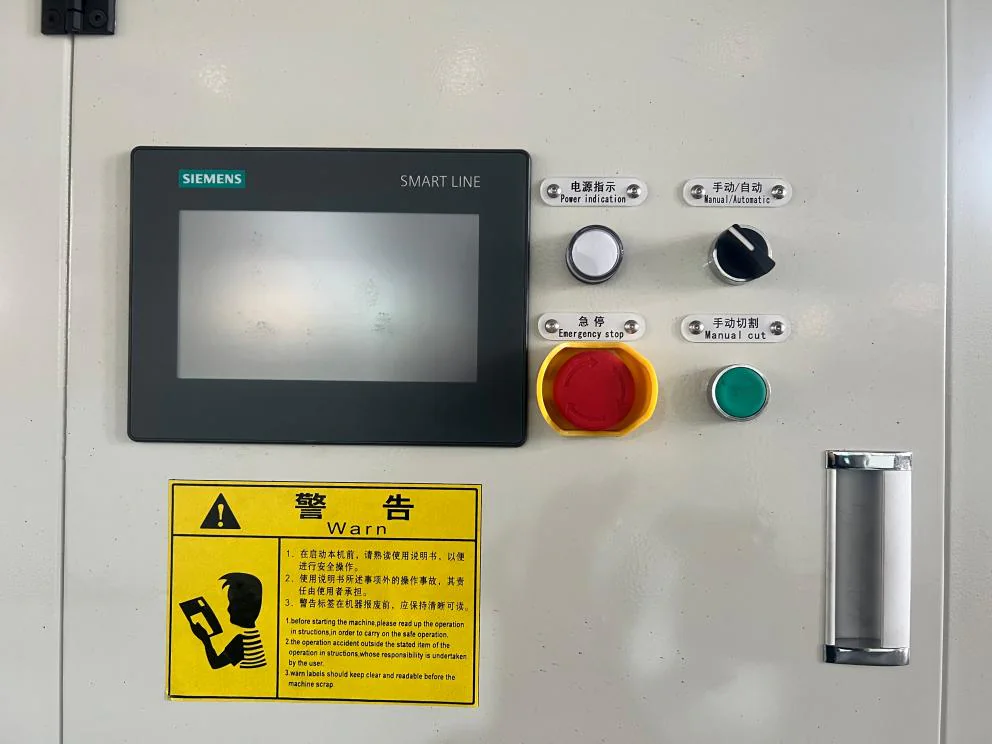

Equipped with SIEMENS touch screen control, parameter setting is intuitive and easy, supporting automatic continuous cutting.
What is the warranty and delivery time?
12-month warranty, 20–30 working days delivery after deposit, lifelong technical support.
