Application Range
Precise control keeps product quality stable.
02
Product Overview

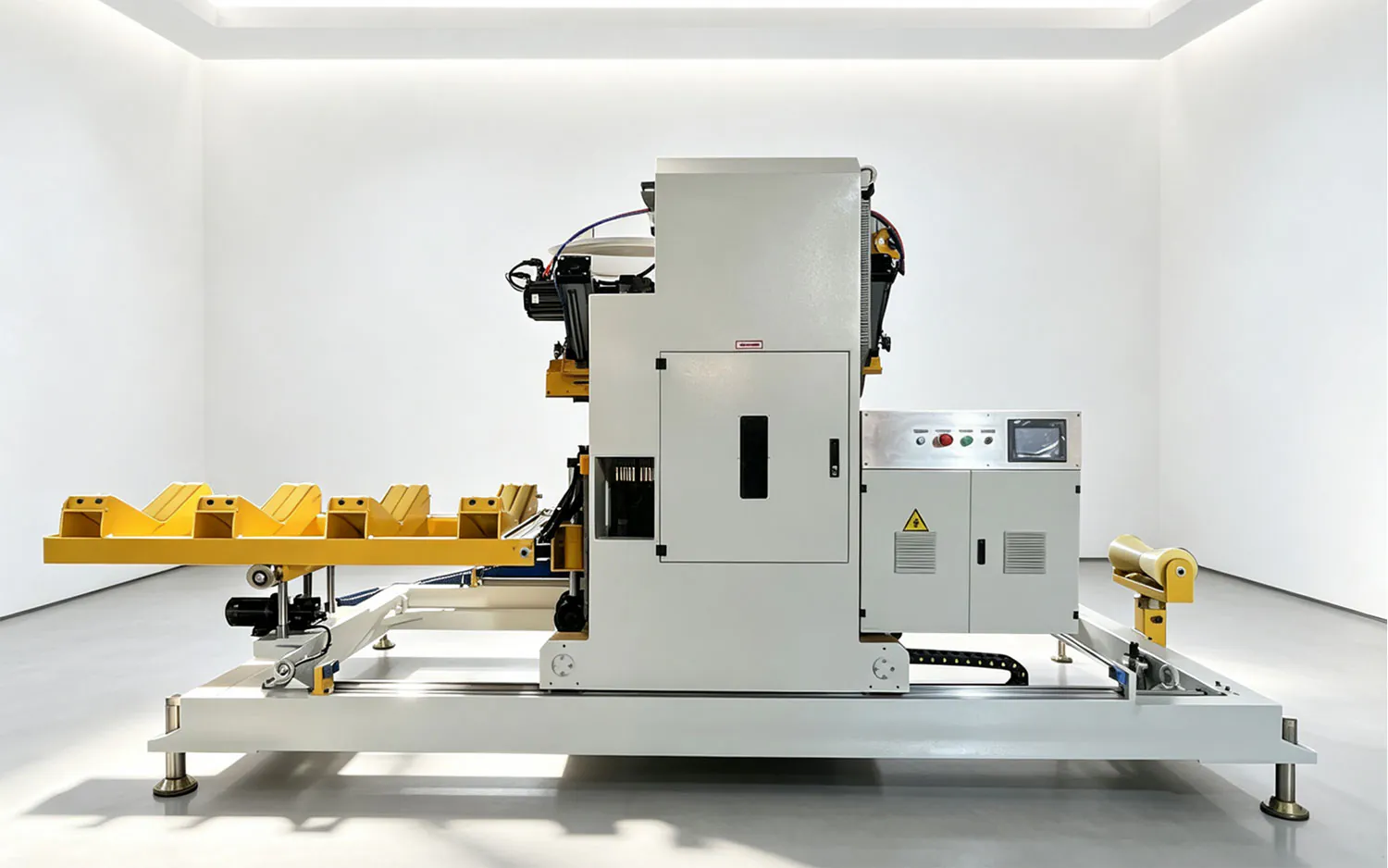

QG800 heavy-duty planetary and chipless pipe cutter is suitable for 315–800 mm large pipes with a maximum cutting thickness of 80 mm. Featured with an advanced planetary dual-cutting and chip-free cutting system, it supports dual-purpose cutting for both HDPE and PVC pipes, realizing versatile production.
315-800 MMPipe Range
80 MMMax. Cutting Thickness
7.5 KWCutting Motor Power
1 m/min.Max. Line Speed
03
Core Advantages
Cutting Capacity
Stable output supports efficient continuous production.
Cutting Precision
Reliable drive control keeps operation stable.
Control System
Stable output supports efficient continuous production.
04

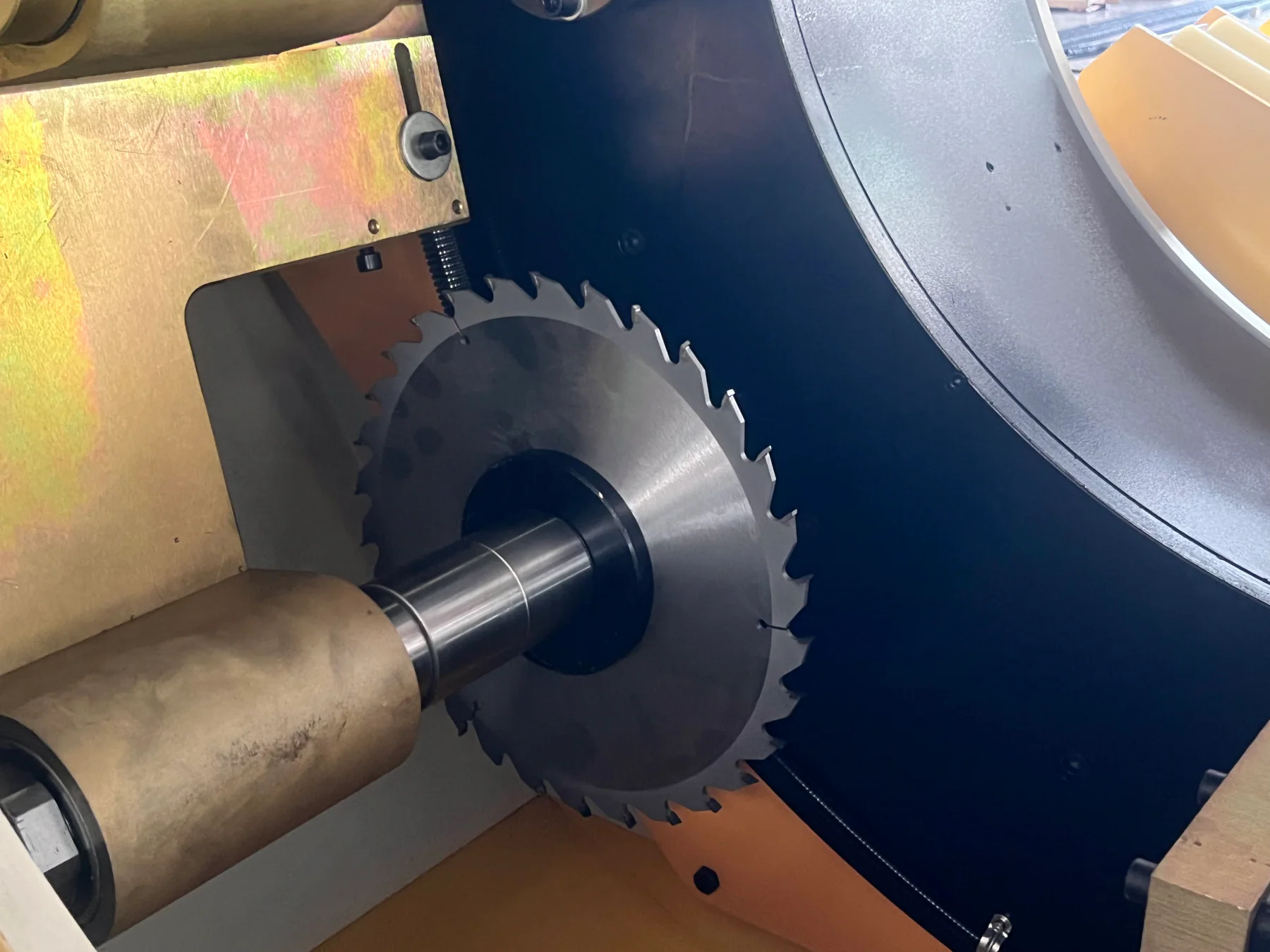

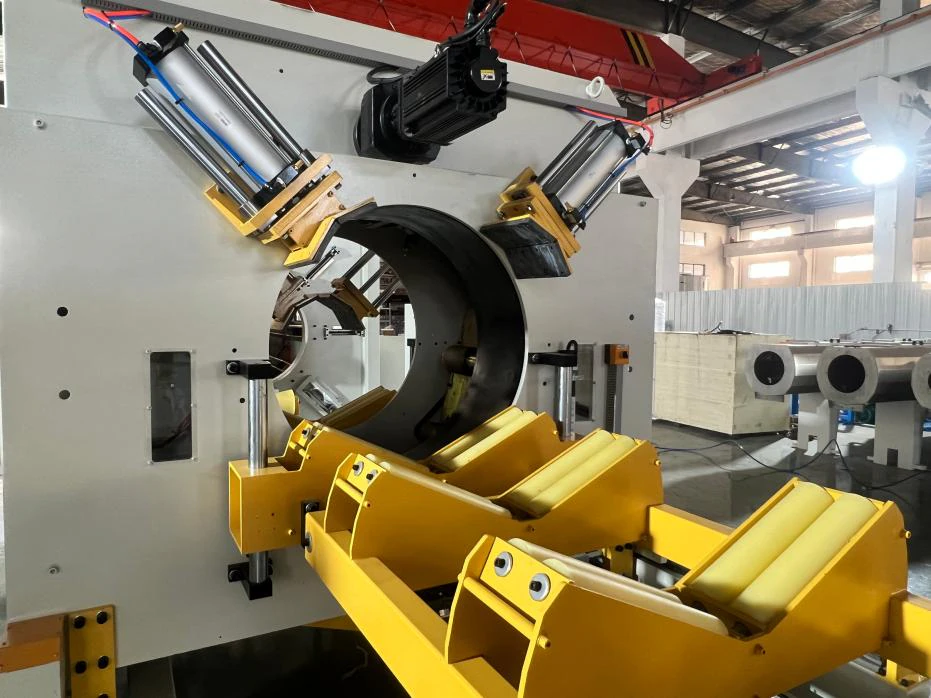

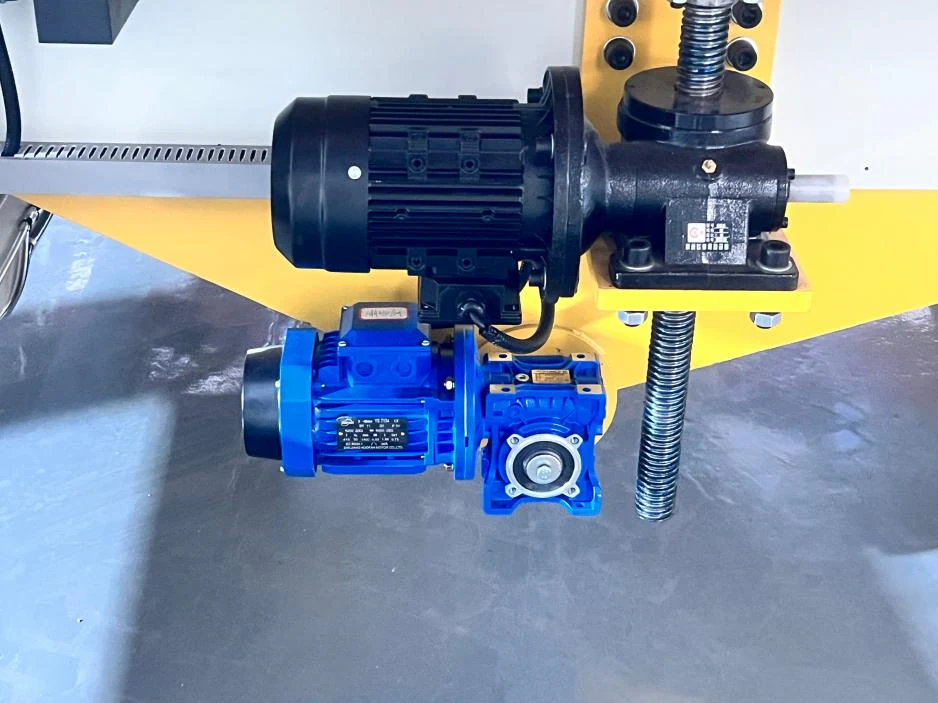

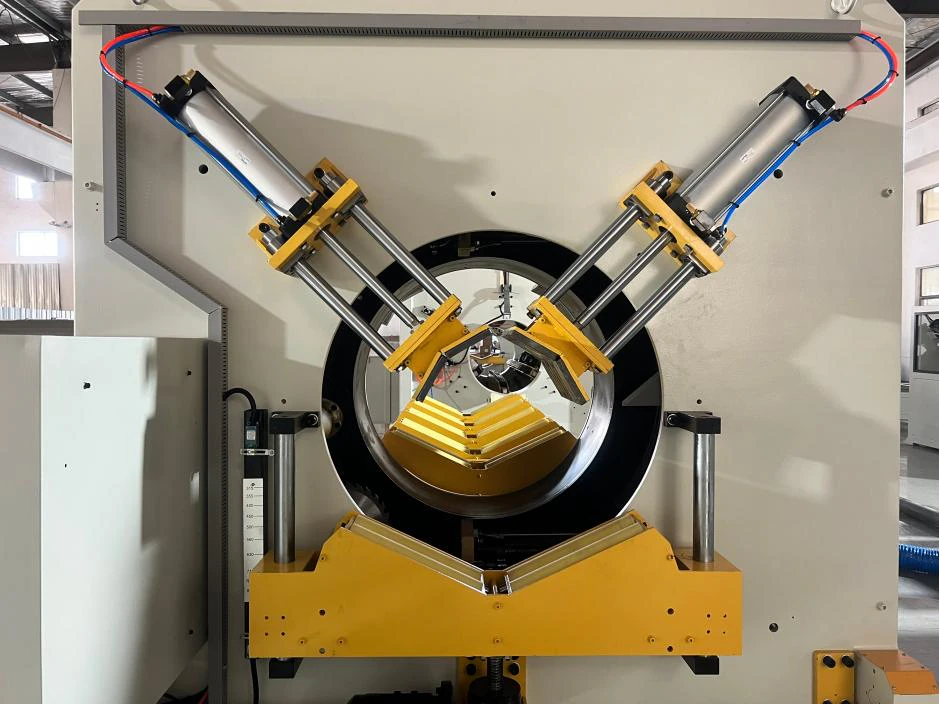

Product Details
05
Technical Parameters
| Model | Pipe range | Cutting motor power | Max. Cutting thickness | Cutting blade specifications | Cutting feed method | Max. line speed | Center height |
|---|---|---|---|---|---|---|---|
| QG63 | 20~63 mm | 1.1 KW | 10 mm | Ф65xФ12x1.0 | pneumatic | 20 m/min. | 1000±50 mm |
| QG110 | 20~110 mm | 1.1 KW | 15 mm | Ф65xФ12x1.0 | pneumatic | 15 m/min. | 1000±50 mm |
| QG160 | 20~160 mm | 2.2 KW | 20 mm | Ф100xФ12x1.3 | pneumatic | 8 m/min. | 1000±50 mm |
| QG250 | 50~250 mm | 2.2 KW | 30 mm | 105x45x3 | hydraulic | 8 m/min. | 1050±50 mm |
| QG315 | 75~315 mm | 2.2 KW | 35 mm | 105x45x3 | hydraulic | 5 m/min. | 1050±50 mm |
| QG450 | 110~450 mm | 3.0 KW | 45 mm | 115x45x3 | hydraulic | 3 m/min. | 1100±50 mm |
| QG630 | 250~630 mm | 4.0 KW | 65 mm | 130x45x4 | hydraulic | 3 m/min. | 1250±50 mm |
| QG800 | 315~800 mm | 7.5 KW | 80 mm | 175x80x5 | hydraulic | 1 m/min. | 1350±50 mm |
| QG1200 | 630~1200 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
| QG1600 | 900~1600 mm | 11 KW | 110 mm | 215x80x5 | hydraulic | 1 m/min. | 1600±50 mm |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
What pipe size range does the QG800 cutter apply to?
It is designed for super-large pipes with outer diameter from 315 mm to 800 mm.
What is the maximum cutting wall thickness?
The maximum cutting thickness reaches 80 mm, suitable for all kinds of ultra-thick-wall large pipes.
What types of pipes can this machine cut?
It supports dual-purpose cutting for both HDPE and PVC pipes, with strong material compatibility.
What is the core cutting technology of QG800?

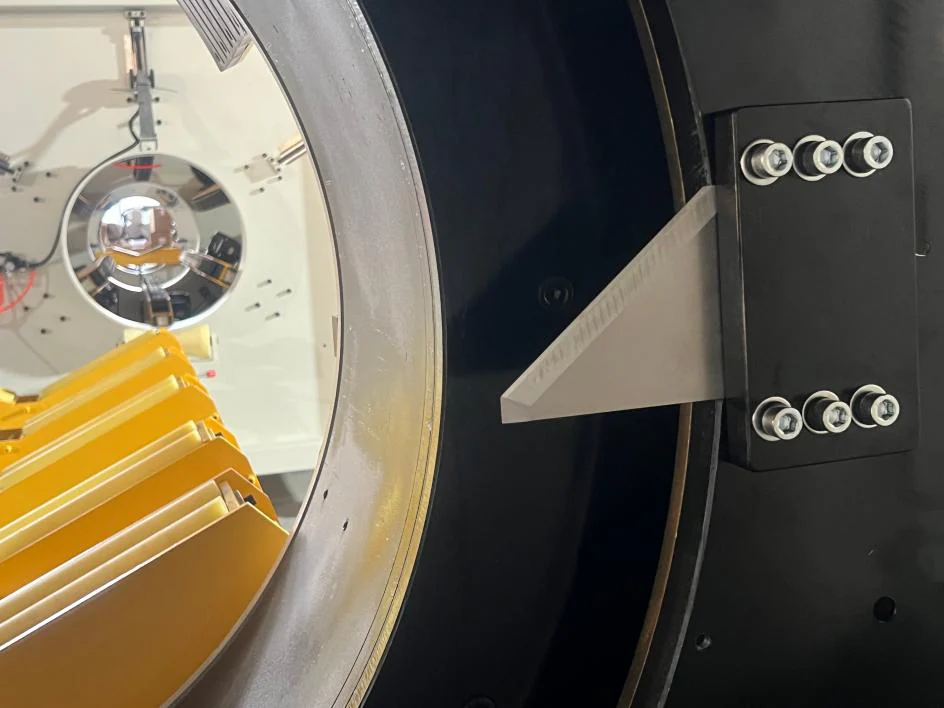

It adopts an advanced sharp knife + planetary dual-cutting system with professional chip-free cutting function.
Does this machine realize chip-free cutting?
Yes. The optimized planetary dual-cutting structure achieves fully chip-free, burr-free and flat cutting without any residue or pipe damage.
What is the cutting motor power and blade specification?
Cutting motor power: 7.5 kW; Blade size: 175×80×5 mm heavy-duty high-strength blade.
What feeding method does it adopt?
Industrial hydraulic feeding system, providing stable and powerful heavy-load cutting pressure.
What is the maximum adaptable extrusion line speed?
Max line speed: 1 m/min, matching high-precision low-speed forming of super-large pipes.
What brand are the main electrical components?

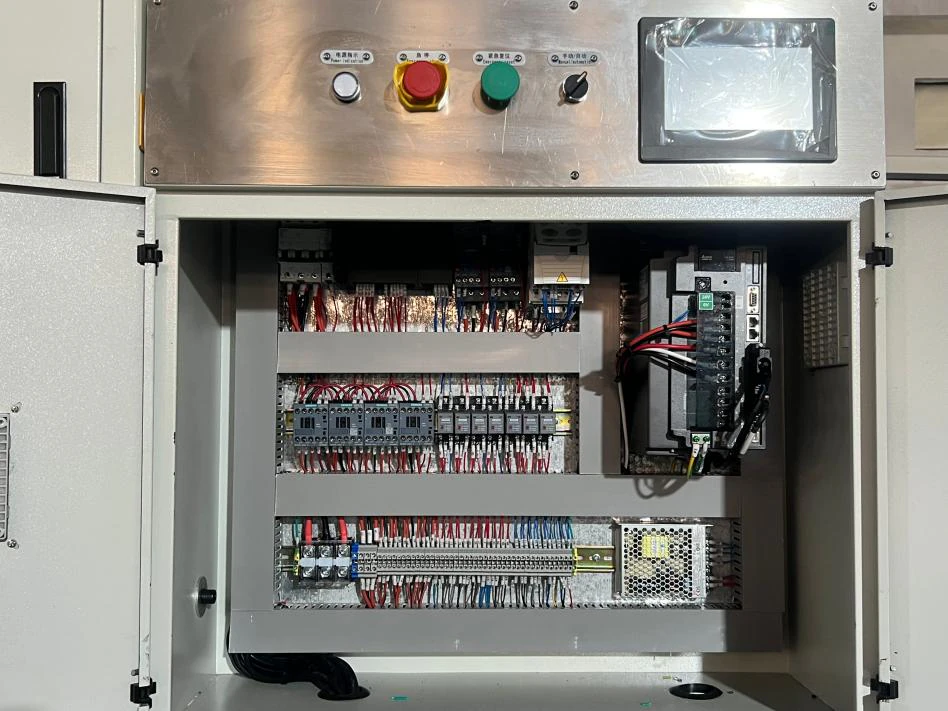

PLC, touch screen and all core electrical parts are original SIEMENS brand.
What are the advantages of planetary dual-cutting system?
The planetary rotary dual-cutting realizes uniform circumferential force, effectively avoiding pipe deformation and edge cracks. It achieves chip-free cutting, ensures ultra-flat pipe end face, and adapts to both HDPE and PVC pipe production.
Can the machine run continuously for heavy-load production?
Yes. High-power motor, wear-resistant blade and stable hydraulic system support 24-hour full-load continuous operation.
What is your warranty and delivery time?
12-month machine warranty (excluding wearable parts), 20–30 working days delivery, lifelong technical support.
