01 QY1200 PLASTIC PIPE TEN-CLAW HAUL-OFF MACHINE

QY1200 Plastic Pipe
Ten-Claw Haul-off Machine

Ten-claw haul-off machine for stable traction of 630-1200 MM plastic pipes.

2500 MM clamping length, 0.02-0.8 m/min. hauling speed, 0.9 KW*10 hauling motor power and up to 250,000 N hauling force.

Get a Quote

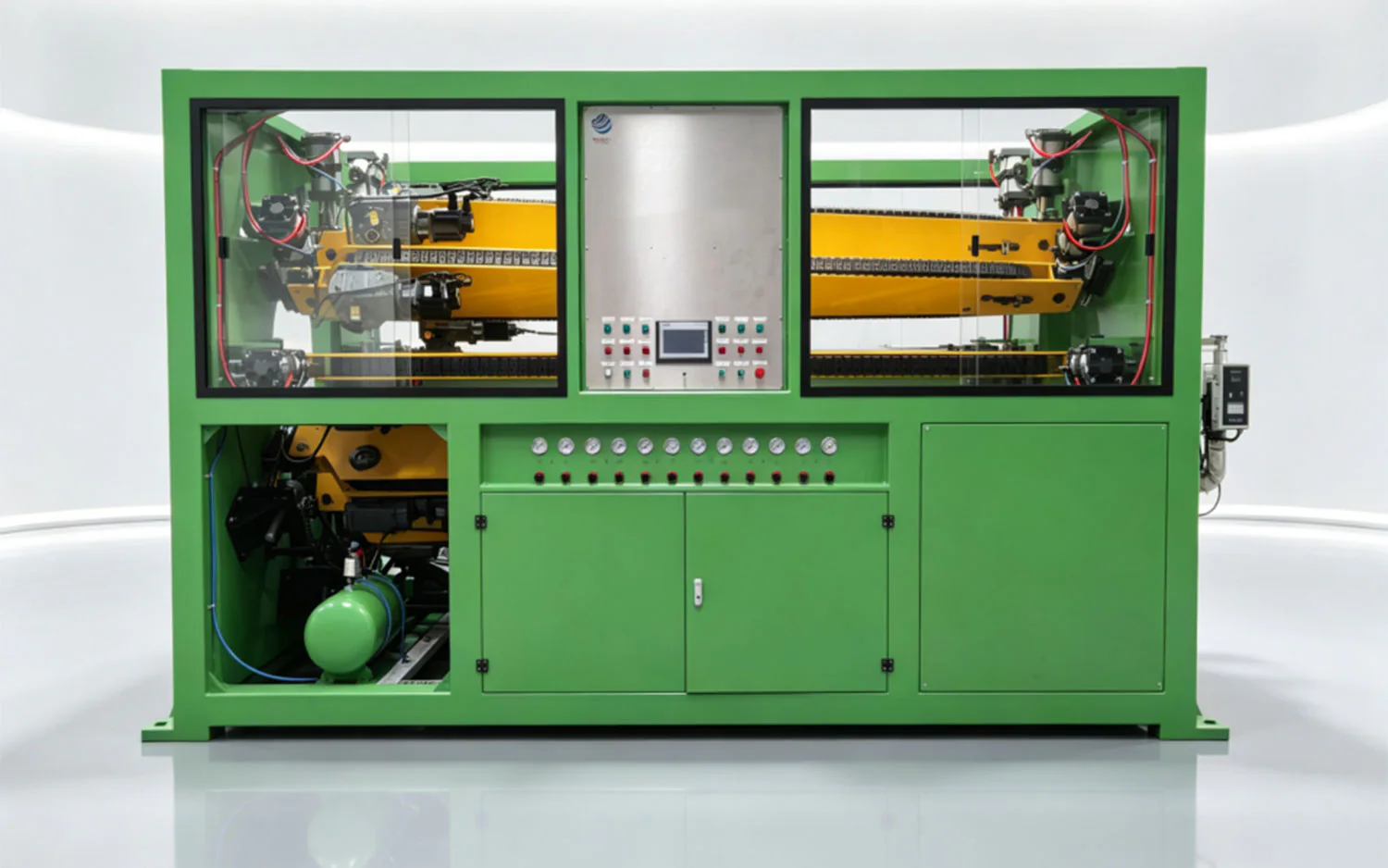

qy1200 plastic pipe ten-claw haul-off machine
Get a Quote
02

Product Overview

QY1200 ten-claw haul-off machine is designed exclusively for 630-1200 mm ultra-large-diameter plastic pipes. The advanced 10-claw symmetrical clamping structure, combined with 2500 mm ultra-long and 110 mm wide clamping surface, delivers full-circle uniform clamping force, ensuring perfect pipe roundness without deformation or surface damage.

630-1200 MMPipe Range
0.02-0.8 m/min.Hauling Speed
0.9 KW*10Motor Power
250,000 NMax. Hauling Force
03

Core Advantages

01

Pipe Range

Covers key pipe sizes for flexible production.

02

Clamping Structure

Stable output supports efficient continuous production.

03

Speed Adjustment

Reliable drive control keeps operation stable.

04

Hauling Force

Stable output supports efficient continuous production.

04

Product Details

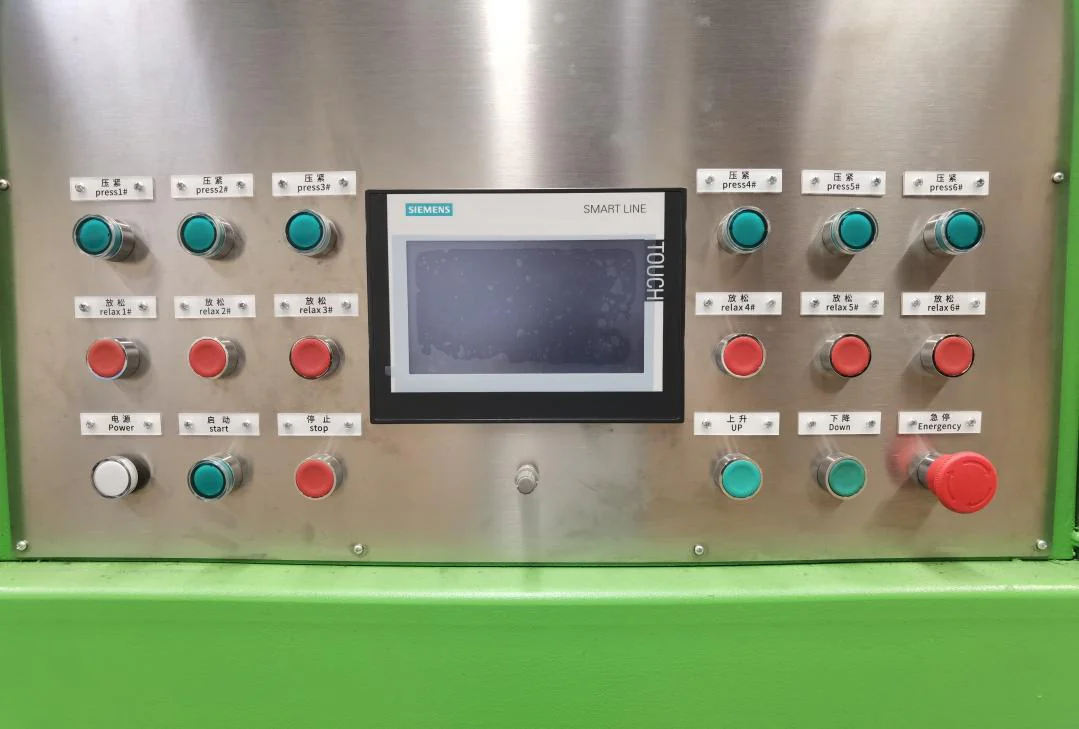

QY1200 Plastic Pipe Ten-Claw Haul-off Machine product detail 1

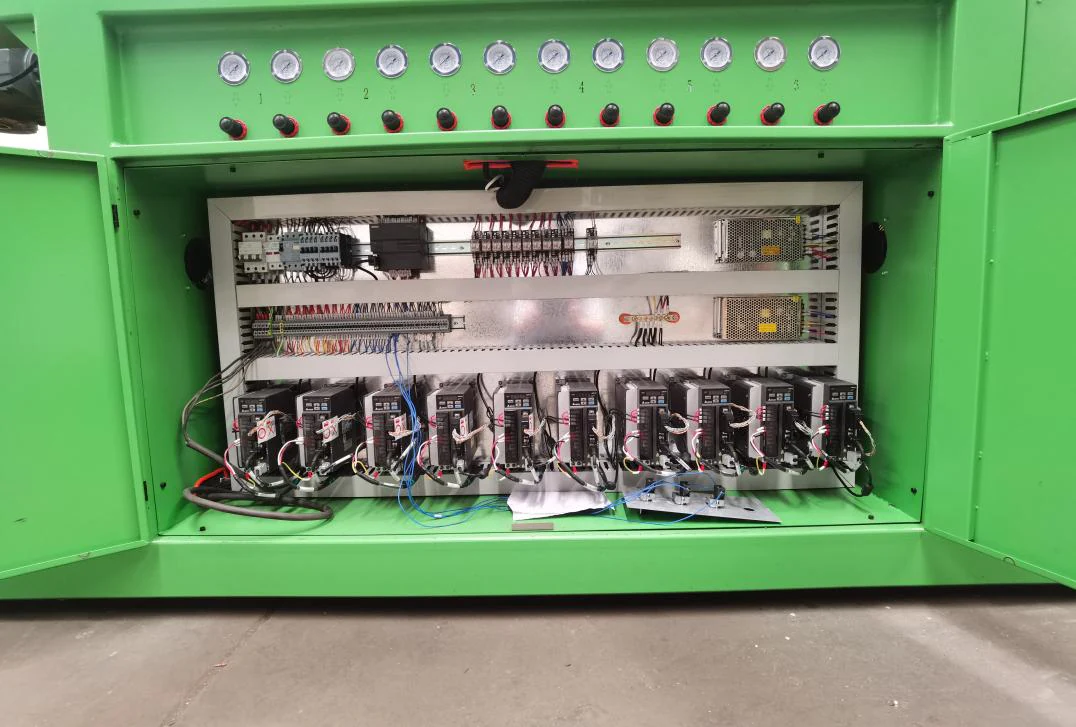

QY1200 Plastic Pipe Ten-Claw Haul-off Machine product detail 2

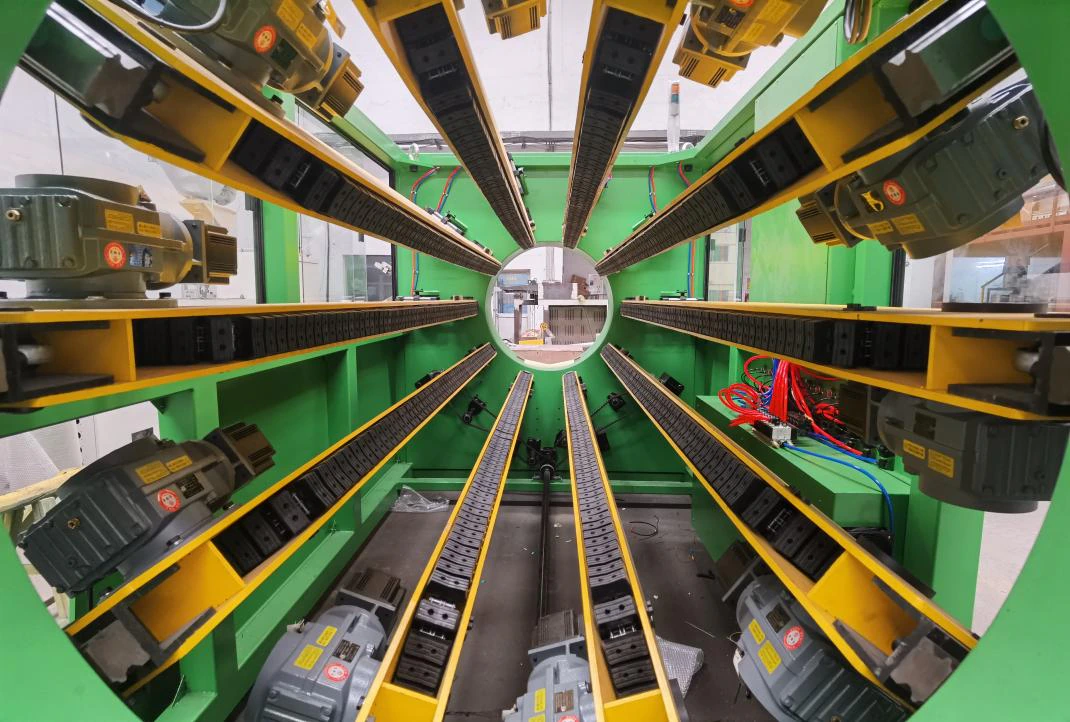

QY1200 Plastic Pipe Ten-Claw Haul-off Machine product detail 3

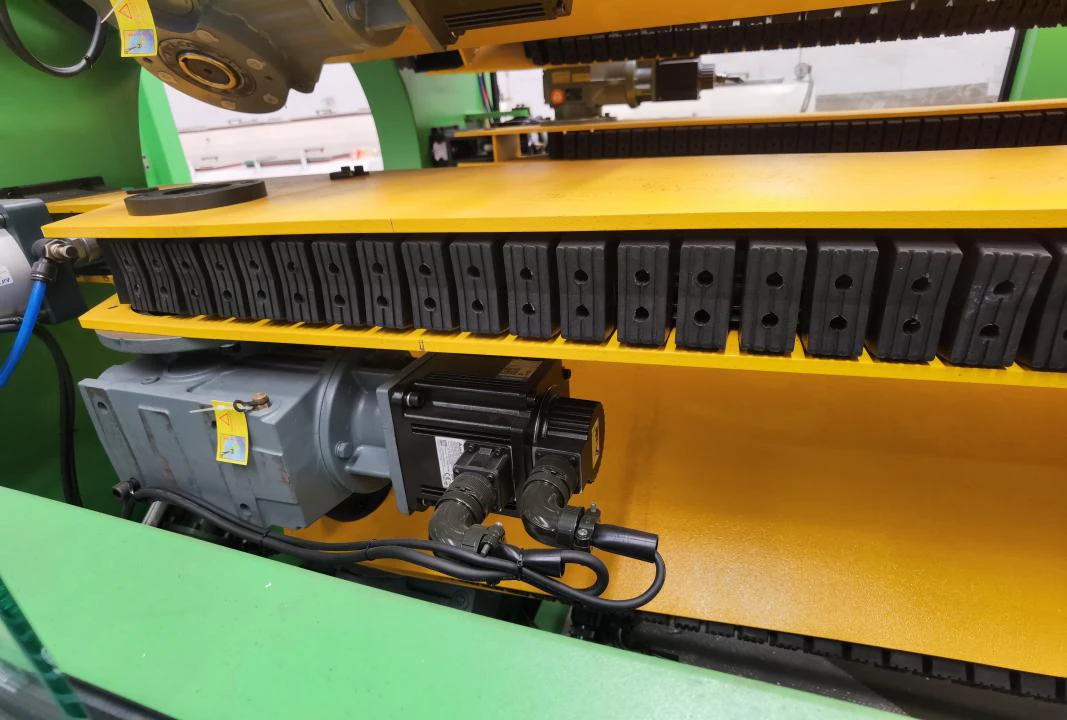

QY1200 Plastic Pipe Ten-Claw Haul-off Machine product detail 4

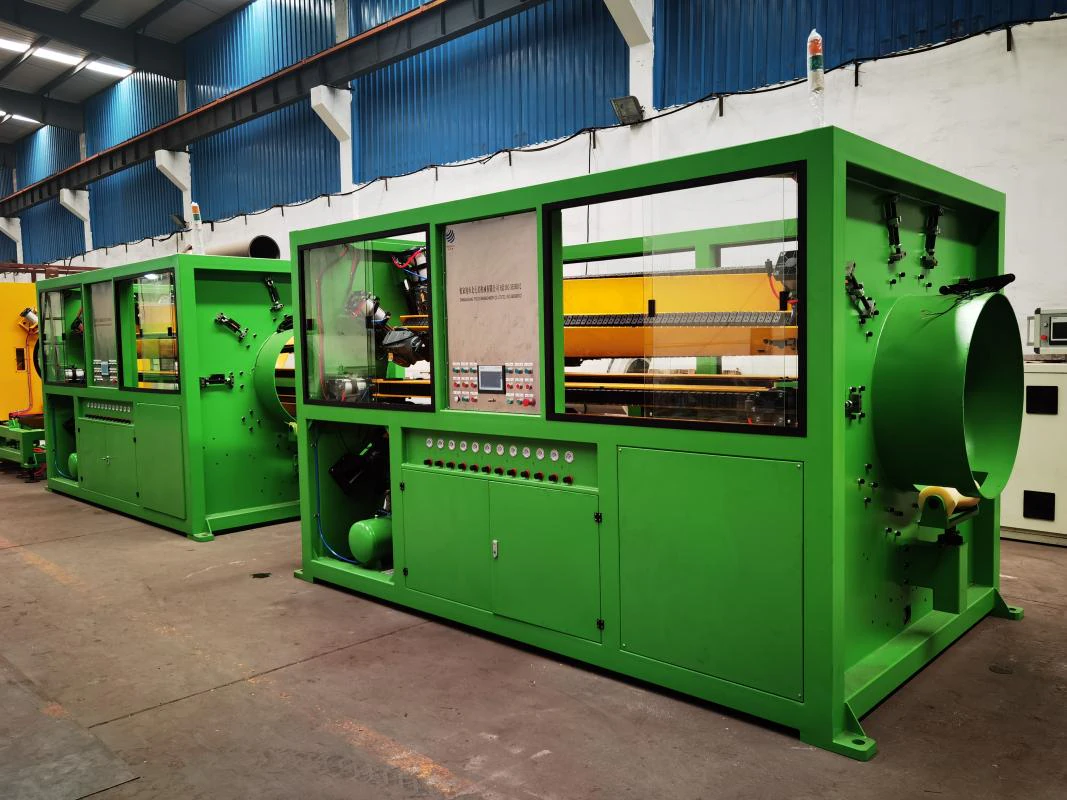

QY1200 Plastic Pipe Ten-Claw Haul-off Machine product detail 5
05

Technical Parameters

ModelNumber of ClawsPipe RangeHauling SpeedHauling Motor PowerLifting Motor Power
QY63Two clawsΦ20-63 mm0.5-25 m/min.0.9 KW*2/
QY110Two clawsΦ20-110 mm0.5-25 m/min.0.9 KW*2/
QY160Three clawsΦ63-160 mm0.6-6 m/min.1.1 KW*30.55 KW*2
QY250Four clawsΦ75-250 mm0.3-12 m/min.0.9 KW*40.55 KW*2
QY315Four clawsΦ90-315 mm0.2-8 m/min.0.9 KW*40.75 KW*2
QY450Six clawsΦ160-450 mm0.2-6 m/min.0.9 KW*60.75 KW*3
QY630Six clawsΦ250-630 mm0.05-2.5 m/min0.9 KW*60.75 KW*3
QY800Eight clawsΦ355-800 mm0.02-0.8 m/min0.9 KW*80.75 KW*4
QY1200Ten clawsΦ630-1200 mm0.02-0.8 m/min0.9 KW*103KW*2
QY1600Twelve clawsΦ800-1600 mm0.01-0.3 m/min.0.9 KW*124KW
06

Factory Strength

20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production managementPolestar factory machining workshop for extrusion equipment partsPolestar machinery assembly workshop for plastic pipe extrusion linesPolestar machine inspection area for pre-delivery testingPolestar production area for plastic pipe machinery manufacturingCustomer visit at Polestar factory for extrusion line inspection
07

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipmentPolestar Machinery machine packing and loading for export deliveryPlastic extrusion machine container loading at Polestar factoryPolestar Machinery container loading inspection before shippingPlastic extrusion equipment shipment and container loading servicePolestar Machinery export shipment for plastic pipe extrusion line
08

Customer Projects

Plastic pipe machinery customer project 1Plastic pipe machinery customer project 2Plastic pipe machinery customer project 3Plastic pipe machinery customer project 4Plastic pipe machinery customer project 5Plastic pipe machinery customer project 6
09

Frequently Asked Questions

Q1: What pipe size does the QY1200 haul-off machine apply to?

It is professionally used for ultra-large-diameter plastic pipes with outer diameter from 630 mm to 1200 mm.

Q2: How many clamping claws does QY1200 adopt?

It adopts a 10-claw full symmetrical circumferential clamping structure for ultra-large pipe uniform stress.

Q3: What are the clamping length and width?

Clamping length: 2500 mm; Clamping width: 110 mm.

Q4: What is the hauling speed range?

0.02 m/min ~ 0.8 m/min, ultra-low precise VFD stepless speed regulation with outstanding stability.

Q5: What is the full motor configuration?

Hauling motor: 0.9 kW × 10; Lifting motor: 3.0 kW × 2.

Q6: What is the maximum hauling force?

It reaches an ultra-high maximum hauling force of 250,000 N, supporting full-load heavy traction for 1200 mm large pipes.

Q7: Is the center height adjustable?

Yes, the center height is 1650±100 mm, adjustable for precise alignment with large extrusion lines.

Q8: What pipe materials is this machine suitable for?

Suitable for high-standard ultra-large HDPE, PVC, PP thick-wall solid-wall pipes for water supply, drainage and pipeline engineering.

Q9: What is the advantage of the 10-claw structure?

The ten-claw full-circle symmetrical clamping realizes uniform force on the entire pipe surface, effectively preventing ovality, deformation and pressure marks, and greatly improving large pipe roundness and yield rate.

Q10: Why use ultra-low speed for large pipe production?

Ultra-large thick-wall pipes require sufficient cooling and shaping time. The ultra-stable low speed avoids pipe stretching and sizing deviation, ensuring high-precision forming quality.

Q11: Can the machine run 24-hour full-load continuously?

Yes. The ultra-heavy reinforced frame and high-grade transmission system support long-term full-load stable industrial operation.

Q12: What is your delivery time and warranty policy?

Delivery time is 20–30 working days after deposit. 12-month machine warranty (excluding wearable parts) and lifelong technical support are provided.
