01 QY1600 PLASTIC PIPE TWELVE-CLAW HAUL-OFF MACHINE

QY1600 Plastic Pipe
Twelve-Claw Haul-off Machine

Twelve-claw haul-off machine for stable traction of 800-1600 MM plastic pipes.

2600 MM clamping length, 0.01-0.3 m/min. hauling speed, 0.9 KW*12 hauling motor power and up to 360,000 N hauling force.

Get a Quote

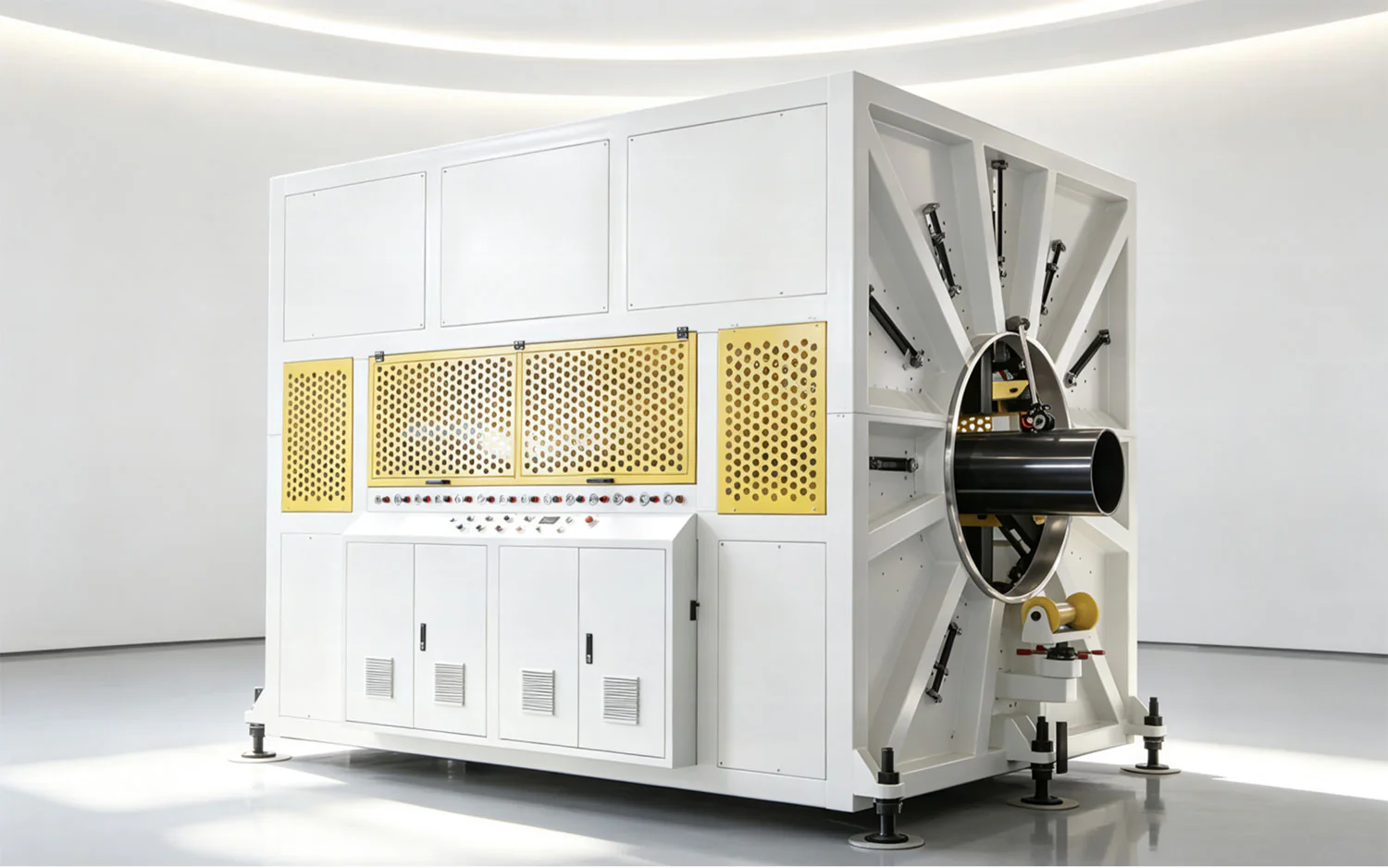

qy1600 plastic pipe twelve-claw haul-off machine
Get a Quote
02

Product Overview

QY1600 twelve-claw haul-off machine is specially developed for 800-1600 mm ultra-large-diameter plastic pipes. The premium 12-claw full-circumference symmetrical clamping structure with 2600 mm ultra-long clamping length and 110 mm clamping width achieves full-coverage uniform clamping, ensuring excellent pipe roundness without deformation or surface damage.

800-1600 MMPipe Range
0.01-0.3 m/min.Hauling Speed
0.9 KW*12Motor Power
360,000 NMax. Hauling Force
03

Core Advantages

01

Pipe Range

Covers key pipe sizes for flexible production.

02

Clamping Structure

Stable output supports efficient continuous production.

03

Speed Adjustment

Reliable drive control keeps operation stable.

04

Hauling Force

Stable output supports efficient continuous production.

04

Product Details

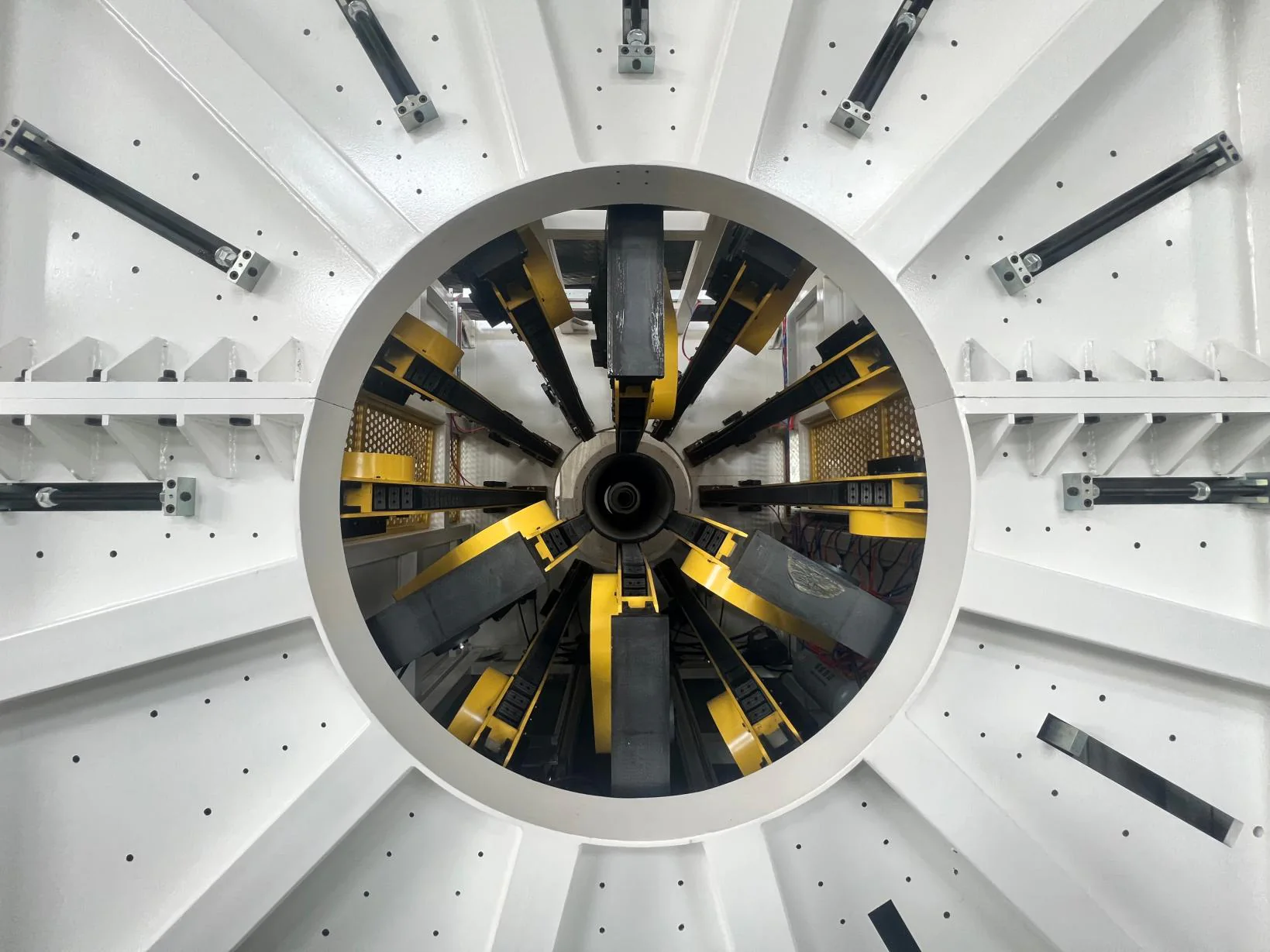

QY1600 Plastic Pipe Twelve-Claw Haul-off Machine product detail 1

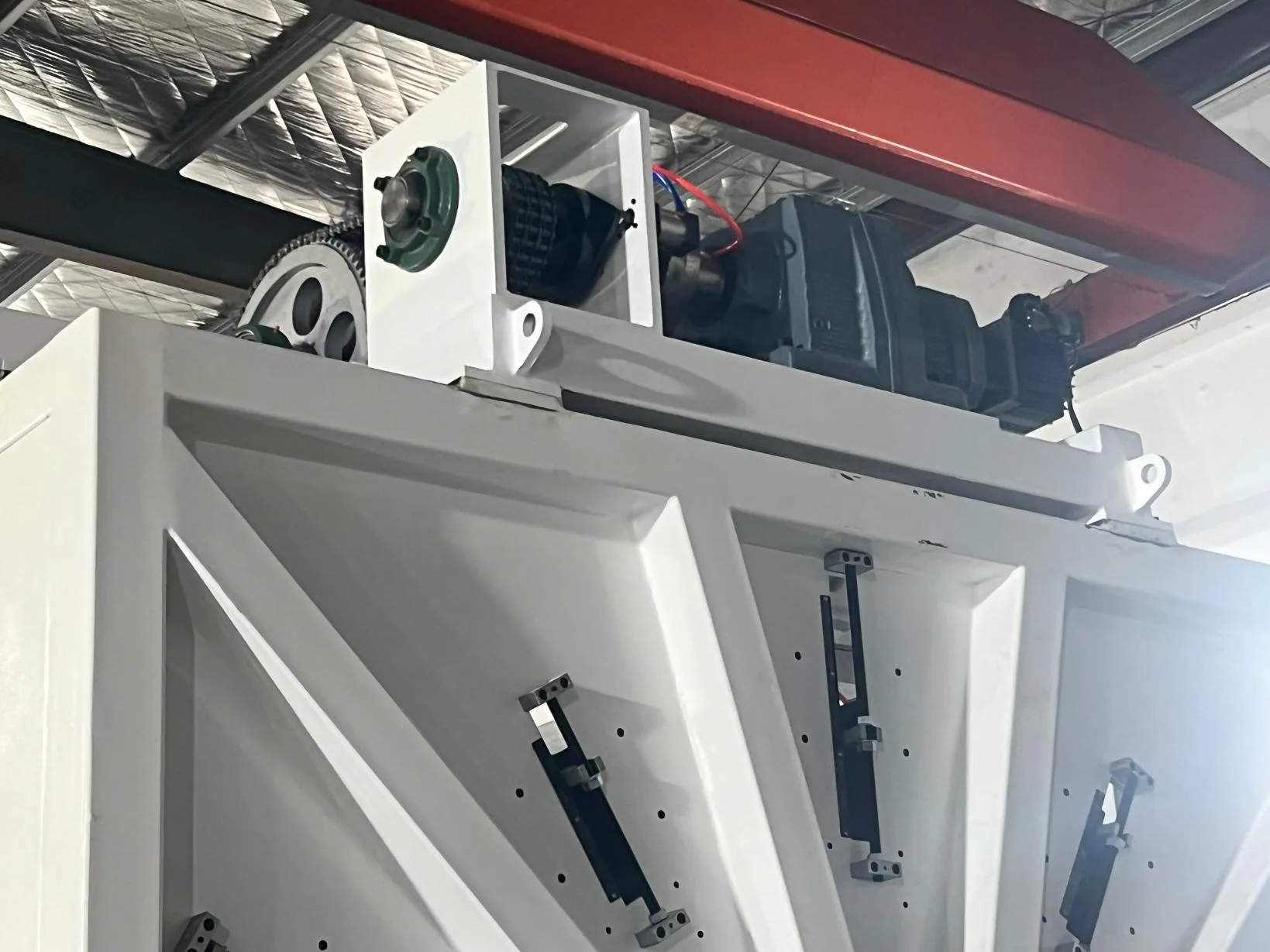

QY1600 Plastic Pipe Twelve-Claw Haul-off Machine product detail 2

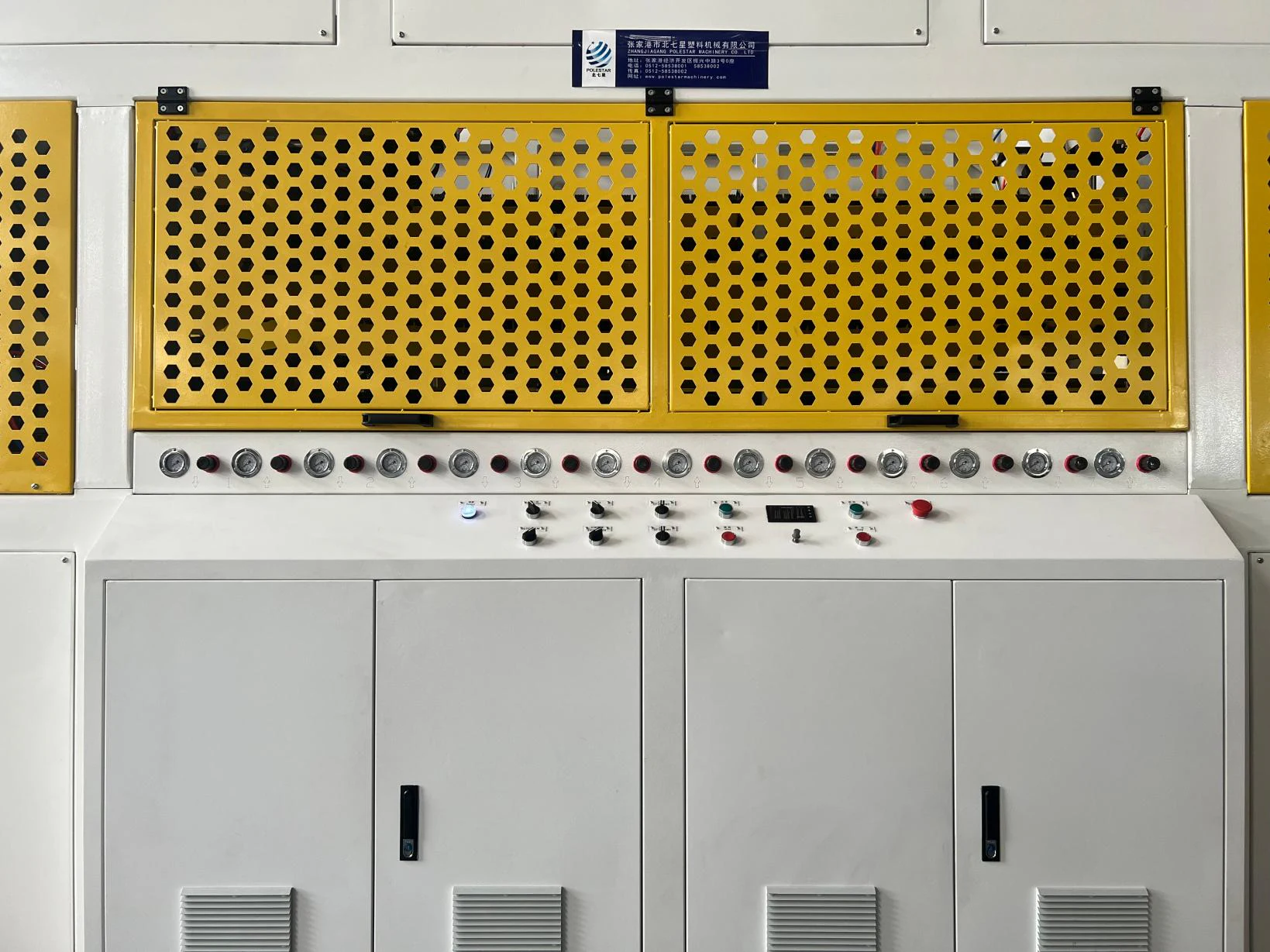

QY1600 Plastic Pipe Twelve-Claw Haul-off Machine product detail 3

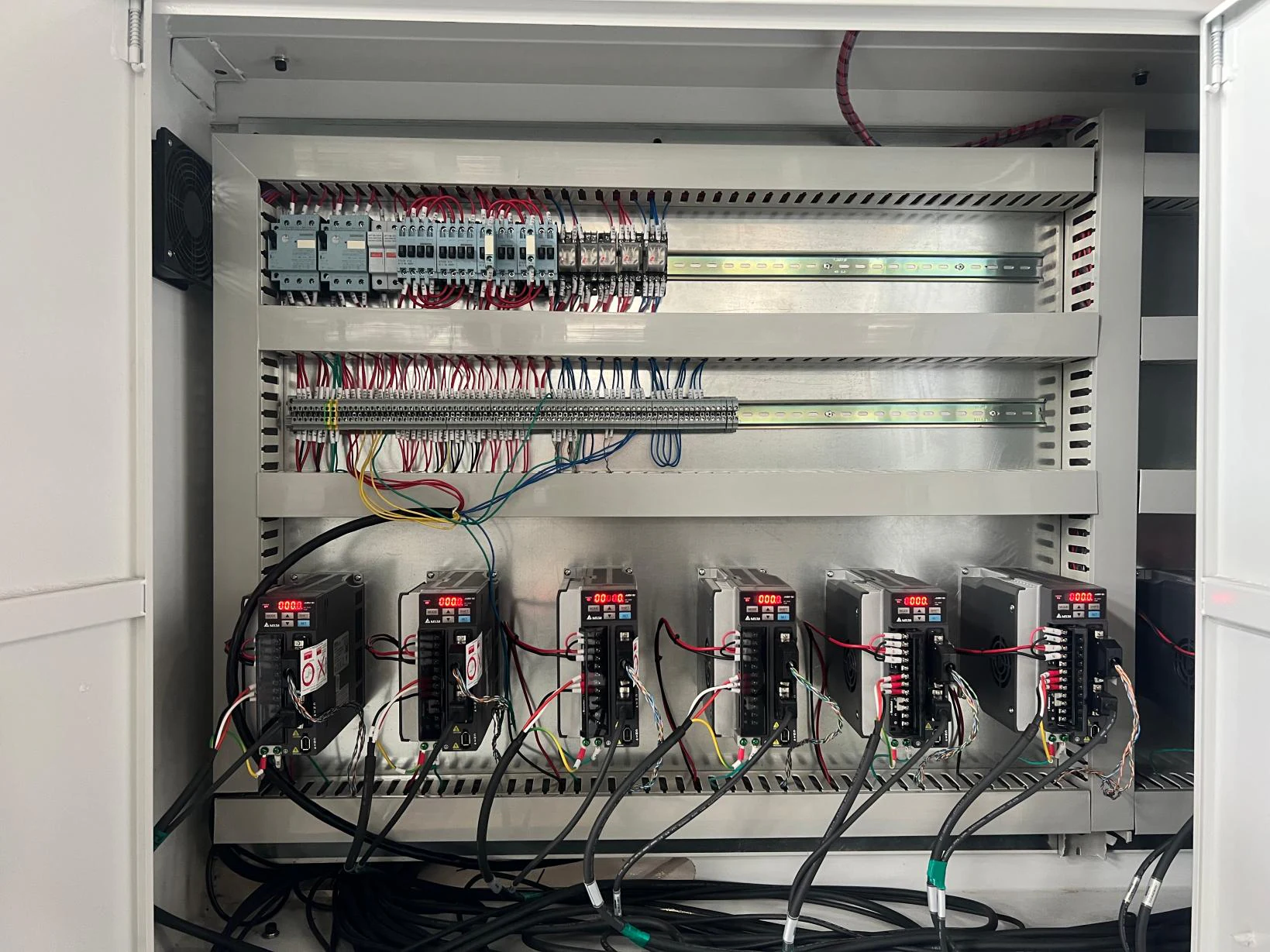

QY1600 Plastic Pipe Twelve-Claw Haul-off Machine product detail 4
05

Technical Parameters

ModelNumber of ClawsPipe RangeHauling SpeedHauling Motor PowerLifting Motor Power
QY63Two clawsΦ20-63 mm0.5-25 m/min.0.9 KW*2/
QY110Two clawsΦ20-110 mm0.5-25 m/min.0.9 KW*2/
QY160Three clawsΦ63-160 mm0.6-6 m/min.1.1 KW*30.55 KW*2
QY250Four clawsΦ75-250 mm0.3-12 m/min.0.9 KW*40.55 KW*2
QY315Four clawsΦ90-315 mm0.2-8 m/min.0.9 KW*40.75 KW*2
QY450Six clawsΦ160-450 mm0.2-6 m/min.0.9 KW*60.75 KW*3
QY630Six clawsΦ250-630 mm0.05-2.5 m/min0.9 KW*60.75 KW*3
QY800Eight clawsΦ355-800 mm0.02-0.8 m/min0.9 KW*80.75 KW*4
QY1200Ten clawsΦ630-1200 mm0.02-0.8 m/min0.9 KW*103KW*2
QY1600Twelve clawsΦ800-1600 mm0.01-0.3 m/min.0.9 KW*124KW
06

Factory Strength

20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production managementPolestar factory machining workshop for extrusion equipment partsPolestar machinery assembly workshop for plastic pipe extrusion linesPolestar machine inspection area for pre-delivery testingPolestar production area for plastic pipe machinery manufacturingCustomer visit at Polestar factory for extrusion line inspection
07

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipmentPolestar Machinery machine packing and loading for export deliveryPlastic extrusion machine container loading at Polestar factoryPolestar Machinery container loading inspection before shippingPlastic extrusion equipment shipment and container loading servicePolestar Machinery export shipment for plastic pipe extrusion line
08

Customer Projects

Plastic pipe machinery customer project 1Plastic pipe machinery customer project 2Plastic pipe machinery customer project 3Plastic pipe machinery customer project 4Plastic pipe machinery customer project 5Plastic pipe machinery customer project 6
09

Frequently Asked Questions

Q1: What is the applicable pipe range of QY1600 haul-off machine?

It is professionally designed for ultra-large-diameter plastic pipes with outer diameter from 800 mm to 1600 mm.

Q2: How many clamping claws does the QY1600 adopt?

It adopts a 12-claw full-circumference symmetrical clamping structure for full-circle uniform force distribution.

Q3: What are the clamping length and clamping width?

Clamping length: 2600 mm; Clamping width: 110 mm.

Q4: What is the hauling speed range?

0.01 m/min ~ 0.3 m/min, ultra-low high-precision VFD stepless speed regulation with excellent stability.

Q5: What is the motor configuration?

Hauling motor: 0.9 kW × 12; Lifting motor: 4.0 kW.

Q6: What is the maximum hauling force?

It reaches an ultra-high maximum hauling force of 360,000 N, supporting full-load heavy traction for 1600 mm super-large pipes.

Q7: Is the center height adjustable?

Yes, high-precision adjustable center height: 2000±50 mm, ensuring accurate line matching for large extrusion lines.

Q8: What pipe materials is this machine suitable for?

Widely applied to high-standard ultra-large HDPE, PVC, PP thick-wall pipes for municipal water supply, drainage and large-scale pipeline projects.

Q9: What are the core advantages of 12-claw structure?

The 12-claw full symmetrical clamping realizes omni-directional uniform force on super-large pipes, effectively eliminating ovality, deformation and pressure marks, and greatly improving pipe roundness and product qualification rate.

Q10: Why does QY1600 adopt ultra-low speed design?

Ultra-large thick-wall pipes require sufficient cooling and shaping time. The ultra-stable low-speed traction ensures stable sizing and uniform wall thickness, avoiding tensile deformation of pipes.

Q11: Can the machine sustain long-term full-load operation?

Yes. The ultra-heavy reinforced frame and high-grade transmission system support 24-hour continuous full-load stable industrial production.

Q12: What is your delivery time and warranty?

Delivery time is 20–30 working days after receiving deposit. 12-month warranty for the whole machine (excluding wearable parts) and lifelong technical support are provided.
