01 QY800 PLASTIC PIPE EIGHT-CLAW HAUL-OFF MACHINE

QY800 Plastic Pipe
Eight-Claw Haul-off Machine

Eight-claw haul-off machine for stable traction of 355-800 MM plastic pipes.

2100 MM clamping length, 0.02-0.8 m/min. hauling speed, 0.9 KW*8 hauling motor power and up to 170,000 N hauling force.

Get a Quote

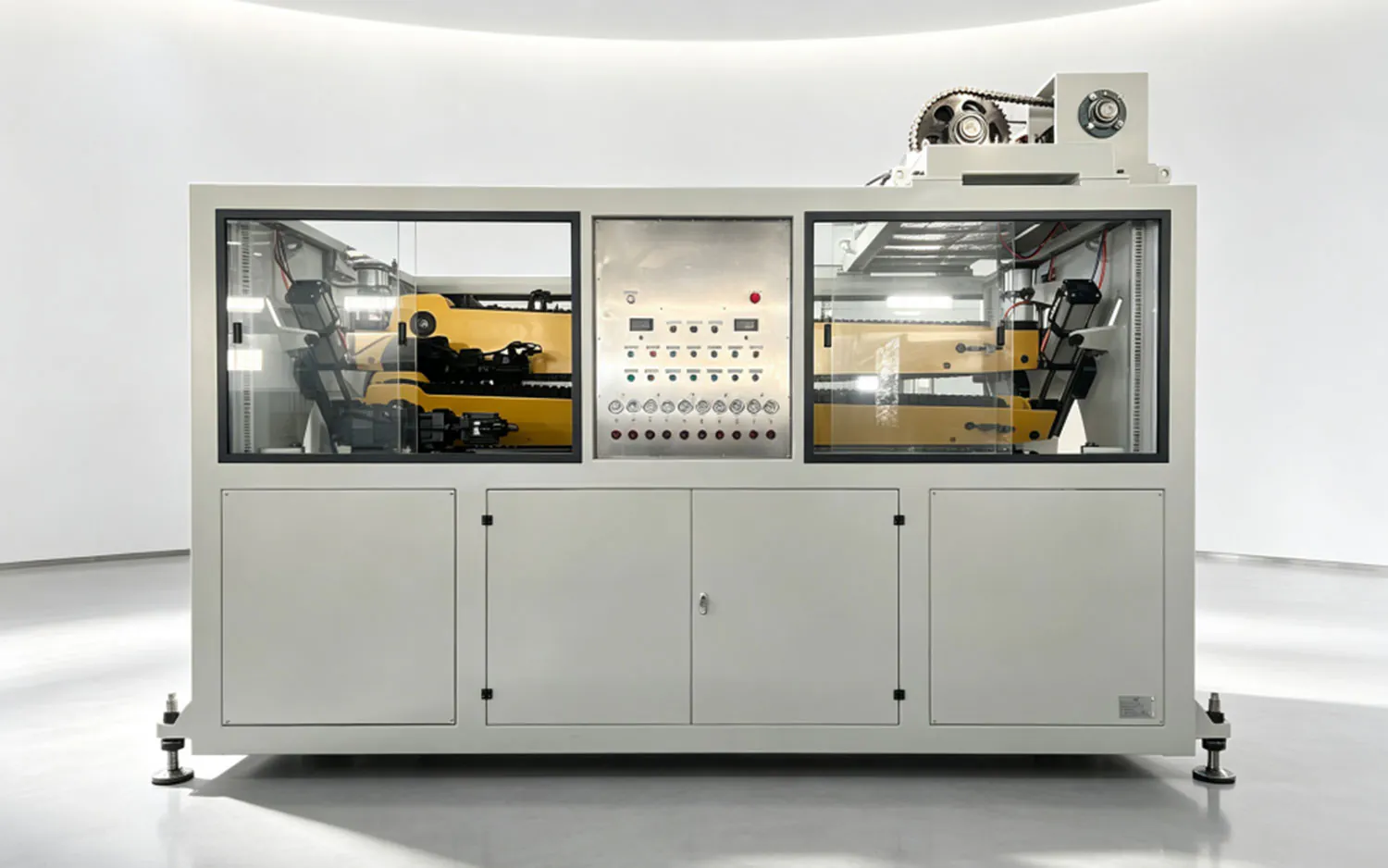

qy800 plastic pipe eight-claw haul-off machine
Get a Quote
02

Product Overview

QY800 eight-claw haul-off machine is dedicated to 355-800 mm super-large-diameter plastic pipe production. The 8-claw symmetrical clamping structure with 2100 mm ultra-long clamping length provides full coverage and even force clamping, effectively guaranteeing pipe roundness and surface quality without deformation or scratches.

355-800 MMPipe Range
0.02-0.8 m/min.Hauling Speed
0.9 KW*8Motor Power
170,000 NMax. Hauling Force
03

Core Advantages

01

Pipe Range

Covers key pipe sizes for flexible production.

02

Clamping Structure

Precise control keeps product quality stable.

03

Speed Adjustment

Reliable drive control keeps operation stable.

04

Hauling Force

Stable traction keeps pipe movement consistent.

04

Product Details

QY800 Plastic Pipe Eight-Claw Haul-off Machine product detail 1

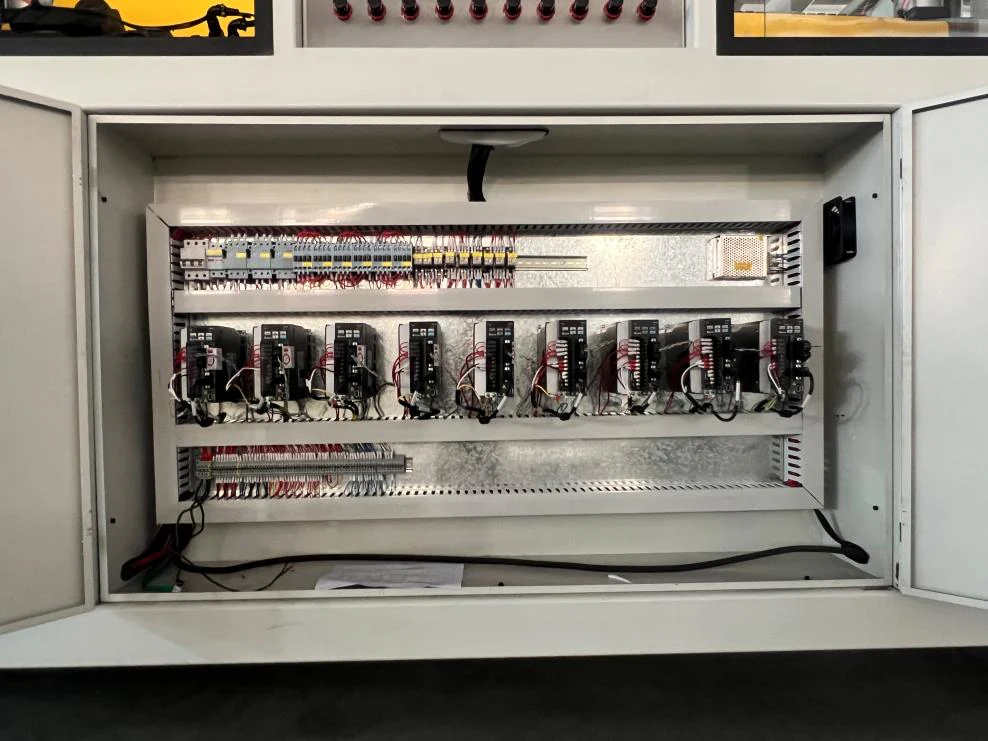

QY800 Plastic Pipe Eight-Claw Haul-off Machine product detail 2

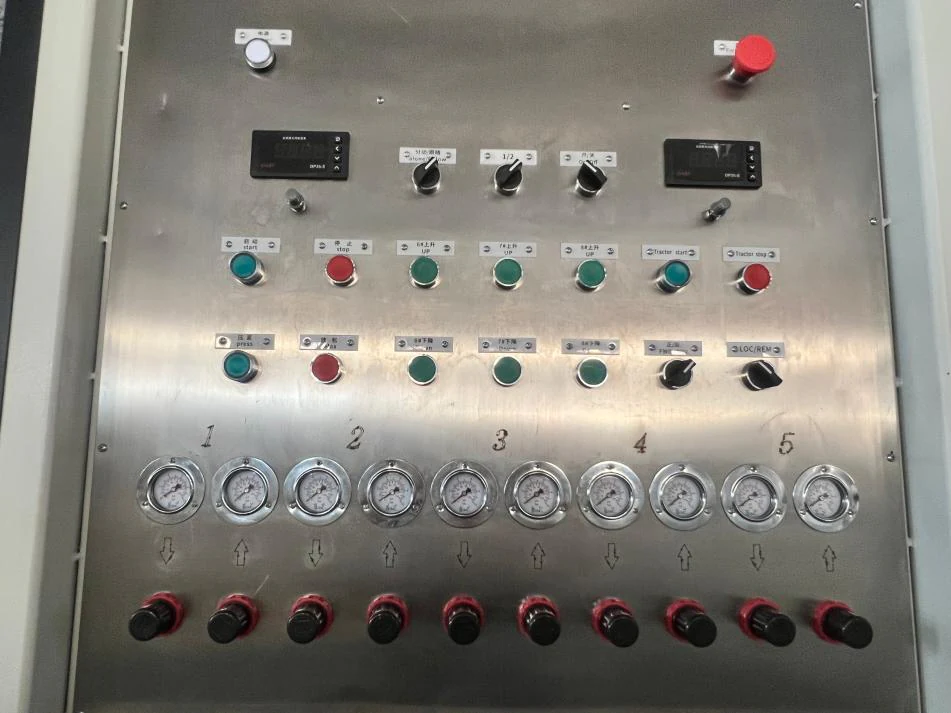

QY800 Plastic Pipe Eight-Claw Haul-off Machine product detail 3

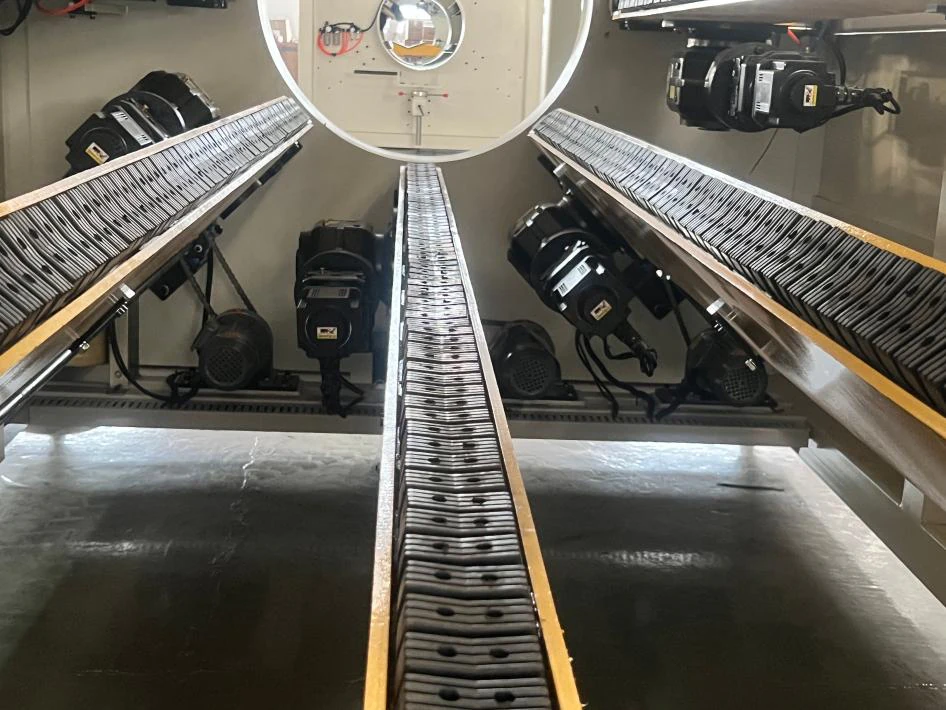

QY800 Plastic Pipe Eight-Claw Haul-off Machine product detail 4

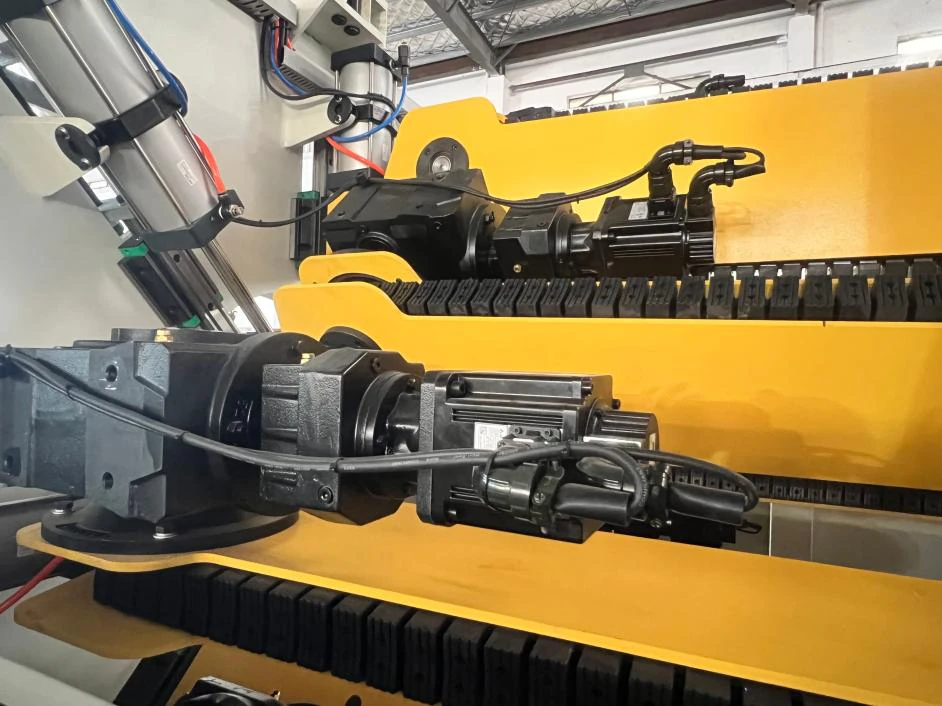

QY800 Plastic Pipe Eight-Claw Haul-off Machine product detail 5
05

Technical Parameters

ModelNumber of ClawsPipe RangeHauling SpeedHauling Motor PowerLifting Motor Power
QY63Two clawsΦ20-63 mm0.5-25 m/min.0.9 KW*2/
QY110Two clawsΦ20-110 mm0.5-25 m/min.0.9 KW*2/
QY160Three clawsΦ63-160 mm0.6-6 m/min.1.1 KW*30.55 KW*2
QY250Four clawsΦ75-250 mm0.3-12 m/min.0.9 KW*40.55 KW*2
QY315Four clawsΦ90-315 mm0.2-8 m/min.0.9 KW*40.75 KW*2
QY450Six clawsΦ160-450 mm0.2-6 m/min.0.9 KW*60.75 KW*3
QY630Six clawsΦ250-630 mm0.05-2.5 m/min0.9 KW*60.75 KW*3
QY800Eight clawsΦ355-800 mm0.02-0.8 m/min0.9 KW*80.75 KW*4
QY1200Ten clawsΦ630-1200 mm0.02-0.8 m/min0.9 KW*103KW*2
QY1600Twelve clawsΦ800-1600 mm0.01-0.3 m/min.0.9 KW*124KW
06

Factory Strength

20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines

Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.

Polestar factory team safety briefing and production managementPolestar factory machining workshop for extrusion equipment partsPolestar machinery assembly workshop for plastic pipe extrusion linesPolestar machine inspection area for pre-delivery testingPolestar production area for plastic pipe machinery manufacturingCustomer visit at Polestar factory for extrusion line inspection
07

Delivery & Container Loading

Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.

Polestar Machinery delivery loading preparation for plastic extrusion equipmentPolestar Machinery machine packing and loading for export deliveryPlastic extrusion machine container loading at Polestar factoryPolestar Machinery container loading inspection before shippingPlastic extrusion equipment shipment and container loading servicePolestar Machinery export shipment for plastic pipe extrusion line
08

Customer Projects

Plastic pipe machinery customer project 1Plastic pipe machinery customer project 2Plastic pipe machinery customer project 3Plastic pipe machinery customer project 4Plastic pipe machinery customer project 5Plastic pipe machinery customer project 6
09

Frequently Asked Questions

Q1: What is the applicable pipe range of the QY800 haul-off machine?

It is specially designed for super-large-diameter plastic pipes with outer diameter from 355 mm to 800 mm, suitable for heavy thick-wall pipe production.

Q2: How many clamping claws does the QY800 model adopt?

It adopts an 8-claw full symmetrical clamping structure to ensure omnidirectional uniform force for super-large pipes.

Q3: What are the clamping length and clamping width?

Clamping length: 2100 mm; Clamping width: 72 mm.

Q4: What is the hauling speed range of this machine?

0.02 m/min ~ 0.8 m/min, ultra-low stepless frequency conversion speed regulation, with extremely high speed stability and precision.

Q5: What is the complete motor configuration?

Hauling motor: 0.9 kW × 8; Lifting motor: 0.75 kW × 4.

Q6: What is the maximum hauling force of QY800?

It provides an ultra-high maximum hauling force of170,000 N, meeting the heavy-load traction demand of 800mm super-large pipes.

Q7: Is the center height adjustable?

Yes, the center height is 1350±100 mm, specially optimized for large pipe production lines with flexible and convenient alignment.

Q8: What pipe materials is this machine suitable for?

Widely applicable to large-diameter HDPE, PVC, PP, PPR and other thick-wall solid-wall plastic pipes.

Q9: What is the advantage of 8-claw structure for large pipes?

The eight-claw symmetrical design achieves full-circle uniform clamping force, effectively preventing ovality, deformation and surface damage of super-large heavy pipes, and improves finished pipe roundness and flatness.

Q10: Why adopt ultra-low speed design?

Super-large pipes need sufficient cooling and shaping time. The ultra-low stable speed matches the slow extrusion process, ensuring stable pipe sizing and consistent wall thickness.

Q11: Can this machine work continuously under full load?

Yes. Adopting heavy-duty reinforced frame and industrial-grade transmission structure, it supports 24-hour full-load stable continuous operation.

Q12: What is the delivery time and warranty?

Delivery time is 20–30 working days after deposit. We provide 12-month full machine warranty (excluding wearing parts) and lifelong technical support.
