Optimized SJ65-33 Screw Configuration
Optimized screw design improves plasticizing stability.
02
Product Details

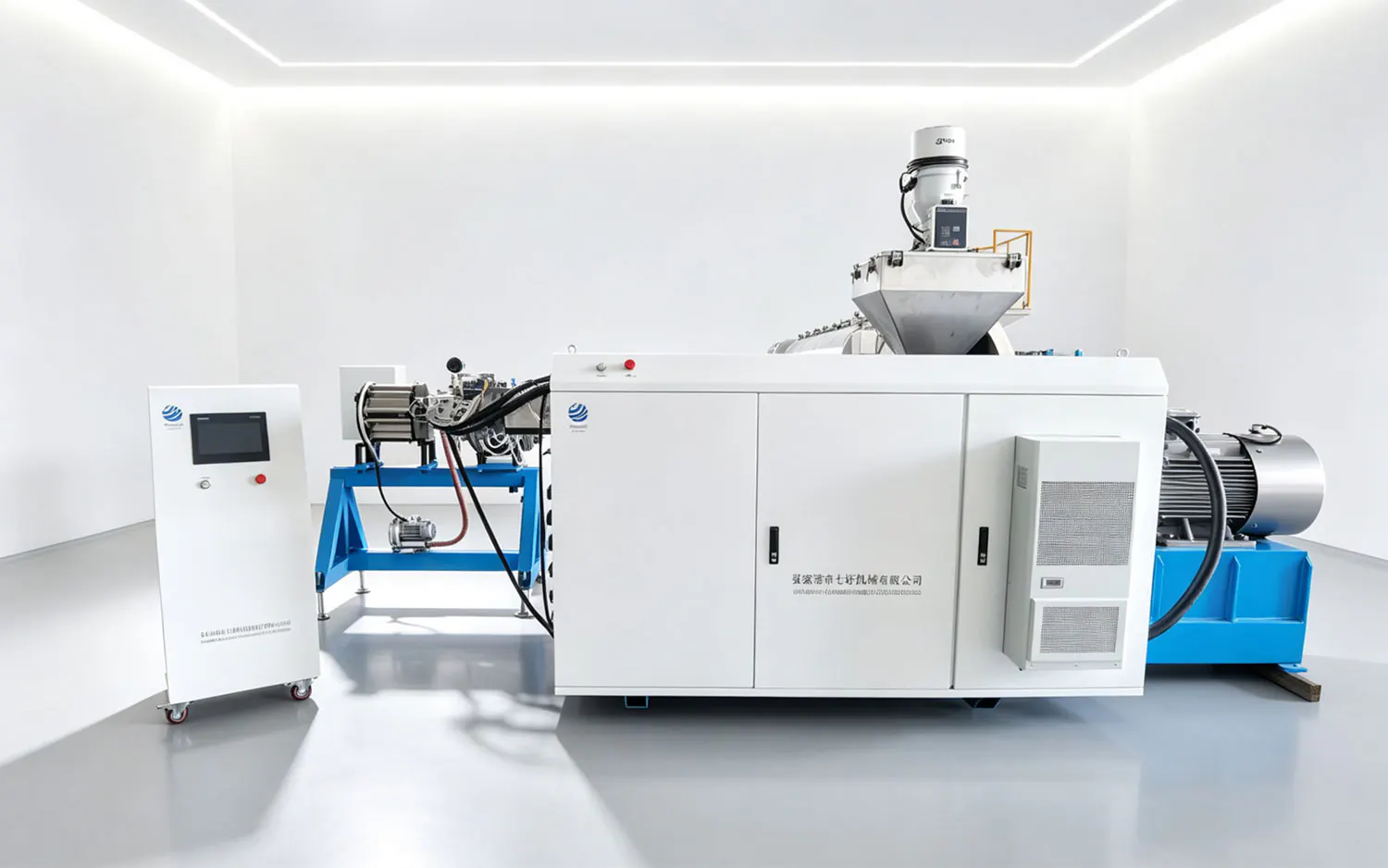

SJ65-33 Single Screw Extruder is designed for PE and PP sheet and profile extrusion applications requiring stable melt pressure, precise wall thickness control and efficient plasticization. The 33:1 long L/D barrier screw supports superior homogenization for virgin and recycled PP/PE materials.
Materials to be processed
PP / PE materialRaw Material
100-150 KG/HrOutput Capacity
SJ65-33Extruder Model
45 KW SIMOMain Motor
03
Core Advantages
Reliable & Powerful Driving System
Reliable drive control keeps operation stable.
Wide & Stable Production Capacity
Stable output supports efficient continuous production.
Intelligent Siemens PLC Control
Stable output supports efficient continuous production.
High-Grade Brand Electrical Components
Reliable drive control keeps operation stable.
Consistent Product Quality & Lower Cost
Optimized screw design improves plasticizing stability.
04
The Production Line Consists Of
Single Screw Extruder
The SJ65-33 features a single screw design known for simple and effective melting and mixing. The 65mm screw diameter and 33:1 L/D ratio provide excellent processing capability for a wide range of polymers.
Vacuum Loader
The integrated vacuum loader system automatically conveys raw materials from storage bins to the extruder hopper, minimizing manual handling and reducing dust or moisture contamination.
Hopper Dryer
The hopper dryer removes moisture from hygroscopic materials before they enter the extruder. Temperature control and airflow management help maintain stable material condition and final product quality.
05
Technical Parameters
| Extruder Model | Main Motor Power | Barrel Heating Power | Max. Rotating Speed | Max. Output |
|---|---|---|---|---|
| SJ45/33 | 30 KW | 12 KW | 118 RPM | 60~100 KG/H |
| SJ50/33 | 37 KW | 15 KW | 118 RPM | 80~120 KG/H |
| SJ60/33 | 55 KW | 14 KW | 130 RPM | 100~200 KG/H |
| SJ60/38 | 75 KW | 19 KW | 148 RPM | 180~300 KG/H |
| SJ65/33 | 55 KW | 20 KW | 150 RPM | 180~220 KG/H |
| SJ75/36 | 132 KW | 35 KW | 150 RPM | 350~450 KG/H |
| SJ75/38 | 160 KW | 35 KW | 165 RPM | 350~450 KG/H |
| SJ90/33 | 185 KW | 40 KW | 120 RPM | 450~550 KG/H |
| SJ90/38 | 250 KW | 40 KW | 165 RPM | 800~900 KG/H |
| SJ120/38 | 355 KW | 72 KW | 165 RPM | 1200~1400 KG/H |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
Q1: What model extruder are you offering for PP/PE sheet and profile production?
We supply SJ65-33 single screw extruder, specially designed for PE and PP sheet and profile extrusion, suitable for both virgin and recycled PP and PE raw materials.
Q2: What is the screw configuration of SJ65-33 extruder?
It adopts a 33:1 long L/D barrier screw with excellent melting and homogenization performance. The screw and barrel are made of 38CrMoAl with nitriding treatment.
Q3: What is the production capacity of SJ65-33?
Designed output range is 100-150 kg/h. The machine maintains stable melt pressure and supports precise wall thickness control during continuous running.
Q4: Could you share the main technical specifications?
Model SJ65-33, screw diameter 65mm, screw L/D ratio 33:1, 45KW SIMO permanent magnet energy-saving main motor and ABB inverter.
Q5: How about the drive system and gearbox?
It is equipped with a high-torque hard surface reduction gearbox for heavy load operation. The permanent magnet energy-saving motor and ABB inverter provide smooth speed regulation.
Q6: What materials can this SJ65-33 extruder process?
It is compatible with virgin PP and PE as well as recycled PP and PE materials. It also works with filled PE and carbon black filled formulations.
Q7: What advantages does nitrided 38CrMoAl screw and barrel bring?
The nitrided 38CrMoAl screw and barrel provide strong wear resistance and extended service life for filled and modified PE materials containing carbon black.
Q8: Is this machine suitable for sheet and profile extrusion line?
Yes. The barrier screw design provides superior homogenization, stable melt flow, consistent melt pressure and accurate wall thickness control for PE and PP sheet and profile lines.
