Fast Hot Mixing
The 110 kW, 700 RPM hot mixer rapidly disperses materials and generates uniform self-friction heat.
02
Product Overview

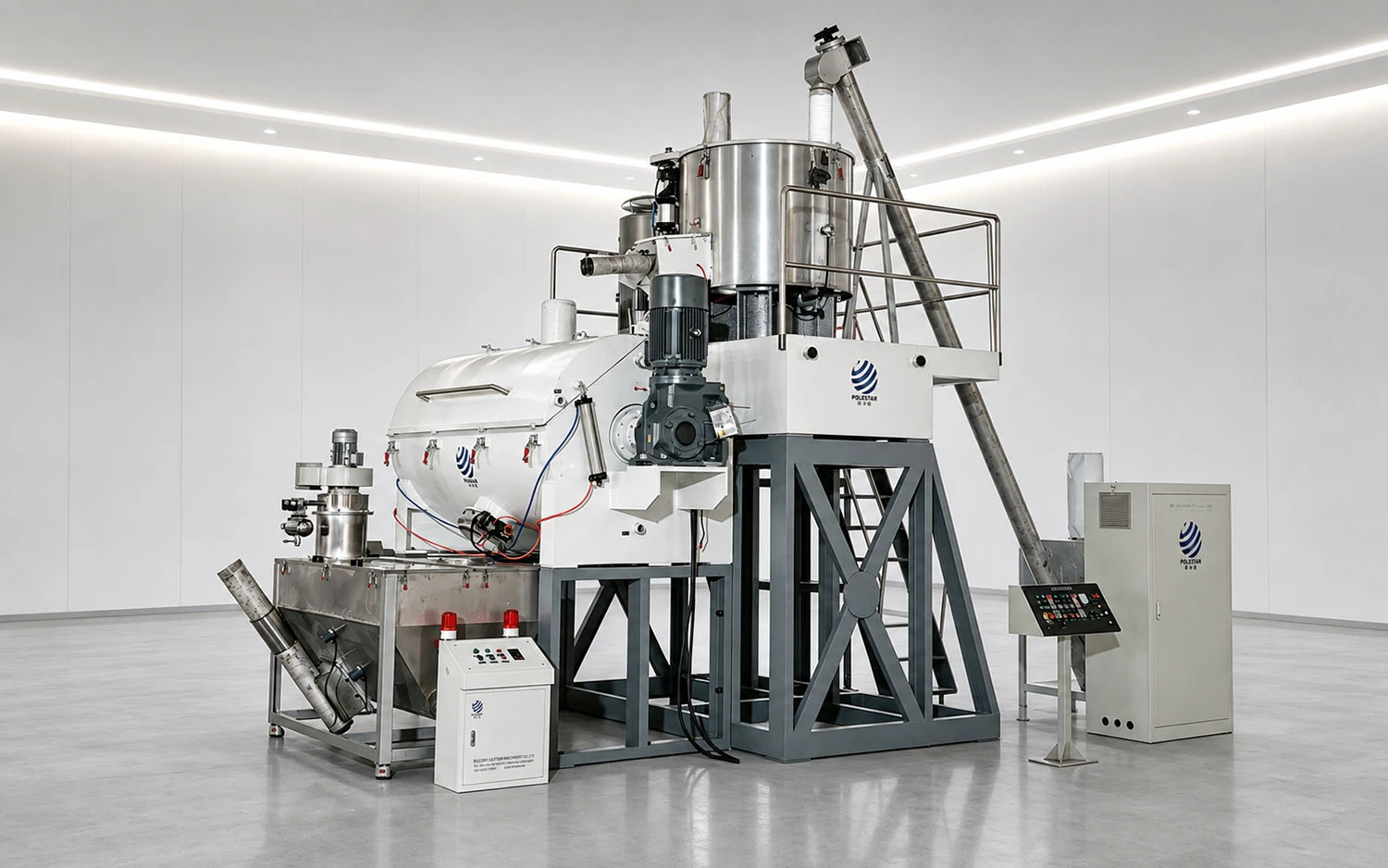

This 800/2000L hot-cold mixing unit is professionally optimized and specially designed for the compound mixing process of PVC powder, calcium carbonate and various functional additives. It adopts industry-standard graded parameter matching design, with perfectly calibrated tank volume, stirring speed and cycle time between hot mixing and cold mixing modules tailored for plastic formula mixing. The hot mixer realizes high-speed thermal homogenization and full dispersion of PVC powder, calcium carbonate fillers and additives, while the cold mixer completes low-speed constant-temperature cooling and material conditioning, forming a mature closed-loop continuous production process exclusive for plastic compounding. It eliminates production disconnection, material uneven mixing and capacity attenuation caused by mismatched unit parameters, delivering a sustained and stable hourly output of 1000~1100KG.
03
Core Advantages
Large Effective Volume
The 600 L effective hot volume accepts 250–280 kg per batch for stable 1000–1100 kg/h production.
Gentle, Uniform Cooling
The 2000 L cold mixer uses a 22 kW, 55 RPM drive and jacket water to cool without damaging compound structure.
Real-Time Temperature Control
Thermocouples monitor both stages, supporting repeatable 8–12 minute cycles.
04
Product Details
05
Technical Parameters
800 L Hot Mixer
| Parameter | Specification |
|---|---|
| Total volume | 800 L |
| Effective volume | 600 L |
| Single feed quantity | 250–280 kg |
| Mixing time | 8–12 min |
| Hourly output | 1000–1100 kg/h |
| Heating method | Self-friction |
| Temperature measurement | Thermocouple |
| Max. blade speed | 700 RPM |
| Motor power | 110 KW |
2000 L Cold Mixer
| Parameter | Specification |
|---|---|
| Total volume | 2000 L |
| Effective volume | 1875 L |
| Single feed quantity | Matched to hot mixer discharge |
| Mixing time | 8–12 min |
| Hourly output | Matched to hot mixer |
| Cooling method | Jacket circulating water |
| Temperature measurement | Thermocouple |
| Max. blade speed | 55 RPM |
| Motor power | 22 KW |
06
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
07
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
08
Customer Projects
09
Frequently Asked Questions
What is the hourly production capacity?
Stable capacity is 1000–1100 kg/h with 8–12 minute cycles and 250–280 kg hot-mixer batches.
How is the hot mixer heated?
Self-friction heating is standard; electric or steam heating can be customized.
How does the cold mixer cool material?
Jacket circulating water removes heat while a thermocouple monitors material temperature.
What are the mixer speeds?
Maximum speed is 700 RPM for the hot mixer and 55 RPM for the cold mixer.
What are the motor powers?
The hot mixer uses 110 kW and the cold mixer uses 22 kW.
Can mixing time be adjusted?
Yes, normally within 8–12 minutes according to formula and process.
What are the effective volumes?
The hot mixer is 600 L effective and the cold mixer is 1875 L effective.
Can the configuration be customized?
Yes. Heating, cooling, speed, feeding, discharge and controls can be tailored.
How is temperature measured?
Both stages use high-precision thermocouples for real-time monitoring.
What are the service and delivery terms?
The standard offer includes a one-year warranty and lifetime support; typical delivery is 15–25 working days, subject to configuration.
