Purpose-Built for Rigid PVC
Processes PVC pipes, profiles, decorative strips, fittings and production offcuts into reusable regrind.
02
Product Overview

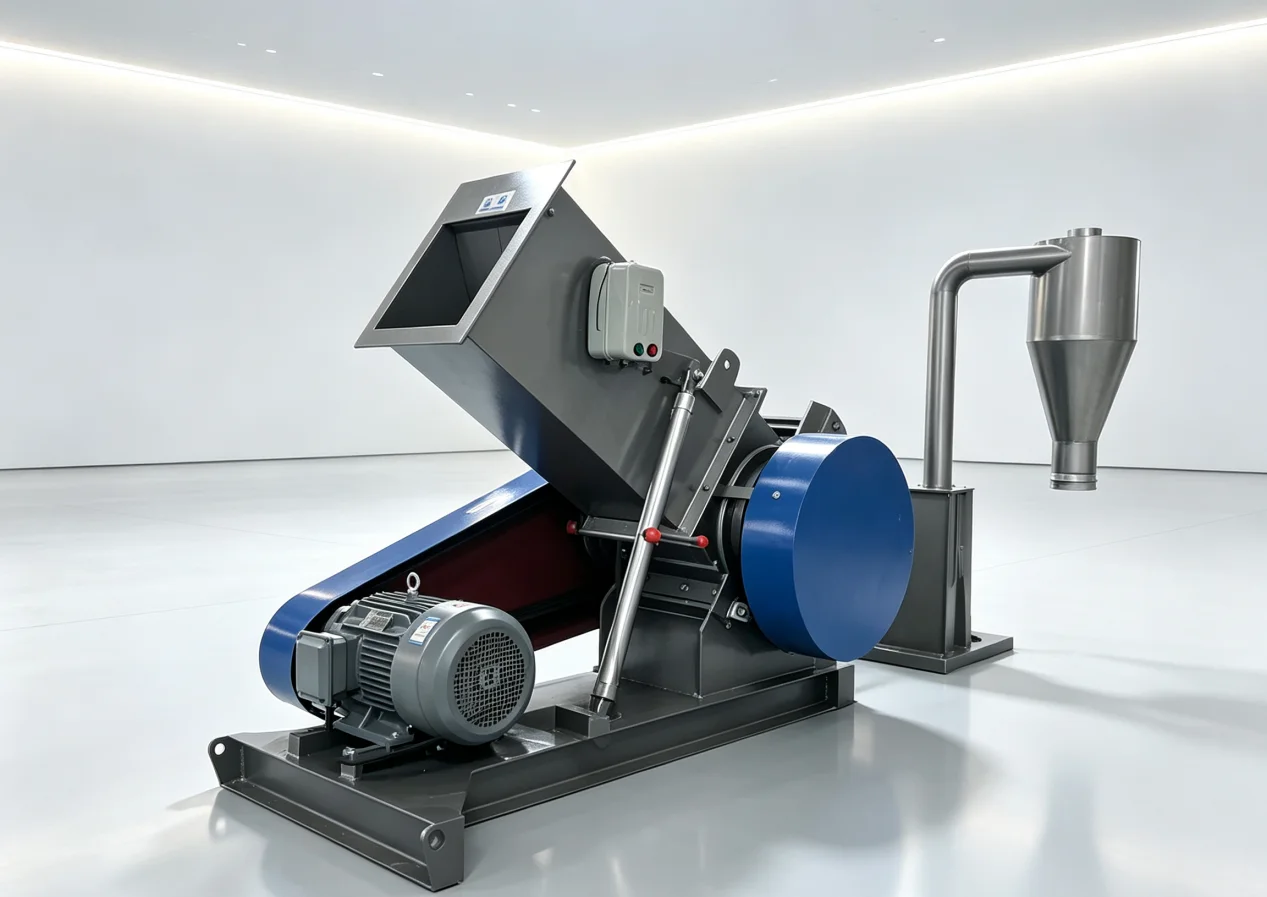

The SWP400 crusher is specially designed for rigid PVC pipes, window and door profiles, extruded sections, decorative strips and production offcuts. It turns bulky PVC scrap into uniform regrind that can be recycled or returned to an extrusion process, helping manufacturers reduce waste and raw-material costs.
03
Materials & Output
04
Core Advantages
Durable 400 mm Cutting System
Heat-treated QSiCr alloy blades provide strong cutting performance and can be removed, sharpened and replaced.
Adjustable, Uniform Output

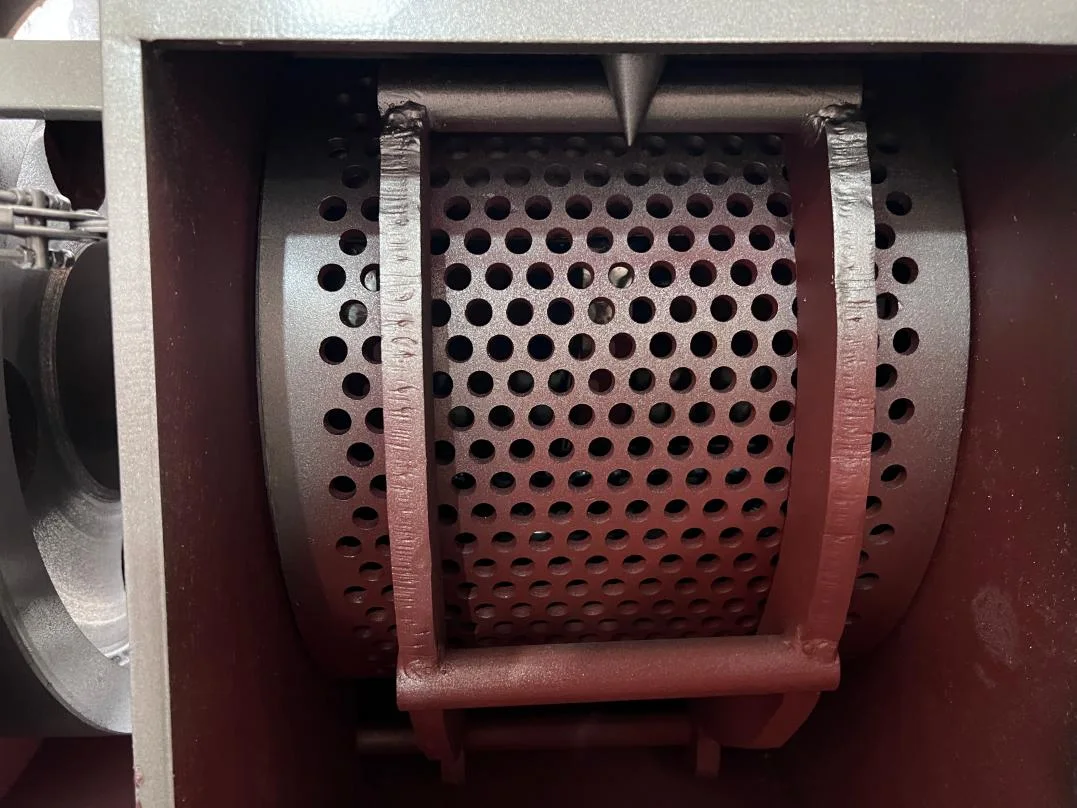

A replaceable screen controls final particle size; the standard 10 mm screen suits common recycling and refeeding applications.
Balanced Output and Energy Use
The 15 kW cutting motor and 3 kW fan deliver 350–450 kg/h without unnecessary installed power.
05
Product Details
06
Machine Video
07
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | SWP400 |
| Blade diameter | 400 mm |

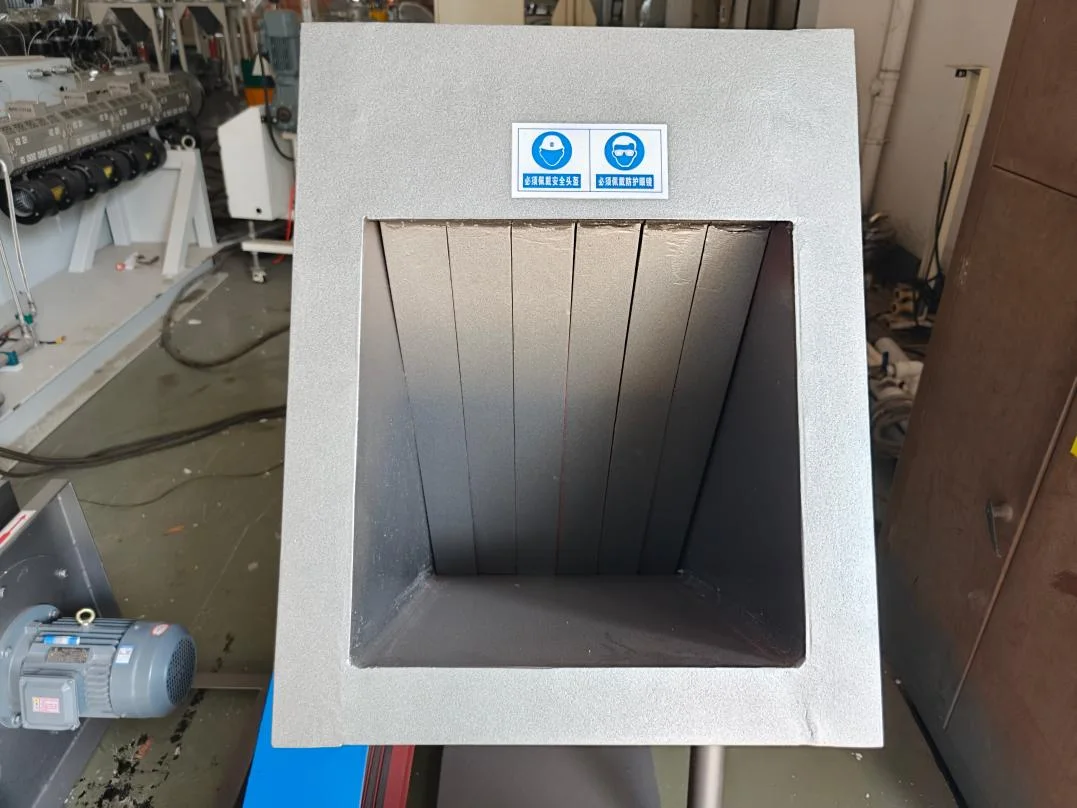

| Feed inlet | 375 × 320 mm |
| Cutting motor power | 15 kW |
| Fan motor power | 3 kW |
| Total installed power | 18 kW |
| Standard screen hole | 10 mm |
| Optional screen holes | 6 / 8 / 12 / 15 mm |
| Blade material | QSiCr alloy tool steel |
| Capacity | 350–450 kg/h |
08
Factory Strength
20+Years Experience
20MAnnual Sales
72hPre-delivery Test
CE & ISOCertified Machines
Integrated factory and exporter with independent R&D, mould machining, complete machine inspection, and overseas commissioning support.
09
Delivery & Container Loading
Polestar Machinery arranges machine packing, container loading checks, and export delivery coordination for plastic extrusion lines and auxiliary equipment.
10
Customer Projects
11
Frequently Asked Questions
What is the actual production capacity?
The SWP400 normally produces 350–450 kg/h when processing conventional rigid PVC pipes and profiles. Actual output depends on material shape, thickness and feeding continuity.
What material are the blades made from?
The blades use heat-treated QSiCr silicon-chromium alloy tool steel. They are removable, resharpenable and replaceable; blade angle and thickness can also be customized. Typical service life is about 1,000–1,500 hours under suitable operating conditions.
Can the screen and output size be changed?
Yes. The standard screen hole is 10 mm, and optional 6, 8, 12 and 15 mm screens are available.
How much power does the machine use?
Total installed power is 18 kW: 15 kW for cutting and 3 kW for the fan. Typical operating consumption is approximately 12–15 kWh per hour, depending on load.
Which materials can the SWP400 process?
It is suitable for rigid PVC water and drainage pipes, window and door profiles, decorative lines, fittings, extruded sections and plate offcuts.
What warranty is provided?
The standard warranty is one year for the machine and two years for the core motor, excluding misuse and normal wear parts.
