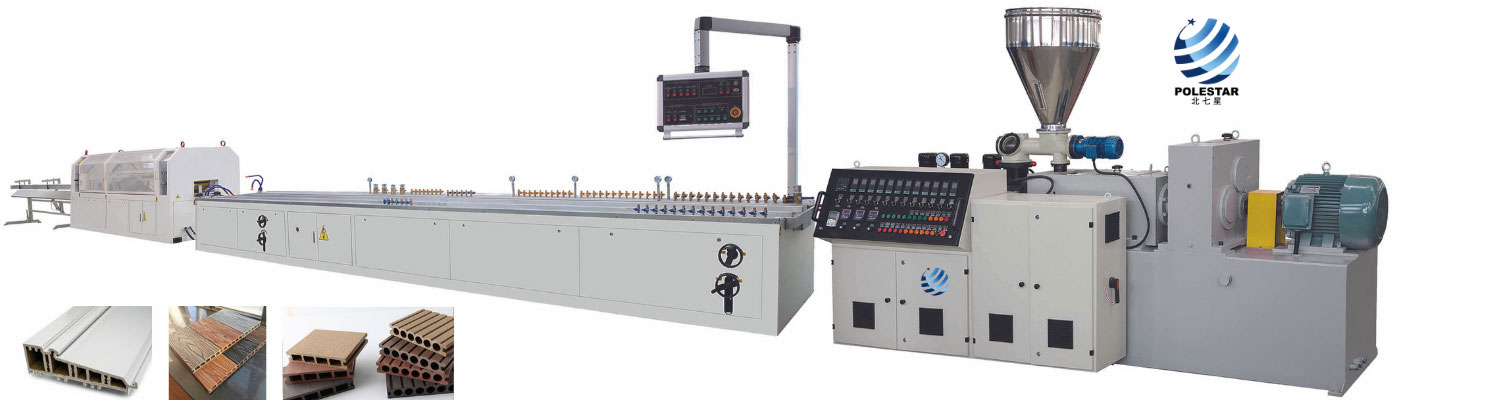

WPC PROFILE EXTRUSION LINE
Description
The WPC Profile Extrusion Line is a state-of-the-art manufacturing system designed to produce profiles made from Wood Plastic Composite (WPC) material. WPC is a combination of wood fibers and thermoplastic polymers, resulting in a durable, weather-resistant, and environmentally friendly material. It’s widely used in various applications, including decking, fencing, cladding, and ceiling panels.
The extrusion line starts with the mixing and preparation of the WPC material. The wood fibers and thermoplastic polymers are blended together in a controlled environment to ensure a homogeneous mixture. This mixture is then fed into the extruder, which is the heart of the extrusion line.
Inside the extruder, the WPC material is heated to a viscous state and pushed through a die. The die is specifically designed to shape the material into the desired profile, such as decking boards, fence rails, or ceiling panel profiles. The precision engineering of the die ensures accurate dimensions and a smooth surface finish for the extruded profiles.
As the profiles exit the die, they pass through a series of cooling rolls. This controlled cooling process solidifies the profiles and ensures they maintain their shape and dimensions. The speed and temperature of the cooling rolls are carefully adjusted to optimize the cooling process.
After cooling, the profiles are trimmed and cut to the required lengths. Additional finishing operations, such as sanding or polishing, may be applied to further enhance the aesthetics and durability of the profiles.
The WPC Profile Extrusion Line offers several advantages. It produces profiles with consistent quality and precise dimensions, meeting strict industry standards. The extrusion process is highly efficient and scalable, allowing manufacturers to adjust production rates based on demand. Furthermore, the use of WPC material offers environmental benefits, as it utilizes recycled wood fibers and thermoplastic polymers, reducing waste and promoting sustainability.
In summary, the WPC Profile Extrusion Line is a comprehensive manufacturing solution for efficiently producing high-quality WPC profiles. It combines advanced extrusion technology with the unique properties of WPC material, enabling manufacturers to create durable, attractive, and environmentally friendly profiles for various applications.
Technical Parameter
Model | Max. Width (MM) | Extruder | Max. Capacity (KG/Hr.) | Main Motor (KW) |
YF-108 | 108 | SJZ51/105 | 175-250 | 18.5 |
YF-180 | 180 | SJZ51/105 | 175-250 | 18.5 |
YF-240 | 240 | SJZ65/132 | 175-250 | 37 |
YF-300 | 300 | SJZ65/132 | 175-250 | 37 |
YF-400 | 400 | SJZ65/132 SJZ80/156 | 175-250 250-350 | 37 55 |
YF-600 | 600 | SJZ65/132 SJZ80/156 | 175-250 250-350 | 37 55 |
YF-800 | 800 | SJZ80/156 | 280-350 | 55 |
YF-1200 | 1200 | SJZ80/156 SJZ92/188 | 300-350 600-700 | 75 110 |
